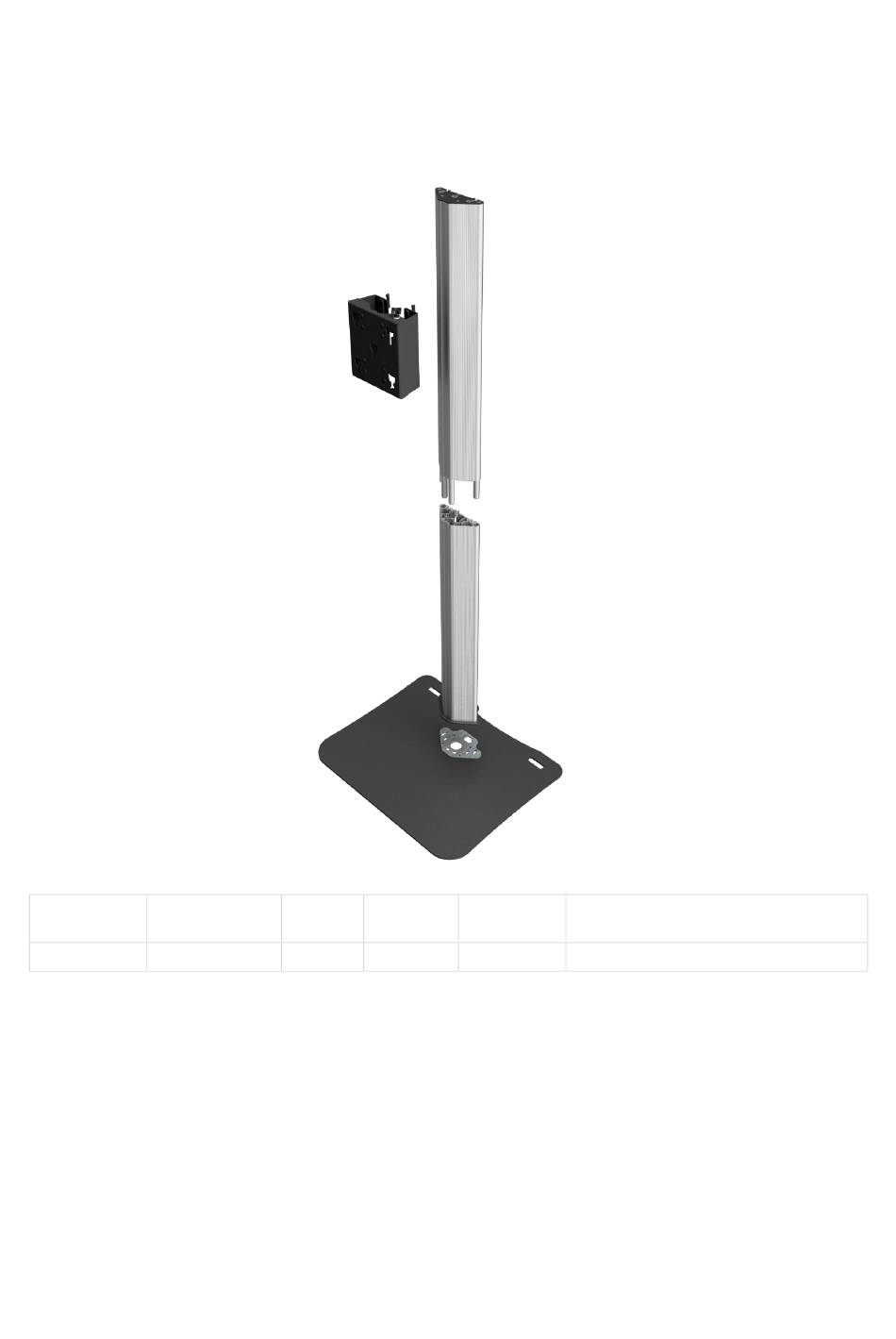

- Page 1 FSD-5001 Designstand for displays Manual Version 1.0 Date Revision No. Author Checked Approved Description 30.08.2023 First version Contact Tel.: +49 2204 9485 30 E-Mail: info@exactsolutions.de Web: www.exactsolutions.de...
-
Page 2: Table Of Contents
5.2 Specifications ........................11 6. Setting up the system ................11 6.1 Equipping the ground plate with felt pads (optional) ............ 11 6.2 Assembling the FSD-5001 Stand ..................12 6.2 Installing the display ....................... 19 7. System maintenance and inspection (Re-examination) ......22 8. -
Page 3: Preamble
Manual FSD-5001 1. Preamble The FSD-5001 has been developed and manufactured with the highest care and attention. However, improper handling can cause a risk for safety and / or damage. Read these instructions carefully before handling and installing the product so that you can safely enjoy your device. - Page 4 Installation work should only be carried out by a qualified technician. • If this product is not installed correctly, serious accidents and death may result. Do not use the FSD-5001 Stand outdoors. • This product is made only for indoor usage. If the product is mounted outdoors, there are many influences like wind or rain that can have an effect on the stability of the whole system.
-
Page 5: Caution
Do not place the FSD-5001 stand on top of unstable or sloped surfaces. • If the stand is placed on the top of a surface, which is sloped or unstable, it may tip over and injury or damage could result. -
Page 6: Risk Situations
Incorrect installation may lead to certain parts of stand with display or the entire system to tilt and fall down. • Protection objective: prevent personal injury and property damage. • Double check the FSD-5001 with display and their installation. Page 5 of 23 31.08.2023... -
Page 7: Scope Of Delivery
Manual FSD-5001 3. Scope of delivery Note: Please check the delivery for completeness and damage immediately after you receive the shipment. Please contact your vendor in case of missing or damaged parts. Upper part of the column with mounting head •... - Page 8 Manual FSD-5001 Ground plate • Number of units: 1 • Weight: 36,5 kg Felt pad set • (6 pcs) 70mm x 5mm, self adhesive, grey User manual for FSD-5001 Page 7 of 23 31.08.2023...
-
Page 9: Optional Accessories
Manual FSD-5001 4. Optional Accessories FSD-5000-A-01 Accessory for FSD-5000 series: Keyboard / Laptop shelf FSD-5000-A-02 Accessory for FSD-5000 series: Anti-theft bracket FSD-5000-A-03 Accessory for FSD-5000 series: housing for laptop or small PC, mountable on backside The optional accessories must be purchased separately. They are not included in the standard package. -
Page 10: Adapter Brackets
Manual FSD-5001 4.1 Adapter brackets ABD-multi201 VESA 200x200, 100x100 and 75x75 on 3-Pin Max. weight up to 60kg Slim design ABD-300 VESA 300x300 on 3-Pin Max. weight up to 60kg Slim design ABD-multi400 VESA 300x300 and 400x400 on 3-Pin Max. weight up to 60kg... - Page 11 Manual FSD-5001 ABD-644433 VESA 600x400 to 400x400 and 300x300 Max. weight up to 85kg ABD-6644 VESA 600x600 to 400x400 Max. weight up to 85kg ABD-8444 VESA 800x400 to 400x400 Max. weight up to 100kg ABD-8644 VESA 800x600 to 400x400 Max. weight up to 100kg Note: The above table is an excerpt of available adapter bracket.
-
Page 12: Description Of The Product
5. Description of the product 5.1 Intended use The FSD-5001 is a floor stand for professional displays. It is designed and intended to be positioned on the floor. Displays can be mounted with the suitable adapter plate to the mounting head. The mounting head can be adjusted in its height. Optional accessories can be attached to the stand. -
Page 13: Assembling The Fsd-5001 Stand
Manual FSD-5001 6.2 Assembling the FSD-5001 Stand Do not place the FSD-5001 stand on top of unstable or sloped surfaces. Do not use the FSD-5001 Stand outdoors. Make sure not to clamp your fingers, hands or feet during setup process. Wear appropriate protection equipment (safety shoes, safety gloves). - Page 14 Manual FSD-5001 Note that both parts need to be twisted to each other. Figure 5 shows the twist of approx. 11 degrees between the column and the ground plate. Figure 5 Correct positioning of column when not locked Step 3: Gently twist the lower column so that the mechanism locks. As you can see in Figure 7, the lower plate of the column fits in its orientation to the plate on top of the ground plate.
- Page 15 Manual FSD-5001 Figure 7 Twist to lock from bottom view Furthermore, the locking pin on the backside must be in its locked position. This means the pin is inserted and you can no longer see the red marking. See Figure 8 which shows the locking pin when it is unlocked.
- Page 16 Manual FSD-5001 Figure 9 Locking pin in locked position Make sure that the locking mechanism between lower column and ground plate is inserted correctly and locked! Step 4: Place the top column on the lower column. Lock the fastener between the two columns.
- Page 17 Manual FSD-5001 Figure 11 Fastener between the columns (left unlocked, right locked) Figure 12 open Fastener To have an easy dismantling of the columns, we recommend to open the fastener as shown in the right picture Figure 12. Page 16 of 23...
- Page 18 Manual FSD-5001 Step 5: If not already preinstalled, position the mounting head over the top column and let it slide into the corresponding nut channels of the column. See Figure 13. Figure 13 Mounting head Secure the mounting head at the desired height by tightening all four clamping levers on the backside of the mounting head.
- Page 19 Manual FSD-5001 Figure 14 Clamping lever on mounting head Make sure that the mounting head is correctly inserted in the nut channels of the columns. Also make sure that all four clamping levers are securely fastened. Step 6: Finally, use the tension knob at the bottom part of the lower column to reduce the play between the columns and the ground plate, by tightening it by hand clockwise.
-
Page 20: Installing The Display
Manual FSD-5001 Figure 15 Tensioning knob 6.2 Installing the display Make sure that only suitable displays are mounted to this stand! Do not try to use it with unsuitable displays because serious accidents can occur! Install a suitable mounting bracket to the display. The mounting bracket can either have 3 Pins or 5 Pins to connect to the stand. - Page 21 Manual FSD-5001 First the 3 or 5 pins of the adapter bracket need to be in the correct position of the mounting head where the key holes have a wider opening. After that the display with the adatper bracket can be moved downwards so that the pins slide into the more narrow part of the key holes.
- Page 22 Manual FSD-5001 Once the display is in the designated position, secure the connection by locking the unhinge safety mechanism. Figure 20 Unhinge mechanism, left side unlocked, right side locked If necessary, you can use the knob (see on top of the mounting head to adjust the horizontal tilting of the display.
-
Page 23: System Maintenance And Inspection (Re-Examination)
Figure 22 Padlock Position 7. System maintenance and inspection (Re-examination) The FSD-5001 does not require special maintenance but a visual inspection must be done prior to every installation in which the system is involved. The inspection must be done by a qualified person! If one notices any sort of damage, stop using the product and contact the manufacturer. -
Page 24: Disposal Of Components
Manual FSD-5001 8. Disposal of components 8.1 Metal parts and packaging All metal parts and packaging can be recycled. 8.2 Disposal of entire devices You have the possibility to send old devices back to us. Please note that you have to take over the transportation costs for this.
