Summary of Contents for TYVA PowerCase Moduloo E Series

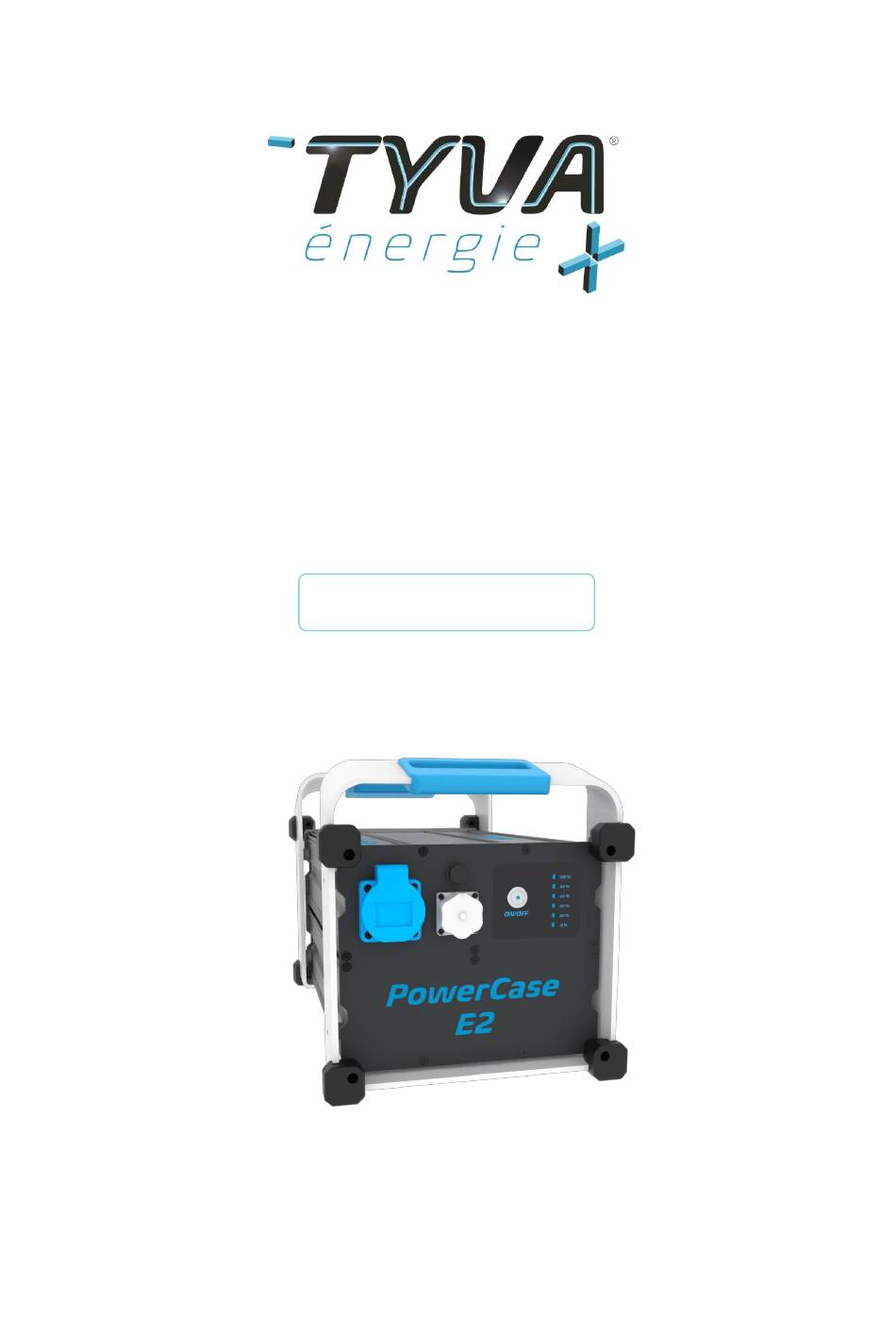

- Page 1 PowerCase Portable power station Moduloo Ex range User manual V2.0 – 15/02/2024...
-
Page 2: Table Of Contents
4.2. Mechanical specifications ....................9 4.3. Applications autonomy ......................9 4.3. Mechanical dimensions ....................... 10 5. Outlet recharge ......................... 11 6. TYVA Smart Dashboard app ....................... 12 6.1. Introduction......................... 12 6.2. Access and connectivity ...................... 12 6.3. Functionalities ........................13 6.4. -
Page 3: Presentation
Bring your portable power Increase the durability of your system station with you wherever you thanks to TYVA Refill lithium batteries want thanks to its handy design reconditioning technology. and its light format. Modular Smart monitoring Upgrade the energy capacity of... -
Page 4: Safety Instructions
If the product accidentally falls in water, put it in a safe and clear place and stay away. Once dry, do not use it and call TYVA Energie’s support. -
Page 5: Storage And Maintenance
You also have the possibility to return your portable power station to TYVA Energie, so that it can be reconditioned as part of our TYVA Refill process. Indeed, we commit ourselves to prolong your energy system’s shelf life by replacing cells at end-of-life. -
Page 6: Use
Ref: TYELE_4296 Optional accessories These accessories are not included in the PowerCase delivery. Please contact TYVA Energie if you wish to order them. All cables listed above are two meters in length. You have the possibility to order longer cables... -
Page 7: User Interface
When recharging, the indicator light charging blinks until complete and lit continuously, then passing to the below indicator light. Once there is only one indicator lit, the latter turns red to indicate that the PowerCase’s charge level is too low. www.tyva-energie.com... -
Page 8: Starting Up
Only one 220 VAC 63 A adapter is included in delivery when you order a PowerCase. You can get an additional cable by contacting TYVA Energie’s support. The PowerCase’s specific operating temperatures must be respected. It can only be used in a - 10 °C to + 40 °C temperature range. - Page 9 Performances of the PowerCase depending on its use temperature are available in the table right below: PowerBox E2 25 °C 35 °C 1.25 kW 750 W Nominal power 1 hour and a half 3 hours 3 kW 3 kW Peak power 15 minutes 10 minutes www.tyva-energie.com...
-
Page 10: Technical Specifications
These estimates are determined on an indicative basis since there are other factors that may affect the autonomy, such as the internal temperature or the battery’s state of charge. You can find the estimated use durations of various electrical applications powered by our products in this table: www.tyva-energie.com... -
Page 11: Mechanical Dimensions
Concrete mixer / LED SkyPanel X projector 800 W 2h30 Drill / Coffee machine / Mobile air conditioner 1 kW Grinder / Circular saw 1,5 kW Radiator / Chipping hammer 2 kW 30 minutes Welding station 3 kW 15 minutes 4.3. Mechanical dimensions www.tyva-energie.com... -
Page 12: Outlet Recharge
The PowerCase will remain activated if it is already switched on when we plug the cable. Power outlet Input power /VAC Maximum continuous charge power Maximum continuous charge current www.tyva-energie.com... -
Page 13: Tyva Smart Dashboard App
Privacy policy. Please consult the dedicated page on our website to learn more: https://tyva-energie.com/en/privacy-policy/ After downloading the app, there are a few easy steps to follow in order to connect TYVA Smart Dashboard to your portable power station: 1. Launch the app, 2. -
Page 14: Functionalities
You can access to this tab by clicking on the icon represented by a battery. It gathers various data about cells’ temperature and voltage, thus allowing a further understanding of the battery. Discover the following details: PDU temperature, • Cells temperature, • Cells voltage, • Cells balancing. • www.tyva-energie.com... -
Page 15: Warnings And Errors
You can access to the detail of the errors’ diagnosis detected by the PowerCase’s protection system. This is possible using the TYVA Smart Dashboard app where notifications appear in the “Alerts” tab to signal a problem inside the system. Thus, there are two types of alerts: warnings (blue icon) and errors (orange icon) corresponding to the following events: www.tyva-energie.com... - Page 16 The “UnderVoltage” error means that the battery will not discharge lower than the minimum voltage threshold defined by the “under_voltage_threshold” setting. This threshold is defined at cell level. If one of the cell voltages is below this threshold, the error is activated and the discharge relay then opens to www.tyva-energie.com...
- Page 17 The “AfeIssue” error is a BMS internal error. This error is detected if the cell voltages or temperature values cannot be read. An error is detected between the AFE and the microcontroller. Caution: after an AFE error, the battery goes into standby after 20 seconds. www.tyva-energie.com...
- Page 18 If the error is active, pre-charging is not authorised during the opening sequence. After this error, it is necessary to wait 10 seconds in order to perform an acknowledgement. If you have any question concerning an error, please contact TYVA Energie’s support. www.tyva-energie.com...
-
Page 19: Status
PduCurrentError: OverCurrent, PduLock, PduFailure, ShortCircuit and ShortCircuitOnprecharge, • VoltageError: UnderVoltage and OverVoltage, • TemperatureError: UnderTemperatureCharge, OverTemperatureCharge, UnderTemperatureDischarge, OverTemperatureDischarge and PduOverTemperature, • SystemError: CurrentCalibration, CellIssue, SlaveSilent, AfeIssue and ChargerError. If you have any question regarding a status, please contact TYVA Energie’s support. www.tyva-energie.com... -
Page 20: Maintenance
TYVA Energie will confirm the reception of the warranty request and will transfer you safety instructions to respect regarding the transport and the packing of the product to send back. TYVA Energie will not accept any product return if no warranty request was constituted. Similarly, TYVA Energie needs to confirm the reception of the product return request before sending it. -
Page 21: Disclaimer
TYVA Energie cannot under any circumstances be held responsible for any damage caused by a force majeure case or consequences of an improper or non-compliant use regarding this user manual.
