Tidy living TL16-014 Quick Start Manual

A x 2
B x 4
STEP 1
Insert rods "A" into rods "B".
Insert bolts "L" through side "B" into
rods "G" and tighten.
A
A
B
B
L
B
L
G
L
G
STEP 4
Insert handles "H" through bags "I" as shown and hang
on back bar "D" and front rods "B" & "F"
H
H
I
B
F
TL16-014

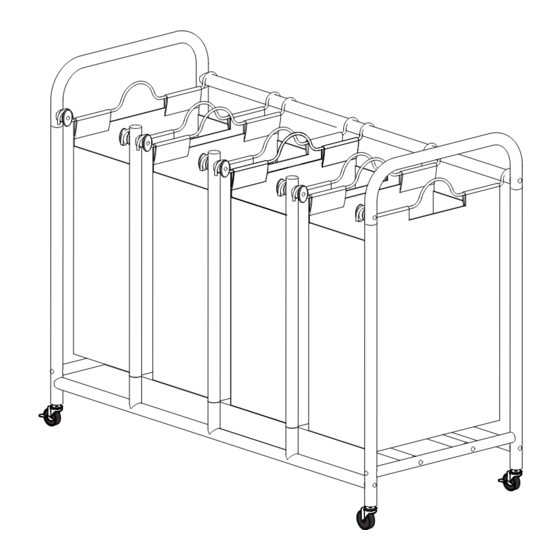

4 Bag Laundry Sorter
C x 1
D x 2
E x 2
STEP 2
Insert bolts "M" through front rods
"B" into part "N".
Insert bolts "L" through side "B"&"G"
and into rods "D", "E" & "C" as shown
and tighten.
L
M
N
B
L
B
G
E
L
C
D
F
F
B
Learn more on our
H x 8
F x 3 G x 2 I x 4
D
M
N L
B
D
E
O
G
L
STEP 5
Noted:
Bin x 4 maximum safe load: 37 lbs (17kg)
NEED HELP?
call our helpdesk toll-free: 1-844-720-TIDY (8439) between 9 am and 5 pm PST
Monday to Friday. Or email us: support@tidyliving.com
DATE CODE 10/2016
channel
J x 2
L x 17 N x 2
K x 2
O x 1
M x 2
STEP 3
Insert rods "F" into rod "C" and tighten
bolts "L" as shown.
Insert castors "J"&"K" as shown.
F
B
C
K L
L
L J
J
K
For help with assembly or missing part ordering, please
Version-10-12-2016
