Summary of Contents for ENERpower SGR-PPS2000-3 PRO

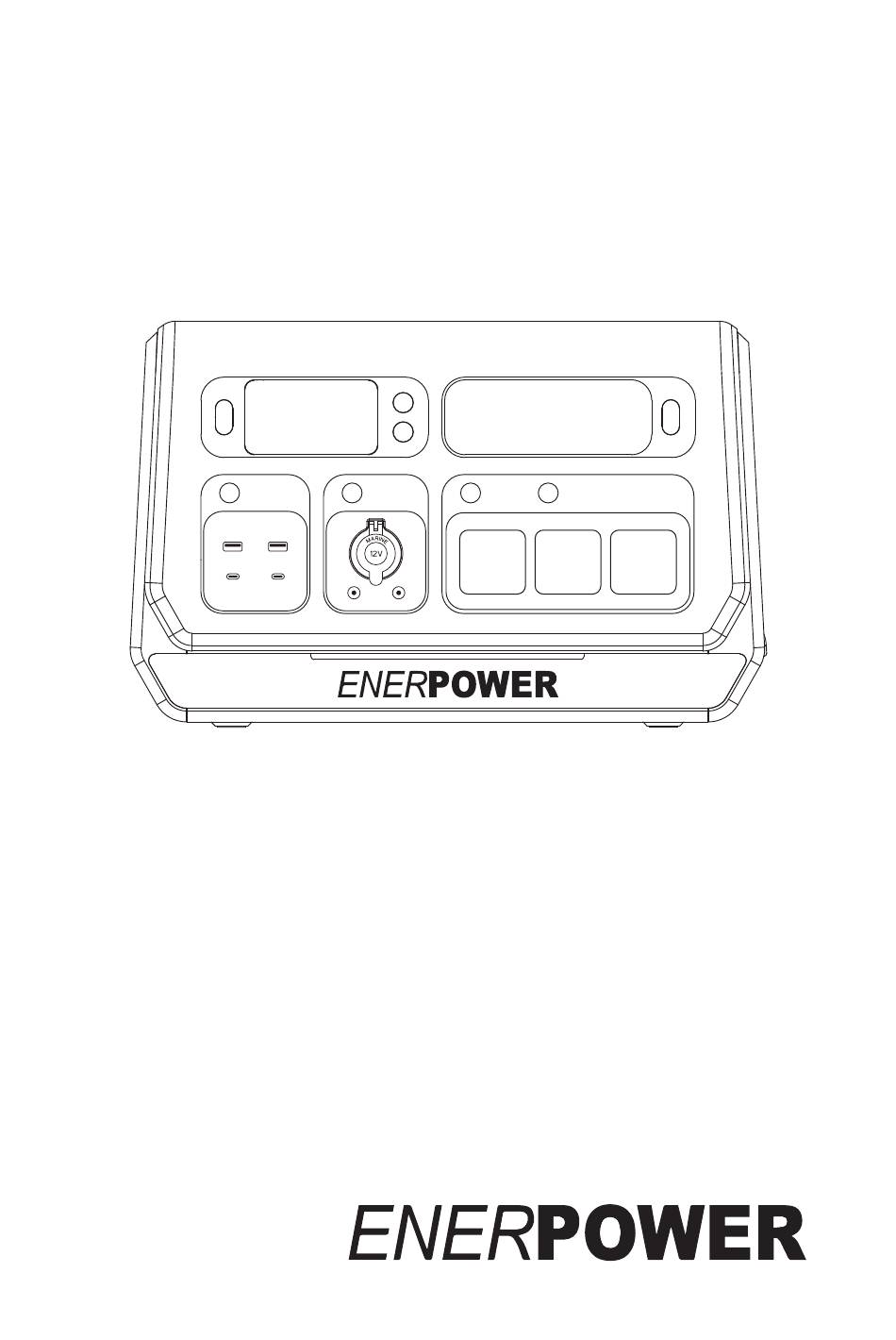

- Page 1 User Manual SGR-PPS2000-3 PRO All-In-One Power Station Before using this product, please thoroughly read and follow the instructions in this manual. Retain the manual for future consultation and guidance.
- Page 2 WARNING Before using our power station, please read the following instructions carefully: 1. Heat Sensitivity: The power station contains a lithium battery sensitive to high temperatures. Avoid exposure to direct fire and other heat sources. 2. Moisture Avoidance: Ensure the unit is kept away from moisture and water. 3.
- Page 3 Thank you for choosing ENERpower to energize your world. At the heart of ENERpower is a commitme is a commitment to bringing positive energy and innovative solutions to your life. Our products, from high-quality batteries to advancedchargers, embody the spirit of German engineering-synonymous with quality, performance, safety, and longevity.
-
Page 4: Table Of Contents
1. Contents 2. Preface ......................... 5 3. Safety Instructions ......................5 3.2. General Requirements ..................6 3.3. Grounding Instructions ..................6 3.4. Storage Instructions ..................... 7 4. Package Contents ...................... 8 5. Technical Specification ....................8 6. Product Overview ......................9 7. -
Page 5: Preface
Operate or store the product as specified in this manual. Avoid unauthorized disassembly, component replacement, or software modification. ENERpower is not responsible for any damages arising from the following situations: Damages from force majeure events (earthquakes, fires, etc.). Damages from customer's transportation. -
Page 6: General Requirements
3.2. General Requirements GUIDELINES FOR PREVENTING FIRE, ELECTRICAL SHOCK, OR PERSONAL INJURY ESSENTIAL SAFETY INSTRUCTIONS WARNING: Basic precautions should always be followed, including: Read all instructions before use. Supervise use near children to prevent injury. Keep fingers and foreign objects away from the product. Use only manufacturer-recommended attachments. -
Page 7: Storage Instructions
Keep at 5℃ to 35℃ before charging. Recommended charging via AC or a solar system with output over 100W. ENERpower will not be held responsible for any damage to equipment resulting from the non-compliance with the aforementioned instructions. SAVE THESE INSTRUCTIONS - The symbol displayed is a reminder to read the instructions before operation and maintenance. -
Page 8: Package Contents
4. Package Contents User Manual SGR-PPS2000-3 PRO All-In-One Power Station Before using this product, please thoroughly read and follow the instructions in this manual. Retain the manual for future consultation and guidance. 1*AC 1*MC4 Cable 1*PV Connectors 1*User Manual 1*DC Cable Power Cord 5. -
Page 9: Product Overview
6. Product Overview Introducing the PPS2000-3 PRO Power Station, a powerful and versatile companion for your travel and outdoor adventures. This station features a robust 2200W capacity with a high-efficiency LiFePO4 battery, ideal for powering a wide range of devices from small gadgets to large appliances. It is designed for both emergency situations and outdoor activities, equipped with multiple output options including AC outlets, DC ports, a car port, Type-C port, and USB 3.0 ports for fast charging. -
Page 10: Using Your 2200W Power Station
7. Using Your 2200W Power Station 1.Long press the on/off button 3 seconds or press any of the port buttons to turn on the power station. To turn off the power station long press the turn on/off button 3 seconds. 2.The individual port buttons turn on or off the power to their respective ports. -
Page 11: Lcd Display
8. LCD Display WiFi Indicator UPS Function Indicator Solar Panel Input Indicator AC Output Indicator MIG/Off-Grid Function Indicator Output Frequency Input Power Output Power Charging Mode Indicator(Q,N,S) Overload Warning DC Output Indicator Short-circuit Warning USB Output Indicator Temperature Warning Output Power Indicator LED Indicator Remaining Usage Time or Remaining Battery... -
Page 12: Mig/Off-Grid Modes
9. MIG/OFF-Grid Modes "MIG" is the abbreviation of "Micro Inverter for Grid-connected". MIG refers to micro grid connection mode. Please read the following content carefully before formally operating the micro grid connection mode. WARNING To prevent any safety hazards due to a loose power connection, always ensure the unit is securely fixed in position. - Page 13 3.When the LCD screen displays the "MIG" icon in the INPUT section, along with the power value in the OUTPUT section, it indicates the grid-connected output power. 4.To select different micro grid-connected power levels, you need to use the App. After successfully connecting to the App, find the "On-Grid info" in "Output"...
- Page 14 5.There is "MIG timing" function which can be set in the App. After successfully connecting to the App, find the "MIG timing on/off" in the "Others" page to turn on the "MIG timing" function and set the start time and end time of "MIG timing" mode in "MIG time setting".
-
Page 15: Micro Grid Connection Operation-Photovoltaic Grid Mode
9.2. Micro grid connection operation-Photovoltaic Grid Mode The photovoltaic grid mode refers to the use of a connection to photovoltaic solar panels and the availability of sunlight to convert solar energy into electricity. 1.Please plug one end of the AC power cord into the mains power outlet and the other end into the AC input port of the power station. - Page 16 3.2 When the photovoltaic power generation charges the power station to 100%, if the power station is connecting to the mains power and detects that the mains power connection is in normal state, the power station will automatically enter photovoltaic grid mode. In this photovoltaic automatic grid connection mode, the photovoltaic power generation still prioritizes charging the power station, and the excess photovoltaic power generation will directly supply to the mains power.
- Page 17 5.To select different micro grid-connected power levels, you need to use the App. After successfully connecting to the App, find the "On-Grid info" in "Output" status section of "Device" page to select grid-connected power. There are four grid-connected power options: 200W / 400W / 600W / 800W. Power Station Input 800W Output 200W...
- Page 18 CAUTION 1.The available grid connection duration and grid-connected output power depend on the following conditions: 1.1 Power of PV solar panels. 1.2 Local sunshine hours and sunlight intensity. 1.3 App grid-connected power setting. 2.If you need to increase the grid-connected power, you can add more solar panels.
-
Page 19: Ways To Recharge
10. Ways to Recharge 10.1. AC Wall Charging Please connect the AC power cord, and press the button" "on the unit's front panel to start charging. This device default charging mode is ‘N’ (Normal-Charging mode). You can switch to other charging modes using the button. -
Page 20: Solar Charging
10.3. Solar Charging Note: Please make sure your solar panels comply with Open Circuit Voltage of DC18-100V. The Max Solar Input Power of the power station is 1200W. 1*200W Solar Panel <12 hours (in full sun) Note: When you want to connect two or more solar panels, please use the PV series connectors for the connection. -
Page 21: Safety Precautions When Charging
10.4. Safety Precautions When Charging 1.Please ensure that the voltage of all solar panels connected in series is the same, and try to use the same type of solar panel. 2.Please don't put the power station in direct sunlight while charging in the high temperature environment. -
Page 22: Usage
12. Usage 12.1. Emergency: The power station can be used as an emergency power supply during power failures. It is especially suitable for locations that are prone to severe weather patterns and natural disasters including floods, hurricanes, earthquakes, forest fires, and snowstorms. -
Page 23: Faqs And Solutions
14. FAQS and Solutions 1.Why we need to install a balcony PV power system? When this power station used as a balcony PV power station, it stores energy from solar panels in the power station. And it can connect to the grid to provide power to the household, aiming to help users save on electricity bills. - Page 24 7.Why is there any sound during use or charging? This product with intelligent temperature control system, built-in fans help our product to get better cooling and securing usage, slight noise is normal during using or charging. 8.Can i charge the 2200w power station while a device is plugged in? Yes, this unit support Pass-Through Charging, you can simultaneously charge other devices while recharging the power station.
-
Page 25: Common Trouble Shooting
15. Common Trouble Shooting Failure Types Solutions Description 1.Please ensure to use original AC power cord. 2.Please check if the AC wall plug Unit can not charging AC charging fault from AC wall outlets correct connection. If not solved, please contact our after-sales service. -
Page 26: Maintenance And Storage
16. Maintenance and Storage 1.When not using the unit for extended periods of time, power off the unit and disconnect the AC adapter from the outlet. 2.Charge the unit to 80% capacity every 3-6 months for long-term storage. 3.When the battery capacity drops to 20%, recharge the power station in time to extend the battery life. - Page 27 POWER YOUR LIFE www.enerpower.de @enerpower.de @ enerpower.de @ ENERpower ENERpower is a brand of Enerdan GmbH Address: Max-Planck-Str. 7, 12489 Berlin , Germany To find more accessories and products, visit our commercial web store: www.enerprof.de Customer Service Telephone: 030 5770 344 35 Email: sales@enerdan.de...
