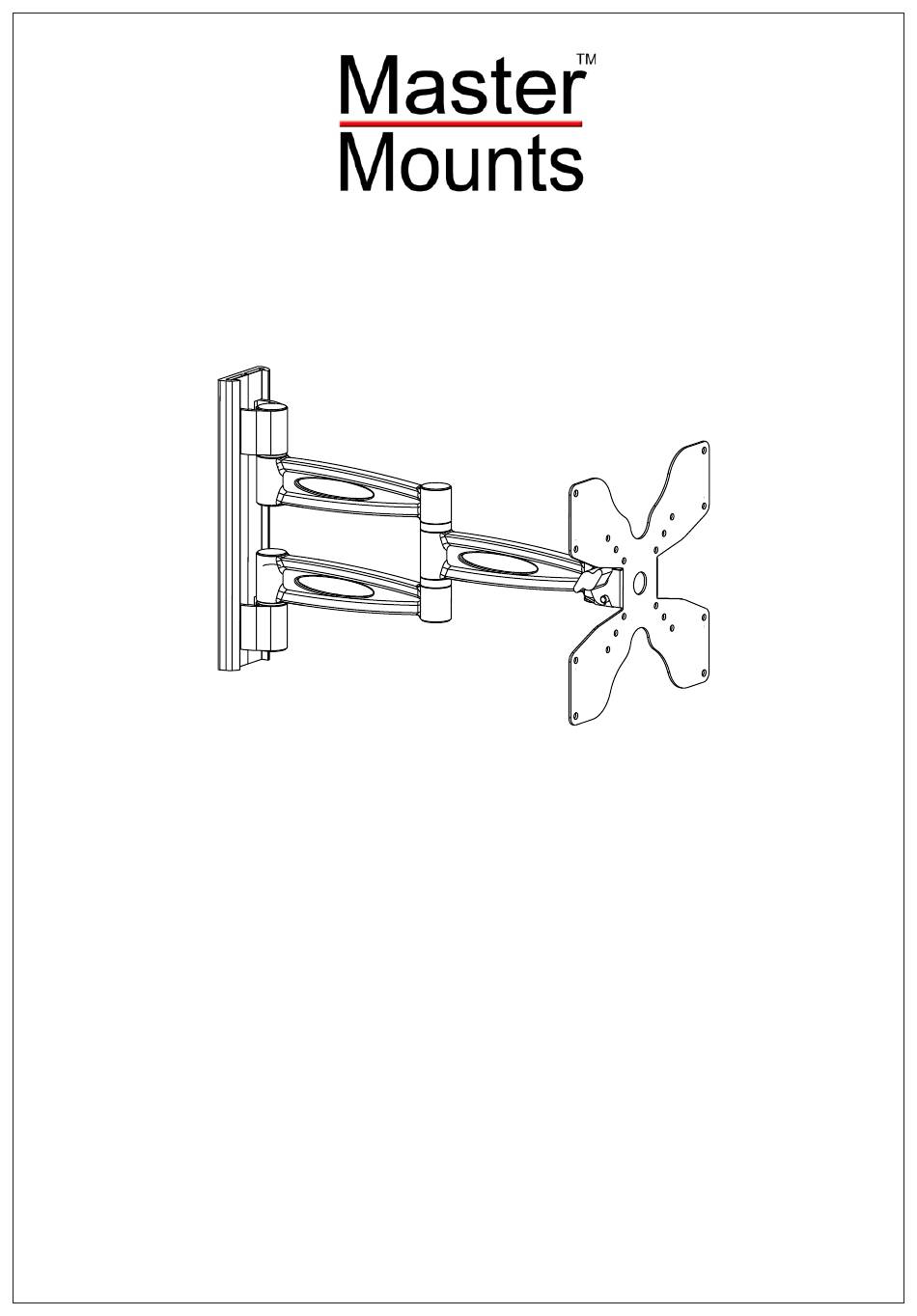

Mounting Instructions
for Model: 408
Check package contents against the Supplied Parts List on the next page to
be sure that all components were received and are undamaged.
Carefully read all instructions before attempting installation.
IMPORTANT SAFETY INFORMATION
Install and operate this device with care. Please read these instructions before
beginning the installation, and carefully follow all instructions contained.
Please call a qualified installation contractor for help if you: 1) Don't understand
these directions or have any doubts about the safety of the installation, 2) Are
uncertain about the nature of your wall.
Do not use this product for any other purpose or in any other configuration not
specified in these instructions. We hereby disclaim any and all liability for injury
or damage arising from incorrect assembly, incorrect mounting, or incorrect use
of this product.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 408 and is the answer not in the manual?

Questions and answers

james Hughes
February 24, 2025

i **** trying install a back plate from the MM Model#2744L

Summary of Contents for Master Mounts 408

  • Page 1 Mounting Instructions for Model: 408 Check package contents against the Supplied Parts List on the next page to be sure that all components were received and are undamaged. Carefully read all instructions before attempting installation. IMPORTANT SAFETY INFORMATION Install and operate this device with care. Please read these instructions before beginning the installation, and carefully follow all instructions contained.
  • Page 2 Supplied Par ts List (1)Wall Plate-a (1)Mount Arm-b (1)Screw Cover-d (1)Monitor Bracket-c (4)M4x12 Bolt-e (4)M4x30 Bolt-f (4)M6x12 Bolt-g (4)M6x35 Bolt-h (8)M4 Washer-i (6)M6 Washer-j (4)M4/M6 Space-k (4)Lag Bolt-l (4)Concrete Anchor-m (2)Safety Knob-n (2)Cable Ring-o 2 x Allen Bolt (p) 2 x Spring Washer (q) 1 x Allen Key (r) CAUTION! This TV mount must be securely attached to the...
  • Page 3 Attaching the Wall Plate to the Wall Step 1 Cement Wall 50mm 40mm Make sure the Allen Bolt stop screw is on the bottom side when do this step. Wood Wall 50mm Make sure the Allen Bolt stop screw is on the bottom side when do this step.
  • Page 4 Tilt tension of the Mount’s Tilt angle feature. If you use Allen Bolts you must also use Allen Key (r) to adjust the mount’s tilt angle tightness. Pinch the Cable Management Rings into the Arm’s openings Step 5 Thank you for choosing Master Mounts...ENJOY! 11052015...
