Summary of Contents for SeaView SP1MOD

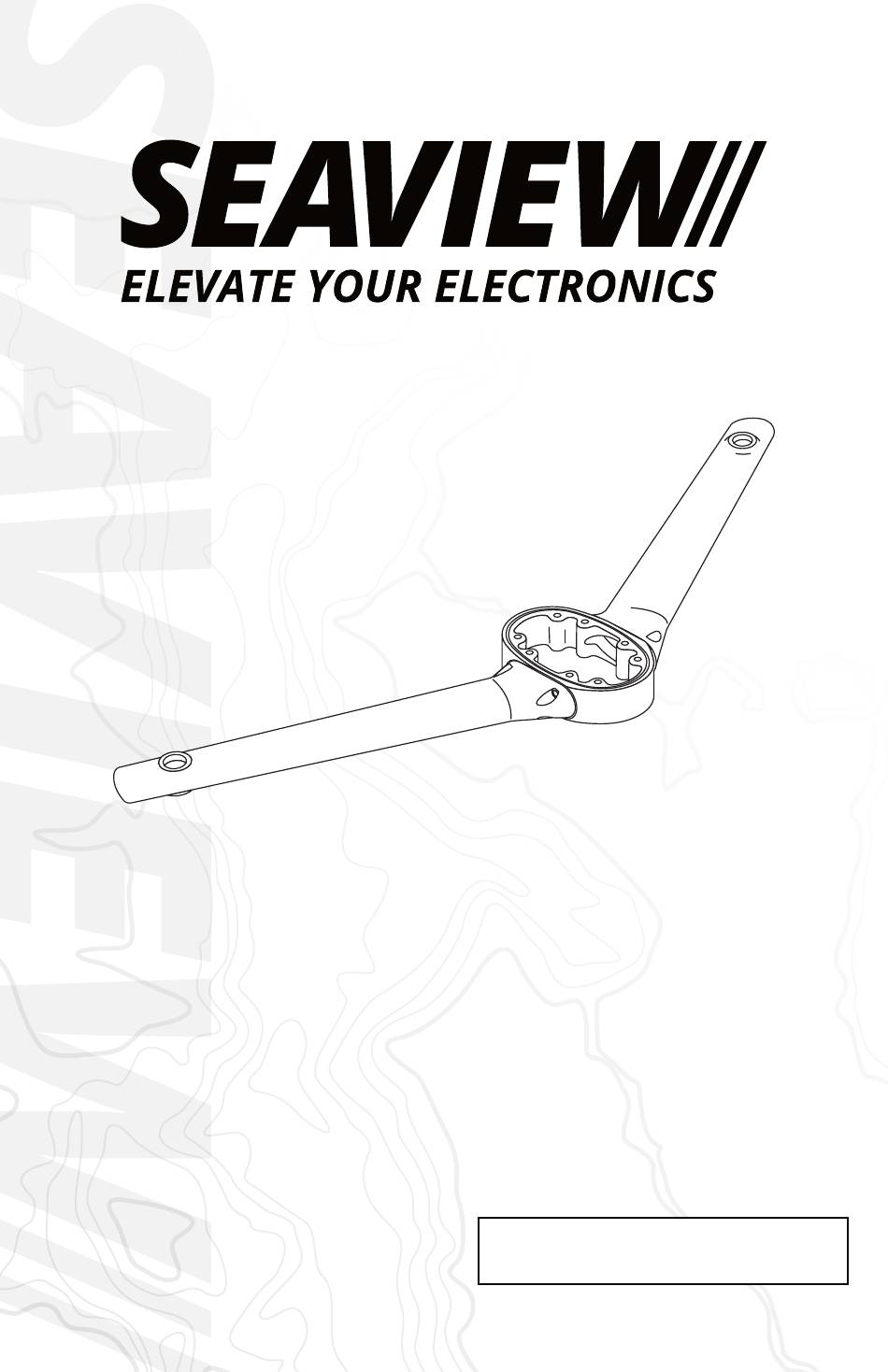

- Page 1 INSTALLATION INSTRUCTIONS For Seaview Spreader Kits: SP1MOD, SP1MODBLK SP2MOD, SP2MODBLK Refer to website for most up to date instructions and videos. WWW.SEAVIEWGLOBAL.COM...
-
Page 2: Parts Included
PARTS INCLUDED SP1MOD SP2MOD SP1 Extention Rod SP10 SP12 SP7SS TOOLS NEEDED Sudbury Elastomeric Marine Sealant is recommended. To purchase call 800-655-7922 or visit www.seaviewglobal.com... - Page 3 Apply the rubber grommet onto the threaded adapter and then insert through the spreader. Apply another rubber grommet and plastic nut on the threaded adapter. Note: Apply Tef-Gel around the inside of each hole where the SP7SS passes through If you are using a satellite dome the plastic extension rod is not needed.
- Page 4 If your fiberglass antenna is less then 4’ tall then you are Less than 4’ Do NOT use 4’ or taller fiberglass antennas with Seaview Spreader Kits. Please call 800-523-7558. 4’ Place the rubber gaskets onto the sides of the center spreader body.
- Page 5 Route the cables through the center spreader body. Insert the eight black plastic shoulder washers into the spreader bolt holes. Using the eight 1⁄4-20 x 1” bolts tighten the spreaders with an allen wrench.
- Page 6 Kit on top of the mount assembly. Place the rubber gasket that comes with the Seaview Top Plate Kit into the groove on the top of the Spreader Kit center body. Bolt the assembly togther using the eight 5/16 x 3” bolts.
- Page 7 If you are using an optional Seaview Lightbar wrap the rubber bushing around the end of the lightbar. Place the white plastic adapter piece ontop of the rubber bushing. Place the stainless steel bracket onto the bottom of the rubber bushing.
- Page 8 Insert the lightbar into the back of the Seaview mount. Bolt the assembly together with four 5/16 x 3” bolts. NOTE: Use 4 each of the 5/16” x 3” bolts when installing a light bar if your top plate is 3/4” or thicker.
-
Page 9: Optional Accessories
Seaview Cable Glands provide Flood Light Kit for Tapered Mast waterproof cable routing. spreaders. HINGES WEDGES Seaview Hinge Adapters fold in any Compensates for plane angle. direction necessary for added height Available in 2, 4 or 6 degree wedges. clearance. - Page 10 LTBR LTBS Fits closed dome radars. Fits 20” or smaller satdomes. LIGHT BAR TOPS LTBLED12 (White LED nav light) LTBU1ALED12 LTBLED12BLK Light bar top with Seaview LED light (Black LED nav light) on 12” post and 1-14 threads for GPS.
- Page 11 THIS PAGE INTENTIONALLY LEFT BLANK.
- Page 12 EUROPEAN OFFICE Tel: 800-655-7922 Tel: +33 4 94 53 27 70 www.seaviewglobal.com www.seaviewprogress.com...
