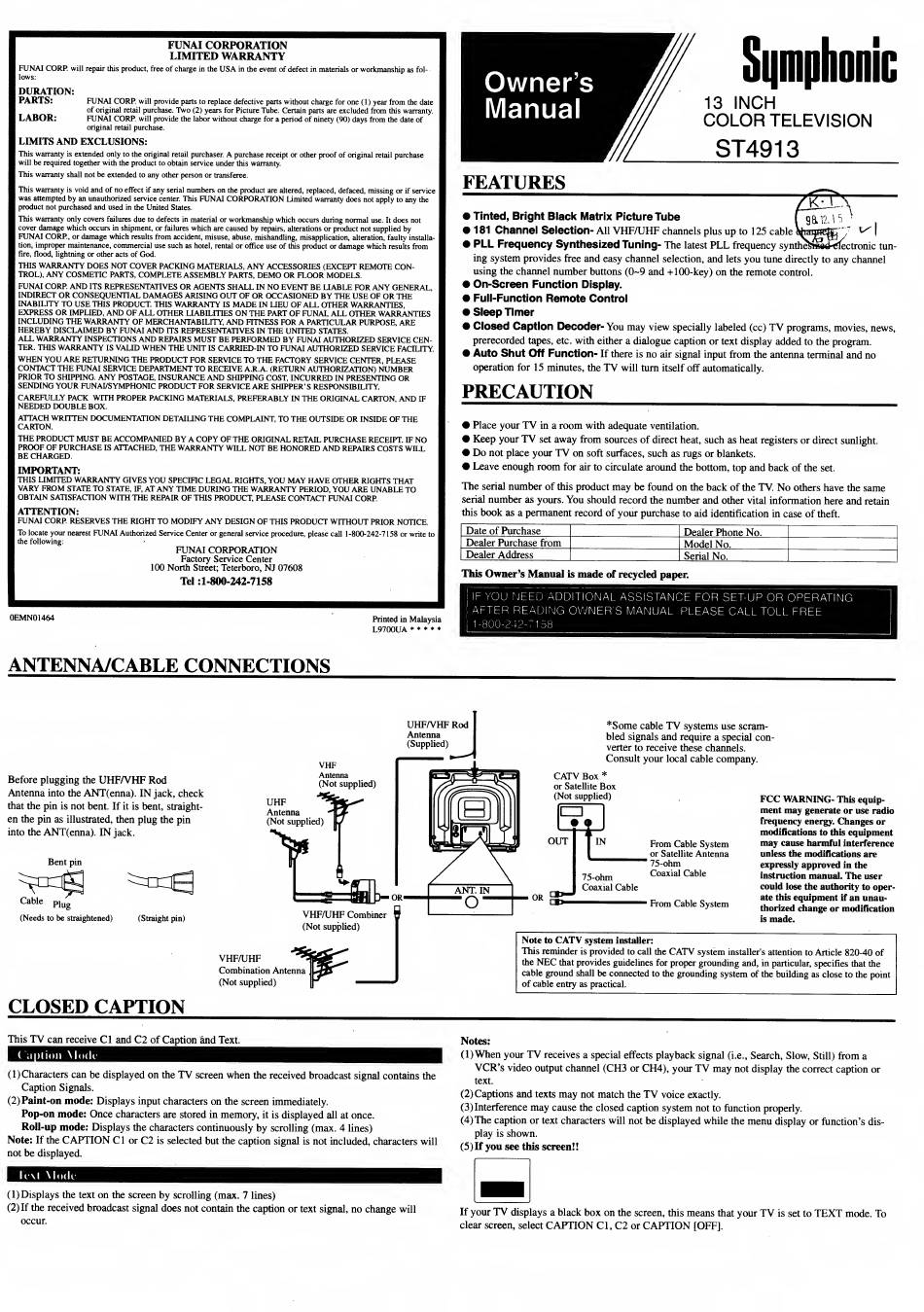

Symphonic ST4913 Owner's Manual

FUNAI CORPORATION
LIMITED
WARRANTY
FUNAI
CORP.
will repair this product, free of charge in the
USA
in
the event of
defect in
materials or workmanship
as fol-
lows:
DURATION:
PARTS:
FUNAI
CORP.
will
provide
parts to
replace defective
parts without charge for
one
(1)
year from the date
of original
retail
purchase.
Two
(2)
years
for Picture
Tube. Certain
parts are excluded from
this
warranty.
LABOR:
FUNAI
CORP.
will provide the labor without charge
for a period of ninety (90) days
from
the date of
original
retail
purchase.
LIMITS
AND
EXCLUSIONS:
This warranty
is
extended only
to the original retail purchaser.
A
purchase receipt or other proof of
original retail
purchase
will be required together with
the product to obtain service under
this
warranty.
This warranty
shall not
be extended
to any other person or transferee.
This warranty
is
void and of no
effect if
any
serial
numbers on
the
product
are altered, replaced, defaced, missing or
if
service
was
attempted by an unauthorized service
center.
This
FUNAI CORPORATION
Limited warranty does not apply
to
any
the
product not purchased and used
in the
United
States.
This warranty only covers
failures
due
to defects in material or
workmanship which
occurs during normal
use. It
does
not
cover
damage
which occurs
in
shipment, or
failures
which
are
caused by
repairs, alterations or product not supplied by
FUNAI
CORP., or damage which
results
from
accident, misuse, abuse, mishandling, misapplication,
alteration, faulty installa-
tion,
improper maintenance, commercial use such
as hotel, rental or office use of
this
product or
damage
which
results
from
fire,
flood, lightning or other
acts
of God.
THIS
WARRANTY DOES NOT COVER PACKING
MATERIALS,
ANY
ACCESSORIES (EXCEPT REMOTE
CON-
TROL),
ANY
COSMETIC
PARTS,
COMPLETE ASSEMBLY
PARTS,
DEMO
OR FLOOR
MODELS.
FUNAI CORP.
AND
ITS
REPRESENTATIVES OR AGENTS SHALL
IN
NO EVENT BE
LIABLE FOR
ANY
GENERAL,
INDIRECT
OR
CONSEQUENTIAL
DAMAGES
ARISING
OUT OF OR OCCASIONED BY THE
USE OF
OR
THE
INABILITY TO USE
THIS
PRODUCT.
THIS
WARRANTY
IS
MADE
IN LIEU
OF ALL OTHER WARRANTIES,
EXPRESS
OR
IMPLIED,
AND
OF ALL OTHER
LIABILITIES
ON THE
PART
OF
FUNAI,
ALL OTHER WARRANTIES
INCLUDING THE
WARRANTY
OF MERCHANTABILITY,
AND
FITNESS
FOR A
PARTICULAR PURPOSE, ARE
HEREBY
DISCLAIMED BY FUNAI
AND
ITS REPRESENTATIVES
IN
THE UNITED
STATES.
ALL WARRANTY
INSPECTIONS
AND
REPAIRS MUST BE PERFORMED BY
FUNAI AUTHORIZED SERVICE CEN-
TER. THIS
WARRANTY
IS
VALID
WHEN
THE UNIT
IS
CARRIED- IN
TO
FUNAI AUTHORIZED SERVICE
FACILITY.
WHEN YOU
ARE RETURNING THE PRODUCT FOR
SERVICE
TO THE FACTORY
SERVICE CENTER, PLEASE
CONTACT THE
FUNAI SERVICE DEPARTMENT TO
RECEIVE
A.R.A.
(RETURN AUTHORIZATION)
NUMBER
PRIOR
TO
SHIPPING.
ANY
POSTAGE,
INSURANCE AND
SHIPPING COST, INCURRED
IN
PRESENTING OR
SENDING
YOUR
FUNAI/SYMPHONIC PRODUCT FOR
SERVICE
ARE
SHIPPER'S RESPONSIBILITY
CAREFULLY PACK WITH PROPER PACKING
MATERIALS, PREFERABLY
IN
THE ORIGINAL CARTON,
AND
IF
NEEDED DOUBLE
BOX.
ATTACH WRITTEN DOCUMENTATION
DETAILING
THE
COMPLAINT, TO THE OUTSIDE OR
INSIDE
OF THE
CARTON.
THE PRODUCT MUST BE ACCOMPANIED BY A COPY OF THE
ORIGINAL RETAIL PURCHASE
RECEIPT.
IF
NO
PROOF OF PURCHASE
IS
ATTACHED, THE
WARRANTY
WILL NOT BE
HONORED AND
REPAIRS
COSTS WILL
BE CHARGED.
IMPORTANT:
THIS LIMITED
WARRANTY
GIVES
YOU
SPECIFIC
LEGAL
RIGHTS,
YOU MAY
HAVE OTHER
RIGHTS THAT
VARY FROM
STATE
TO
STATE,
IF,
AT
ANY
TIME DURING THE
WARRANTY
PERIOD,
YOU ARE UNABLE
TO
OBTAIN
SATISFACTION
WITH THE
REPAIR OF
THIS
PRODUCT, PLEASE CONTACT
FUNAI CORP.
ATTENTION:
FUNAI CORP. RESERVES THE RIGHT TO MODIFY
ANY
DESIGN OF
THIS
PRODUCT WITHOUT
PRIOR
NOTICE.
To
locate
your
nearest
FUNAI
Authorized Service Center or general service procedure, please
call
1-800-242-7158
or write to
the following:
FUNAI CORPORATION
Factory Service Center
100 North
Street;
Teterboro,
NJ
07608
Tel
:
1-800-242-7158
Owner's
Manual
FEATURES
Symphonic
13
INCH
COLOR
TELEVISION
ST4913
•
Tinted, Bright Black
Matrix Picture
Tube
•
181
Channel
Selection-
All
VHF/UHF
channels plus up
to
125 cable
•
PLL Frequency
Synthesized Tuning- The
latest
PLL
frequency
synthe?»w^ectronic
tun-
ing system provides
free
and easy channel
selection,
and
lets
you
tune
directly to
any channel
using
the
channel number
buttons
(0-9 and +
100-key) on
the
remote
control.
•
On-Screen
Function
Display.
•
Full-Function
Remote
Control
•
Sleep Timer
•
Closed Caption Decoder- You may
view
specially labeled
(cc)
TV
programs, movies, news,
prerecorded
tapes,
etc.
with
either a dialogue caption or
text display
added
to the program.
•
Auto Shut
Off Function-
If there
is
no
air signal input
from
the antenna
terminal
and no
operation
for
15 minutes,
the
TV
will turn
itself
off automatically.
PRECAUTION
•
Place your
TV
in
a
room
with adequate
ventilation.
•
Keep your
TV
set
away from
sources of
direct heat,
such
as heat
registers
or
direct sunlight.
•
Do
not place your
TV
on
soft surfaces,
such
as rugs or blankets.
•
Leave enough room
for air to circulate
around
the bottom, top
and back
of
the
set.
The
serial
number
of
this
product
may
be found on
the
back of
the
TV.
No
others
have
the
same
serial
number
as yours.
You
should record
the
number and
other
vital
information here and
retain
this
book
as a
permanent record of
your purchase
to
aid
identification in
case of
theft.
Date of Purchase
Dealer Phone No.
Dealer Purchase from
Model No.
Dealer Address
Serial
No.
0EMN01464
Printed
in
Malaysia
L9700UA
*****
This
Owner's Manual
is
made
of recycled paper.
IF
YOU NEED
ADDITIONAL ASSISTANCE FOR
SET-UP
OR OPERATING
AFTER READING OWNER'S MANUAL
PLEASE CALL TOLL FREE
1-800-242-7158.
ANTENNA/CABLE CONNECTIONS
UHF/VHF
Rod
Antenna
(Supplied)
Before plugging
the
UHF/VHF Rod
Antenna
into the
ANT(enna). IN
jack,
check
that the pin
is
not bent.
If
it
is bent, straight-
en the pin
as illustrated,
then plug
the pin
into the
ANT(enna). IN
jack.
Bent pin
VHF
Antenna
(Not
supplied)
UHF
Antenna
(Not
supplied)
>
Cable
plug
(Needs
to
be straightened)
*Some
cable
TV
systems use scram-
bled
signals
and
require a special con-
verter to receive these channels.
Consult your
local cable company.
CATV
Box
*
or Satellite
Box
(Not
supplied)
• 9
OUT
(Straight pin)
D—
OR-
VHF/UHF
Combiner
1
|
(Not
supplied)
ANT.
IN
o OR
IN
75-ohm
Coaxial Cable
From
Cable System
or Satellite
Antenna
75-ohm
Coaxial Cable
From
Cable System
VHF/UHF
Combination Antenna
(Not
supplied)
FCC WARNING-
This equip-
ment
may
generate or use radio
frequency energy. Changes or
modifications
to this
equipment
may
cause harmful
interference
unless the modifications
are
expressly approved in the
instruction manual.
The
user
could
lose
the authority
to oper-
ate
this
equipment
if
an unau-
thorized change or
modification
is
made.
Note
to
CATV
system
installer:
This reminder
is
provided
to call
the
CATV
system
installer's attention to Article
820-40 of
the
NEC
that
provides
guidelines for
proper grounding
and, in particular, specifies that
the
cable ground
shall
be connected
to the grounding system of the building as close to the point
of cable entry
as practical.
CLOSED CAPTION
This
TV
can receive
CI
and
C2
of Caption and
Text.
Caption
Mode
(1)
Characters can be displayed on
the
TV
screen
when
the received broadcast
signal contains the
Caption
Signals.
(2)
Paint-on
mode:
Displays
input characters
on
the screen immediately.
Pop-on mode: Once
characters are stored
in
memory,
it is
displayed
all at
once.
Roll-up
mode:
Displays
the characters continuously by
scrolling
(max. 4
lines)
Note:
If the
CAPTION
CI
or
C2
is selected but the caption signal
is
not included, characters
will
not be displayed.
Text
Mode
(1)
Displays the
text
on
the screen
by
scrolling
(max. 7
lines)
(2) If
the received broadcast
signal
does not
contain the caption or
text signal,
no change
will
occur.
Notes:
(1)
When
your
TV
receives a special
effects
playback
signal
(i.e.,
Search, Slow,
Still)
from a
VCR's
video output channel (CH3
or
CH4),
your
TV
may
not display
the correct caption or
text.
(2)
Captions and
texts
may
not
match
the
TV
voice
exactly.
(3)
Interference
may
cause the closed caption system
not to function properly.
(4)
The
caption or
text characters will not be displayed while the
menu
display or function's
dis-
play
is
shown.
(5) If
you
see
this screen!!
If
your
TV
displays a black
box on
the screen,
this
means
that
your
TV
is set to
TEXT
mode. To
clear screen, select
CAPTION
CI,
C2
or
CAPTION
[OFF].
