Summary of Contents for Proton SGEN-EV16-P
- Page 1 Mobile Charger 3.5KW User Manual Proton...
- Page 2 Portable Charger for Electric Vehicles (Mode 2) Apply for 8A-16A portable charger for electric vehicles. Thank you for choosing a Proton EV Charger, in order to help you use this product properly, please read this user manual carefully before using the product.

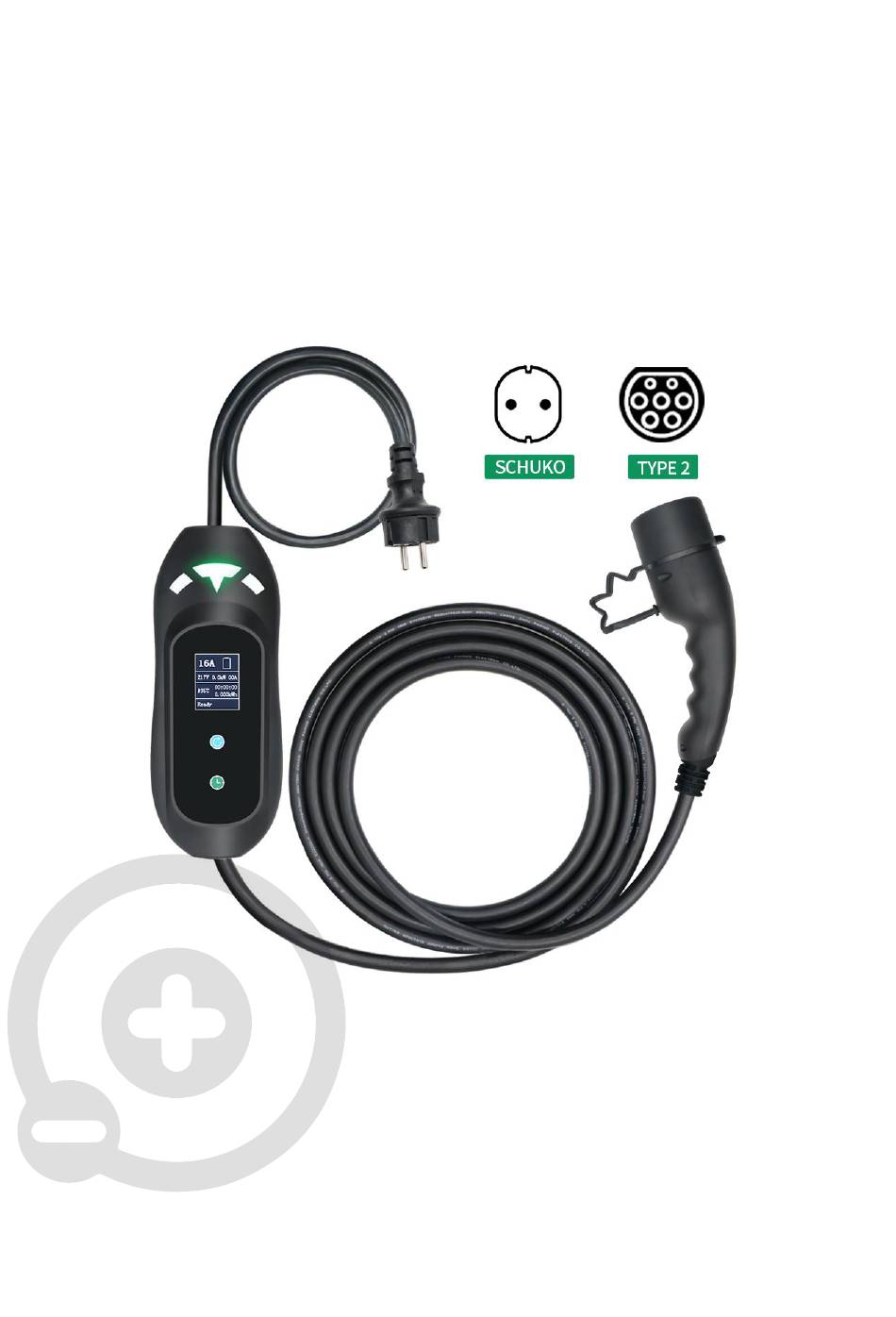

- Page 3 Application: It is a compact portable EV charging station that is an ideal solution for low- cost charging in your garage or to keep in the trunk of your EV for charging at work or on trips. Feature: • Current:8A/10A/13A/16A;16A/26A/32A adjustable •...
- Page 4 Touch the blue button several times until the current meets your demand. Connect the charging plug with the car. Proton How to reserve charging time? This charger support reserve charging time from 1 to 10 hours.
-
Page 5: Led Screen
Product Specification: Standards: IEC62196-1, IEC62196-2 Rate Voltage: 200V~240V AC Rated Current: 8-10-13-16a(MAX) AC one phase Rated Frequency: 50HZ/60HZ Proton Insulation resistance: >1000MΩ (DC500V) Operating Temperature: –30℃ to +55℃ Storage Temperature: –40℃ to +80℃ Operating humidity: 5%~95%RH (non-condensing) In-Cable box: IP65 Charging connector: IP54... - Page 6 Control Box Function: • Leakage protection (restart recover) • Over voltage under-voltage protection (self-checking recover) • Over current protection • Lightning protection • Over-temperature protection When charging temperature is over 85°C , the charger will stop charging. It will start charging again when temperature is back to 65°C . °...
- Page 7 Size: Proton...
- Page 8 GUARANTEE Product Name: Proton Mobile Charger Product Model: 3KW, Type 2, 5m, Black, 8A/10A/13A/16A year of Production: 2022 year of Sale: 2022 Manufacture: HST Co., Ltd After-Sales Service: EV-thuislader.nl - Info@ev-thuislader.nl Thanks to purchase our company's products. We sincerely hope you would be satisfied with our product and service.
