ATETOOL AE730D User Manual

AE730D Smart Touch Soldering Iron
User Manual

SPECIFICATIONS

Model AE730D
Type C
Power Interface
Protocol support PD/QC/AFC/FCP
5-9V dc（1~3.6A)
Input
Temperature range 230-450℃（446-842℉）
Size 170x16x22mm
Weight （iron only） 28.3g

SAFETY AND PRECAUTIONS

The precautions in this manual are divided into the following [warning] and [attention]. Please fully understand the
content.
Warning: misuse may cause death or serious injury to the user
Note: misuse may cause injury to users or substantial damage to objects involved
For your own safety, please strictly abide by the following precautions
When power is on, the temperature of the soldering iron tip might reach 230-450 ℃ (446 -842℉).
Misuse may cause burns and fire, please strictly observe the following precautions:
● Do not touch the soldering iron tip or the metal part around it while using
● Do not use it around combustibles
● Inform the people around of the potential risk caused by high temperature
● Turn the power off when not in use
● Before replacing parts or tip, turn off the power and wait till the iron tip cools down
● This appliance is not intended for use by persons(including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety
● Children should be supervised to ensure that they do not play with the appliance
Please strictly observe the following precautions, otherwise it may cause injuries or death.
● Do not use this product for works other than soldering
● Do not hit the handle hard for removing the tin on the iron tip
● Do not modify this product
● When replace parts, must use original manufacturer parts
● Do not soak the product in water or use it with wet hands
● When unplug the product, hold the plug instead of pulling the cord
● Smoke will be emitted during soldering, please use it in open space
● Do not engage in other dangerous acts with this product
Attention：After using this product with a fast charging adapter, please unplug the socket and let it sit for a while
before using the same adapter to charge your phone or other devices. Otherwise, there is a risk of damaging other
devices. (This product may cause the charging adapter to 9V voltage output, and some charging adapters may
still maintain 9V output even when disconnected from this product.)

PACKING LIST

1 X Soldering iron
1 X User manual
1 X Silicone grabber
1 X Iron stand with sponge
1 X Type-c cable（1.5m）

WARNING

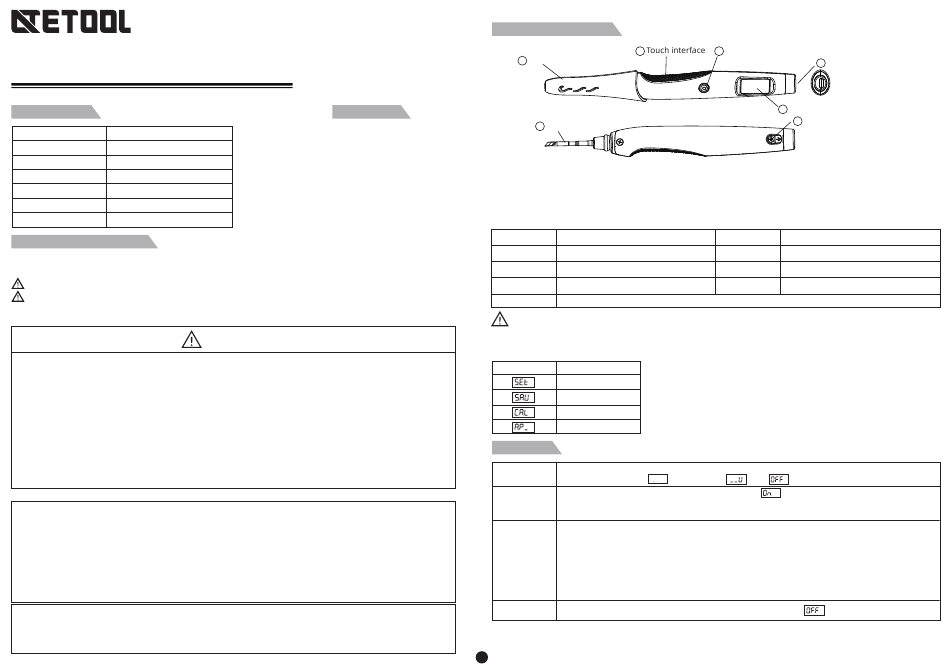

PRODUCT APPEARANCE

1
Cap
7
5 Heater
①Touch interface：Press/touch enables the machine heating. Together with the ② button, it allows temp.
calibration, temp. setting, and other functions.
②Button/Button light：The corresponding color indicates current temp. of ⑤ heater.
Button light Indication content
Red ⑤ heater temp.> 150°C
Yellow ⑤ heater temp.80°C~150°C
Green ⑤ heater temp.< 45°C
Red blinking The machine is in operational mode
Warning:Please DO NOT touch the heater when unable to confirm its temperature.
The button light color is only intended as a reference for the current temperature of the heater.
③LED segment：Display temperature, and parameter setting
Screen display Function
parameter setting
parameter save
temp. calibration
adaptive power

OPERATION

Power on with type C cable via ④ power interface. During which, ② button light on,
Power on
③ LED segment shows
888
Press ② button for 1 second, ③ LED segment shows
Start up
340 ℃ /640 ℉, then ③ LED segment shows cyclic code.
*The next startup will enter the previously selected temperature.
After power on, single press ② button to choose your desired temperature, press and hold ① touch
interface to enable the machine heats up to the set temperature. During which, ② button light
turns RED and pulsates in a blinking pattern, indicating that the machine is heating up.
Heat up *The products includes 5 defaut temperatures:
(260 - 300 - 340 - 380 - 420)℃ /500 - 570 - 640 - 710 - 780)℉.
Release ① touch interface, the product stops heat-up immediately,When the product stops heating
up, ③ LED segment displays the current temperature, and then shows cyclic code.
Long press ② button for 3 seconds, until ③ LED segment shows
Power off
1
2 Button / Button light
4 Power interface
3 LED segment
6 Grounding port
Button light Indication content
Purple digit up
Blue digit down
White ⑤ heater temp. unknown
④TYPE-C interface：
Supports multiple power supply
⑤C210 heater
⑥Grounding port：
Used for grounding the heater
⑦Cap：Used to protect heater
℃ , input voltage , and
℉
1 second and shows defaulted temp.
.
