Summary of Contents for Afreda S6
- Page 1 Instruction Manual...
-
Page 2: Structural Features

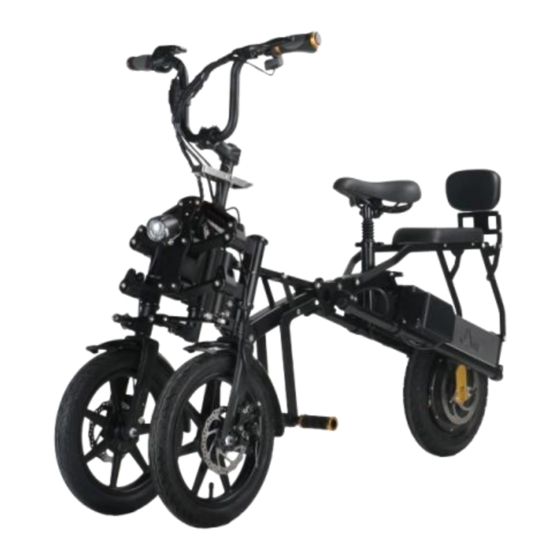

Afreda S6 E-Tricycle: Serving as a lightweight commuting solution, Afreda S6 features a reverse trike structure, providing excellent anti-skid capabilities. Its incredibly convenient instant-folding function enhances both usage and storage convenience in your daily life. -
Page 3: Section 1: User And Dealer Restrictions
Dear valued user, for your safety and the safety of your family, please read and adhere to the following guidelines: Section 1: User and Dealer Restrictions Prohibit unauthorized wiring and modifications to Afreda S6 structure and performance, including alterations to battery configurations, boosting, changing wiring, increasing bulb wattage, and adding audio systems. -
Page 4: Section 2: Safe Handling And Charging
Section 5: Parking and Charging Environment When parking or charging Afreda S6, keep a safe distance from heat sources and open flames. Avoid parking in hazardous areas and turn off the handle-mounted throttle switch and the main switch on the battery box. - Page 5 3．Avoid parking Afreda S6 in high-temperature locations for an extended period, as this can shorten the battery's lifespan. 4．If Afreda S6 battery is not used for an extended period, charge it in a timely manner. Charge it once a month, ensuring the battery is fully charged before storage. Avoid storing the battery in a discharged state.
-
Page 6: Maintenance And Repair
(typically anaerobic glue 243). 5．Brake oil pipes and control cables are fixed in a specific position when Afreda S6 leaves the factory. If any detachment is found, repair it promptly to prevent the pipe or cable from breaking during folding. - Page 7 Charging Steps: The rated input voltage of the charger is 110v-220V. Carefully check if the grid voltage and charger voltage are consistent. Connect the charger's output plug to the battery box's battery charging socket before plugging the charger's AC input plug into the power source. The power and charging indicator lights on the charger will turn on, indicating that the power is connected, and charging begins.
-
Page 8: Folding Steps
Folding Steps: Pre-Ride Inspection: Please confirm the normal use of the power-off switch when Afreda S6 is in a folded state with the rear wheel off the ground. Power on and check if all indicator lights on the instrument panel are normal. Verify if... -
Page 9: Safety Riding
If there is a noticeable imbalance between the left and right brakes, timely maintenance is required. 10. After Afreda S6 is unfolded, the unfolding lock hook under the seat must be fastened. 11. Before riding, make sure to completely release and secure the parking lock. Ensure that the lock, when released, remains naturally positioned without falling under the influence of spring force and allows free rotation before proceeding with riding. - Page 10 9．The maximum payload for this bike is 150 kg (including the weight of Afreda S6 and the rider). Do not exceed this weight limit. 10．The controller is equipped with undervoltage protection. If the voltage drops below the undervoltage threshold, the power will automatically disconnect to preserve battery life.
- Page 11 2．Press the power button (on the battery). The power indicator (or digital display) lights up, indicating that the power is on. 3．Slowly turn the speed control (usually on the right handle), and Afreda S6 will start. The speed control rotates gradually from small to large, and Afreda S6 accelerates accordingly.
