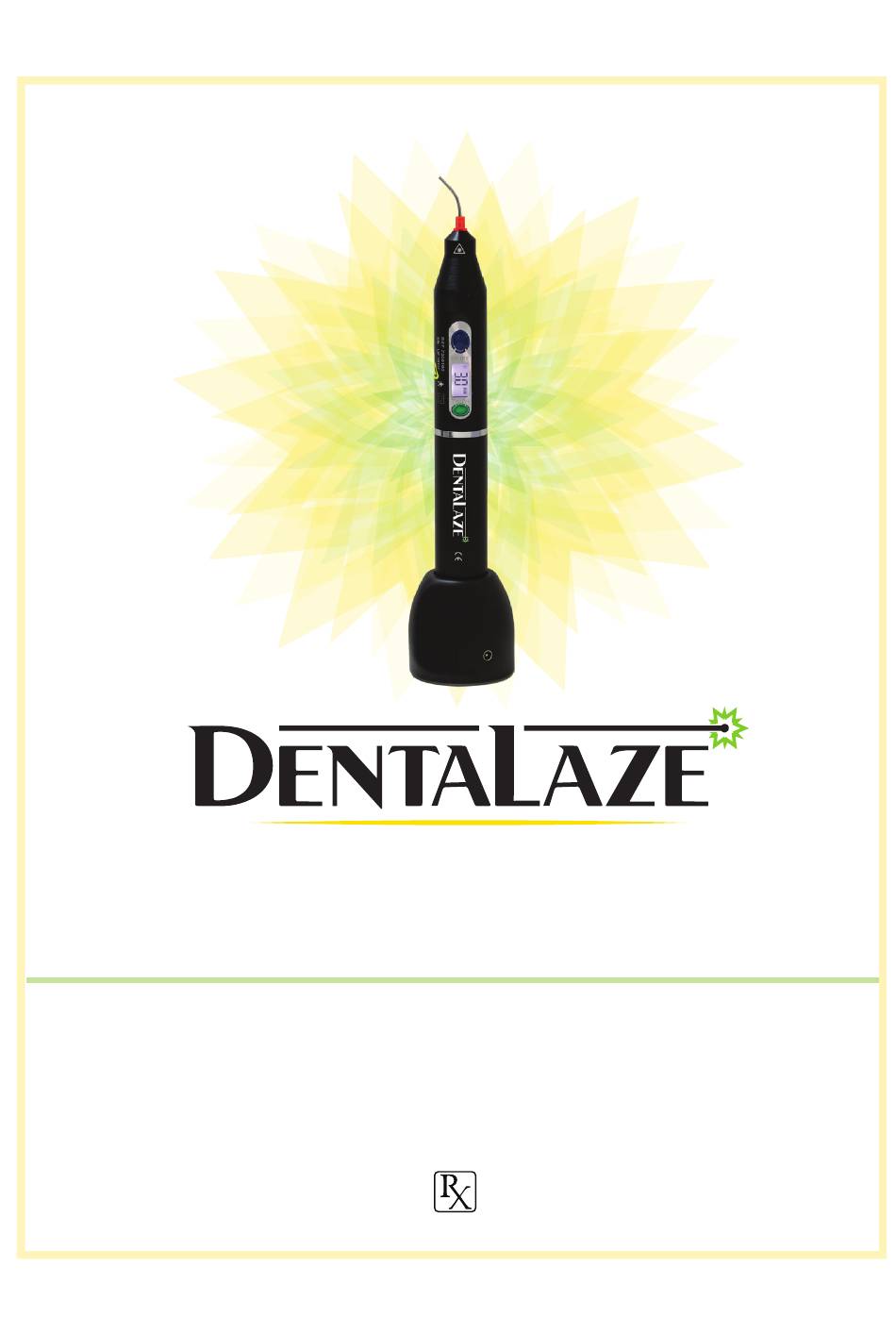

- Page 1 WIRELESS DIODE LASER INSTRUCTIONS FOR USE DENTAL DIODE LASER FOR LICENSED TRAINED DENTAL OR MEDICAL PROFESSIONAL USE ONLY...
-
Page 2: Product Information
DESCRIPTION DentaLaze is a dental diode laser system designed for a wide variety of dental soft tissue procedures. The energy from the invisible infrared radiation out of the diode laser is delivered to the treatment site via a single-use Fiber Tip. These operating instructions provide recommendations and guidelines for the intended use. -
Page 3: Safety Information
Make appropriate power and settings adjustments to compensate for varying tissue compositions, density and thickness. Cutting with the DentaLaze is a thermal process and any transfer or accumulation of heat into adjacent structures may result in a burn and tissue damage. Be aware of the underlying and adjacent structures such as nerves and blood vessels when cutting with this device. -
Page 4: Safety Instructions
– DO NOT autoclave or immerse unit in any kind of ultrasonic bath, disinfectant, cleaning solution or any kind of liquid. Do not spray liquids directly onto the light and prevent liquids from entering DentaLaze open area such as Keypad, Charging Stand, and its connectors as this may damage or short-circuit the device and can cause potential hazard for operator and/or patient. - Page 5 SETTING UP YOUR LASER START UP Assemble Handpiece Upon receiving your DentaLaze, remove all components from the package and examine them. If damage is apparent, please contact Shofu Dental Corporation. Attach the Battery Assembly to the Main Control by screwing the Battery Assembly clockwise into the Main Control.
-
Page 6: Ready Mode
PROCEDURE MODE POWER TECHNIQUE Expose Teeth Contact Initiated Fibroma Contact Initiated Frenectomy Contact Initiated Gingivectomy Contact Initiated Gingivitis Non-Contact Non-Initiated Gingivoplasty Contact Initiated Hemostasis Contact Initiated Herpetic Lesion Pulse Non-Contact Non-Initiated Hyperplasia Contact Initiated Implant Recovery Contact Initiated Periodontal Sulcular Debridement Pulse Non-Contact Non-Initiated... - Page 7 Tip. Fibers can fracture if a blackened area greater than 3 - 4 mm develops. This is especially important when using the DentaLaze Laser for periodontal pocket debridement. Stop lasing and regularly wipe off the tip with a 2 x 2 gauze sponge that has been wet with water to avoid the accumulation of protein debris.
-
Page 8: Battery Care
BATTERY CARE Always keep DentaLaze charged in the office. Connect DC Power Plug to Plug Receptor on the Charging Stand. Place the Handpiece into the Charging Stand. Secure Charging Stand on a table counter by peeling off the white self-stick paper at the bottom of the Charging Stand for ease of operation. -
Page 9: Maintenance Information
• Fiber Tip − Submerge the fiber end of the Fiber Tip into the solution for 5 minutes − After this process is completed, thoroughly rinse and dry the fiber • Laser Handpiece − Set the device in SLEEP or SAFELOCK mode. Apply the solution with a damp gauze sponge or wipe to thoroughly clean and disinfect Laser Handpiece. -
Page 10: Labels And Symbols
LABELS & SYMBOLS Symbols and labels are used on the device, accessories and throughout this manual, it is important that the user/ operator of DentaLaze understands the meaning of each symbol to avoid possible injury to the operator or/and patient. -
Page 11: Limited Two-Year Warranty
(one-year battery and charging stand). This warranty is valid providing factory inspection indicates that any such defect was developed during normal and proper use. DentaLaze shall under no circumstances be liable for incidental, special, consequential damages and damage from misuse including the following expressed or implied: −... -
Page 12: Troubleshooting Guide
Battery Assembly REORDER ITEM NUMBERS DESCRIPTION DESCRIPTION DL001 DentaLaze Diode Laser Kit DL005 DentaLaze Laser Shield DL002 DentaLaze Fiber Tips (25/box, 400um) DL006 DentaLaze Battery Assembly DL003 DentaLaze 50 Laser Barrier Sleeves DL007 DentaLaze Charging Stand DL004 DentaLaze Laser Goggles...
