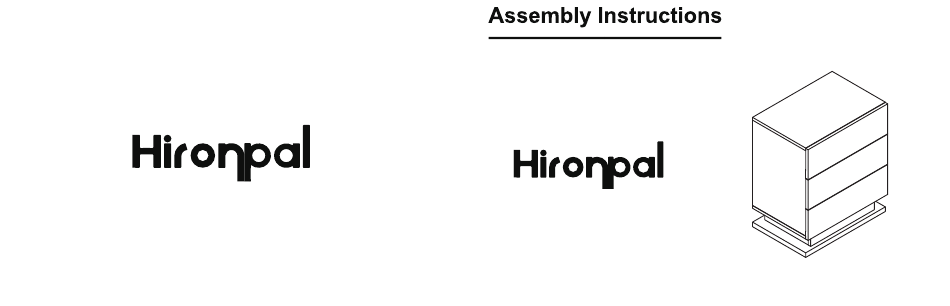

- Page 1 ST06805030WH/40BK/50GY/60WM/ 70BM/80GM...
- Page 2 Assembly Instruction Assembly Instruction Basic precautions should always be followed when using this product. M15*34 M12*24 Please read all instructions before using the cabinet. ×4 ×12 Failure to observe all instructions and warnings regarding use this product may cause serious property damage or personal Injuried. M8*30 M12”...
- Page 3 Assembly Instruction Assembly Instruction Divide the drawer slide by pushing the black plastic as shown. Fix drawer slider D1 with screw F onto side panel Fix drawer slider D2 with screw H onto drawer slide panel by follow the guide-hole predill into the panel (predill into the panel) M12”...
- Page 4 Assembly Instruction Assembly Instruction Connect side panel ,side panel and middle board with long screw G and dowels C as shown. Then insert the back panel into the slot with panel strip K. M15*34 Bolt and lock×4 M8*30 Dowels×4 M8*30 Dowels×4 M3.5*30 Long screws×4...
- Page 5 Assembly Instruction Assembly Instruction Remove the protective film from top board and then connect the side panel front panel Then connet the drawer side panel 9 10 and drawer front panel with bolts and locks and the drawer frame with panel with dowels C and long screws G as shown.

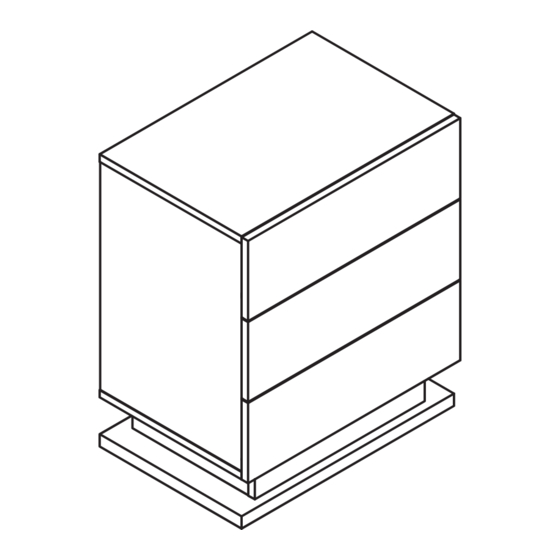

- Page 6 Assembly Instruction Assembly Instruction STEP Installation Diagram of Light Belt Fix the back panel fastener J with screws F , install the rubber foot I as shown. Paste the led light strip onto the bottom as shown, conncet the power, remove the top board protective film, you will get a high gloss 3 drawer bedside table.
