Introduction

Features of this unit

This unit offers the following features:

Technics Digital Link
Technics has minimized the length of the signal path by enclosing the network audio player and input selector, which handle very weak signals, into the same chassis, and reduced noise entering weak signals as much as possible by using a separate chassis for the power amplifier, which handles high frequencies and large currents. In addition, Technics's newly developed signal transmission interface minimizes the degradation of time accuracy and amplitude accuracy that occurs when signals are transmitted between the network control player and the power amplifier, achieving an ideal amplifier configuration.

Digital Noise Isolation Architecture
Since most digital content storage media are intended for use with PCs, they are not designed with consideration for low noise, which is critical to pure audio reproduction. To overcome this challenge, this unit employs a thorough measure against jitter and outstanding noise blocking technology for each of its interfaces, delivering clear sound.

Separated Analog/Digital Power Supply
A dedicated low-noise R-core transformer with excellent regulation characteristics is provided individually for analog and for digital circuit, achieving high quality sound reproduction.

Recommended devices

We recommend using Technics devices (optional) for superior audio quality.

Product name	Model number
Stereo Power Amplifier	SE-R1
Speaker System	SB-R1

Accessories

(ONLY FOR CANADA)
The enclosed Canadian French label sheet corresponds to the English display on the unit.

• Product numbers provided in this Owner's Manual are correct as of December 2014. These may be subject to change.
• Do not use AC power supply cord with other equipment.

Using the remote control

Insert the battery so the terminals (+ and -) match those in the remote control.

Point it at the remote control signal sensor on this unit.

• Keep the batteries out of reach of children to prevent swallowing.

Unit care

Pull out the AC power supply cord from the outlet before maintenance. Clean this unit with a soft cloth.

• When dirt is heavy, wring a wet cloth tightly to wipe the dirt, and then wipe it with a soft cloth.
• Do not use solvents including benzine, thinner, alcohol, kitchen detergent, a chemical wiper, etc. This might cause the exterior case to be deformed or the coating to come off.

This unit

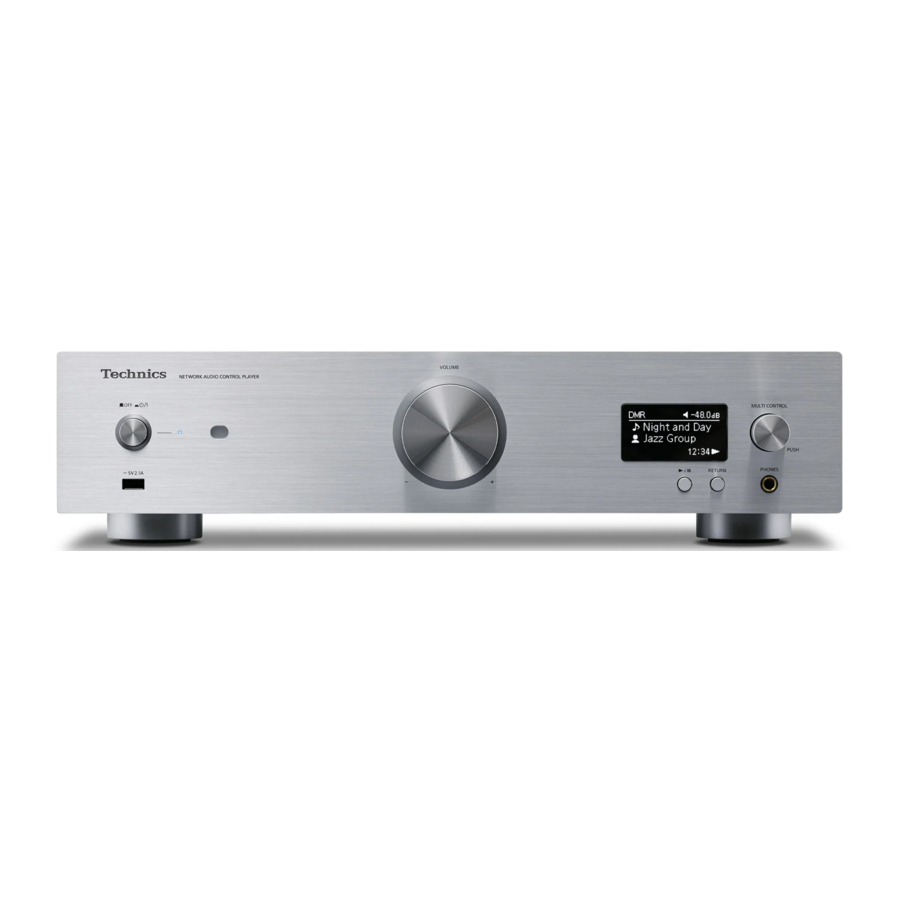

Front

1. Unit on/off button []
   Use this button to turn the unit on and off.
   [] (off): The unit is off.
   [] (on): The unit is on.
   • The unit is still using a small amount of power in off mode. Off mode uses less power.
2. Port for iPhone/iPad/iPod and USB devices
3. Power indicator
   The color of the indicator changes according to the status of this unit.

   Blue	The unit is on.
   Red	The unit is in standby mode.

4. Remote control signal sensor
   Distance: Within approx. 7 m (23 ft) directly in front
   Angle: Approx. 30o left and right
5. Volume knob
   Adjust the volume of the headphones or the SE-R1.
   • It is not possible to adjust the volume of devices connected to the analog or digital audio output terminals.
   • The speed at which the volume is adjusted varies depending on how fast you turn the knob.
6. Display
7. Basic control buttons

   	Play/Pause
   RETURN	Return to the previous display

   • Press and hold [RETURN] on the unit to display the HOME menu.
8. Headphones jack
   For connecting a headphone plug.
   • Excessive sound pressure from earphones and headphones can cause hearing loss.
   • Listening at full volume for long periods may damage the user's ears.
9. Multi-control knob
   • Turn this knob clockwise or anticlockwise to switch the input source, scroll through items, and skip during playback.
   • To set an item, press the knob; to enter the menu screen, press and hold it.

Rear

10. Analog audio output terminal [UNBALANCED]
11. Analog audio input terminals [LINE1]/[LINE2]
12. System terminal [Technics Digital Link OUT]
13. Product identification marking
    The model number is indicated.
14. Analog audio output terminal [BALANCED]
15. Digital audio output terminal [AES/EBU]
16. Digital audio output terminal [COAXIAL]
17. Digital audio output terminal [OPTICAL]
18. Digital audio input terminal [AES/EBU]
19. Digital audio input terminals
    [COAXIAL1]/[COAXIAL2]/[COAXIAL3]
20. Digital audio input terminal [OPTICAL]
21. LAN port [LAN]
22. Digital audio input terminal [PC]
    For connecting to a PC, etc.
23. AC IN terminal [AC IN T]

Remote control

1. []: Standby/on switch
   Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power.
   • The remote control do not operate when the power indicator is off.
2. Select the input source
3. [HOME]: Display HOME menu
4. []/[OK]: Selection/OK
5. [MENU]: Enter menu
6. [DIRECT]: Turn on/off Direct mode
7. [LAPC]: Measure the characteristics of the amplifier and correct its output
8. [MUTE]: Mute the sound of the headphones or the SE-R1
9. [> INPUT <]: Select the input source
10. [+ VOL -]: Adjust the volume of the headphones or the SE-R1
    • It is not possible to adjust the volume of devices connected to the analog or digital audio output terminals.
11. Numeric buttons, etc.
    • To select a 2-digit number
      Example:
      16: [≥10] > [1] > [6]
    • To select a 4-digit number
      Example:
      1234: [≥10] > [≥10] > [≥10] > [1] > [2] > [3] > [4]
    • [CLEAR]: Clear the entered value.
12. [SETUP]: Enter setup menu
13. [DIMMER]: Adjust the brightness of the display, etc.
14. [INFO]: View content information
    Press this button to display the track, artist, and album names, file type, sampling frequency, and other information.
15. [RETURN]: Return to the previous display
16. [RE-MASTER]: Turn on/off Re-master
17. Basic playback control buttons
18. [SLEEP]: Set the sleep timer

Getting started

• Turn off all equipment before connection and read the appropriate operating instructions.
• Do not connect the AC power supply cord until all other connections are complete.
• Insert the plugs of the cables to be connected all the way in.
• Do not bend cables at sharp angles.

System control connection to an SE-R1

• You can output digital audio signals from this unit and play back music.
• You can automatically link this unit with the SE-R1 and operate them easily with the remote control.


• Use category 7 or above straight LAN cables (STP) when connecting to peripheral devices.
• We recommend using cables with a length of 3 m (9.9 ft) or less.
• The system terminal and the LAN port are identical in shape. Be careful not to mistakenly connect either of the cables for system control connected to the system terminal of the SE-R1 to the LAN port.
• Do not connect an SE-R1 in any other way than described above.

Polarity of the balanced audio terminals

Insert the cable pins so that their polarities match the polarities of the holes.

To disconnect the balanced cables

Pull out the cables while pressing [PUSH] at the top of the terminals.

Connecting to analog audio input devices

You can output analog audio signals from this unit and play back music.
e.g.,

* We recommend using cables with a length of 3 m (9.9 ft) or less.

Connecting to analog audio output devices

You can input analog audio signals to this unit and play back music.
e.g.,

Connecting to digital audio input devices

You can output digital audio signals from this unit and play back music.
e.g.,

* We recommend using cables with a length of 3 m (9.9 ft) or less.

Connecting to digital audio output devices

You can input digital audio signals to this unit and play back music.
e.g.,

* We recommend using cables with a length of 3 m (9.9 ft) or less.

• The digital audio input of this unit supports only the linear PCM (LPCM) signals listed below. For details, refer to the operating instructions of the connected device.

  Input terminal	Sampling frequency	Number of quantization bits
  AES/EBU digital input, Coaxial digital input	32/44.1/48/88.2/96/176.4/192 kHz	16/24 bit
  Optical digital input	32/44.1/48/88.2/96 kHz	16/24 bit

AC power supply cord connection

Connect only after all other connections are completed.

To disconnect the AC power supply cord from this unit

Pull out the AC power supply cord while pressing the top and bottom sides of the connector.

• Although the AC power switch is in the [] position, the unit is not completely disconnected from the mains. Remove the plug from the main electrical outlet if you will not be using the unit for an extended period of time. Place the unit so the plug can be easily removed.

Measuring the characteristics of the amplifier and correcting its output

If the SE-R1 is connected to this unit via the system control function, you can operate using the remote control of this unit.

Press and hold [LAPC] until the LAPC indicator on the SE-R1 starts to blink.

• The SE-R1 will start measuring the characteristics of the amplifier if it is connected to the speakers.

• For information on the operations of the SE-R1, please also refer to its operating instructions.

Basic operations

Preparation

• Prepare the music that you want to play back.
• Turn on the connected device (amplifier, etc.) and lower its volume.

1. Press the unit on/off button to the [] position.
   • The power indicator lights up in blue.
2. Press any of the input source buttons.

   LAN	Connects this unit to a network and plays back music over it.
   AES	Plays back music from digital audio output devices. Press [COAX] repeatedly to select "COAX1"/"COAX2"/"COAX3".
   COAX
   OPT
   USB	Plays back music stored on a USB device or an iPhone/iPad/iPod.
   PC	Plays back music stored on a PC, etc.
   LINE1/LINE2	Plays back music from analog audio output devices.

3. Press [] to select an item and then press [OK].
   • If there are any other items, repeat this step.
4. Start play.

Using the multi-control knob

1. Press and hold [RETURN] on the unit to display the HOME menu.
2. Turn the multi-control knob clockwise or anticlockwise to select an input source, and then press the knob.
3. Turn the multi-control knob clockwise or anticlockwise to select an item, and then press the knob.
4. Start play.

Adjusting the volume of the headphones or the SE-R1

Connect this unit and the SE-R1 with cables for system control.

Adjusting the volume

Press [+ VOL -].

• - dB (min), -99.0 dB to 0 dB (max)
• When adjusting the volume of the SE-R1, set the input selector knob on the SE-R1 to [DIGITAL].

Muting the sound

Press [MUTE].

• " " is displayed.
• Press again to cancel. "" is also canceled when the volume is adjusted or the unit is turned off.

Display brightness

The brightness of this unit's display and the power indicator can be changed.
Press [DIMMER] repeatedly.

• When the display is turned off, it will light up only when you operate this unit.
  Before the display turns off again, "Display Off" will be displayed for a few seconds.

Operations using the dedicated app "Technics Music App"

If you install the dedicated app "Technics Music App" (free of charge) on your tablet/smartphone, you can control this unit and the SE-R1 using a wide variety of functions.
For details, visit:
www.technics.com/support/

Network settings

You can stream music from an iOS device (iPhone/iPad/iPod), an Android™ device or a PC (Mac/Windows) to this unit by using the AirPlay or DLNA feature.
To use these features, this unit must join the same network as the AirPlay compatible device or the DLNA compatible device.

Wired LAN connection

Normally, just connecting a LAN cable will complete the setup.

1. LAN cable (not supplied)
   1. Disconnect the AC power supply cord.
   2. Connect this unit to a broadband router, etc. using a LAN cable.
   3. Connect the AC power supply cord to this unit, and press the unit on/off button to the [] position.

To make network-related settings

You can change this unit's name on the network (Friendly Name), and use specific IP address, subnet mask, default gateway, primary DNS, etc.

• Do not play back music while changing these settings.

1. Press [SETUP].
2. Press [] repeatedly to select "Network" and then press [OK].
3. Select and input the details.
4. Press [OK] to apply the settings.
5. Press [RETURN] repeatedly to exit the settings.
6. Press [] to turn the unit to standby mode.
   • Wait until "Please Wait" disappears.
7. Perform "Wired LAN connection".

• Use category 7 or above straight LAN cables (STP) when connecting to peripheral devices.
• The LAN port and the system terminal are identical in shape. Be careful not to mistakenly connect the LAN cable connected to another device, such as a broadband router, to the system terminal.
• Inserting any cable other than a LAN cable in the LAN port can damage the unit.
• If you try to change the network settings immediately after turning on this unit, it may take some time until the network setup screen is displayed.

Playing back music files on the DLNA server

You can share music files stored in the DLNA Certified media server (PC, smartphone, etc.) connected to your home network, and enjoy the contents with this unit.

• About supported format, refer to "File format"

Preparation

• Complete the network settings.
• Connect the device to be used to the same network as this unit.
• Add the contents and folder to the libraries of the Windows Media^® player 11 or 12, or a smartphone, etc.
  • Playlist of Windows Media^® player can play back only the contents that are stored in the libraries.
  • To use Windows Media^® Player for streaming, you need to configure it in advance.

Playing back content stored on the DLNA server by controlling it from this unit

You can play back music stored on the DLNA server on this unit (DMP—Digital Media Player) by controlling the DLNA server with this unit.

1. Press [LAN].
   • The server selection screen will be displayed.
2. Press [] to select a DLNA server on the network, and then press [OK].
   • The folder/content selection screen will be displayed.
   • Folders/content may be displayed in different order from the order on the server, depending on its specifications.
3. Press [] to select an item and then press [OK].
   • If there are any other items, repeat this step.

Operations on the remote control

Stop	Press [].
Pause	Press []. Press again to restart play.
Skip	Press [] or [] to skip track. If you press either of these buttons during pause, playback will restart.
Search	During play or pause, press and hold [] or [].

Random repeat playback

Press [RND].
Each time you press the button:

On	All tracks in a folder are repeated randomly. "RND " is displayed.
Off	Turns off random repeat mode.

Repeat playback

Press [].
Each time you press the button:

1-Track	Only plays the selected track. "1 " is displayed.
All	All tracks in a folder are repeated. "" is displayed.
Off	Turns off repeat mode.

Playing back content stored on the DLNA server by controlling it from a DMC

By controlling a DMC (Digital Media Controller) compatible device, you can play back music stored on the DLNA server on this unit (DMR — Digital Media Renderer).

1. Press the unit on/off button to the [] position.
2. Operate the DMC compatible device and connect to this unit.
   • The device name of this unit will be displayed as "Technics SU-R1 _ _ _ _ _ _"^{1, 2}.
   • For details on how to use DMC compatible devices, refer to the operating instructions of the devices or the software.

• You cannot use random repeat playback in combination with other playback modes.
• When you operate DMC, playback of other audio sources will stop and DLNA output will have priority.
• Depending on the contents and the connected equipment, operations or playback may not be possible.

1. " _ " stands for a digit that is unique to each set.
2. The device name can be changed from "To make networkrelated settings".

Using iPhone/iPad/iPod

Connect your iPhone/iPad/iPod, and you can play back music stored on iPhone/iPad/iPod or charge iPhone/iPad/iPod.

Compatible iPhone/iPad/iPod

iPhone 6 Plus / iPhone 6 / iPhone 5s / iPhone 5c / iPhone 5 / iPhone 4s / iPhone 4 / iPhone 3GS / iPhone 3G

iPad Air / iPad (3rd and 4th generation) / iPad 2 / iPad / iPad mini 2 / iPad mini

iPod touch (2nd through 5th generation)

iPod nano (3rd through 7th generation)

(as of November 2014)

• Compatibility depends on the software version. Update your iPhone/iPad/iPod to the latest software before using it with this unit.
• Please be aware that Panasonic accepts no responsibility for the loss of data and/or information.
• Do not connect the following models to the port:
  • iPod classic, iPod [4th (color display), and 5th (video) generation], iPod nano (1st generation)
    Unexpected behavior may occur.
• Operation results may vary depending on the iPhone/iPad/iPod models or the iOS version.

Connecting an iPhone/iPad/iPod

When connecting an iPhone/iPad/iPod, use the dedicated USB cable (not supplied).
e.g.,

Listening to music stored on an iPhone/iPad/iPod

1. Connect iPhone/iPad/iPod to the unit.
2. Press [USB].
3. Start play.

Operations on the remote control

Stop	Press [].
Pause	Press []. Press again to restart play.
Skip	Press [] or [] to skip track.
Search	During play or pause, press and hold [] or [].

• It may be necessary to select the album, artist, etc. on the iPhone/iPad/iPod.
• Depending on the iPhone/iPad/iPod models, operations on the remote control may not be possible.

Charging an iPhone/iPad/iPod

During unit on, charging starts when an iPhone/iPad/iPod is connected to this unit.

• Charging is not possible when this unit is turned off.
• Make sure the unit is turned on when you start charging.
  • When charging an iPhone/iPad/iPod whose battery is depleted, do not turn this unit to standby mode until the iPhone/iPad/iPod becomes operational.
• Check the iPhone/iPad/iPod to see if the battery is fully charged. Once fully charged, remove the iPhone/iPad/iPod.
• Charging stops when the battery is fully charged. The battery will deplete naturally.

Using AirPlay

AirPlay works with iPhone, iPad, and iPod touch with iOS 4.3.3 or later, Mac with OS X Mountain Lion or later, and PC with iTunes 10.2.2 or later.

Listening to music with AirPlay

Preparation

• Complete the network settings.
• Connect the iOS device or PC to the same network as this unit.

1. : Start the "Music" (or iPod) app.
   : Start "iTunes".
2. Select "Technics SU-R1 _ _ _ _ _ _"^{1, 2} from the AirPlay icon.
   • Check the volume settings before starting the playback.
     (When AirPlay is used for the first time, the volume may be output at the maximum setting.)
3. Start play.
   • The playback will start with a slight delay.

Operations on the remote control

Stop	Press [].
Pause	Press []. Press again to restart play.
Skip	Press [] or [] to skip track.

• Playback of other audio sources will stop and AirPlay output will have priority.
• With some iOS and iTunes versions, it may not be possible to restart the AirPlay playback if the selector is changed or the unit is turned off, during the AirPlay playback.
  In this case, select a different device from the AirPlay icon of the Music app or iTunes and then re-select this unit as the output speakers.
• AirPlay will not work when playing back videos on iTunes.

1. " _ " stands for a digit that is unique to each set.
2. The device name can be changed from "To make networkrelated settings".

Using USB device

You can play back music stored on a USB device.

• This unit does not guarantee connection with all USB devices.
• FAT16 and FAT32 file systems are supported.
• This unit supports USB 2.0 high speed.
• USB devices may not be recognized by this unit when connected using the following:
  • USB hub
  • USB extension cable
• It is not possible to use USB card reader/writers.
• This unit cannot record music to a USB device.
• About supported format, refer to "File format"

Listening to music stored on a USB device

1. Connect a USB device to the unit.
   e.g.,

2. Press [USB].
3. Press [] to select an item and then press [OK].
   • If there are any other items, repeat this step.

Operations on the remote control

Stop	Press [].
Pause	Press []. Press again to restart play.
Skip	Press [] or [] to skip track. If you press either of these buttons during pause, playback will restart.
Search	During play or pause, press and hold [] or []. This operation may not be available for some formats.

Random repeat playback

Press [RND].
Each time you press the button:

On	All tracks in a folder are repeated randomly. "RND " is displayed.
Off	Turns off random repeat mode.

Repeat playback

Press [].
Each time you press the button:

1-Track	Only plays the selected track. "1 " is displayed.
All	All tracks in a folder are repeated. "" is displayed.
Off	Turns off repeat mode.

• You cannot use random repeat playback in combination with other playback modes.
• You can use repeat playback in combination with program playback.

Program playback

This function allows you to program up to 24 tracks.

Preparation

• It is not possible to program tracks by moving folders. Move all the tracks you want to program to a single folder in advance.

1. Press [PGM] in the stop mode.
   • "Program Mode" screen will be displayed.
2. Press [OK] to display the programming screen.
3. Press [] to select the desired track.
4. Press [OK].
   • Do steps 3 through 4 again to program other tracks.
5. Press [] to start playback.
   • To return to the "Program Mode" screen, press [].

Operations on the remote control

Stop	Press []. Programed content is maintained.
Check the programed order	Press [] in the stop mode. To return to the "Program Mode" screen, press [RETURN].
Add tracks	Do steps 3 through 4 in the stop mode.
Clear the last track	Press [CLEAR] in the stop mode. It is not possible to select and clear the desired programed track.
Cancel program mode	Press [PGM] in the stop mode. "Program Clear" is shown. Press [] to select "Yes" and then press [OK]. The program memory will be cleared.

• Programed content is maintained as long as the input source is set to "USB".
• The program memory will be cleared:
  • When the USB device is disconnected.
  • When the unit is turned to standby or off mode.
• You can use program playback in combination with repeat playback.

Using PC, etc.

You can connect the digital audio input terminal [PC] and a PC, etc. with a USB cable and play back music on the PC, etc. with this unit.

• About supported format, refer to "File format"

Connecting to a PC
Before connecting to a PC, follow the steps below.

• Refer to the following for the recommend OS versions for your PC:
  • Windows Vista, Windows 7, Windows 8, Windows 8.1
  • OS X 10.7, 10.8, 10.9, 10.10

1. Download and install the dedicated driver to the PC. (Only for Windows OS)
   Download and install the driver from the website below.
   www.technics.com/support/
2. Download and install the dedicated app "Technics Audio Player" (free of charge) on your PC. (Common to both Windows OS and OS X)
   Download and install the app from the website below.
   www.technics.com/support/

Listening to audio from a PC, etc.

1. Disconnect the AC power supply cord.
2. Connect this unit and a PC, etc.
   e.g.,

3. Connect the AC power supply cord to this unit, and press the unit on/off button to the [] position.
4. Press [PC].
5. Operate the PC, etc. for playback.

Sound adjustment

The following sound effects can be added to the audio output.

Listening to more naturalsounding audio (Re-master)

Re-mastering expands the playback band and achieves a higher bit depth to reproduce natural and expansive sound close to original music.

• The factory default is "Off".

Press [RE-MASTER] to select "On"/"Off".

Direct mode

This unit can transmit input signals without passing them through its digital signal processor (DSP), via the shortest possible path. This enables faithful and high quality reproduction of original sound.

• The factory default is "Off".

Press [DIRECT] to select "On"/"Off".

Setting the sampling frequency

You can set an upper limit on the output sampling frequency range. Please note that the range that can be processed differs depending on the amplifier or D/A converter. For details, refer to the operating instructions of the connected device.

• The factory default is "32kHz-192kHz".

Preparation

• Set "Digital Output" to "On".

1. Press [SETUP].
2. Press [] repeatedly to select "D.Output fs" and then press [OK].
3. Press [] to select an item and then press [OK].
   • You can select a sampling frequency of 96 kHz or 192 kHz.

Minimizing audio distortion

If audio distortion occurs when using the analog audio input terminals, set the attenuator to "On".

• The factory default is "Off".

1. Press [SETUP].
2. Press [] repeatedly to select "Attenuator" and then press [OK].
3. Press [] to select "LINE1" or "LINE2".
4. Press [] to select "On" and then press [OK].

Disabling audio output

Disabling the audio output of unused terminals minimizes noise and allows playback in higher audio quality.

• The factory default is "On".

1. Press [SETUP].
   To disable the digital audio output:
   Press [] repeatedly to select "Digital Output" and then press [OK].
   To disable the analog audio output:
   Press [] repeatedly to select "Analog Output" and then press [OK].
   To disable the system terminal output (SE-R1):
   Press [] repeatedly to select "Digital Link" and then press [OK].
2. Press [] to select "Off" and then press [OK].
   • To enable the output again, select "On".

• Depending on the music source that you play back, the applied setting may be less effective.
• Depending on the music source that you play back, it may not be possible to achieve the desired audio quality and sound field effect. In such cases, turn off this function.
• Both Re-master and Direct mode cannot be set to "On". ≥ When "Digital Output", "Analog Output" and "Digital Link" are set to "Off", no sound will be output.
• When a headphone plug is connected, even if "Analog Output" is set to "Off", it is not possible to disable the analog audio output.
• It may take some time to output audio when you have adjusted the audio quality.

Others

Sleep timer

The sleep timer can switch the unit to standby mode after a set time.
Press [SLEEP].
Each time you press the button:

• You can also set the sleep timer by selecting "SLEEP" using the menu screen.

Auto off function

This unit is designed to conserve its power consumption and save energy. The unit will turn to standby mode automatically if there is no sound and it is not being used for approximately 20 minutes.

• The factory default is "On".

To cancel this function

1. Press [SETUP].
2. Press [] repeatedly to select "AUTO OFF" and then press [OK].
3. Press [] to select "Off" and then press [OK].

• The auto off function works unless you turn it off, even if you turn off and on this unit.
• If "Network Standby" is set to "On", this function will also be set to "On". To change the setting, set "Network Standby" to "Off".

Network standby

This unit can turn on automatically from standby mode when this unit is selected as the AirPlay/DLNA player.

• The factory default is "Off".

1. Press [SETUP].
2. Press [] repeatedly to select "Network Standby" and then press [OK].
3. Press [] to select "On" and then press [OK].

• If this function is set to "On" the standby power consumption will increase.

Language

Select English or French for the display.

• The factory default is "English".

1. Press [SETUP].
2. Press [] repeatedly to select "Language" and then press [OK].
3. Press [] to select "English"/"Français" and then press [OK].

Firmware updates

Occasionally, Panasonic may release updated firmware for this unit that may add or improve the way a feature operates. These updates are available free of charge.

Preparation

• Connect this unit to the network.
  • Make sure that the network is connected to the Internet.

1. Press [SETUP].
2. Press [] repeatedly to select "F/W Update" and then press [OK].
3. Press [] to select "Yes" and then press [OK].
   Do not disconnect the AC power supply cord or press the unit on/off button to the [] position while one of the following messages is displayed.
   "Linking" or "Updating"
   • During the update process, no other operations can be performed.
     When the update has finished successfully, "Success" is displayed.
4. Disconnect the AC power supply cord and reconnect it after 3 minutes.

• If there are no updates, "No Need" is displayed after step 3.
• Downloading will require several minutes. It may take longer or may not work properly depending on the connection environment.

Checking the firmware version

1. Press [SETUP].
2. Press [] repeatedly to select "F/W Version" and then press [OK].
   • Press [OK] to exit.

Remote control code

When other equipment responds to the supplied remote control, change the remote control code.

• The factory default is "Mode 1".

Point the remote control at this unit, and press and hold [OK] and the numeric button for at least 4 seconds.

• When the remote control code is changed, the new code will appear on the display for a few seconds.

  [OK] + [1]	Set the code to "Mode 1"
  [OK] + [2]	Set the code to "Mode 2"

Changing the character encoding

You can change the character encoding of track names, artist names and other information when they are not displayed as they should be.

• The factory default is "Type 1 (日本)".

1. Press [SETUP].
2. Press [] repeatedly to select "E Asian Character" and then press [OK].
3. Press [] to select "Type 1 (日本)"/"Type 2 (简体字)" and then press [OK].

   Type 1 ( 日本 )	Priority is given to Japanese.
   Type 2 ( 简体字 )	Priority is given to Chinese (Simplified).

Using the system control function

You can automatically link this unit with the SE-R1 and operate them easily with the remote control.

Preparation

1. Connect this unit and the SE-R1 with cables for system control.
2. Set the input selector knob on the SE-R1 to [DIGITAL].
3. Press the unit on/off button on this unit and the SE-R1 to the [] position.
4. If "Digital Link" is set to "Off", change the setting to "On".

Switching this unit and the SE-R1 to on/standby simultaneously

• If you point the remote control at this unit and press [] when this unit and the SE-R1 are in standby mode, this unit and the SE-R1 will be turned on simultaneously.
• If you point the remote control at this unit and press [] when this unit and the SE-R1 are turned on, this unit and the SE-R1 will simultaneously enter standby mode.

Measuring the characteristics of the amplifier and correcting its output

You can operate using the remote control of this unit.

Adjusting Bass/Middle/Treble

You can adjust the tone of the SE-R1 with this unit. Each tonal range (Bass/Middle/Treble) can be adjusted.

1. Press [SETUP].
2. Press [] repeatedly to select "Tone Control" and then press [OK].
3. Press [] to select "On (adjustment)" and then press [OK].
4. Press [] to select "BASS" (Bass), "MID" (Middle) or "TREBLE" (Treble).
5. Press [] to adjust the level and then press [OK].
   • Each level can be adjusted between "-10" and "+10".

• For information on the operations of the SE-R1, please also refer to its operating instructions.

Troubleshooting

Before requesting service, make the following checks. If you are uncertain about some of the check points, or if the solutions indicated in the following guide does not resolve the issue, then consult your dealer for instructions.

Heat buildup of this unit.

• This unit becomes warm when used for a long time. This is not a malfunction.

Do you have the latest firmware installed?

• Panasonic is constantly improving the unit's firmware to ensure that our customers are enjoying the latest technology.

To return all settings to the factory defaults
When the following situations occur, reset the memory:

• There is no response when buttons are pressed.
• You want to clear and reset the memory contents.

1. Press [SETUP].
2. Press [] repeatedly to select "Initialization" and then press [OK].
3. Press [] to select "Yes" and then press [OK].
4. Press [] to select "Yes" and then press [OK] again.

General

A "humming" sound can be heard during playback

• An AC power supply cord or fluorescent light is near the cables. Keep other appliances and cords away from the cables of this unit.

No sound

• Check the volume of the connected device (amplifier, etc.).
• Check to see if the cable connections to the input and output terminals are incorrect. If this is the case, turn off this unit and reconnect the cables correctly.
• Check to see if the correct input source is selected.
• Insert the plugs of the cables to be connected all the way in.
• When "Digital Output", "Analog Output" and "Digital Link" are set to "Off", no sound will be output. Change the setting of the output terminal to be used to "On".
• Playback of multi-channel content is not supported.
• The digital audio input terminals of this unit can only detect linear PCM (LPCM) signals. For details, refer to the operating instructions of the connected device.

The sound is interrupted

• Depending on your environment, the audio may be interrupted during playback. Check the operating instructions of the connected device and the connection to the device.

Playback does not start

• Depending on your environment or connected devices, it may take some time.

The system control function is not working

• Connect the cables to the matching LR terminals on this unit and the SE-R1.

The unit turns off automatically

• Is the auto off function turned on?

AirPlay/DLNA

Cannot connect to the network

• Confirm the network connection and settings

Cannot connect to the unit

• Make sure that the multicast function on the wireless router is enabled.
• Make sure that the device and the unit are connected to the same network.
• Reconnect the compatible device to the network and then connect to this unit again.
• Set "Network Standby" to "Off", turn this unit off and on, and then connect to this unit again.

Playback does not start,
The sound is interrupted

• Simultaneous use with other 2.4 GHz devices, such as microwaves, cordless telephones, etc., may result in connection interruptions.
  Increase the distance between the wireless router and these devices.
• If several wireless devices are simultaneously using the same wireless network as this unit, try turning off the other devices or reducing their wireless network usage.
• If the playback stops, check the playback status on the device.

iPhone/iPad/iPod

Cannot operate

• Select "USB" as the input source.
• Check that the iPhone/iPad/iPod is connected properly.
• Connect the iPhone/iPad/iPod again or try to restart the iPhone/iPad/iPod.
• The battery of the iPhone/iPad/iPod is depleted. Charge the iPhone/iPad/iPod, and then operate again.

iPhone/iPad/iPod does not charge

• Make sure the unit is turned on when you start charging.
  • When charging an iPhone/iPad/iPod whose battery is depleted, do not turn this unit to standby mode until the iPhone/iPad/iPod becomes operational.

USB

The USB drive or its contents cannot be read

• The USB drive format or its contents is/are not compatible with the unit.

No response when [] is pressed

• Disconnect the USB device and then reconnect it.
  Alternatively, turn the unit off and on again.

Slow operation of the USB flash drive

• Large file size or high memory USB flash drive takes longer time to read.

PC

The PC does not recognize this unit

• Check your operating environment.
• Restart the PC, turn off and on this unit, and then reconnect the USB cable.
• Use another USB port of the connected PC.
• Install the dedicated driver if using a PC with Windows.

Cannot find music files stored on the PC

When you play back music files over a network, those that are not registered to its network server are not displayed. For details, refer to the operating instructions for your server.

Remote control

The remote control does not work properly

• To avoid interference, please do not put any objects in front of signal sensor.
• Change the remote control code if other products react to this remote control.

Messages

The following messages or service numbers may appear on the unit's display.

"AUTO OFF"

• The unit has been left unused for about 20 minutes and will enter standby mode within a minute. Press any button to cancel it.

"Checking Connection"

• The unit is checking the connected iPhone/iPad/iPod or a USB device.

"Download Error"

• The firmware download has failed. Press any button to exit. Please try again later.
• The server cannot be found. Press any button to exit. Make sure that the network is connected to the Internet.

"Empty"

• The selected folder is empty. Move tracks into the folder and retry the operation.
• The server is not found on the network. Check to see if the server is connected to the same network as this unit, and retry the connection to this unit.

"Error"

• Incorrect operation is performed. Read the instructions and try again.

"F" ("" stands for a number.)

• There is a problem with this unit.
  • Is the volume extremely high?
    If so, lower the volume.
  • Is this unit placed in an extremely hot place?
    If so, move this unit to a cooler place and wait a few moments and then try to turn it on again.

If the problem persists, write down the displayed number, disconnect the AC power supply cord and consult your dealer.

"No Network Connection"

• This unit is not connected to the network.
  Check the network connection.

"Not Conditional"

• The function you have tried to use is not available with the current settings. Check the steps and settings.

"Over Flow"

• The audio from the analog audio input terminal in use is distorted. Select "Attenuator", and change the setting for the analog audio input terminal in use to "On".

"PGM Full"

• The number of programed tracks is more than 24.

"Please Wait"

• This is displayed, for example, when this unit is turned on/off. (For up to 1 minute and 30 seconds)

"Remote " ("" stands for a number.)

• The remote control and this unit are using different codes. Change the code on the remote control.
  • When "Remote 1" is displayed, press and hold [OK] and [1] for at least 4 seconds.
  • When "Remote 2" is displayed, press and hold [OK] and [2] for at least 4 seconds.

"Searching"

• The unit is checking the DLNA server on the network.

"Unlocked"

• "PC", "AES", "COAX1", "COAX2", "COAX3" or "OPT" is selected, but no device is connected. Check the connection with the device.
• Audio signals, such as sampling frequency components, are not input correctly.
  • About supported format, refer to "File format"

"USB Over Current Error"

• The iPhone/iPad/iPod or USB device is drawing too much power. Disconnect the iPhone/iPad/iPod or USB device and turn the unit off and on again.

"Hub Device Not Supported"
"Unrecognizable Device"
"Unsupported"
"Unsupported USB Device"

• You have connected an iPhone/iPad/iPod or USB device that is not supported.
  • If the iPhone/iPad/iPod is compatible, turn it on and connect it correctly.
• The format of the file on the iPhone/iPad/iPod or USB device is not supported.
  • About supported format, refer to "File format"

Specifications

GENERAL

Power supply		AC 120 V, 60 Hz
Power consumption		60 W
Power consumption in standby mode*	(When "Network Standby" is off)	Approx. 0.2 W
	(When "Network Standby" is on)	Approx. 5.0 W
Power consumption in off mode		Approx. 0.2 W
Dimensions (WkHkD)		480mm x 120mm x 391mm (18 7/8" x 4 23/32" x 15 13/32")
Mass (Weight)		Approx. 17 kg (37.5 lbs)
Operating temperature range		0°C to +40°C (+32°F to +104°F)
Operating humidity range		35% to 80% RH (no condensation)

TERMINALS SECTION

Analog input
LINE input k2	Pin jack
Digital input
AES/EBU digital input	3 pin XLR
Coaxial digital input x3	Pin jack
Optical digital input	Optical terminal
USB
Front USB	Type A connector
Support memory capacity	2 TB (max)
Maximum number of folders (albums)	800
Maximum number of files (songs)	8000
File system	FAT16, FAT32
USB port power	DC OUT 5V 2.1A (max)
PC
Rear USB	Type B connector
Analog output
BALANCED	3 pin XLR
UNBALANCED	Pin jack
Digital output
Technics Digital Link
AES/EBU digital output	3 pin XLR
Coaxial digital output	Pin jack
Optical digital output	Optical terminal
Headphones jack	Stereo, ø6.3 mm (¼")
Ethernet interface
LAN	10 Base-T/100 Base-TX

FORMAT SECTION

USB-A
USB Standard	USB 2.0 high-speed
USB Mass Storage class
PC (USB-B)
USB Standard	USB 2.0 high-speed
USB Audio Class specification	USB Audio Class 2.0, Asynchronous mode
DSD control mode	ASIO Native mode, DoP mode DSD64/DSD128 playback

ANALOG OUTPUT SECTION

Channel	2 ch
Output level
BALANCED	2.3 Vrms
UNBALANCED	2.3 Vrms
Headphone	180 mWr180 mW (32Ω)
Frequency response
BALANCED	2 Hz to 90 kHz (-3 dB)
UNBALANCED	2 Hz to 90 kHz (-3 dB)
THD+N
BALANCED	0.0008% (1 kHz, 0 dB)
UNBALANCED	0.0008% (1 kHz, 0 dB)
S/N
BALANCED	118 dB (IHF-A)
UNBALANCED	115 dB (IHF-A)
Dynamic range
BALANCED	118 dB (IHF-A)
UNBALANCED	115 dB (IHF-A)

• Specifications are subject to change without notice.
• Mass and dimensions are approximate.

* When the iPhone/iPad/iPod is not charging

IMPORTANT SAFETY INSTRUCTIONS

Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed below. Keep these operating instructions handy for future reference.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A groundingtype plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel.
    Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Unit

• To reduce the risk of fire, electric shock or product damage,
  • Do not expose this unit to rain, moisture, dripping or splashing.
  • Do not place objects filled with liquids, such as vases, on this unit.
  • Use only the recommended accessories.
  • Do not remove covers.
  • Do not repair this unit by yourself. Refer servicing to qualified service personnel.
  • Do not place heavy items on this unit.

AC power supply cord

• The power plug is the disconnecting device.
  Install this unit so that the power plug can be unplugged from the socket outlet immediately.

Unit

• Do not place sources of naked flames, such as lighted candles, on this unit.

Placement

• To reduce the risk of fire, electric shock or product damage,
  • Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure this unit is well ventilated.
  • Do not obstruct this unit's ventilation openings with newspapers, tablecloths, curtains, and similar items.
• Do not lift or carry this unit by holding any of its knobs. Doing so may cause this unit to fall, resulting in personal injury or malfunction of this unit.

Battery

• Danger of explosion if battery is incorrectly replaced. Replace only with the type recommended by the manufacturer.
• Mishandling of batteries can cause electrolyte leakage and may cause a fire.
  • Remove the battery if you do not intend to use the remote control for a long period of time. Store in a cool, dark place.
  • Do not heat or expose to flame.
  • Do not leave the battery(ies) in a car exposed to direct sunlight for a long period of time with doors and windows closed.
  • Do not take apart or short circuit.
  • Do not recharge alkaline or manganese batteries.
  • Do not use batteries if the covering has been peeled off.
  • Do not mix old and new batteries or different types at the same time.
• When disposing of the batteries, please contact your local authorities or dealer and ask for the correct method of disposal.

RISK OF ELECTRIC SHOCK
DO NOT OPEN
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE SCREWS.
NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

If you have any questions, visit:
U.S.A.: www.panasonic.com/support
Canada: www.panasonic.ca/english/support
Register online at www.panasonic.com/register (U.S. customers only)
