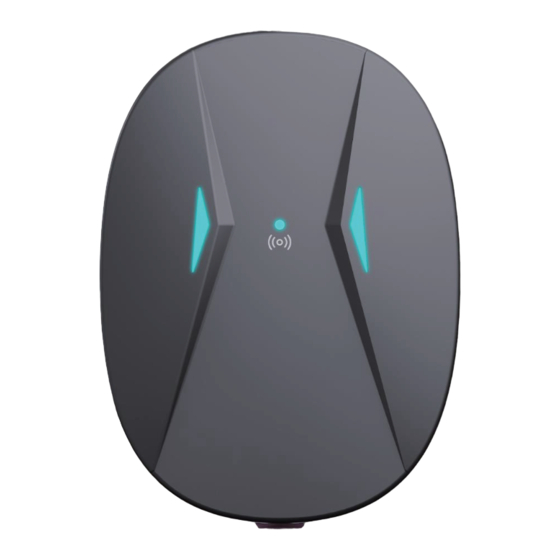

JoinTech EVCD2 Series User Manual

Electric vehicle ac charger
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER MANUAL
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVCD2 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for JoinTech EVCD2 Series

  • Page 1 USER MANUAL...

  • Page 2: Table Of Contents

    USER MANUAL CONTENTS 1. IMPORTANT SAFETY INSTRUCTIONS 2. PRODUCT INTRODUCTIONS 3. VERIFY CONTENTS 4. GATHER TOOLS 5. MOUNT THE CHARGER 6. WIRE THE CIRCUIT 7. OPERATE YOUR DEVICE 8. LIGHT CODES 9. WARRANTY AND MAINTENANCE...

  • Page 3: Important Safety Instructions

    USER MANUAL WARNING & CAUTION 1. Important Safety Instructions 1.1 Overall Warnings & Cautions WARNING: To avoid fire, injury or death, carefully read and follow the instructions during installation, operation and maintenance. DO NOT put fingers into the electric vehicle connector. DO NOT use this product if the flexible power cord or EV cable is frayed, insulation-broken, or any other signs of damage.
  • Page 4 USER MANUAL 1.3 Daily Maintenance CAUTION: Avoid moisture or water in the charger. If there is water or moisture ingress in the charger, it is necessary to immediately power off to avoid immediate danger, and notify the professionals to carry out maintenance before next use. CAUTION: Please use the charger properly.

  • Page 5: Product Introductions

    USER MANUAL 2. Product Introductions CAUTION : Avoid placing the charger near hot objects and at high temperature locations and away from dangerous substances such as flammable gases and corrosive materials. 2.1 Basic Interface 2.2 Basic Dimension Enclosure LAN Cable Inlet AC Power Cable Load Balance Socket Signal Check Indicator...
  • Page 6 USER MANUAL 2.3 Specifications Model Number EVCD2 Rated Input Voltage 230VAC ± 10% / Single Phase 400VAC ± 10% / Three Phase Rated Input Current 32A/64A AC Power Frequency 50/60 Hz 7kW*2 11kW*2/22kW*2 Rated Output Power Rated Output Current 32A*2 16A*2/32A*2 Input Protection UVP, OVP, OTP, RCD, SPD, Ground Fault Protection...

  • Page 7: Verify Contents

    USER MANUAL 3. Verify Contents Check the box to ensure you have this installation guide and these parts: Product Name Quantity Description AC Charger With attached input power cable User Manual Please read carefully before use For mounting the charger to the Wall-Mounted Bracket wall/structure M5 Anti-Theft Round...

  • Page 8: Gather Tools

    USER MANUAL 4. Gather Tools Tools required before installing the Wall-Mounted charger, gather the following tools: 1. Wire stripper 2. Adjustable Wrench 3. Voltmeter or digital multi-meter (for measuring AC voltage at the installation site) 4. Level 5. Pencil or marker 6.

  • Page 9: Mount The Charger

    USER MANUAL 5. Mount The Charger WARNING : In areas with frequent thunderstorms, add surge protection at the service panel for all circuits. Ensure all power and ground connections, especially those at the breaker and bus bar, are clean and tight. CAUTION : Not recommended to be installed in coastal environments with high humidity or high dust.
  • Page 10 USER MANUAL STEP 2 Use 4 sets Hexagonal Expansion Screws to secure the wall-mounted bracket on the wall. STEP 3 After levelling the brackets, use an adjustable wrench to tighten the outer hexagon screws on the expansion screws.
  • Page 11 USER MANUAL STEP 4 Align the rear notch of charger with the wall-mounted bracket and fit the screw holes of the right and left side. STEP 5 Tighten two M5 anti-theft screws with Allen Wrench to complete the installation.

  • Page 12: Wire The Circuit

    USER MANUAL 6. Wire The Circuit WARNING This device must be grounded. Disconnect electrical power prior to installing the charging station. WARNING Improper connection of the equipment-grounding conductor would result in a risk of electric shock. Check with a qualified electrician or serviceman if you are not sure whether the product is properly grounded.
  • Page 13 USER MANUAL 6.2 Load balancing connection (CT-BOX Optional) Signal wire introduction 3 pin female aviation plug Tube terminal Signal wire connection Connect the female aviation plug of the signal wire to the charger’s load balancing socket and tighten them. CT-BOX signal connection Connect three E0308 tube terminals of the signal wire to the CT BOX according to the number of the terminals.
  • Page 14 USER MANUAL CT-BOX circuit coonection Single Phase Three Phase...
  • Page 15 USER MANUAL APP settings After completing the circuit connection, please click gear icon which means advanced settings in the upper right of the app and set the max power. In order to avoid frequent tripping of the main circuit breaker during normal operation, it’s recommended to set this value slightly lower than the maximum power supply of the main circuit breaker.

  • Page 16: Operate Your Device

    USER MANUAL 7. Operate Your Device WARNING This device should be supervised when used around children. CAUTION Please use the charger properly. Do not hit or press hard on the enclosure. If the case is damaged, please contact a professional technician. CAUTION Do not put heavy objects on the charger to avoid danger.
  • Page 17 USER MANUAL STEP 2 Plug the Charging Connector: Open the socket’s cover and plug the charging connector into the socket(IEC 62196-2), then plug the other charging connector into the electric vehicle. STEP 3 Charging: The green light (CHARGE) turns to flash automatically, charging is in process. (e.g. AC1 STEP 4 Charging finished: When the charging is finished, the green light (CHARGE) is constantly on.
  • Page 18 USER MANUAL STEP 5 Put out the car connector first, then put out the charger connector.
  • Page 19 USER MANUAL 7.2 Operating Steps with RFID (Optional) CAUTION : Please keep your RFID card properly to avoid unnecessary loss. STEP 1 Standby Mode: After power-on, blue light (READY), green light (CHARGE) and red light (FAULT) all on. The blue light (READY) is constantly on when in standby mode.
  • Page 20 USER MANUAL STEP 3 Swipe the RFID Card: Swipe the RFID card first and plug in the charging connector within 120 seconds, otherwise you need to swipe the RFID card again. STEP 4 Charging: The green light (CHARGE) turns to flash automatically, charging is in process. If the red light (FAULT) is on, plug in the charging connector again.
  • Page 21 USER MANUAL 7.3 Smart APP Guide (Optional) 1. Download ‘S-Charge’ 2. Follow the ‘Operational Guidance’ in ‘More’ to use.

  • Page 22: Light Codes

    USER MANUAL 8. Light Codes 8.1 Signal Indicator Internet Internet Connecting to Connected Connection Not connected Connecting Connected S-charge with S-charge failed Slow Blink In Quick Blink Solid blue Blue blinking Solid Green Solid red Green In Green 8.2 Status Indicator Charging process status indicator e.g.
  • Page 23 USER MANUAL 8.3 Fault and Warning Message Fault Status Remark Electronic lock fault Solid Red Reboot Recover Voltmeter fault 1 flash followed by 3 sec pauses Auto Recover Auto Recover Control pilot fault 2 flashes followed by 3 sec pauses (Pull out the charging connector) Input UVP 3 flashes followed by 3 sec pauses...

  • Page 24: Warranty And Maintenance

    USER MANUAL 9. Warranty and Maintenance • The warranty period for this charger is two years. • During the warranty period for any malfunction under normal use according to the User Manual and Service Instructions (to be determined by certified maintenance technicians of sellers), the product shall be repaired free of charge.
