Summary of Contents for TRIMETALS Titan Range Pent Roof Shed

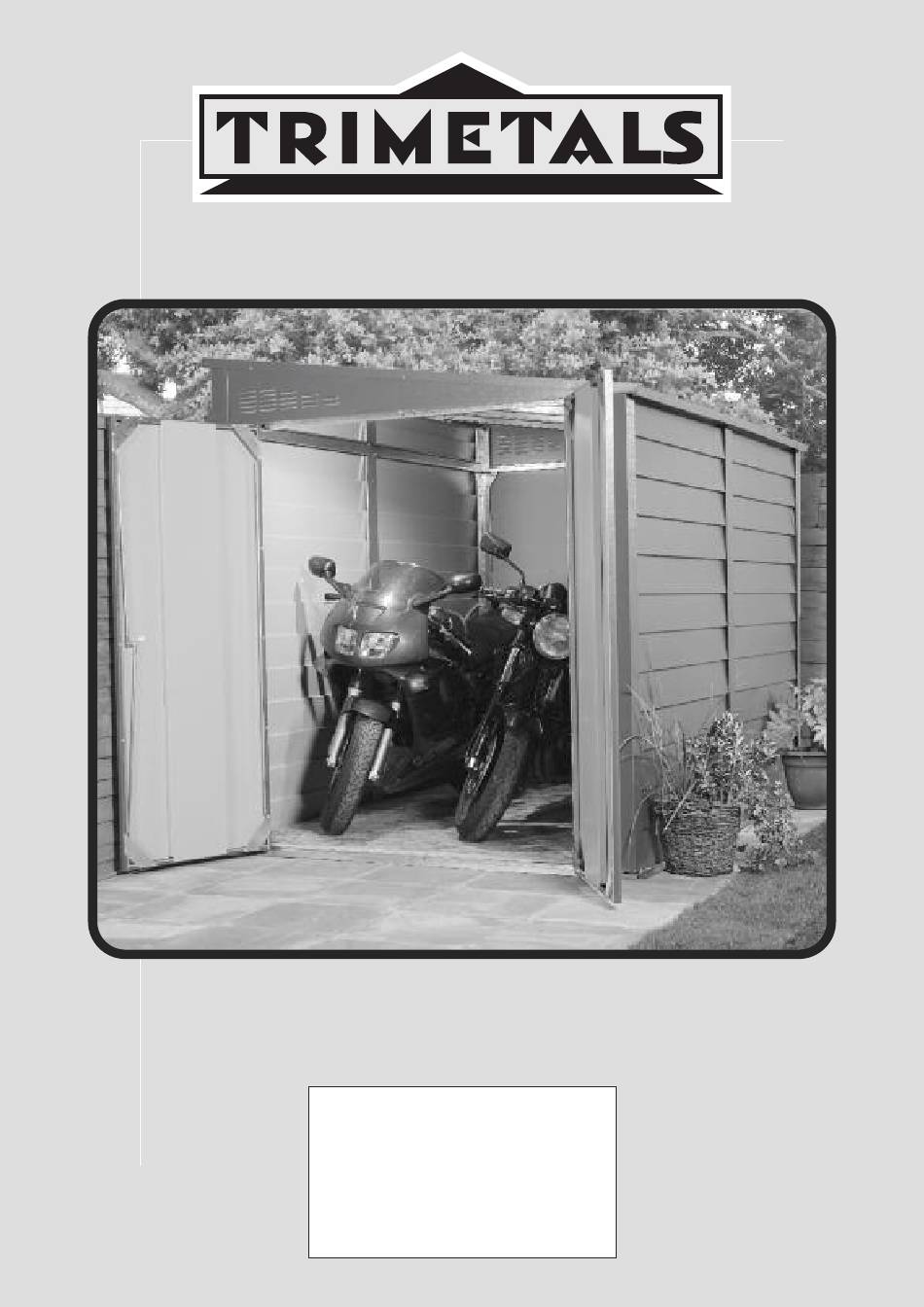

- Page 1 T I T A N R A N G E P E N T R O O F S H E D A S S E M B L Y I N S T R U C T I O N S 140 cm 270 cm 160 cm...
-
Page 2: Component List
DOOR PILLAR SUPPORT Door Pillar Support Trimetals policy is one of constant improvement. We reserve the right to alter specifications outlined in this document without incurring any obligation. TRIMETALS LTD. Sunrise Business Park, Higher Shaftesbury Road, Blandford Forum, Dorset DT11 8ST Trimetals policy is one of constant improvement. -
Page 3: Tools Required
PLEASE READ BEFORE COMMENCING SHED CONSTRUCTION TOOLS REQUIRED PARTS NOT SUPPLIED 4 x M8 Rawl Bolts... -
Page 4: Site Preparation
SITE PREPARATION SITE PREPARATION WE RECOMMEND THAT ALL OUR SHEDS ARE SITED AND FASTENED TO A CONCRETE BASE 4” (100 mm thick). THE CONCRETE BASE MUST BE LAID OVER A WATERPROOF MEMBRANE. (plastic sheeting). BASE AREA REQUIRED Standard Pent Roof Model 150 cm wide x 280 cm long Wide Pent Roof Model 175 cm wide x 280 cm long... -
Page 5: Base Assembly
BASE ASSEMBLY (38) -
Page 6: Frame Assembly
FRAME ASSEMBLY... - Page 7 FRAME ASSEMBLY...
- Page 8 CLADDING CLADDING Carefully select a Side/Rear Panel (14/14a) and, starting at the top of the Low Side of the Shed, screw the Panel to the Corner Post (9) and Centre Post (7), using two self tapping screws (38). As shown in Figure 14. The next panel is slid into position and hangs on the bottom of the first panel and is then screwed into position, as shown in Figure 15 using screw (38).
- Page 9 PANEL RETAINERS PANEL RETAINERS NOTE: The 9 x 6 version has two Door Pillar Supports (54) and two Door Infill Sections (53), one at either side, the fitting of the Right hand side is shown in Figures 18 & 19. Select the two Low Corner Panel Retainers (50) and two High Corner Panel Retainers (19).
- Page 10 PANEL RETAINERS...
-
Page 11: Roof Assembly
ROOF ASSEMBLY ROOF ASSEMBLY Select the four Roof Panel Supports (28/28a). Lift the Roof Panel Support into position, as shown in Figure 28. The holes in the Roof Supports should correspond with holes in the Side Supports (51) and (17). Select the five Roof Panels, (the two End Roof Panels (29/29a) have an extra fold, while the three Middle Roof Panels (31/31a) are identical). - Page 12 DOOR & DOORWAY FITTINGS DOOR BAR & HANDLE FITTINGS Fig 38...
