Summary of Contents for Solutions MS-4KCAM

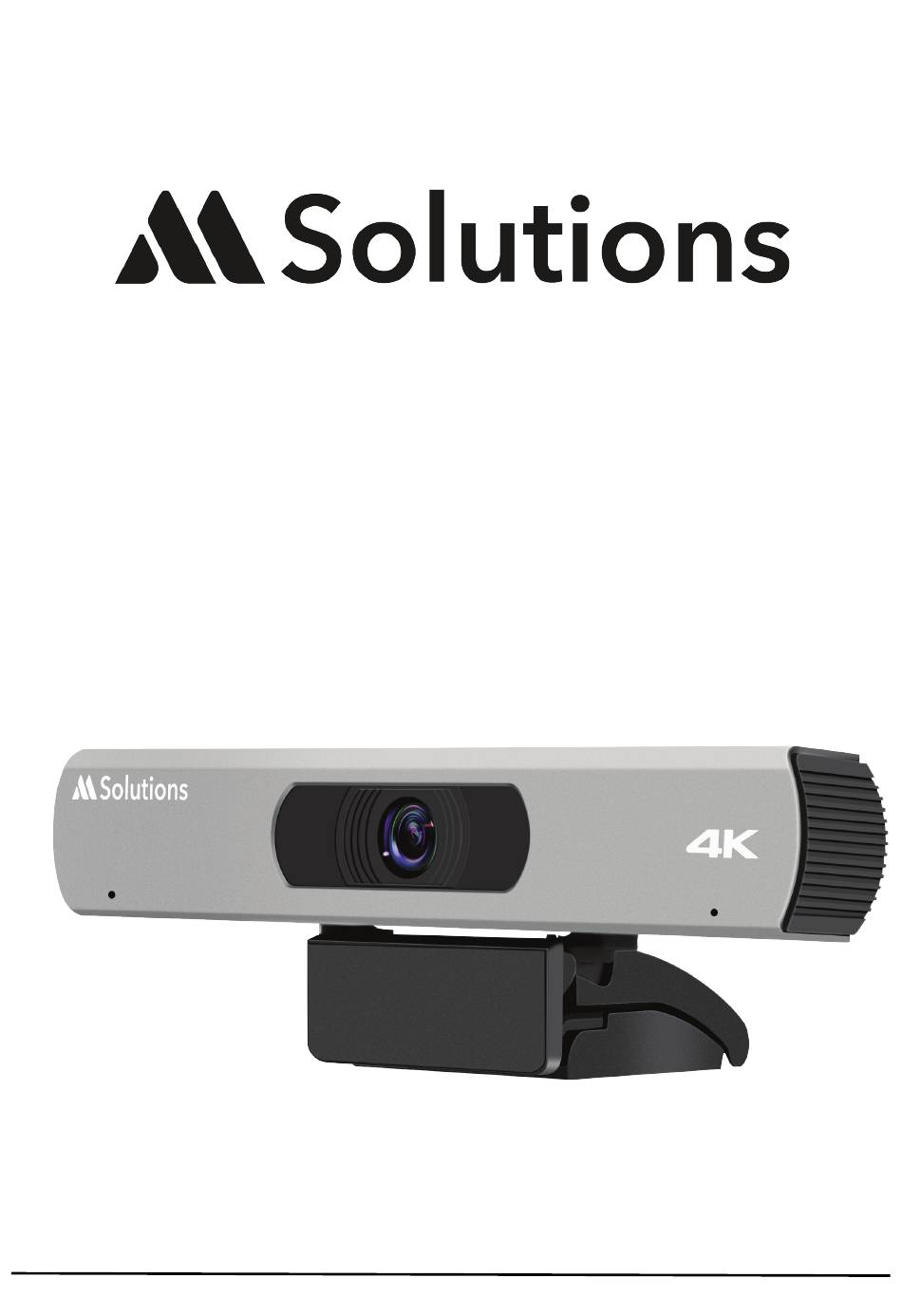

- Page 1 User Guide MS-4KCAM 4K UHD USB Camera Revision: 1.0 -March 2024...
- Page 2 MS-4KCAM USER GUIDE Copyright Notice All contents of this manual, whose copyright belongs to our corporation cannot be cloned, copied or translated without the permission of the company. Product specifications and information which were referred to in this document are for reference only. We may change, delete, or update any content at any time and without prior notice.
-
Page 3: Table Of Contents
MS-4KCAM USER GUIDE Catalogue Note Packing List Quick Start About Product Features Specification Interface Dimensions Installation Remote Control GUI Settings Menu Exposure Color Image Noise Reduction Setting Information Restore Default Troubleshooting... -
Page 4: Note
MS-4KCAM USER GUIDE Note • During the installation and use of the equipment, all electrical safety regulations of the country and region of use must be strictly observed. • Please use the power adapter that comes standard with this product. -
Page 5: Quick Start
MS-4KCAM USER GUIDE Quick Start 1. Please check that connections are correct before starting. 2. Connect the USB cable to the connector on the rear panel of the camera. The power indicator on the front panel of the camera will turn on. -
Page 6: About Product
MS-4KCAM USER GUIDE About the Product 4.1 Features • 4K UHD Support 4K UHD, ultra-high definition with ultra-high resolution, provide up to 4K30/25 encoding output, and down compatible with 1080P and 720P etc. • USB 3.0 Full-featured USB 3.0 interface, integrating power supply, video and audio, supports 1 USB video + audio and 1 HDMI signal source. -
Page 7: Specification
MS-4KCAM USER GUIDE Specifications Camera 4K UHD USB Camera Sensor 1/2.5 inch, CMOS, Effective pixels: 8.29M Scanning Mode Progressive Lens Mount Lens 1 (optional) Focus: f=3.5mm, FOV: 84°, (Support Auto Focus) Lens 2 (default) Focus: f=2.8mm, FOV: 120° Minimum Illumination 0.5 Lux @ (F1.8, AGC ON) -
Page 8: Interface
MS-4KCAM USER GUIDE Specifications (continued) Interface HDMI Interface 1 x HDMI: 1.4 USB Interface 1 x USB 3.0: Type B, female General Specifications Input Voltage 5V (USB Power Supply) Input Current 0.6A (max.) Operating Temperature 0°C~40°C (332°F~104°F), 95%RH Storage Temperature -40°C~60°C (-40°F~140°F), 95%RH... -
Page 9: Installation
MS-4KCAM USER GUIDE 4.5 Installation Camera can be placed on horizontal desktop or mounted on the monitor which thickness is ≤45mm as per the diagram: 4.6 Remote Control 4K UHD USB Camera User Manual 4K UHD USB Camera User Manual Key Description 14. -
Page 10: Gui Settings
4K UHD USB Camera MS-4KCAM USER GUIDE User Manual GUI Settings ExpComp (Exposure Compensation Value): -7~7 (effective in ExpCompMode On). GUI Settings Gain Limit (Maximum Gain Limit): 0~15 (effective in Full Auto and Bright mode). 4K UHD USB Camera User Manual 5.1 MENU... -
Page 11: Image
RG Tuning (Red Gain Tuning): -10~10 (effective in Auto, One Push and VAR mode). BG Tuning (Blue Gain Tuning): -10~10 MS-4KCAM USER GUIDE (effective in Auto, One Push and VAR mode). Saturation: 60%~200%. 4K UHD USB Camera User Manual Hue: 0~14. -
Page 12: Information
INFORMATION Version 9.0.27 MS-4KCAM USER GUIDE Model O54.V Date 2021-10-12 4K UHD USB Camera User Manual Return 5.8 RESTORE DEFAULT 5.8 Restore Default Tracking Effect: Instaneous, Smooth Maintenance and (effective in Tracking Participants mode). When in main menu page, move the cursor to... - Page 13 www.m4sol.com...
