Summary of Contents for HomePlug COPS-928-POE

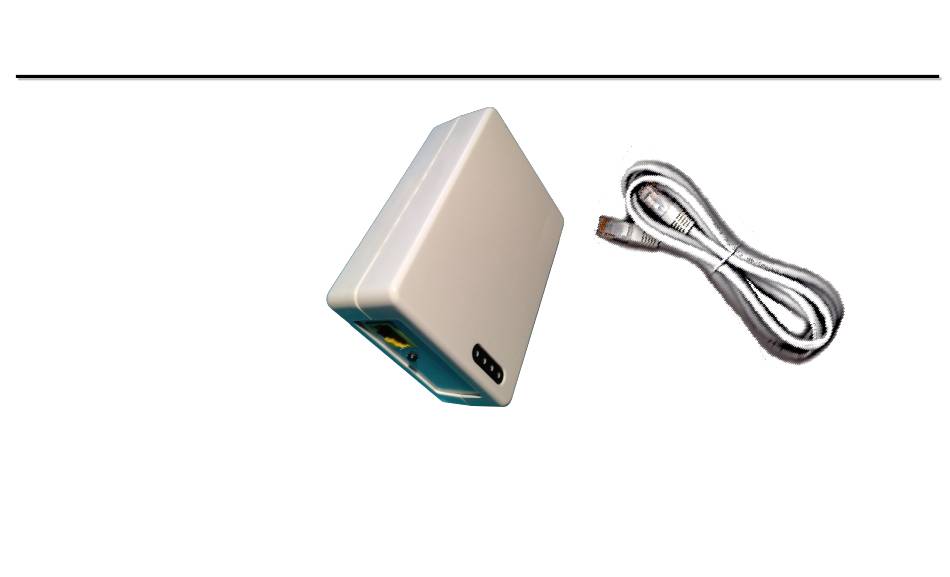

- Page 1 COP - - Systems Systems Installation Manual Installation Manual Powerline AV with PoE COPS-‐928-‐POE Ethernet Cable Model Number: COPS-928-POE HomePlug AV PowerStreaming Device with Power over Ethernet ®...
-
Page 2: Powerline Network
Powerline Network Room 1 Room 2 AC Powerline... - Page 3 Connect the COPS-928-POE Adapter to a Local Area Network (LAN) 1. If not already installed, plug one end of the Ethernet cable into the Ethernet port on the bottom of a new HomePlug AV Adapter and the opposite end of the cable into the LAN modem or router.
-
Page 4: Front Casing
Red: Minimum connection indicates weak signal and slower network speed: less than 50Mbps Orange: Normal signal with standard network speed: 50-99Mbps Green: Excellent signal with optimal network speed: 100Mbps+ Off: No activity. This COPS-928-POE Adapter is not connected Ethernet Link Light Solid Green: 10/100 Mbps port linked... -
Page 5: Troubleshooting And Disclaimer
• If where the COPS-928-POE adapter is being install is in a building that has more than one circuit breaker box, the adapter may not be able to connect between the separate electrical circuits. In this case, connect one HomePlug AV Injector to a power outlet located on each side of the circuit boxes. - Page 6 Up to 200 Mbps over Power Line and 10/100Mbps over Ethernet Standards IEEE1901 / HomePlug AV One RJ-45 (10/100Base-T Ethernet/48V PoE DC power) Network Interface One 200Mbps Power Line Port supporting co-existence with HomePlug 1.0 (14/85Mbps) Security 128-bit AES Link Encryption with Key Management Frequency Band 2-28 MHz...
- Page 7 Safety This equipment has been tested and found to comply with Part 15 Class B of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, (2) This device must accept any interference received, including interference that may cause undesired operation.
