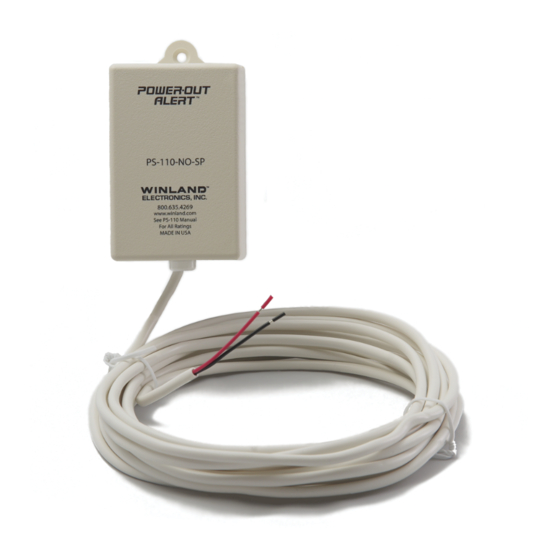

Electronic Power Loss Monitor
This Package Contains:
• 1 PS-110
• 1 Product Guide
Features:
• Detect power loss by plugging into a standard outlet
• Connects to most hardwire or wireless alarm systems
• 3 to 8 minutes power interruption closes the dry contact
• Built in delay of 3 to 8 minutes to avoid nuisance alarms
• Do not put the PS-110 device into a cooler/freezer environment
Note:
• The Power-Out Alert™ contact is Normally Open ("N.O."). Once power is lost for
3 to 8 minutes the curcuit is Normally Closed ("N.C.").
• Once power is restored the contact will take 3 to 8 minutes to restore back
to N.O.
•
Test device weekly to ensure proper operation.
Specifications:
Applica�on
Contact Ra�ng
Time Delay
Opera�ng Range
Weight
Dimensions
Moun�ng
Standard two blade 120V AC outlet
500mA at 30V AC
3 to 8 minutes, not adjustable
40 to 100 °F (4.4 to 37.8 °C) non-condensing environment
Indoor use only
9.3oz (263.7g)
2.25" x 2.0" x 3.0" (5.7cm x 5.1cm x 7.6cm)
Standard eyelet and included moun�ng screw
• 507-625-7231
techsupport@winland.com
www.winland.com
Advertisement
Table of Contents
Related Manuals for Winland POWER-OUT ALERT PS-110
Summary of Contents for Winland POWER-OUT ALERT PS-110
- Page 1 40 to 100 °F (4.4 to 37.8 °C) non-condensing environment Opera�ng Range Indoor use only Weight 9.3oz (263.7g) Dimensions 2.25” x 2.0” x 3.0” (5.7cm x 5.1cm x 7.6cm) Moun�ng Standard eyelet and included moun�ng screw • 507-625-7231 techsupport@winland.com www.winland.com...
- Page 2 This compact, easy-to-use device plugs into any standard 2-prong 120V AC outlet that requires monitoring. It has an a�ached 15’ (4.57m) cable that wires into remote warning devices such as alarm systems or other emergency equipment. When power to the monitored circuit is interrupted for more than 3 to 8 consecu�ve minutes, the PS-110 ac�vates alarms through a dry contact output.
- Page 3 Winland Electronics, Inc. (”Winland”) warrants to the original purchaser from Winland that each product of Winland’s that it manufactures shall be free from defects in material and factory workmanship for a period of one (1) year from the date of purchase, when properly installed and operated under normal condi�ons according to Winland’s instruc�on.
