SCAT PROCAR Touring 1680 Series Assembly Instructions

ASS E MB LY IN S T RU CTI O N S
Procar by SCAT, a line of SCAT Enterprises, INC. provides the following mounting bracket installation information as a
general set of instructions to help you properly install your Procat by SCAT seats and brackets. These instructions are
not all-inclusive and may not cover every aspect of installation as some applications may require extra parts or interior
modifications. Please contact Procar by SCAT or your local authorized dealer if you have installation questions. We
assume no responsibility for proper or improper installation. Please thoroughly inspect your package to ensure all
components for installation are in the box prior to assembly, if you are missing item(s) please contact Procar by SCAT or
the retailer you purchased from.

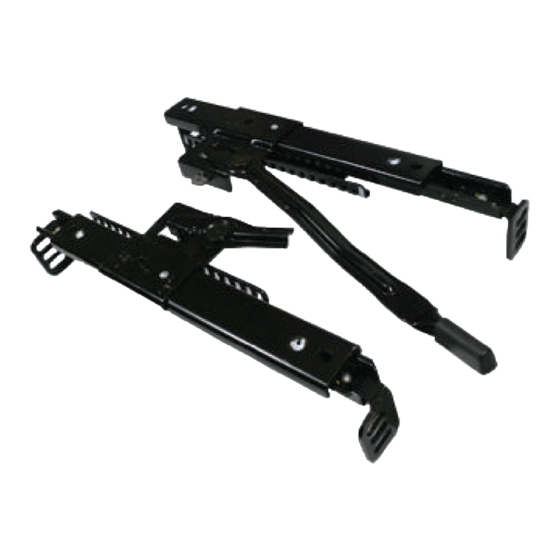

ONE SLIDER MECHANISM PER SEAT
1. Remove your factory seats and adapters. Put aside the OEM mounting bolts and washers. You will
require them to mount the adapters to the floor board
2. As shown in illustration (2A) (2B) & (2C) attach slider mechanism to base of seat using supplied
hardware. You can use Loctite® if desired. Repeat on second seat if applicable.
2A
3. Attach return spring as shown in illustration (3A), (3B) between the two sprung points. This will allow the
seat's locking mechanism to activate once the seat is slid to the desired position of choice
WWW.PROCARBYSCAT.COM | 1400 KINGSDALE AVE., REDONDO BEACH, CA 90278 | P (310) 370-5501
2B
3A
HEX BOLTS (4)
LOCK WASHERS (4)
SPACER WASHERS (4)
2C
3B
