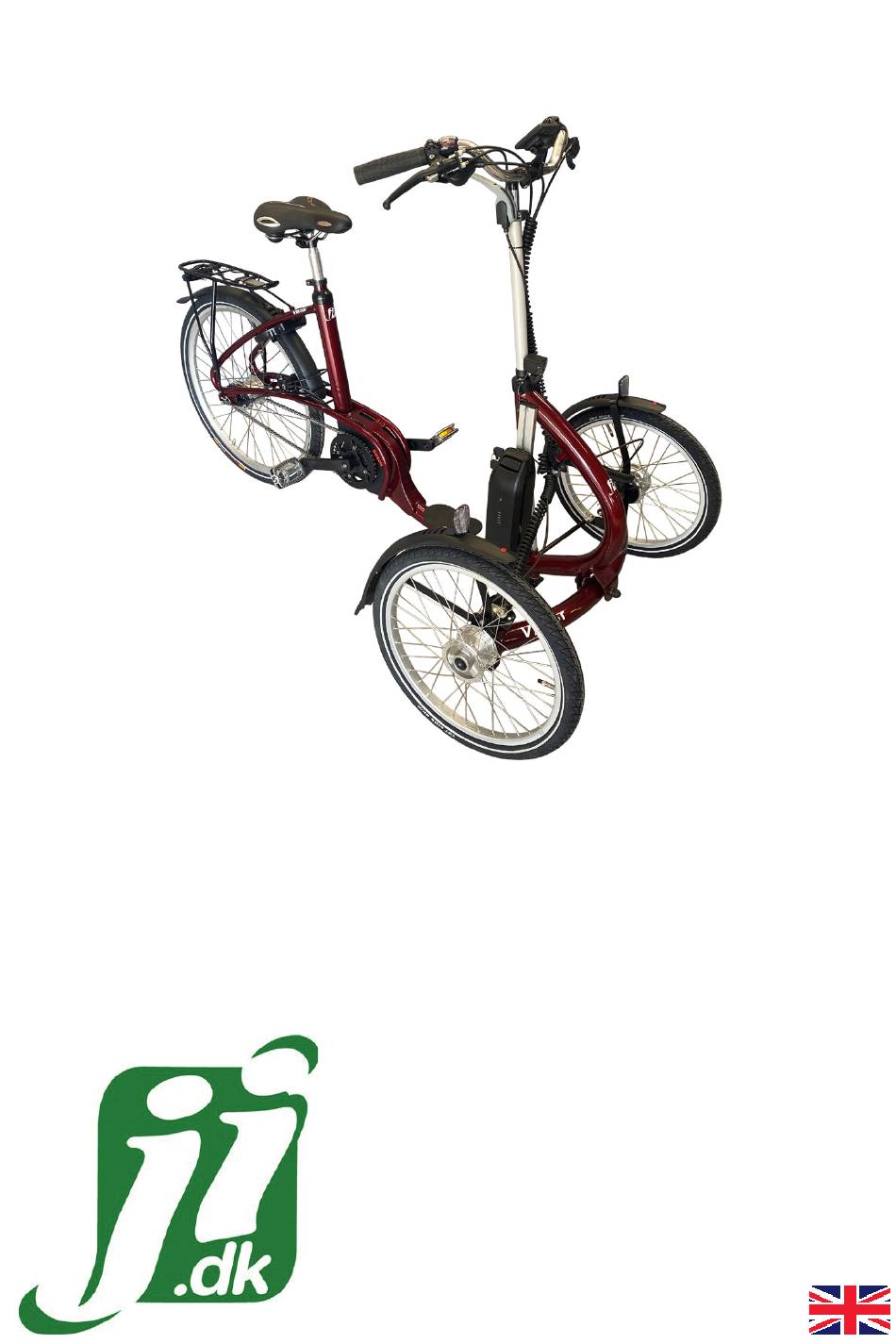

Page 1 User Manual Vik/Viktoria/Viktor Power Jørn Iversen Rødekro ApS Hydevadvej 48 DK-6230 Rødekro Tlf: +45 74 66 92 42 iversen@ji.dk www.ji.dk...
Page 2: Table Of Contents
Indholdsfortegnelse General directions ..............3 Before you go your first trip ..........4 Your first trip ................5 Adjusting your tricycle ............9 Lock ................10 Adjusting the handlebars ...........11 Handbrake ..............13 Adjusting the handbrake cable ..........14 Adjusting the chain ..............15 Gear ..................16 Adjusting the gear lever and cable ........16 Maintenance of the bike ............18...
Page 3: General Directions
Congratulations on your new tricycle! We hope you will have many positive adventures with your tricycle. And that it will be a long and trouble-free experience. There is a 2-year right of complaint on the product in accordance with the Danish Sales Act. Original parts or components approved by the manufacturer must be used.
Page 4: Before You Go Your First Trip
Before you go your first trip there are a few things you need to know. When you have become confident with the tricycle, it will fell very comfortable to drive. This is not a bicycle and it is not driven like a bicycle! A tricycle is always dependent on the surface.
Page 5: Your First Trip
Warning • Never turn the tricycle when at full speed; it may overturn. • Never block the brakes when at full speed because the tricycle might overturn. • Never use the tricycle for transport of other people. • Remember that free wheel equal no foot brake. Your first trip Pull the bike to an area where there is no traffic and where the surface you will be cycling on is as flat as possible.
Page 6 Next, practice turning a little to the left and a little to the right so that you wobble a little. Always remember to keep an eye on the traffic. After you’ve practiced this many times, you can start practicing driv- ing on uphills and downhills.
Page 7 Vik Power Viktoria Viktor Power Power MPF Boarding height 12,5 cm 19 cm 16,5 cm Handlebar height 80 - 95 cm 95 - 113 cm 105 - 123 cm Inside leg length 50 - 65 cm 63 - 80 cm 75 - 93 cm Length x Width 125 x 73 cm...
Page 8 The range of bicycles in the v-series is aimed at people with reduced mobility functional capacity for children and adults. Groups of people who can benefit from the bicycle can be: People whose balance is no longer sufficient to ride a two-wheeled bicycle People with Parkinson’s People with hemiplegia...
Page 9: Adjusting Your Tricycle
Adjusting your tricycle In order to obtain the best use of your tricycle it is important it is adjusted correctly according to your needs. Adjusting the saddle The height is adjusted by loosening the Allen screw using an Allen key. Then the saddle post can be pulled up or pushed down to the desired height.
Page 10: Lock
Warning The saddle can get very hot when your tricycle is parked directly in the sun. There must always remain 5 cm of the saddle post in the tricycle frame and the saddle post must not be raised more than the max mark. Lock 1.
Page 11: Adjusting The Handlebars
Adjusting the handlebars Normal handlebars and bar handlebars can be adjusted in height and angled. The distance from handlebar to saddle is changed by angling the stem. If the distance from the handlebars to the saddle needs to be shorter, the stem can be turned backwards. Viktor Power MPF and Viktoria Power MPF are fitted with different stem.
Page 12 Remove the plastic plug, loosen Loosen the Allen screw to the Allen screw 2-3 turns. Leave angle the stem up or down. the Allen key in the screw, tap it lightly 2-3 times with a hammer, after which the handlebars are loosened and can be raised or lowered.
Page 13: Handbrake
Handbrake Tricycle is mounted with a combined hand and parking brake that activates the drum brakes on the front wheels. Activate the parking brake by pulling the handbrake handle towards the handlebars, and at the same time activate and hold the hand- brake lock.
Page 14: Adjusting The Handbrake Cable
Adjusting the handbrake cable The brake should brake equally much on each of the front wheels. If not, the cables need adjusting. The adjusting screw is placed at each front wheel at the end of the black brake cable. If the handbrake is slack, turn counter-clockwise. If the brake is too tight (i.e.
Page 15: Adjusting The Chain
Adjusting the chain Loosen the nuts holding the rear wheel so the rear wheel can be moved. Use the two 6mm nuts in the rear to tighten or losen the chain, until the chain can be moved ½ cm up and down in the middle between the crank wheel and the rear gear wheel, be at the same time aware of the wheel must be centered, tighten the two main nuts again.
Page 16: Gear
Gear Viktoria Power MPF and Viktor Power MPF is equipped with 7 gears. When shifting gears up or down, do not apply the gear lever when treading the pedals. The gear lever can be mounted on ei- ther the left or the right hand side of the handlebars Press button to Push button for The red field...
Page 17 Pull out the adjusting Turn the gear lever to 4th gear. screw, ca. 0.5 cm before adjusting the cable. The rear wheel The two yellow markings, are level, the gear cable is adjusted correctly. Jørn Iversen Rødekro Aps. - Hydevadvej 48 - Hydevad - DK-6230 Rødekro Tel.: +45 74669242 - Fax.: +45 74669294 - E-mail.: iversen@ji.dk - Web.: www.ji.dk...
Page 18: Maintenance Of The Bike
Warning • Remember that children can hurt their fingers by playing with the chain or cogwheel. Maintenance of the bike Monthly Check the air pressure in all three tyres. Rinse the chain in hot water, oil the chain. Check that all cables to the brakes and the gear work freely. If necessary, put a drop of oil into the cable housing.
Page 19: Bosch Ebike Motor
Bosch eBike motor Viktor Power and Viktoria Power is fitted with a Bosh eBike system motor. The system ensures that the cycling becomes a lot easier for you. The electric motor makes Viktor Power and Viktoria Power to a different bike to cycle, than tricycles without engine. Get immediate and powerful support in any riding conditions - regardless of how fast or slow you’re pedalling.
Page 20: Product Description And Specifications - Led Remote
Product description and specifications - LED Remote The LED Remote operating unit is designed to control a Bosch eBike system and control an on-board computer. Product features The numbering of the components shown refers to the illustrations on the graphics pages at the beginning of the manual. All illustrations of bike parts except for the drive unit, onboard computer (including operating unit), speed sensor and the corresponding holders are a schematic representation...
Page 21 Jørn Iversen Rødekro Aps. - Hydevadvej 48 - Hydevad - DK-6230 Rødekro Tel.: +45 74669242 - Fax.: +45 74669294 - E-mail.: iversen@ji.dk - Web.: www.ji.dk...
Page 22: Operation - Ebike System
Operation - eBike system The eBike system can only be activated when the following requirements are met: • A sufficiently charged battery is inserted (see battery operating instructions). • The speed sensor is connected properly (see drive unit operating instructions). Operating unit power supply If a sufficiently charged eBike battery is inserted into the bike and the eBike system is switched on, then the operating unit battery is...
Page 23: Switching The Ebike System On/Off - Led Remote
Switching the eBike system on/off - LED Remote To switch on the eBike system, briefly press the on/off button (1). After all LEDs briefly light up, the state of charge of the battery is displayed in colour with the battery charge indicator (3) and the set assistance level with the (5) display.
Page 24: Battery Charge Indicator - Led Remote
Battery charge indicator - LED Remote The battery charge indicator (3) displays the eBike battery’s state of charge. The state of charge of the eBike battery can also be checked on the LEDs of the battery itself. In the (3) display, each ice-blue bar represents 20 % capacity and each white bar represents 10 % capaci- ty.
Page 25: Setting The Assistance Level
Setting the assistance level On the operating unit using the (8) and(9) buttons, you can set how much the eBike drive assists you while pedalling. The assistance level can be changed at any time, even while cycling, and is displayed in colour.
Page 26: Interaction Between The Ebike System And Gearshifting
Interaction between the eBike system and gearshifting The gear shifting should be used with an eBike drive in the same way as with a normal bicycle (observe the operating instructions of your eBike on this point). Irrespective of the type of gear shifting, it is advisable that you briefly reduce the pressure on the pedals when changing gear.
Page 27 To start walk assistance, press the button for more than 1 s and keep it pressed. The battery charge indicator goes out and a white moving light in the direction of travel shows that it is ready. To activate walk assistance, one of the following actions must occur within the next 10 s: •...
Page 28: Intuvia 100 - Display
Intuvia 100 - display The Intuvia 100 on-board computer is designed to display cycling data. Switching the on-board computer on/off Switch on the eBike system. To switch on the on-board computer, gently move the eBike or tap the display. The following options are available for switching off the onboard computer: •...
Page 29 Display Elements of On-Board Computer (a) Battery charge indicator (b) Bike lights display (c) Assistance level indicator (d) Drive unit assistance indicator (e) Unit indicator (f) Text indicator (g) Navigation bar (h) Value indicator (i) Speedometer Jørn Iversen Rødekro Aps. - Hydevadvej 48 - Hydevad - DK-6230 Rødekro Tel.: +45 74669242 - Fax.: +45 74669294 - E-mail.: iversen@ji.dk - Web.: www.ji.dk...
Page 30: Displays And Settings
Displays and settings Speed and distance indicators The speedometer always displays the current speed. You can choose from the following functions in the function display (combination of text indicator and value indicator): Distance: Distance travelled since the last reset Riding time: Journey time since the last reset Time: Current time Range: Estimated range of the available battery charge (at constant conditions such as assistance level, route...
Page 31: Battery Charge Indicator
Battery charge indicator The on-board computer shows the state of charge of the eBike rechargeable battery in per cent. A notification is displayed once when the battery’s state of charge falls below 30%, and again when it falls below 10%. The notification can be confirmed, or it simply disappears after 5 s.
Page 32: Speed Sensor
Speed sensor The speed sensor (2) and its spoke magnet (3) must be fitted such that the spoke magnet moves past the speed sensor at a distance of at least 5 mm and at most 17 mm with each rotation of the wheel. Jørn Iversen Rødekro Aps.
Page 33: Battery - Powerpack 545
Battery - PowerPack The Bosch eBike rechargeable batteries are intended exclusively for the power supply of your Bosch eBike drive unit and must not be used for any other purpose. The numbering of the components shown refers to the illustrations. (1) Key for the battery lock (2) Battery lock...
Page 34: Charging The Battery
Charging the battery The battery can be charged at any state of charge. Interrupting the charging process does not damage the battery. The battery has a temperature monitoring function which only allows it to be charged within a temperature range of 0 °C to 40 °C.
Page 35: Inserting And Removing The Powerpack Battery
Inserting and Removing the PowerPack battery In order to insert the battery, the key (1) must not be inserted in the lock (2). To insert the PowerPack battery (15), place it so that its contacts are in the lower holder (16) on the eBike. Tilt it into the upper holder (14) as far as possible until you hear it click into place.
Page 36: Switching On/Off- Battery
Switching on/off- Battery To switch on the battery, press the on/off button (7). Do not use any sharp or pointed objects to press the button. The LEDs on the indicator (6) will light up, indicating the battery’s state of charge at the same time. To switch off the battery, press the on/off button (7) again.
Page 37: Recharging The Battery Before And During Storage
Recharging the battery before and during storage When you are not going to use the battery for an extended period (longer than three months), store it at a state of charge of around 30% to 60% (when two to three of the LEDs on the battery charge indicator (6) are lit).
Page 38: Accessories
Accessories There is a large variety of accessories to give you a more comfortable ride. Ask your dealer for advice on accessories, or visit us at www.ji.dk. Unionpedal with side Oval handlebar support Jørn Iversen Rødekro Aps. - Hydevadvej 48 - Hydevad - DK-6230 Rødekro Tel.: +45 74669242 - Fax.: +45 74669294 - E-mail.: iversen@ji.dk - Web.: www.ji.dk...
Page 39 Cushioned seat Side mirror Basket behind Crutch holder Jørn Iversen Rødekro Aps. - Hydevadvej 48 - Hydevad - DK-6230 Rødekro Tel.: +45 74669242 - Fax.: +45 74669294 - E-mail.: iversen@ji.dk - Web.: www.ji.dk...
Page 40 Unionpedal with velcro Unionseat with braket Shopping Bag with 4 Step plate compartments Visit our website www.ji.dk and find more accessories Jørn Iversen Rødekro Aps. - Hydevadvej 48 - Hydevad - DK-6230 Rødekro Tel.: +45 74669242 - Fax.: +45 74669294 - E-mail.: iversen@ji.dk - Web.: www.ji.dk...
Page 41 Warning • Be careful if your body is fixed to a body support. Because the centre of gravity is shifted you might overturn when turning at high speed. Always drive extra carefully when you are strapped on to the tricycle. •...
Page 42: Cleaning The Bike
Cleaning the bike Frame, seat and cover can be cleaned with a damp cloth. If the bike is dirty, a mild detergent can be used. A damp brush is used for the wheels - please note that the brushes must not be made of steel, but must be made of plastic. The saddle and handle can be cleaned with mild soapy water.
Page 43: Periodic Inspection Of Your Bike
Periodic inspection of your bike Date: Assistive no .: model: Chassis no .: Performed by: We recommend that the bike shall be checked every 6 months or 3.000 km. Checked Changed Test drive with bike Check if the bike move easily Check the directional stability Check the foot brake and rear brakes.
Page 44 Checked Changed Brakes Check if the front brake brakes. Check if the brakes release entirely Check if the parking brake is holding the bike Check if the rear brakes brake Check the cables; lubricate if needed Chain Check for wear on chain Check if the chain needs adjustments Gear Check the cable...
Page 45 Always remember to bring your key to the battery when you hand over your bike to repair. Jørn Iversen Rødekro Aps. - Hydevadvej 48 - Hydevad - DK-6230 Rødekro Tel.: +45 74669242 - Fax.: +45 74669294 - E-mail.: iversen@ji.dk - Web.: www.ji.dk...
Page 46: Disposal
Disposal If you want to dispose of the bicycle yourself, you must be aware that the parts of the bicycle must be disposed of separately. The battery on the bicycle is a lithium battery which must be dis- posed of as hazardous waste at the recycling station. All electrical equipment incl.
Page 47 QR-Code for user manual Bosch system User manual for Intuvia 100 display User manual for LED Remote User manual for battery Jørn Iversen Rødekro Aps. - Hydevadvej 48 - Hydevad - DK-6230 Rødekro Tel.: +45 74669242 - Fax.: +45 74669294 - E-mail.: iversen@ji.dk - Web.: www.ji.dk...
Page 48 +45 74 66 92 42 E-mail: iversen@ji.dk Hereby declares that the products Vik Power MPF (children), Viktoria Power MPF (adult) and Viktor Power MPF (adult), which are tricycles, can be used by children and adults: Is in accordance with the Ministry of the Interior and Health executive order - BEK 1263 of 15/12/2008 “Executive order on...
