Tobin BS-1 Operating Manual

Belt grinder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Belt grinder
BS-1
Operating Manual
Version 1.3 (12/2021)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BS-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Tobin BS-1

  • Page 1 Belt grinder BS-1 Operating Manual Version 1.3 (12/2021)

  • Page 2: Table Of Contents

    Table of Contents Safety instructions ........................... 2 Use personal protective equipment (PPE) ................2 Wear suitable clothing ......................3 Safety sticker ........................... 3 Physical condition ........................3 Working method and work area ..................... 3 Take into account the environmental influences at the workplace........3 Power supply ...........................

  • Page 3: Safety Instructions

    1 Safety instructions Read these instructions carefully and completely before setting up, starting up and using the machine. The operating instructions are part of the machine. Therefore, keep the instructions in a safe place for future reference. ATTENTION: For your own safety, you should not attempt to operate this machine until it has been fully assembled and installed according to these instructions.

  • Page 4: Wear Suitable Clothing

    Wear suitable clothing • Do not wear loose clothing, ties, or jewelry that can get caught on moving parts of the machine. • Roll up long sleeves to just above the elbow. • If you have long hair, wear a hairnet or a hat. Safety sticker •...

  • Page 5: Authorized Persons

    • Never open the switch cabinet when the power cord is plugged in! Authorized Persons • Only one person can use the machine at the same time. • The machine may only be used by trained persons. • Unauthorized persons and especially children must keep a safety distance of 2 meters from the running machine.

  • Page 6: Technical Data And Main Measures

    2 Technical data and main measures...

  • Page 7: Description Of The Machine And Its Components

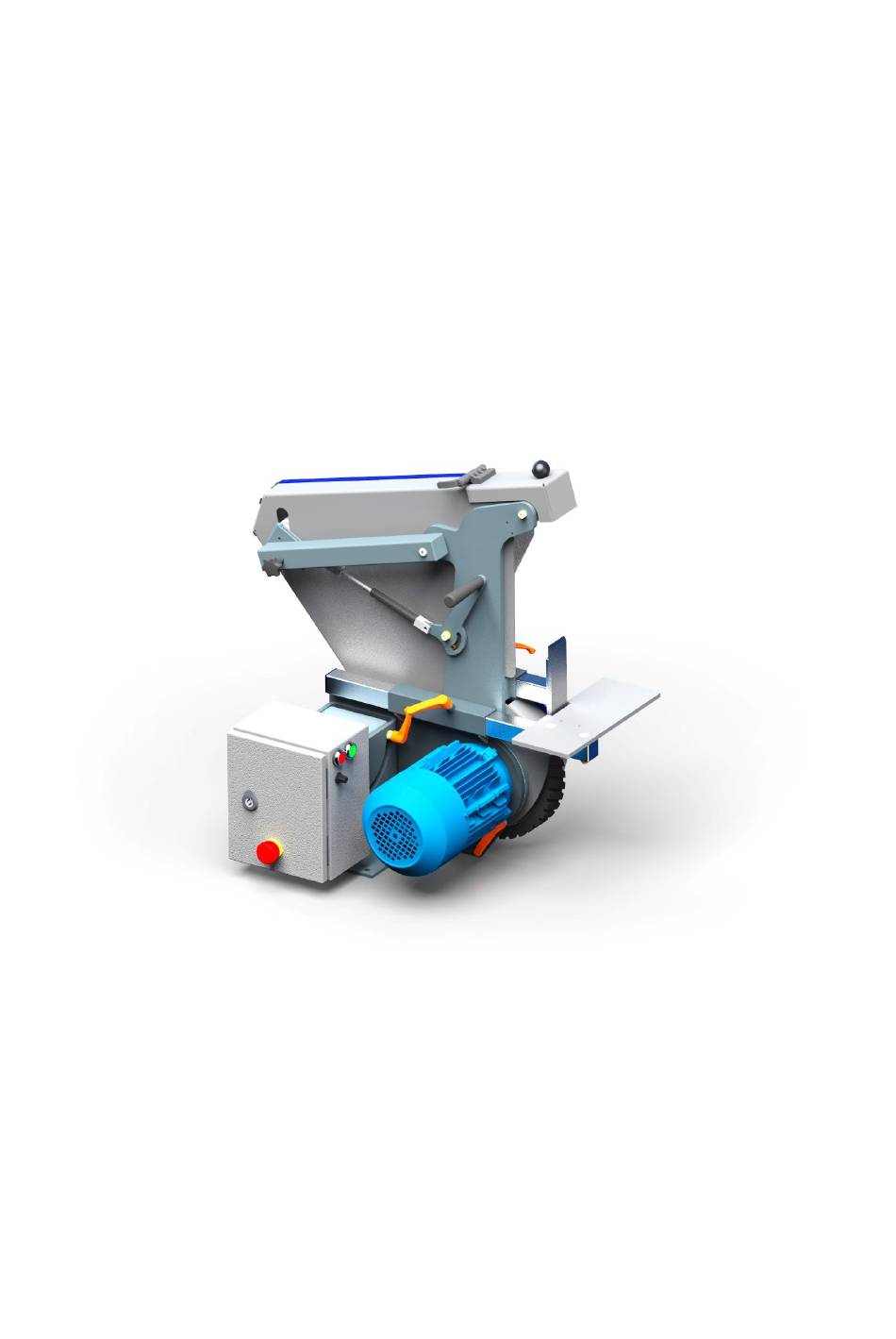

    70kg (BS-1 - floor mounting variant) 3 Description of the machine and its components The belt grinder BS-1 is a powerful grinding machine that is suitable for hand-guided grinding of workpieces made of steel, non-ferrous metals, wood and plastics. Depending on the requirements for the grinding result, different work areas are available on the machine, which can be expanded with atachments.
  • Page 8 Table 1: Components of the machine General 1.1 Drive motor 1.2 Control cabinet 1.3 Stand with mounting flange 1.4 Angle scale switch cabinet 2.1 Main switch, emergency stop 2.2 Start button (green) 2.3 Stop button (red) 2.4 Speed controller Grinding areas 3.1 Contact wheel 3.2 Surface grinding plate 3.3 Top roll...

  • Page 9: Setup

    4 Setup Before setting up the machine, familiarize yourself with the machine parts that were named in Chapter 3! Depending on the mount version, the setup plans are shown in illustration 1. Illustration 1: Floor plans The following points must be observed when setting up the machine: The installation surface of the machine must be horizontal, level, firm and resistant to flying sparks and increased temperatures! Regardless of the basic version, the machine must be fixed with suitable fastening material and...

  • Page 10: Usage

    5 Usage ATTENTION: Before using the machine, familiarize yourself with the machine parts that were named in Chapter 3! Installin and removing the sanding belt 1. Switch off the main switch (> 2.1 in Table 1) of the machine by pressing it. 2.

  • Page 11: Use Of The Grinding Areas

    Use of the grinding areas 1. Grinding on the contact wheel: For large material removal and for producing hollow grindings 2. Grinding on the flat grinding plate: For producing flat surfaces and for processing contours and angled surfaces when using the grinding table. 3.

  • Page 12: Using The Tilt Mechanism

    1. To prevent the grinding arm from swiveling through in an uncontrolled manner, grasp it firmly while swiveling! Use the grab handle provided on the splash guard (> 5.3). 2. Loosen the clamping of the grinding arm (> 6.3). 3. The grinding arm can now be freely swiveled and adjusted according to the angle scale (> 1.4).

  • Page 13: Equipment

    7 Equipment For instructions on the correct use of accessories, please refer to the documents supplied with the accessories. Keep them together with these operating instructions! The use of any accessories or add-on parts from third parties can lead to personal injury and damage to the machine, for which no liability is assumed.
  • Page 14 Strong warming ... of the rolls Replace ball bearings … of the motor Allow the motor to cool down after a long working period at low speed and high load..the surface grinding plate Safe (<80 ° C). However, watch out for the risk of fire! Electrical disturbances Reason...

  • Page 15: Circuit Diagram

    9 Circuit diagram...

  • Page 16: Declaration Of Conformity

    Oliver Tobin Wallnerstrasse 8 3004 Ollern Austria hereby declares that the machine Belt grinder type BS-1 complies with the following European directives: MACHINE DIRECTIVE: 2006/42 / EC LOW VOLTAGE DIRECTIVE: 2014/35 / EU DIRECTIVE ON ELECTROMAGNETIC COMPATIBILITY: 2014/30 / EU...
