Summary of Contents for ECORD ROVER

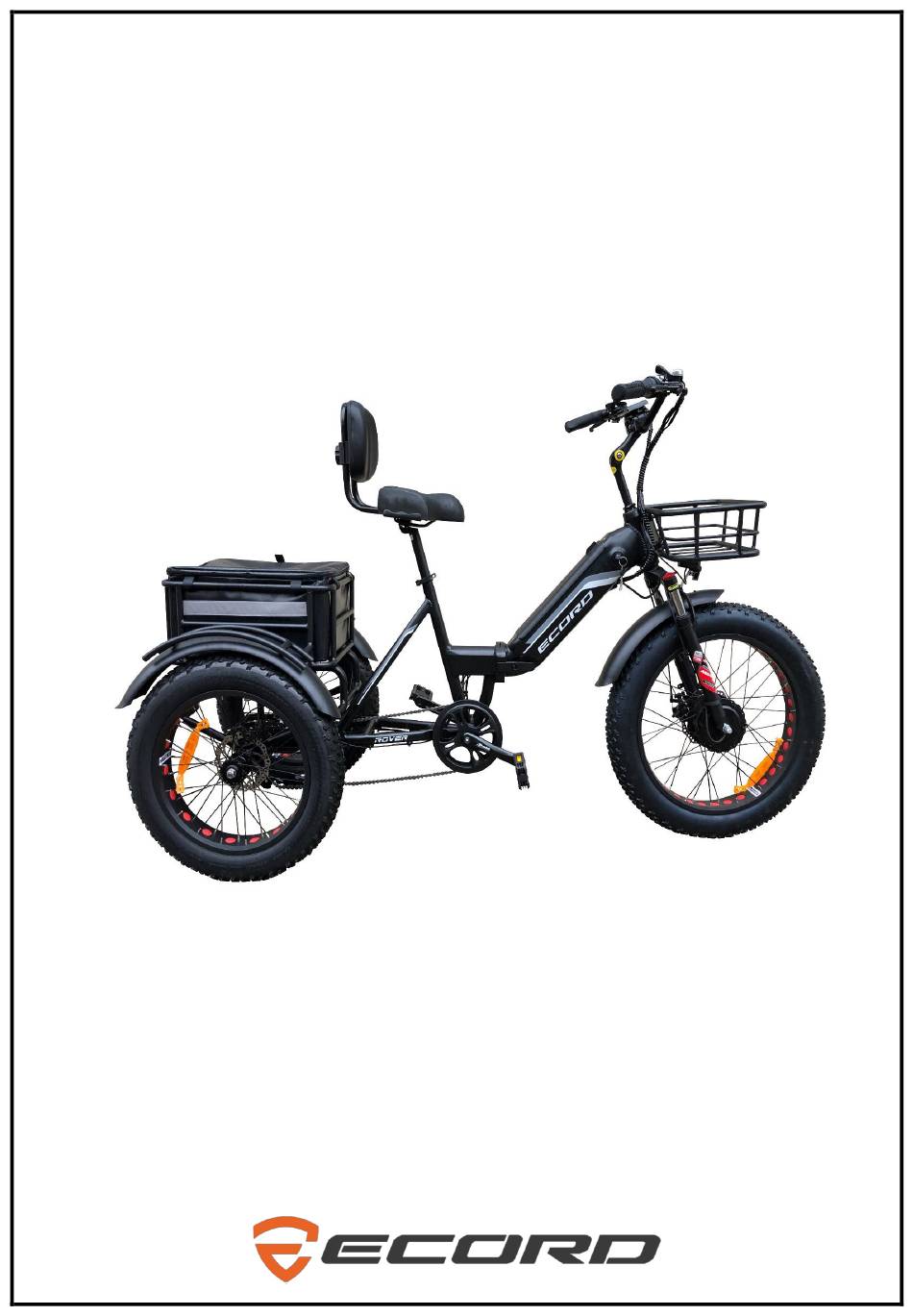

  • Page 1 USER'S MANUAL For Electric Tricycle MODEL: ROVER...
  • Page 2 ~ 2 ~ INSTRUCTION MANUAL Thank you for choosing our electric tricycle! This electric bike features excellent performance and modern design, is precisely manufactured under strict quality control, complying with international standards such as CE and UL2849. It adopts advanced technology and user-friendly operating system to ensure customers have an easy and pleasant riding experience.

  • Page 3: Table Of Contents

    ~ 3 ~ Table of contents Safety Warnings I. The basic information of electric tricycle 1. General presentation 2. Basic performance 3. Configuration parameters II. Tricycle assembly 1. Assemble the front wheel 2. Assemble the handlebar 3. Assemble the pedal III.
  • Page 4 ~ 4 ~ Safety Warnings 1. Do not operate your electric tricycle before carefully reading this user manual. 2. For the safety of you and others, please obey the city traffic rules. 3. Please consult your doctor to determine whether your physical condition allows for riding.

  • Page 5: The Basic Information Of Electric Tricycle

    ~ 5 ~ I. The basic information of electric tricycle 1. General presentation Part Name ① ⑪ Tire 500 w motor ② ⑫ Rim Suspension fork ③ ⑬ Disc brake pad Fender ④ ⑭ Chain Front basket ⑤ ⑮ Chainwheel Bell ⑥...

  • Page 6: Basic Performance

    ~ 6 ~ 2. Basic performance Weight: 127.8 lb Package size: 46*29*33 in Load: 330 lb Speed: Max 20 mph Range: 30-62 miles ( Tested on a flat road, with a total load starting from 198.5lb, the lowest gear at 15.5mph, and pedaling without interruption ) Gradeability: ≤...

  • Page 7: Tricycle Assembly

    ~ 7 ~ II. Tricycle assembly 1. Assemble the front wheel Step 1: Open the parts box and take out the relevant parts. Align the front wheel with the lower end of the fork. Note: The front wheel needs to be aligned with the front fork, and the angle cannot be crooked, otherwise the wheel will shake! Step 2: Install and tighten the screws and nuts in order (as shown in the figure below).

  • Page 8: Assemble The Handlebar

    ~ 8 ~ 2. Assemble the handlebars Step 1: Put the handbar into the front fork and adjust the angle. Step 2: Tighten the screws and the installation is complete.
  • Page 9 ~ 9 ~ 3. Install the front basket Step 1: Remove the front -end screws of the tricycle in turn. Step 2: Align the front basket and tighten the screws in sequence. Step 3: The installation is complete.

  • Page 10: Use Of Electric Tricycle

    ~ 10 ~ III. Use of electric tricycle 1. Check before use 1) Frame and fork Check for damage and do not ride if bent or broken. 2) Tires and rims The tires are in good condition and inflated to the correct pressure. Make sure the rim is clean and undamaged along the braking surface and inspect the rim for excessive wear.
  • Page 11 ~ 11 ~ 2) Fold switch - push the switch dot to the left and open it outward. 3) Brake lock function Brake normal state Locked state Back to normal state Squeeze the brakes, Squeeze the brake lever and press the button on and release it the brake lever 4) Instrument function introduction...
  • Page 12 ~ 12 ~ ① Display function Speed display, power gear display, power indicator, fault prompt, total mileage, single mileage, headlight display, single driving time display an so on. ② Introduction to using the buttons ⚫ Power on/off - long press the button ⚫...

  • Page 13: About The Battery

    ~ 13 ~ IV. About the battery 1. Install and remove the battery 1) If you need to take out the battery, please turn the battery switch and key to the "unlock" position, and then slowly lift the battery along the slideway of the battery. 2) Keep holding the battery while you put it back in place.

  • Page 14: Battery Maintenance

    ~ 14 ~ 3) "Charging" indicator light. When charging normally, the charging indicator is "red". When the light is "green", it means the battery is fully charged and ready for riding. 3. Battery maintenance 1) If the tricycle will not be used for more than 2 months, please store it in a moisture - free place to protect the electronic components, and make sure the battery is neither fully charged nor fully discharged.

  • Page 15: Maintenance And Troubleshooting

    ~ 15 ~ V. Maintenance and troubleshooting Trike maintenance and repairs require specific skills and the proper tools. If you have the slightest doubt about your ability to do this type of work properly, do not fix your trike or change any settings on it. Please contact your dealer. Any incorrect adjustments or repairs could damage the trike and cause an accident resulting in serious injury.
  • Page 16 ~ 16 ~ Brake failure or loose 1. Brake lines or brake pads 1. Replace the brake pads or are worn out adjust the brake line 2. The brake screw is loose 2. Tighten the brake screw 3. The brake lever is unstable 3.

  • Page 17: Warranty

    ~ 17 ~ VI. Warranty 1. This product is covered by a one -year warranty from the date of purchase. 2. The warranty is valid only for the original purchaser and cannot be transferred. It does not cover malfunctions caused by abnormal use, damage by humans, self - disassembly, maintenance, etc.
