- Page 1 Aqua Exclusive™ RDF 30 PRO OWNER’S MANUAL...
- Page 2 All information in this document and all product software is subject to copyright and other in- tellectual property rights of Aqua Exclusive™ and its licensors. This material may not be mod- ified, reproduced, or copied, in whole or in part, without the prior written permission of Aqua Exclusive™.
-
Page 3: Table Of Contents
Aqua Exclusive Contents 1.RDF 30 PRO......................4 1.1 What is the RDF 30 PRO?.....................4 1.2 How does the RDF 30 PRO work?..................4 1.3 Filter overview........................5 2. Safety information.....................6 3. Filter installation....................7 4. How to install your rotary drum filter............8 4.1 Flexible rubber couplings.....................8 5. -
Page 4: Rdf 30 Pro
1.2 How does the RDF 30 PRO work? The Aqua Exclusive RDF 30 PRO has three inlets and two outlets. Water flows through the in- lets into the filter. The water is then filtered through the periphery of the drum, and particles are carefully separated from the water through the special cell structure of the filter panel. -
Page 5: Filter Overview

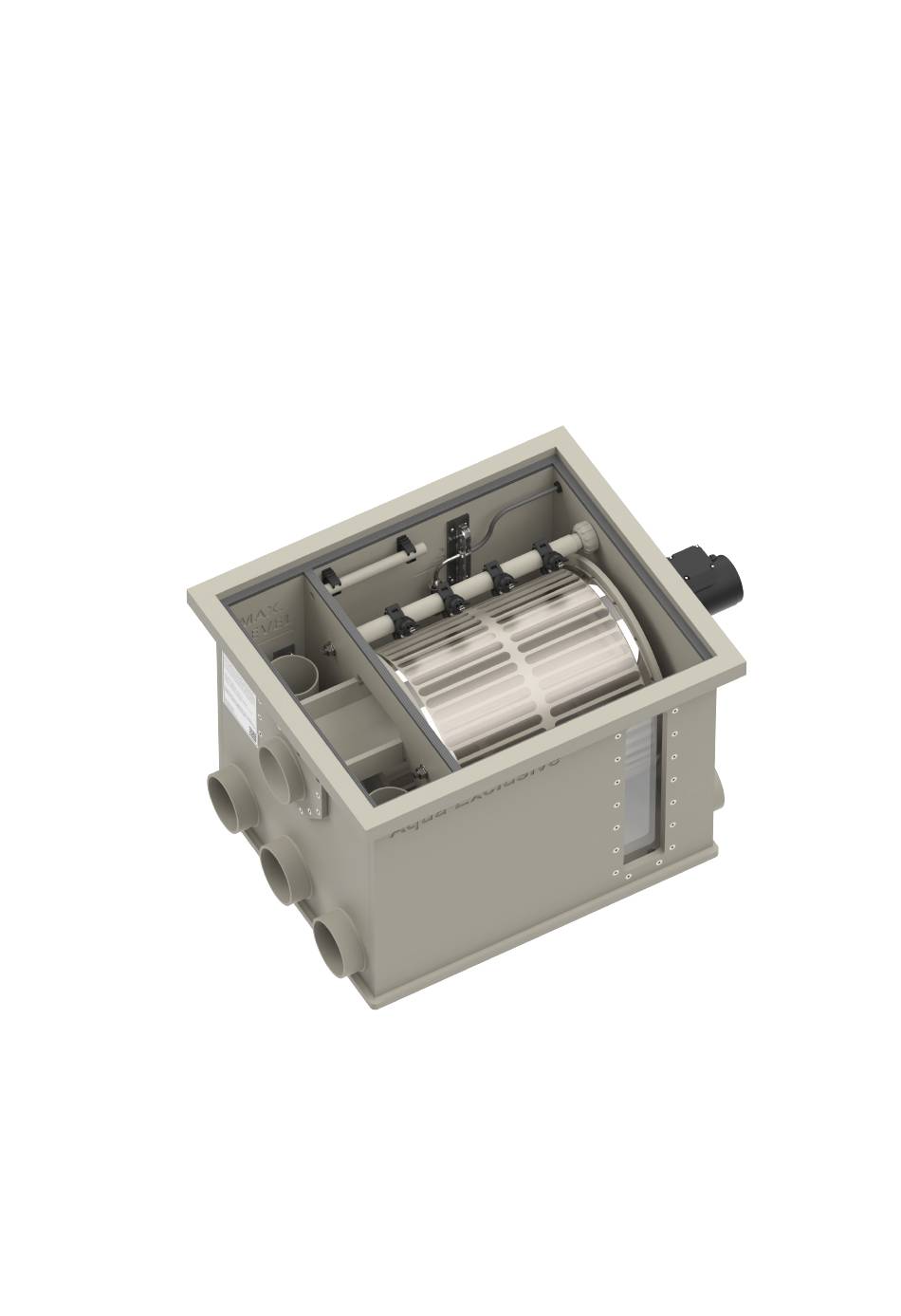

Water level sensor holder 1 Drum Bypass system Filter panel Drain gutter Sight glass Figure 2: RDF 30 PRO front and back view Drain gutter outlet 110mm Outlet 110mm Inlet 110mm Connector for rinse pump supply Inlet 110mm Water level sensor cable... -
Page 6: Safety Information
Connect the system only to a power outlet installed according to industry standards and without a dimmer. • For your own safety, always consult a professional electrician in case of any problems. If you have any questions or concerns about your filter, you can email support@aqua-exclu- sive.com. RDF 30 PRO OWNER’S MANUAL... -
Page 7: Filter Installation
3. Filter installation In this manual, we show you how to install the RDF 30 PRO on a pond/fish tank, but the filter is suitable for almost all fresh and saltwater applications. If you plan to install this system in a way that deviates significantly from the recommendations in this user manual, allow a spe- cialist to inspect the installation to ensure that all technical specifications have been met. -
Page 8: How To Install Your Rotary Drum Filter
Before you start with the installation, you need to know how you want to install your drum filter. The RDF 30 PRO can be used for both gravity and pump fed installations. On the follow- ing pages, we show four drawings illustrating how the drum filter can be installed, two with a pump fed installation and two with a gravity fed installation. - Page 9 Aqua Exclusive Installation Figure 5: Pump fed installation - Example 1 Figure 6: Pump fed installation - Example 2 RDF 30 PRO OWNER’S MANUAL...
-
Page 10: Gravity Fed Installation
(bead filter or trickle/shower filter) and then back to the pond/tank. It is advisable to place slide valves on the inlet and outlet pipes. Figure 7: Water level RDF 30 PRO OWNER’S MANUAL... - Page 11 Aqua Exclusive Installation Figure 8: Gravity fed installation - Example 1 Figure 9: Gravity fed installation - Example 2 RDF 30 PRO OWNER’S MANUAL...
-
Page 12: Water Level Sensor
Water level sensor holder 2 Water level (Gravity fed) sensor holder 1 (Pump fed) Figure 10: Water level sensors. RDF 30 PRO OWNER’S MANUAL... -
Page 13: Cleaning Process
Our stainless steel 316L nozzles are made with the utmost precision and provide a special water jet for optimal cleaning of the filter panel. With our newly designed quick-release sys- tem, you can easily clean the nozzles when neccecery. Figure 12: Quick release nozzle system RDF 30 PRO OWNER’S MANUAL... -
Page 14: Controlbox
Figure 12: Drum filter control box Figure 13: Drum filter control box overview Fuse 2 On/off Switch Fuse 1 Circulation Pump Cable Main Supply Cable Rinse Pump Cable Water Level Sensor Cable Drum Motor Cable UV-C System Cable RDF 30 PRO OWNER’S MANUAL... -
Page 15: Maintenance
Check if the filter panel is installed correctly. Step 6: Switch on the control box by toggling the ON/OFF switch. Step 7: Hold the manual rinse button for ten seconds; now everything is activated again. RDF 30 PRO OWNER’S MANUAL... -
Page 16: Technical Specifications
Aqua Exclusive Technical Specifications 12. Technical specifications Aqua Exclusive™ RDF 30 PRO - ROTARY DRUM FILTER TECHNICAL SPECIFICATIONS Available late 2023. This Rotary Drum Filter is a fully automatic pre-filter system for fresh and salt water. The filter is made up of modules so everything is easy to replace when necessary. -
Page 17: Technical Drawing
Aqua Exclusive Technical Drawing 12. Technical drawing The technical drawing can be downloaded online from www.aqua-exclusive.com. RDF 30 PRO OWNER’S MANUAL... - Page 18 Aqua Exclusive™ Aqua Exclusive B.V. The Netherlands www.aqua-exclusive.com...
