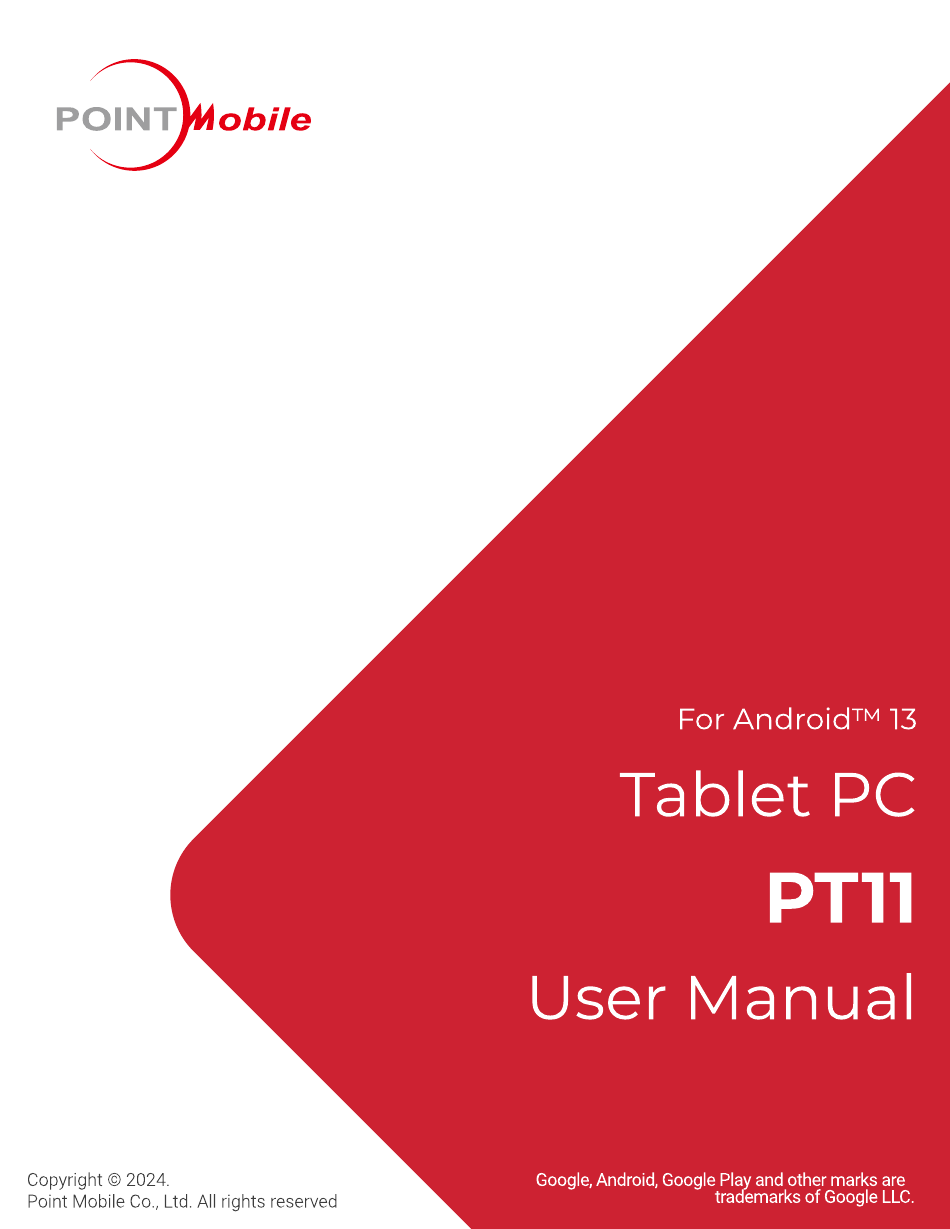

Summary of Contents for Point Mobile PT11
-
Page 2: Instruction
PT11 Tablet PC User Manual Instruction This manual provides information about basic features and using the PT11. Please read this manual carefully before using your device and peripherals to ensure safe and proper use. Note: Screenshots in this manual may differ from actual screens. -
Page 3: Table Of Contents
Manage the Files........................25 Lock the Screen ........................26 Multi Window ........................... 27 Screen Cast ..........................28 Settings ........................... 29 USING THE BUTTONS .................... 32 Screenshot ..........................32 CAMERA ......................... 33 WIRELESS ......................34 © 2024 Point Mobile Co., Ltd. All rights reserved... - Page 4 Hotspot & Tethering ........................ 36 Bluetooth ..........................37 SYSTEM MAINTENANCE ..................40 System Information ......................... 40 OS Update ..........................41 Factory Data Reset ......................... 44 SAFETY INFORMATION ..................46 Battery Safety Information ....................... 46 © 2024 Point Mobile Co., Ltd. All rights reserved...
-
Page 5: Getting Started
Control the volume Microphones Use for collecting sound Card tray Insert SIM and SD cards Power button Turn on/off the tablet Front camera Take a picture Sensors Proximity and light ambient sensors © 2024 Point Mobile Co., Ltd. All rights reserved... -
Page 6: Product Standard Accessories
Use flashlight in camera or torch mode Product Standard Accessories The following items are in the product box. PT11 USB type C cable (C to C) Card tray eject pin © 2024 Point Mobile Co., Ltd. All rights reserved... -
Page 7: Install Sd & Sim Cards
You can find the card tray on the top of the tablet. Depending on SKU, the equipped card slots are different. Refer to the following table. Figure 2 PT11 Card tray Wi-Fi SKU LTE SKU © 2024 Point Mobile Co., Ltd. All rights reserved... - Page 8 PT11 Tablet PC User Manual Getting Started 1. Insert and push the card tray eject pin to the card tray hole of the PT11. Figure 3 Eject PT11 card tray 2. When card tray is opened, pull the tray out.
-
Page 9: Charge The Tablet
Capacity: Standard battery: 8,000mAh Rechargeable battery Charging temperature Charge tablet in temperatures from 0 ℃ to 45 ℃ . At out-of-normal range temperatures, the PT11 may stop charging for safety. © 2024 Point Mobile Co., Ltd. All rights reserved... - Page 10 Charge with power adapter 1. Assemble the power adapter and USB type C cable. 2. Connect the cable to the USB connector on the right side of the PT11. 3. Provide power by plugging the power adapter to the wall socket.
-
Page 11: Led Indicator
PT11 Tablet PC User Manual Getting Started LED Indicator PT11 has a LED indicator. Figure 6 PT11 LED indicator Indicator Status Indication Solid green Tablet is completely charged Power LED Solid red Tablet is charging © 2024 Point Mobile Co., Ltd. All rights reserved... -
Page 12: Turn On / Off The Tablet
To turn off the tablet, Press and hold the power button and volume up button simultaneously to show the power menu. Then, tap Power off. Figure 8 Power menu - Power off © 2024 Point Mobile Co., Ltd. All rights reserved... -
Page 13: Use A Touch Screen
One-finger press, wait, move, lift for pick up and move, or select multiple items action Pinch Open & Close Two-finger press, move outwards and inwards, lift for zoom in / out action Rotate When PT11 is turning sideways, screen orientation is changing © 2024 Point Mobile Co., Ltd. All rights reserved... - Page 14 Tap to go back to previous screen. Tap to go to home screen. Home button Long-press to launch the Google Assistant. Recent apps button Tap to see the recently used app list. © 2024 Point Mobile Co., Ltd. All rights reserved...
- Page 15 Swipe up from the center-bottom of the screen. Back to previous screen Swipe from the left or right edge of the screen. Launch Google Assistant Swipe up from either the left-bottom or right-bottom. © 2024 Point Mobile Co., Ltd. All rights reserved...
-
Page 16: Learning The Basics
Learning the Basics Setup Wizard When PT11 starts very first time or boot after factory reset, Setup Wizard is launched. Following the steps on the screen, set system language, Google account, Wi-Fi connection and copy the data, etc. Some settings can be skipped, but there may be some restrictions on the use of the system. -
Page 17: Home Screen
App folder Apps are organized in the folder. Tap to open the App folder Tap to run the application Long-press to see the application's options Favorites tray Place the frequently used apps © 2024 Point Mobile Co., Ltd. All rights reserved... - Page 18 Notification icons Icon Description Icon Description New Email Connected to VPN network Upcoming event Other input method available File uploaded File downloaded File copied OTG device connected There are more notifications © 2024 Point Mobile Co., Ltd. All rights reserved...
- Page 19 Notification panel displays a list of all notifications. Tap a notification to respond. To open the Notification panel, drag the Status bar down. To close the panel, swipe it up. Figure 14 Notification panel © 2024 Point Mobile Co., Ltd. All rights reserved...
- Page 20 Figure 15 Quick setting panel To edit the configuration of Quick setting panel, 1. Tap on the bottom of the panel. 2. By long-press and dragging the icon, customize the configuration of the panel. © 2024 Point Mobile Co., Ltd. All rights reserved...
- Page 21 To create the app folder, long-press an app icon and drag it to another app icon. Figure 16 Create app folder To change the folder name, tap the Edit Name and input a new name. Figure 17 Change app folder name © 2024 Point Mobile Co., Ltd. All rights reserved...
- Page 22 1. Long-press an app icon from the App drawer. Then, drag it slightly until the Home screen is shown. 2. Place the app icon in the Favorites tray. Figure 19 Add an app to Favorites tray © 2024 Point Mobile Co., Ltd. All rights reserved...
- Page 23 To remove an app or widget in the Home screen, 1. Long-press an app icon or widget. 2. Drag it to Remove area and release. Figure 21 Remove from Home screen © 2024 Point Mobile Co., Ltd. All rights reserved...
- Page 24 2. In three menus, select Widgets. Figure 22 Widget menus 3. Among the list, tap and hold a widget you want to add. 4. Place the widget to the Home screen by dragging. © 2024 Point Mobile Co., Ltd. All rights reserved...
-
Page 25: Mtp Connection With Pc
2. Change the option to File Transfer from No data transfer. Figure 24 USB Preferences 3. Now PC can recognize the connected device. Find PT11 device from the file explorer of the PC. Figure 25 File explorer on PC © 2024 Point Mobile Co., Ltd. All rights reserved... -
Page 26: Manage The Files
Launch Files to manage the files in the storage. You can find the folders and files, move / copy them to other location, and delete them from the storage. Figure 26 Files © 2024 Point Mobile Co., Ltd. All rights reserved... -
Page 27: Lock The Screen
Swipe: Swipe the lock screen to unlock (Default) Pattern: Draw a pattern to unlock PIN: Input a PIN to unlock (At least 4 digits) Password: Input a password to unlock (At least 4 characters) © 2024 Point Mobile Co., Ltd. All rights reserved... -
Page 28: Multi Window
You can adjust the split screen size by dragging the border. If you drag the border to the edge of the screen, the multi window will be exited. Figure 29 Adjusting multi window © 2024 Point Mobile Co., Ltd. All rights reserved... -
Page 29: Screen Cast
If the device cannot search the device you want, tap and select Enable wireless display. Figure 31 Screen Cast Notice: Check if the screen device (TV) you want to connect supports the screen mirroring feature. © 2024 Point Mobile Co., Ltd. All rights reserved... -
Page 30: Settings
> Sound & vibration and control the Media, Notification, Alarm volume bars. Figure 33 Volume bars Caution: Using high volume levels for long periods may cause ear strain and increase battery consumption. © 2024 Point Mobile Co., Ltd. All rights reserved... - Page 31 If the display and text size of the screen is too small or too large, adjust the size. 1. Go to Settings > Display > Display size and text. 2. Referring to the Preview, adjust the size controller. Figure 34 Set font size © 2024 Point Mobile Co., Ltd. All rights reserved...
- Page 32 Enable screen auto rotation Turn on the auto rotation and rotate the screen automatically according to the direction the PT11 is hold. Go to Settings > Display, and turn on the Auto-rotate screen toggle switch to use the auto rotation feature. Or turn on the Auto-rotate from the quick setting panel.
-
Page 33: Using The Buttons
Press and hold Power button + Volume down button simultaneously. Tap Recent apps button from the navigation bar, and tap Screenshot. The screenshot image will be saved to Pictures > Screenshots folder in the internal storage. © 2024 Point Mobile Co., Ltd. All rights reserved... -
Page 34: Camera
Switch the camera between front and rear Gallery Go to gallery to see the currently taken photos Shutter button Take a picture or recode a video Mode change button Change the Camera or Video mode © 2024 Point Mobile Co., Ltd. All rights reserved... -
Page 35: Wireless
PT11 Tablet PC User Manual Wireless Mobile Network Note: Mobile network is supported on PT11 LTE SKU only. To connect mobile network, SIM card is required. Insert SIM card first referring Install SD & SIM cards. After inserting the SIM card, reboot the tablet. When network is connected, a network icon will be appeared on the status bar. -
Page 36: Wi-Fi
If there is a saved Wi-Fi network, simply turn on the Wi-Fi through the Quick setting panel. The saved network will be connected automatically. Figure 42 Wi-Fi in Quick setting panel © 2024 Point Mobile Co., Ltd. All rights reserved... -
Page 37: Hotspot & Tethering
USB tethering: Connect your tablet to the other device with a USB cable, and enable USB tethering. Ethernet tethering: Connect your tablet to the ethernet with an ethernet cable, and enable Ethernet tethering. © 2024 Point Mobile Co., Ltd. All rights reserved... -
Page 38: Bluetooth
3. Select the device you want to pair among Available devices list. Figure 45 Bluetooth available devices 4. Follow instructions on the screen (Pairing code or pairing confirmation dialog) and tap PAIR. © 2024 Point Mobile Co., Ltd. All rights reserved... - Page 39 To unpair the device, select the name of the device you want to unpair from the Other devices list and tap FORGET Or tap DISCONNECT to disconnect only and not unpair. Figure 48 Forget device © 2024 Point Mobile Co., Ltd. All rights reserved...
- Page 40 If the device you want is not listed under the Saved devices, tap See all. Figure 49 Bluetooth device detail To change the device’s name, tap on the top of the screen Turn other settings on or off (Available depending on device types) © 2024 Point Mobile Co., Ltd. All rights reserved...
-
Page 41: System Maintenance
Build number On System Information app Launch the System Information app from app drawer. Following information can be found. Version information (Android version, etc.) Manufacturer information (Serial number, etc.) © 2024 Point Mobile Co., Ltd. All rights reserved... -
Page 42: Os Update
System Maintenance OS Update Periodic update improves the performance of the tablet. Point Mobile provides up-to-date OS version via Service Portal and FOTA. Update the tablet via storage, OTG port, and FOTA server. Depending on the workspace environment, choose more suitable method. - Page 43 5. Check if the OS image file shows up under AVAILABLE VERSIONS 6. Tap UPDATE to start the update process OS update via FOTA If PT11 can connect to a network, use the FOTA server for the update. 1. Connect the tablet with a network 2. Go to Settings >...
- Page 44 Note: Basically, OS update via FOTA works over Wi-Fi or Ethernet only. To enable the OS update over Mobile Network too, uncheck the setting value in FOTA Settings. Downloading over the Mobile network may result in additional charges. Figure 52 FOTA Settings © 2024 Point Mobile Co., Ltd. All rights reserved...
-
Page 45: Factory Data Reset
System Maintenance Factory Data Reset When PT11 works abnormally or there is a need to reset the tablet, follow the steps below to perform a factory data reset. Caution: Factory data reset will erase all personalized settings and data saved in the tablet, such as Google account, apps, user data, etc. - Page 46 If tablet works abnormal so does not turn on, try to perform factory data reset through Android recovery mode. 1. Press and hold power button + Volume Up buttons simultaneously when PT11 is turned off. Figure 54 Key combination for recovery mode 2.
-
Page 47: Safety Information
Battery Safety Guidelines Use only Point Mobile approved batteries and charging accessories. Other batteries and chargers may damage the device or result in a fire, leakage, or other hazards. - Page 48 Do not dispose of the battery in fire. It may cause explosion. Notice: The battery is consumable. Point Mobile provides a warranty for the battery for 12 months after purchase. If you suspect the battery swelling, change the battery immediately and contact Point Mobile.
