Summary of Contents for NUequipment CP10 Series

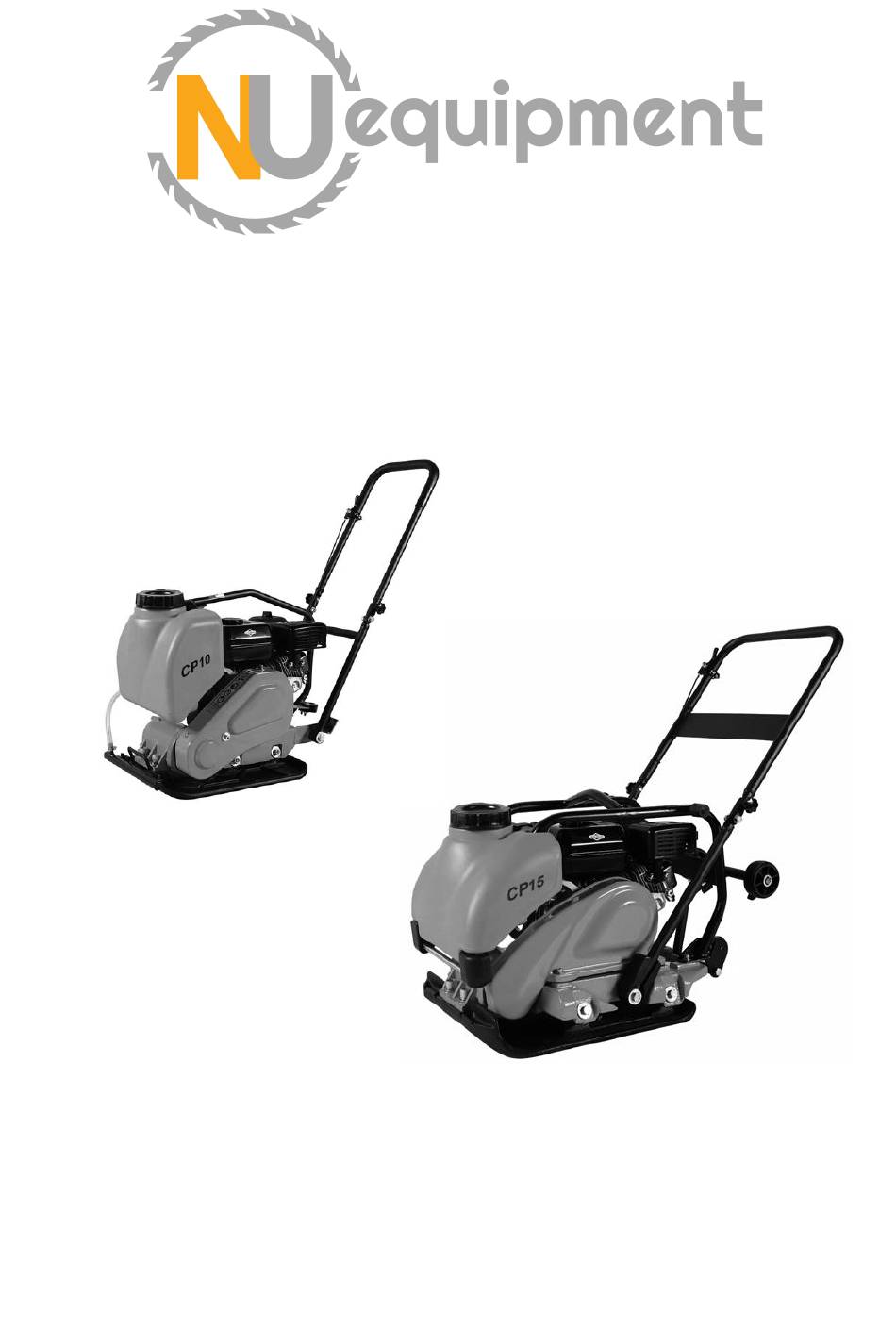

- Page 1 Operator's Manual Plate Compactor CP10 Series CP15 Series Unit 2 Low Farm Low Road, Morley St Botolph, Wymondham, United Kingdom, NR18 9BU sales@nuequipment.co.uk 01953 711952 www.nuequipment.co.uk...
-
Page 2: Foreword
Foreword This manual contains important instructions for this machine. These instructions must be followed during installation, operation, and maintenance of the machines. This manual provides information and procedures to safely operate. For your own safety and to reduce the risk of injury, carefully read, understand, and observe all instructions described in this manual. -
Page 3: Table Of Contents
Table of Contents Foreword Warranty 1. SAFETY INFORMATION 1.1 Operating Safety…………………………………………………………………………..5 1.2 Operator Safety while using Internal Combustion Engines……………………………..6 1.3 Service Safety ……………………………………………………………………………….6 1.4 Label Locations………………………………………………………………………………6 1.5 Labels Meaning …………….……………………………….…………………………….7-8 2. OPERATION Application ….. …………………………………………..………………………………..…… Pre start-up inspection ……..…………………………………………………………..……… Start and stop Procedure …………………………..……………………………….…….. -
Page 4: Safety Information
1. SAFEFY INFORMATION 1.1 Operating Safety Never allow any person to operate the machine without adequate instruction. Ensure all operators read, understand and follow the operating instructions; Serious injury could result from improper or careless use of this machine; ... -
Page 5: Operator Safety While Using Internal Combustion Engines
1.2 Operator Safety while using Internal Combustion Engines Petrol is extremely flammable and explosive under certain conditions; Ensure that the petrol is only stored in an approved storage container. Do not refuel the motor while it is in operation or hot. ... -
Page 6: Labels Meaning
1.5 Label Meanings Our machines use international pictorial labels where needed. These labels are described below: Label Meaning DANGER! Engines emit carbon monoxide; operate only in well-ventilated area. Read the Operator’s Manual for machine information. No sparks, flames, or burning objects near the machine. Shut off the engine before refueling. - Page 7 Label Meaning WARNING! Hand injury if caught in moving belt. Always replace belt guard. CAUTION! Lifting point. Guaranteed sound power level in dB(A). WARNING! Hot surface! A nameplate listing the model number and serial number is attached to each unit. Please record the information found on this plate so it will be available if the nameplate lost or damaged.
-
Page 8: Operation
2. OPERATION 2.1 Application The machine must only be used for the following purposes: Compaction of soils. Compaction of asphalt. Shaking in of paving stones. The machine may not be used for the following purposes: Compaction of intensely cohesive soils. ... - Page 9 Set the governor lever to the “STOP” position. Do not stop the engine with the decompression lever. 10. Set the fuel cock the “OFF” position. 11. Pull the recoil starter handles slowly, until you feel resistance. (At this point, the decompression just begins and intake/exhaust valves are both closed, thus the cylinder can be prevented from rust.) Petrol Engine...
-
Page 10: Maitenance
3. MAINTENANCE Periodic Maintenance Schedule To make sure your plate compactor is always in good working condition before using, carry out the maintenance inspection in accordance with following: ITEM Hours of Operation (Starting check) Every 8 hours (every day) Loosened of lost screws Every 8 hours (every day) Damage of any part Every 8 hours (every day) -
Page 11: Changing Vibrator Oil / Vibrator Grease
Note that the oil will drain more easily while it is hot. For CP10 series, CP15 series, replace the oil with 200ML of 10W-30 motor oil, check and regrease exciter every 500 hours of operation, use SHELL ALVANIA R3 grease or equivalent. -
Page 12: Lifting And Transporting The Machine
3.8 Lifting and Transporting the machine 3.8.1 Lifting the Machine When lifting the machine, observe the following instructions: Designate a skilled person to guide you for the lifting procedure. You must be able to see or hear this person. ... -
Page 13: Technical Data
Plate size cm(in) 53*50(21*20) Water Tank Capacity L Engine type may vary, please see listing 4.2 Dimension (LXWXH) : CP10 Series: 90cm x 30cm x 88cm CP15 Series: 110cm x 83cm x 50cm 4.3 Acoustic Noise (According to 2000/14/EC) CP10-2/3/4 Model... - Page 14 Version: 201312-01 Unit 2 Low Farm Low Road, Morley St Botolph, Wymondham, United Kingdom, NR18 9BU sales@nuequipment.co.uk 01953 711952 www.nuequipment.co.uk Version: 201312-01...
