Summary of Contents for Winegard HDA Series
- Page 1 User Manual of Product 1: Winegard HDA-200 Distribution Amplifier Adjustable Gain 5-1000 MHz 24dB User Manual of Product 2: Winegard LNA-200 Boost XT HDTV Preamplifier, TV Antenna Amplifier Signal Booster, HD Digital VHF UHF Amplifier,Black...

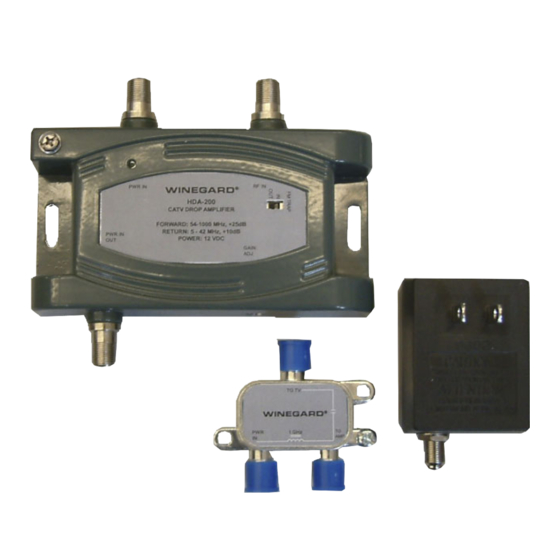

- Page 2 Jack Input MHz 2-way bi-pass. The Winegard HDA-100 is a single RF input, 15dB gain, single RF output, with a 5-42 MHz 2-way bi-pass at -2 dB loss. The HDA-200 has a single RF input, 24 dB gain, single RF output, with a 5-42 MHz 2-way bi-pass at +12 dB gain.
- Page 3 COAX CABLE LENGTH AS REQUIRED TO TV POWER INSERTER POWER TRANSFORMER Figure B 120 VAC REQUIRED Winegard Company • 3000 Kirkwood St. * Burlington, IA 52601-2000 • 319/754-0600 Fax 319/754-0787 • www.winegard.com Printed in U.S.A. © 2004, 2005 Winegard Company WC-819 Rev. 5/05...
- Page 4 Do not install the power inserter outdoors; it is intended for indoor use only. 1. Using zip ties, mount the preamplifier to the mast with “winegard.com” facing up. 2. If using weatherproof connectors, it is not necessary to use the provided weather boots.
- Page 5 Kirkwood Street, Burlington, IA 52601-2000, Telephone 800-288-8094). Winegard Company (at its option) will either repair or replace the defective product at no charge to you. This warranty covers parts, but does not cover any costs incurred in removal, shipping or reinstallation of the product.
