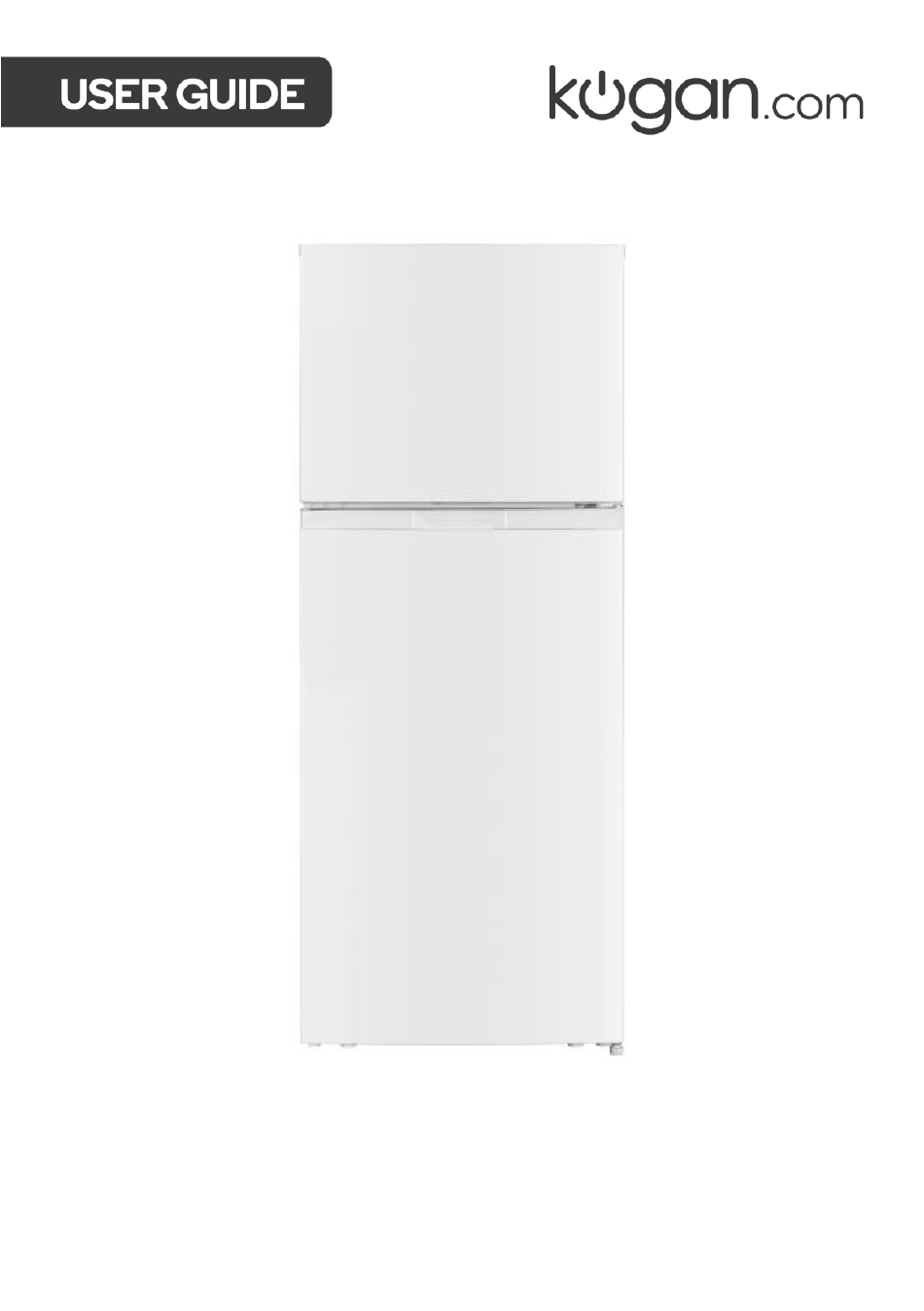

- Page 1 415L TOP MOUNT FRIDGE KAH415LTMFA & KAH415LTMFB...
-
Page 2: Table Of Contents
Safety & Warnings Overview Installation Operation Cleaning & Care Troubleshooting Notes... -
Page 3: Safety & Warnings
• Do not use other electrical appliances (such as ice cream makers) inside the appliance unless they are approved for this purpose by Kogan.com. • Do not touch the light bulb if it has been on for a long period of time as it will be very hot. - Page 4 • Any damage to the power cord may cause a short circuit, fire and/or electric shock. If the power cord is damaged, cease use immediately and contact help.Kogan.com for support. • This appliance is intended to be used in household and similar applications such as: Staff kitchen areas in shops, offices and other working environments.
- Page 5 Service • Any electrical work required to service the appliance should be carried out by a qualified electrician. • If the appliance is damaged, cease use immediately and contact help.Kogan.com for support. Energy Saving • Do not put hot food inside the appliance.
- Page 6 Responsible Disposal • At the end of its working life, do not throw this appliance out with your household rubbish. Electrical products contain substances that can have a detrimental effect on the environment and human health if disposed of inappropriately. •...
-
Page 7: Overview
OVERVIEW Shelf Door Trays Temperature Control Knob Temperature Control Knob Shelves Door Trays Drawer Leveling Feet... -
Page 8: Installation
INSTALLATION Space Requirements • The following space requirements must be adhered to when installing the appliance: Minimal exposure to direct sunlight. Enough space for the doors to open easily. Level flooring. Flat surface. • Allow clearance to the right, left, back and top when installing. This will help reduce power consumption. - Page 9 Positioning Install this appliance in a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance: Climate Class Ambient Temperature 10°C to 32°C 16°C to 32°C 16°C to 38 C 16°C to 43°C Location •...
- Page 10 Leveling Feet • To avoid vibration, the appliance must be levelled. • If required, adjust the leveling feet to compensate for the uneven floor. • The front should be slightly higher than the rear to aid in closing the door. •...
- Page 11 Door Reversal Note: If you are not confident in performing the door reserving procedure, consult a qualified trade professional. Tools required (not provided): • Flat-blade screwdriver. • Philips head screwdriver. • Wrench. Components: Left Hinge Left Hinge Cover Left Middle Stopper (x2) Left Middle Stopper Metal Block (x2)
- Page 12 Close the upper door. Use a Philips head screwdriver to remove the screws from the top hinge covers. Remove the top hinge covers. Use a Philips head screwdriver to unscrew the top hinges and remove the upper door. Unscrew from the middle hinge using the Philips head screwdriver, then remove the lower door.
- Page 13 Unscrew and remove the bottom hinge pin. Turn the bracket over and replace the hinge pin. Screw Unscrew Refit the bracket to the bottom hinge pin. Replace the adjustable feet and reposition the door.
- Page 14 Unscrew right middle stopper and metal block from the bottom of the upper door. Install the left middle stopper and metal block on the left side of the bottom of the door. Repeat this for the lower door. Rotate the middle hinge 180'C degrees to reverse its direction, then relocate it to the left-side position.
- Page 15 Install the left hinge cover from the accessory bag onto the top hinge. Next, attach the hinge cover on the right side.
-
Page 16: Operation
OPERATION Before First Use • Before using the appliance for the first time, clean the interior and all internal accessories with lukewarm water and neutral soap, then dry thoroughly. • Do not use detergents or abrasive chemicals, as these will damage the finish. Temperature Setting Freezer temperature setting: •... - Page 17 Fridge temperature setting: • The internal temperature is controlled by a sensor. There are 4 settings: OFF , COLD , COLDER and COLDEST . • COLD is the warmest setting and COLDEST is the coolest setting. • The appliance may not operate at the correct temperature if it is particularly hot, or if the door is opened frequently.
- Page 18 Adjustable Shelves The walls of the fridge are equipped with runners so that the shelves can be adjusted and removed as desired. Positioning the Door Shelves • The door shelves can be placed at different heights so food packages of all sizes can be stored.
- Page 19 Storing Food Freezer: • The freezer is used to freeze food, store frozen food and make ice cubes. • Do not put fresh and frozen food next to each other. The frozen food may thaw. • When freezing large amounts of fresh food (such as meat or fish), divide it into small pieces before putting it in the freezer to speed up freezing.
-
Page 20: Cleaning & Care
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by Kogan.com. • Do not try to repair, disassemble or modify the appliance by yourself. If repair is needed, contact Kogan.com. -
Page 21: Troubleshooting
TROUBLESHOOTING If the solutions below are unsuccessful, contact help.Kogan.com for support. Problem Possible Cause Solution The power cord is not Plug in the power cord. plugged in or is loose. Check the fuse. The appliance does Fuse has blown or is If the fuse needs to be not turn on. -
Page 22: Notes
NOTES... - Page 24 Need more information?
