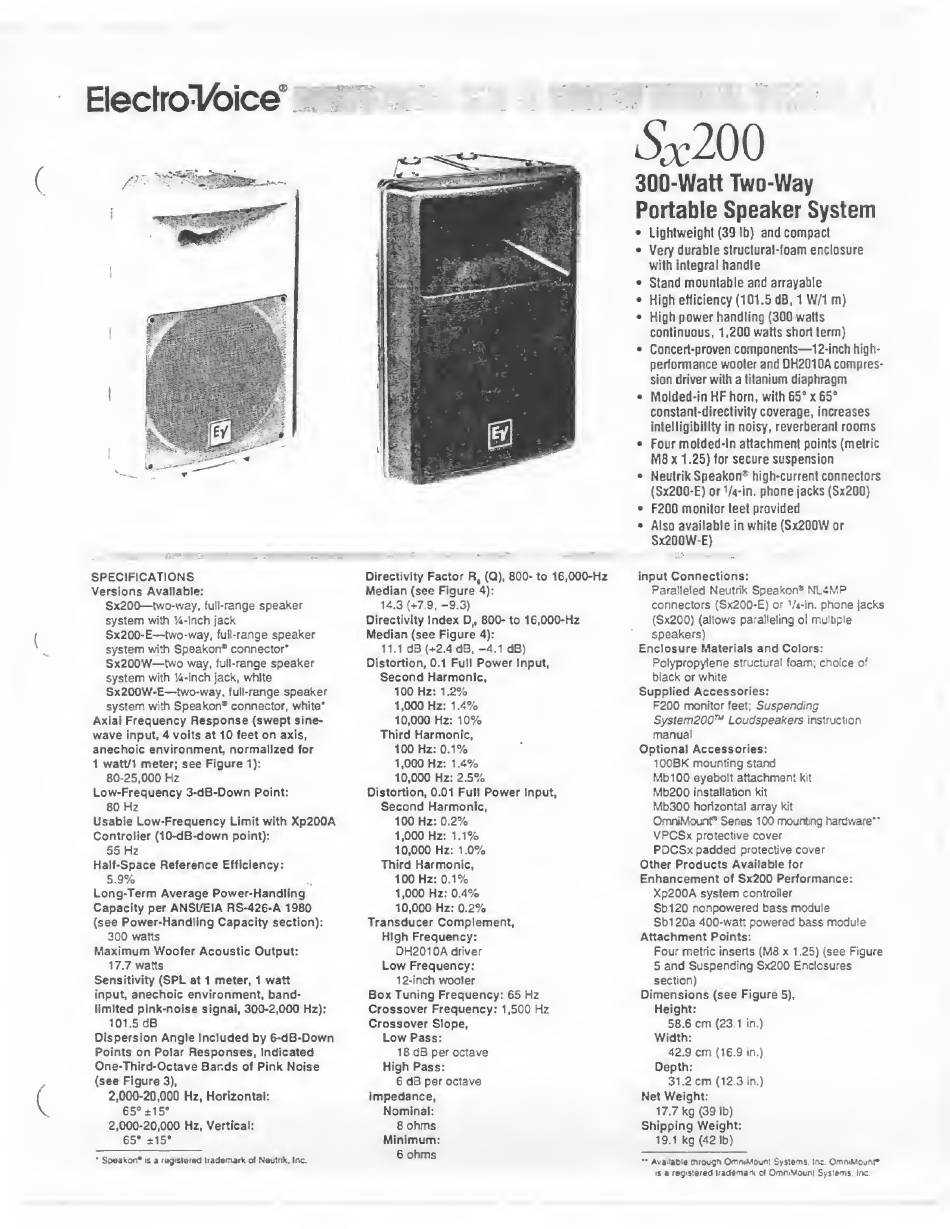

EledroT/bice*
- v?«L
■
300-Watt Two-Way
Portable Speaker System
• Lightweight (39 lb) and compact
• Very durable structural-foam enclosure
with integral handle
• Stand mountable and arrayable
• High efficiency (101.5 dB, 1 W/1 m)
• High power handling (300 watts
continuous, 1,200 watts shortterm)
• Concert-proven components—12-inch high-
performance wooler and DH2010A compres¬
sion driver with a titanium diaphragm
• Molded-in HF horn, with 65° x 65°
constant-directivity coverage, increases
intelligibility in noisy, reverberant rooms
• Four molded-in attachment points (metric
M8 x 1.25) for secure suspension
• Neutrik Speakon® high-current connectors
(Sx200-E) or V4-in. phone jacks (Sx200)
• F200 monitor feel provided
• Also available in white (Sx200W or
Sx200W-E)
SPECIFICATIONS
Versions Available:
Sx200—
two-way, full-range speaker
system with Vi-inch jack
Sx200-E—
two-way, full-range speaker
system with Speakon® connector*
Sx200W—
two way. full-range speaker
system with 14-inch jack, white
Sx2O0W-E—
two-way, full-range speaker
system with Speakon® connector,
white*
Axial Frequency Response (swept sine-
wave input, 4 volts at 10 feet on axis,
anechoic environment, normalized for
1 watt/1 meter; see Figure 1):
80-25,000 Hz
Low-Frequency 3-dB-Down Point:
80 Hz
Usable Low-Frequency Limit with Xp200A
Controller (10-dB-down point):
55 Hz
Half-Space Reference Efficiency:
5.9%
Long-Term Average Power-Handling
Capacity per ANSI/EIA RS-426-A 1980
(see Power-Handling Capacity section):
300 watts
Maximum Woofer Acoustic Output:
17.7 watts
Sensitivity (SPL at 1 meter, 1 watt
input, anechoic environment, band-
limited pink-noise signal, 300-2,000 Hz):
101.5 dB
Dispersion Angle Included by 6-dB-Down
Points on Polar Responses, Indicated
One-Third-Octave Bands of Pink Noise
(see Figure 3),
2,000-20,000 Hz, Horizontal:
65° ±15°
2,000-20,000 Hz, Vertical:
65° ±15°
* Speakon* is a registered trademark of Neutnk. Inc.
Directivity Factor Rt (Q), 800- to 16,000-Hz
Median (see Figure 4):
14.3 (+7.9,-9.3)
Directivity Index D,, 800- to 16,000-Hz
Median (see Figure 4):
11.1 dB (+2.4 dB. -4.1 dB)
Distortion, 0.1 Full Power Input,
Second Harmonic,
100 Hz: 1.2%
1,000 Hz: 1.4%
10,000 Hz: 10%
Third Harmonic,
100 Hz: 0.1%
1,000 Hz: 1.4%
10,000 Hz: 2.5%
Distortion, 0.01 Full Power Input,
Second Harmonic,
100 Hz: 0.2%
1,000 Hz: 1.1%
10,000 Hz: 1.0%
Third Harmonic,
100 Hz: 0.1%
1,000 Hz: 0.4%
10,000 Hz: 0.2%
Transducer Complement,
High Frequency:
DH201OA driver
Low Frequency:
12-inch woofer
Box Tuning Frequency:
65 Hz
Crossover Frequency:
1,500 Hz
Crossover Slope,
Low Pass:
18 dB per octave
High Pass:
6 dB per octave
impedance,
Nominal:
8 ohms
Minimum:
6 ohms
Input Connections:
Paralleled Neutrik Speakon* NL4MP
connectors (Sx200-E) or V4-in. phone jacks
(Sx200) (allows paralleling ol multiple
speakers)
Enclosure Materials and Colors:
Polypropylene structural foam; choice of
black or white
Supplied Accessories:
F200 monitor feet;
Suspending
System200JU Loudspeakers
instruction
manual
Optional Accessories:
100BK mounting stand
Mb 100 eyebolt attachment kit
Mb200 installation kit
Mb300 horizontal array kit
OmniMount® Series 100 mounting hardware"
VPCSx protective cover
PDCSx padded protective cover
Other Products Available for
Enhancement of Sx200
Performance:
Xp200A system controller
Sb120 nonpowered bass module
Sb120a 400-watt powered bass module
Attachment Points:
Four metric inserts (M8 x 1.25) (see Figure
5 and Suspending Sx200 Enclosures
section)
Dimensions (see Figure 5),
Height:
58.6 cm (23.1 in.)
Width:
42.9 cm (16.9 in.)
Depth:
31.2 cm (12.3 in.)
Net Weight:
17.7 kg (39 lb)
Shipping Weight:
19.1 kg (421b)
** Ava able through OmniMount Systems. Inc. OmniMount*
is a registered trademark of OmniMount Systems Inc.
