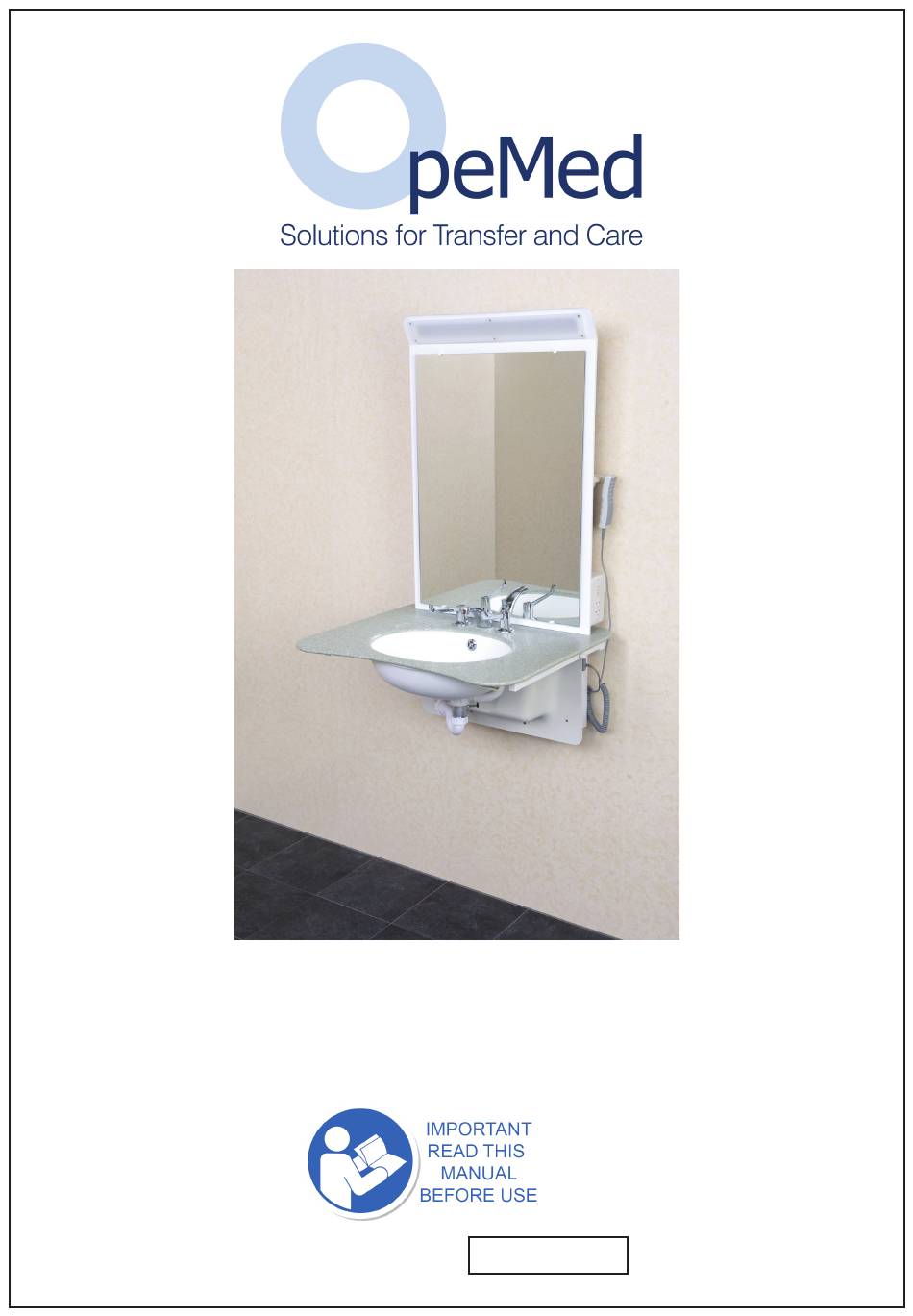

- Page 1 Height Adjustable Basin ABW6/SP OWNERS MANUAL & INSTALLATION GUIDE Warranty No...
-
Page 2: Operation
Operation Press and hold button Press and hold button to lower basin to raise basin Following functions apply to the SP version only Press and release button Press and release button to turn Cold water on or off to turn Hot water on or off Press and release button Press and release button to turn light on or off... - Page 3 Manual operation of the lever tap system In normal operation the levers should be facing forward, (towards the user) when off. To operate them, rotate the levers outwards to achieve the flow-rate required. To stop water flowing, rotate the levers until they are facing forward once again. The waste plug To the rear of the tap block is a small rod with a ‘knob’...
-
Page 4: Technical Specification
Technical Specification. Power 0.5KW Duty cycle: 10%, Maximum min/18 min Dry weights: 50Kg. IP Rating: IP X4 A weighted sound emission<70dB(A) Supply voltage: 30V ac Contents of Packages Item No. -
Page 5: Installation Information
Installation information. 100mm Flush mounted fused spur Upper Fixing with flex outlet cover fixed 1100 above floor on the centre line of the unit 800mm Lower Fixing Cold Supply Supply 1¼” 150mm Waste Maximum ¾” BSP Washing 80mm 15mm machine valves Plumbing: Fit cold (on left) - Page 6 Please Note: Due to the complexity of different building methods Astor Bannerman do not supply installation fixings and anchors. Important: The attachment rail is the main load bearing fixing; it is vital that it is secured correctly . • Measure 100mm up from the floor along the centre-line of the final position of the unit; using a spirit level, draw a horizontal line at least 50mm long.
- Page 7 • Switch on the mains voltage, a light fitted next to the Handset socket on the right hand side of the unit, should be illuminated. Test the Safety Switch mechanism on the arms works properly. • Operate the lowering function and then lift the right hand arm to ensure the motor cuts out.
- Page 8 30mm 50MM Pipe connection diagram HOT INLET COLD INLET Sloenoid Sloenoid body SPOUT body into BASIN Page: 8 Version : 11-04-016...
- Page 9 • Leave the clamp in place, fit the vertical rod • Fit the water supply solenoids. • Ensure the direction of flow, indicated by an arrow on the solenoid body, is correct this should point towards the deck of the basin. •...
- Page 10 • Working through the aperture in the base of the cover, support the waste assembly, fit the nut and seals from the P trap through the front hole in the cover and then connect to the P trap • Connect the P Trap to the underside of the basin. •...
-
Page 11: Troubleshooting
Troubleshooting In the unlikely event that problems occur with the unit, carry out the following easy checks to determine whether or not an engineer is required. Fault: The rise and fall unit does not travel up or down Cause: The mains power supply has been disconnected for some time and the unit’s batteries are now flat. - Page 12 OpeMed (Europe) Ltd Clockhouse, Farnham, Surrey, GU9 7UD - UK T: 01252 758858 F: 0870 161 9681 Original Document VERSION 1 E: info@opemed.net...
