Manual
-Supplementary notice-
Racer Gauge Style98 Hommage 60mm (2 3/8")
DF16604〜DF16605、DF16804〜DF16805、DF16904〜DF16905
Caution
Insulate the white wire in the power source wire without wiring it.
The lighting of this product is always on regardless of whether the vehicle illumination is turned on
or off.
If you connect the white wire, the illumination of this product will not light up properly.

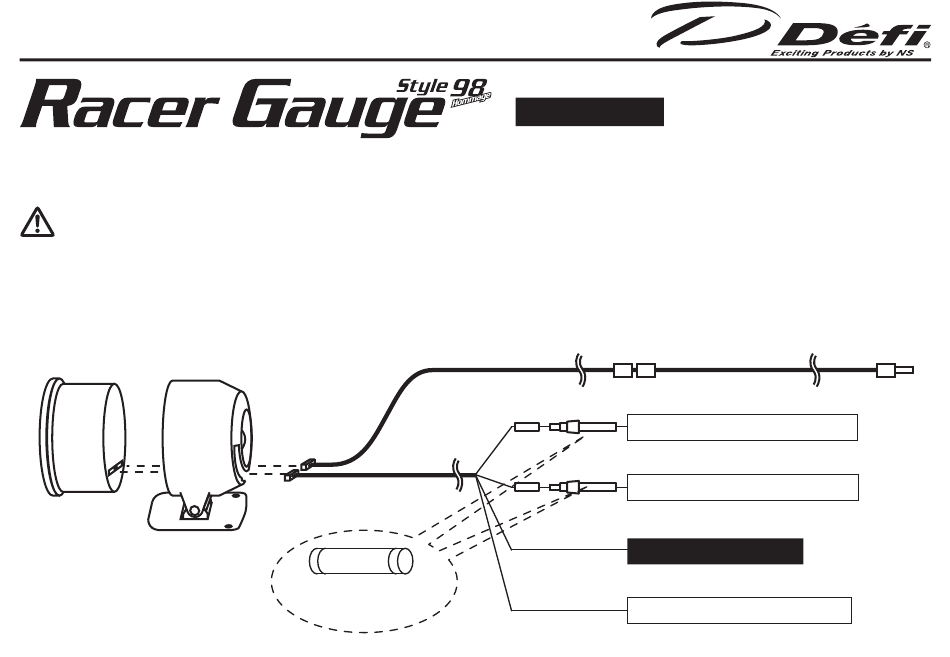

Sensor wire
Power supply wire
+B 0.3A
Fuse
IGN 0.3A
RG98-E-ADD: 24.03-4
SI Series
SI Series
Orange wire：IGN (Ignition)
To 12V wire while ignition is on
Red wire：+B (12V Battery)
To 12V battery wire
White wire：Unused
Must be insulated
Black wire：GND (Ground)
To ground or negative battery terminal
Sensor
Advertisement
Related Manuals for Nippon Defi SI Series
Summary of Contents for Nippon Defi SI Series
- Page 1 Manual -Supplementary notice- RG98-E-ADD: 24.03-4 SI Series SI Series Racer Gauge Style98 Hommage 60mm (2 3/8”) DF16604〜DF16605、DF16804〜DF16805、DF16904〜DF16905 Caution Insulate the white wire in the power source wire without wiring it. The lighting of this product is always on regardless of whether the vehicle illumination is turned on or off. If you connect the white wire, the illumination of this product will not light up properly. Sensor wire Sensor Orange wire：IGN (Ignition) To 12V wire while ignition is on Red wire：+B (12V Battery) Power supply wire To 12V battery wire White wire：Unused Must be insulated +B 0.3A Fuse IGN 0.3A Black wire：GND (Ground) To ground or negative battery terminal...
- Page 2 In the event that this Do not pull the wires out of connectors forcefully. The connectors may be broken and the wires may be product (or the vehicle in which it is installed) is lent to or transferred to another person, please be sure cut. When pulling out the wires, press the lock firmly and unclip the locks of connectors. this operation manual and warranty card accompany the product. On no event will Nippon Seiki Co., Ltd. be liable to you for any damages arising out of Defi will not be held responsible for accidents or damages related to installation of this product. the use or inability to use the product, even if Nippon Seiki Co., Ltd. has been advised of the possibility of such damage. When installing and operating this product, be sure to read the cautionary items in the operation manual for the vehicle in which this product will be installed in addition to the manual of this product. Please ...
- Page 3 TEMP. Repair Parts (for customer) ■Components Item Part number Fuse 0.3A (2pcs) PDF06508G Mounting Bracket set for Φ52 & 60mm gauge PDF07809G 2pins Power Supply wire PDF06504H Boost Sensor (for 200kPa/30PSI ) PDF06503S Boost Sensor wire PDF06505H Pressure Sensor (1/8PT) PDF00703S Gauge 1pc Temperature sensor Sensor wire (3m, 10ft) Power supply wire Pressure Sensor wire PDF06603H (1/8PT) 1pc (1m, 3 1/3ft) 1pc Temp. Sensor (1/8PT) PDF00903S Mounting bracket set Temp. Sensor wire PDF05602H Optional Parts (for customer) Item Part number Double sided Buffer Mounting M4 bolt, nut, Meter cup 1pc tape (large) 1pc bracket 1pc washer 1pc Boost Sensor extension wire 1m(3 1/3ft.)
- Page 4 PRESS. ■How to attach Mounting bracket set 1) Cut the double sided tape as shown in figure 1. ■Components 2) Insert convex part of the mounting bracket over the legs of the meter cup. Attach the mounting bracket to the meter cup with the bolt, nut, and washer included in the kit as shown in figure 2. 3) Attach one piece of double sided tape and the buffer on the gauge as shown in figure 3. 4) Pass the power supply wire and the sensor wire through the hole of the meter cup and connect them 3pins to the gauge. 5) Place the gauge in the meter cup making sure that the wires are not sandwiched. 6) Attach double sided tape on the back of the mounting bracket as shown in figure 4. Bend the mounting bracket to conform to the structure of the location where you intend to attach it. Gauge 1pc Pressure sensor Sensor wire (2.5m, 8 1/5ft) Power supply wire 7) Fix the mounting bracket with commercial tapping screws as shown in figure 5. (1/8PT) 1pc (1m, 3 1/3ft) 1pc Confirmation Do not lay the gauge face down due to oil leakage. Angle "A" must be more than 90 degrees. Mounting bracket set Over 90° Use appropriate dashboard cleaning liquids (commercially available) to clean the area where the double sided tape will be attached. Use commercial tapping screws with double sided tapes to fix gauges on dashboard. Meter cup 1pc 【figure 1】 【figure 2】 【figure 3】...
- Page 5 C. Indemnity and Release a. You understand and agree that many factors beyond our control affect the operational safety of the product, including but not to limited to the installation of the product according to the instructions provided with the product. b. You also understand and agree that the installation of the product may involve the use of tools, equipment and construction methods which may present safety hazards which are beyond our control. You also understand and agree that the use of some of our products may create hazards and lower your ability to control your vehicle. c. You agree, as part of the bargained for exchange, to protect, indemnify, save harmless and release us, our authorized agents, employees, officers, directors and shareholders from and against all liabilities, obligations, claims, damages, penalties, causes of action, costs and expenses, imposed upon or incurred by or asserted against us or any assignees of ours, by you or any third party by reason of the occurrence or existence (or alleged occurrence or existence) of any use, installation, assembly, possession or operation of the product, any loss, damage or destruction of the product as of and after delivery(a "casualty occurrence"), and any other act or event relating to or caused by the product, including but not limited to, consequential or of the terms and conditions hereof, or any and all liability for property loss or damage, or any and all damage resulting from death or personal injuries, including loss of services which any person may sustain on account of, arising out of, or in connection with any use, maintenance, possession or operation of the product. In the event that any action, suit or proceeding is brought against us or any of our authorized agents, employees, officers, directors or shareholders by reason of any such occurrence, you will, upon our request and at your expense, resist and defend such action, suit or proceeding or cause the same to be resisted and defended by counsel designated and approved by us. Racer Gauge Style98 Hommage 60mm Operation Manual ■ Issue 3rd edition: March, 2024 ■ Manufacturer Nippon Seiki Co., Ltd. ■ Contact Information Defi, Nippon Seiki Co., Ltd. 【Address】 2-34 Higashi-Zaoh 2-chome, Nagaoka-shi, Niigata 940-8580 JAPAN 【URL】 https://www.defi-shop.com...
