Lynx Cisco SPA232D Gateway Setup

1. Introduction

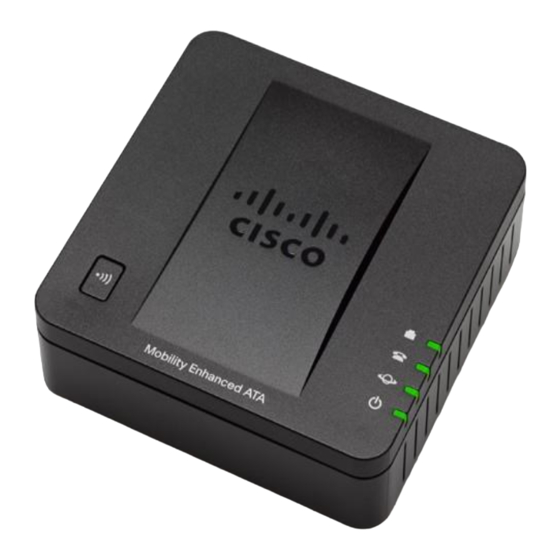

The Cisco SPA232D is a single line FXO/FXS telephone gateway. This gateway will give

the ability to dial on a standard POTS line. This guide is for a quick registration of the

SPA232D to the Lynx Controller. Pictures are for reference only and may not reflect

the needed configuration listed in the text.

2. Connect to the SPA232D

a. Connect the SPA232D gateway to the network through the Ethernet port and

power it up using the included power supply.

b. Follow the instructions in the quick start guide:

c. Use your browser and navigate to the IP (192.168.15.1 default). User: admin

Password: admin

SPA232D_Quick_Start.pdf

Table of Contents

Need help?

Do you have a question about the Lynx Cisco SPA232D and is the answer not in the manual?

Questions and answers

Summary of Contents for REVCON Lynx Cisco SPA232D

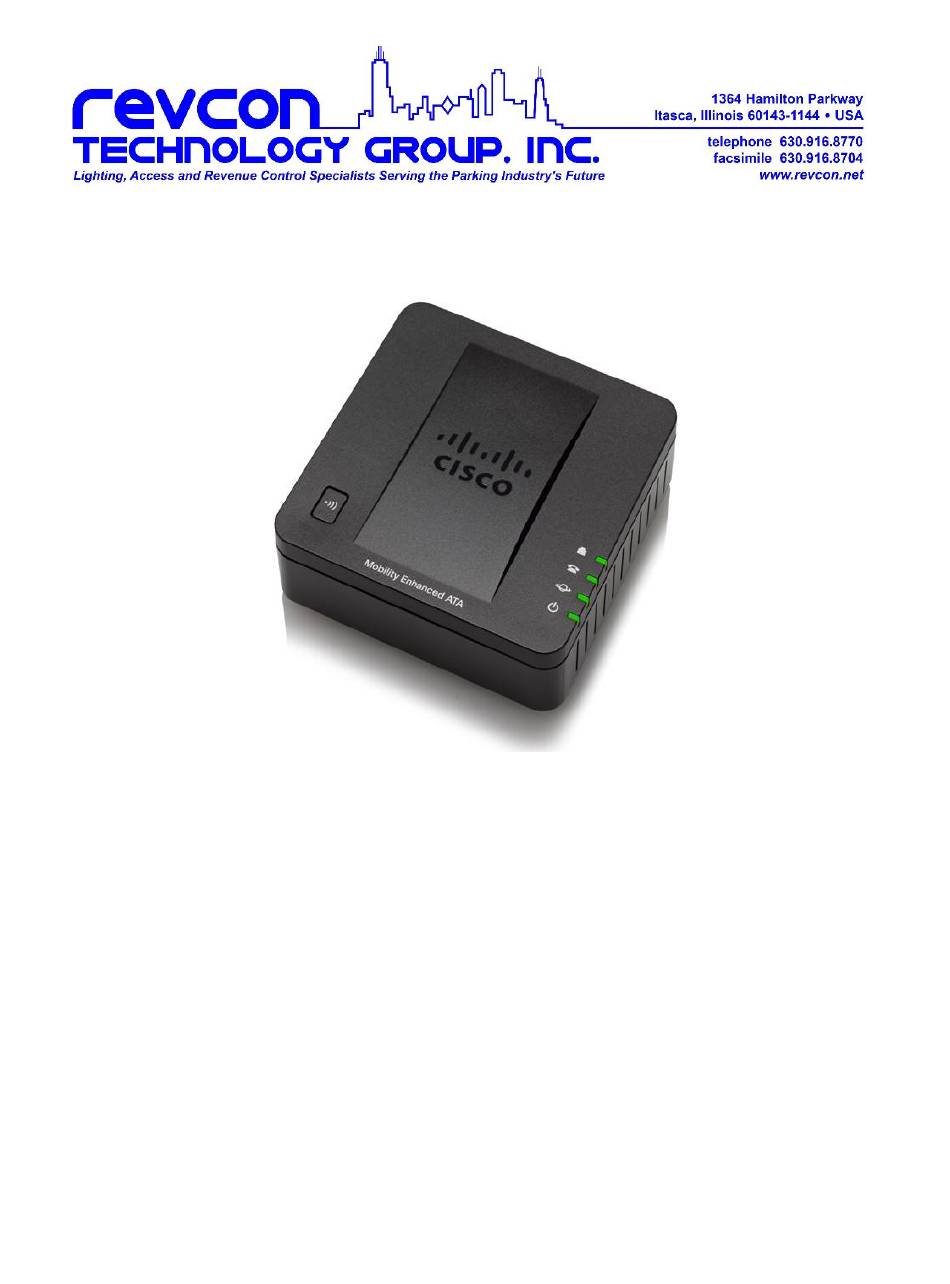

Page 1 Lynx Cisco SPA232D Gateway Setup 1. Introduction The Cisco SPA232D is a single line FXO/FXS telephone gateway. This gateway will give the ability to dial on a standard POTS line. This guide is for a quick registration of the SPA232D to the Lynx Controller. Pictures are for reference only and may not reflect the needed configuration listed in the text.
Page 2 1. Administration - User List a. Edit admin password to allow Web Access Management...
Page 3 2. Administrator – Web Access Management a. Choose “Enabled” radio button for port 80 3. Network – Setup – Internet Settings a. Set as “Static IP” b. Internet IP Address (The gateways IP Address) c. Subnet Mask (Set to your network subnet mask) d.
Page 4 4. Network Setup – Network Service a. Networking Service (“Bridge” from dropdown) 5. Voice – Line 1 a. Line Enable (“No” from dropdown)
Page 5 6. Voice – PSTN a. Line Enable (“Yes” from dropdown) b. Network Jitter Level (“Low” form dropdown) c. SIP Port “5060” d. Proxy (Enter Lynx Controller IP Address) e. Display Name (“PSTN1”) **Note: The Lynx controller by default is configured to allow 4 connections (PSTN1 – PSTN4).
Page 6 f. Password (“RevConLynx”) g. Auth ID (Same as Display Name) h. User ID (Same as Display Name) DTMF Process INFO (“yes “ from dropdown) DTMF Tx Method (“Auto” from dropdown) k. Dial Plan 2 (“(S0<:s>)”) VoIP-To-PSTN Gateway Enable (“yes” from dropdown) m.
Page 7 aa. PSTN Silence Threshold (“high” from dropdown) bb. VoIP Long Silence Duration (“30”) cc. Disconnect Tone (480@-30,620@-30;4(.25/.25/1+2) dd. SPA To PSTN Gain (“5”) should be adjusted at the site ee. PSTN To SPA Gain (“5”) should be adjusted at the site 7.
