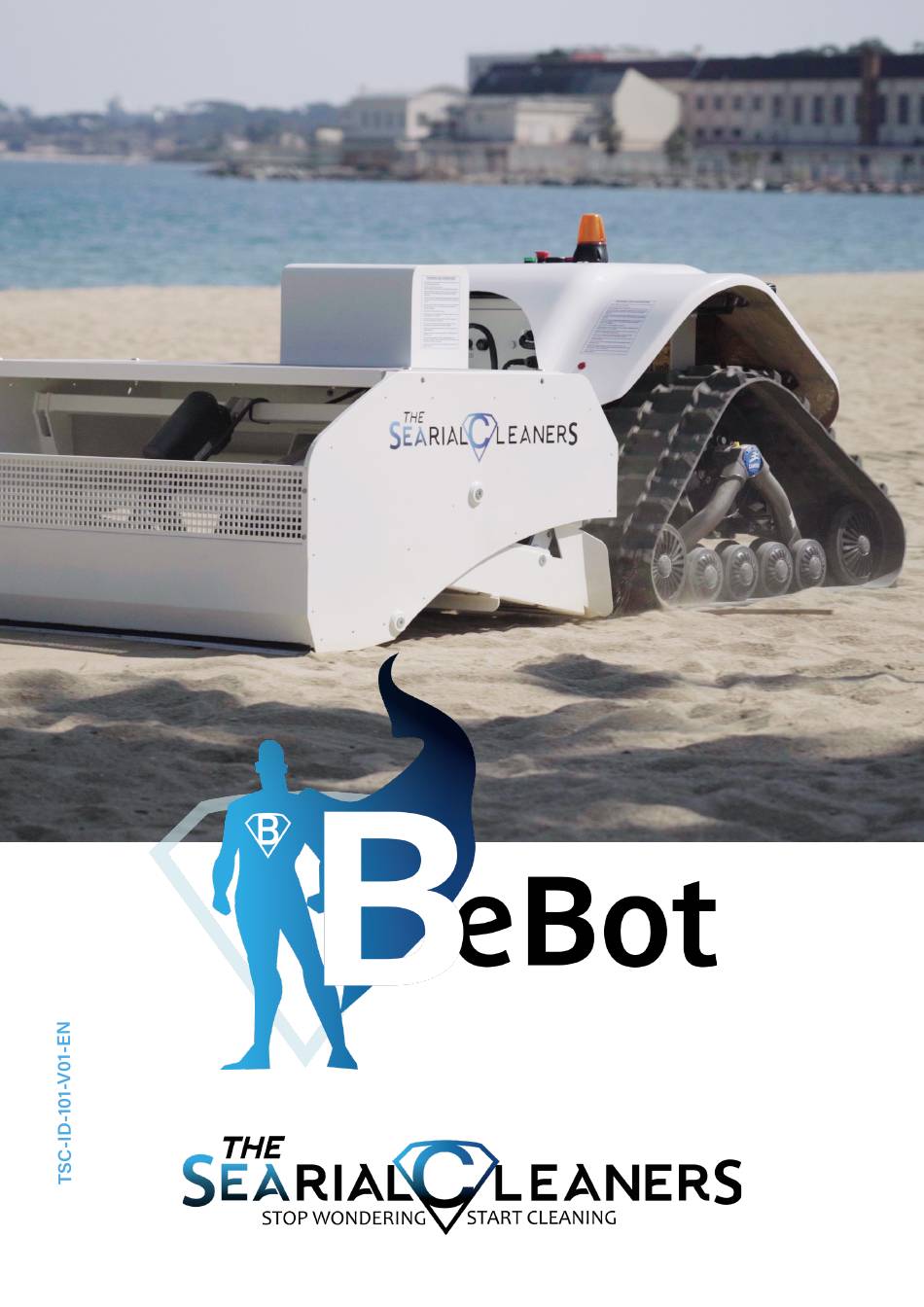

- Page 1 USER MANUAL...
- Page 2 This guide will familiarize you with your waste collector and take you through the steps required to install and operate it properly. If you have any questions, please get in touch at: aftersales@searial-cleaners.com SERIAL NUMBER Operating manual BeBot...
-
Page 3: Table Of Contents
CONTENTS Conditions of use............................BeBot dimensions............................. Main components ............................. Overview of buttons..........................Battery charging ............................Starting the Bebot ............................. Attaching the sifter............................ Unloading waste............................Storage ..............................Cleaning ..............................Rake ................................Safety rules and warranties........................Operating manual BeBot... -
Page 4: Conditions Of Use
The sand sifter can sieve sand to a maximum depth of 10 cm. The operator can adapt the sifting depth to suit operating conditions using the right-hand joystick. If sand accumulates in the sand sifter and the BeBot starts to slow down and tilt back- wards, the sifting depth needs to be reduced. -
Page 5: Bebot Dimensions
BEBOT DIMENSIONS All measurements are in mm. Operating manual BeBot... -
Page 6: Main Components
MAIN COMPONENTS X-bot Sand sifter Locking rod mobile traction unit sifting equipment Radio transmitter Battery charger Remote control Operating manual BeBot... -
Page 7: Overview Of Buttons
OVERVIEW OF BUTTONS BeBot control panel On/Off button LED lights On/Off button and emergency stop button Green LED Battery voltage Low bat- indicator tery indi- cator Operating manual BeBot... - Page 8 Radio transmitter up to 150 m Unload hatch closed/open On/Off button position selector Sifter vibration Speed and steering se- lector Sifting depth and sifter raise button On/Off button Remote control battery Remote control level and emergency stop Operating manual BeBot...
- Page 9 Trim 4 (T4): adjust Bebot sifter rotation speed The status of each trim is displayed on the remote control display. Always check that all trim parameters are at zero before starting the BeBot, to pre- vent unexpected movements. Example of Trim 2 status...
- Page 10 Switch on the remote control by pushing the silver-colored button in the center upwards. The remote control beeps. Briefly push the right-hand joystick down: the remote control connects to the X-Bot. BeBot movements Left-hand control: BeBot direction Operating manual BeBot...
- Page 11 Right-hand control: working depth and vibration intensity Warning: before operating the BeBot, make sure that the sifter is fully raised. Operating manual BeBot...
-
Page 12: Battery Charging
Waste hatch control button: down or center position: closed up: open BATTERY CHARGING Batteries must be charged after each time the BeBot is used. 1. Disconnect the power connector from the batteries. 2. Connect the battery charger to the batteries. Operating manual BeBot... - Page 13 4. If the batteries are fully discharged, the charger will need to operate for 6-8 hours. When the batteries are fully charged, the green LED is lit. When charging is complete, disconnect the charger from the mains sup- ply, then disconnect the charger from the batteries. Operating manual BeBot...
-
Page 14: Starting The Bebot
LED will flash. 3. Always switch off the remote control when entering the 2 m working area around the BeBot. 4. Switch on the remote control by pushing the silver-col- ored button in the center upwards. The remote control beeps. -
Page 15: Unloading Waste
UNLOADING WASTE Ramps are provided to enable the BeBot to safely descend from the pallets. Raise the sifter unit to maximum height and move the BeBot off the pallet using the ramp. STORAGE dry place Always store the Bebot in a , at a temperature between 5 °C and 30 °C. -
Page 16: Cleaning
CLEANING Clean the BeBot after each operation: • We recommend using an air blower to remove sand easily. • It is possible to use clean water. Never spray water on the electronics box or battery. Never use a power washer. -
Page 17: Rake
5- To remove the rake, perform the steps in reverse order. The rake can remain attached while the unit is in storage. Rinse with clean water after each use. Never use on a pebble beach, only on sand. Operating manual BeBot... -
Page 18: Safety Rules And Warranties
SAFETY RULES • Make sure you remain at least 2 m from the perimeter of the work area around the Bebot. • If you need to enter the work area, wear safety shoes and gloves. • Do not lie under the sifter when it is raised. - Page 19 Product, nor any other expense and/or compensation for damage, just as the Customer shall not be entitled to request and/or demand deferral of payments, price reductions or termination of the supply contract. Date Order no. Customer signature Operating manual BeBot...
- Page 20 AFTER-SALES SERVICE Email: aftersales@searial-cleaners.com Address: ROTAX MARINE - ZI LE MARAIS Rue de l’industrie - 01460 PORT, FRANCE www.searial-cleaners.com...
