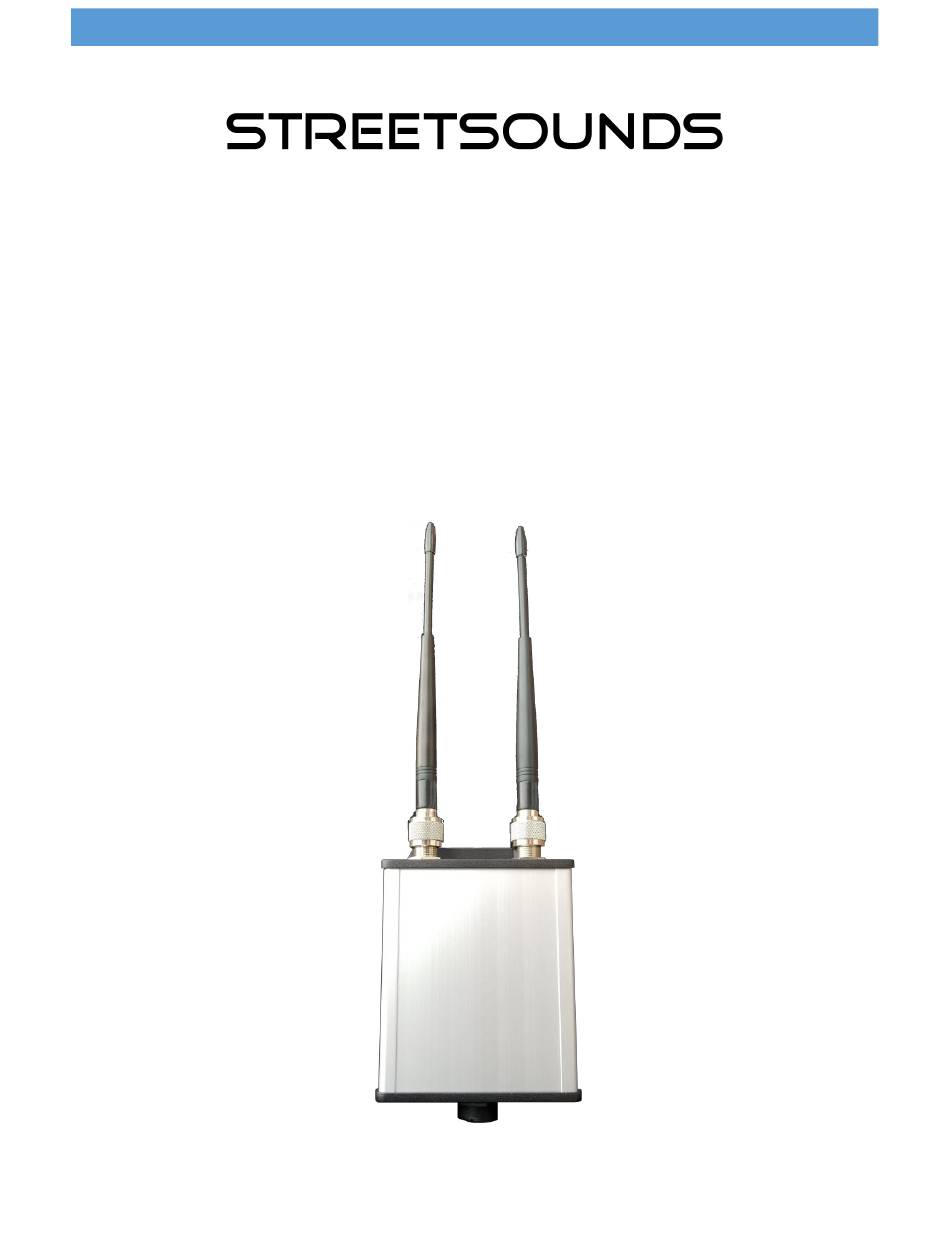

The StreetSounds STS-170-FMST Fixed Master is a wireless audio transmitter designed to act as either the master transmitter for a StreetSounds network, or as a “repeater” within the network. The role of the unit is configurable via the Network Management System (NMS). The STS-170-FMST consist of two parts, the Outdoor Unit (ODU) and the Indoor Unit (IDU). -
Page 4: Indoor Unit (Idu)
STREETSOUNDS STS-170-FMST USER GUIDE V1.0 (IDU) NDOOR The STS-170-FMST-IDU Indoor Unit is a “breakout box” for injecting DC power, stereo analog audio, and USB signals into the ODU. The IDU is designed to be used in a “indoor” environmentally controlled environment. -
Page 5: Optonal High Gain Antenna Assembly
STREETSOUNDS STS-170-FMST USER GUIDE V1.0 PTIONAL NTENNA SSEMBLY An optional high-gain antenna assembly is available that can help extend the radio range of the STS-170- FMST if required. The assembly includes two 5dbi omni-directional antennas, an extended stainless steel antenna mount, and interconnecting cables. Below is a photo of the Fixed Master with the high-gain... -
Page 6: Pole Mount
STREETSOUNDS STS-170-FMST USER GUIDE V1.0 OUNT The STS-170-FMST includes a pole mount and mounting hardware that allows the Fixed Master to be attached to a pole or mast. The typical mounting pole can be a “satellite dish mount”, of which there are many varieties. The photo below shows the FMST mounted to a “J-Mount”... - Page 7 STREETSOUNDS STS-170-FMST USER GUIDE V1.0 The photo below shows the FMST mounted on a non-penetrating roof mount (EZ-NP-60-200 from Solid Signal $90). This type of mount is ideal for roof-mounting the FMST on a “rubberized” or sealed roof. Cinder blocks are added to the base to stabilize the mount in heavy winds. A rubber mat is used for added protection against puncturing the roof seal.
-
Page 8: Fcc Statements
STREETSOUNDS STS-170-FMST USER GUIDE V1.0 7 FCC S TATEMENTS 7.1 C LASS EVICES NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 9: Industry Canada Specific Statements
STREETSOUNDS STS-170-FMST USER GUIDE V1.0 NDUSTRY ANADA PECIFIC TATEMENTS This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
