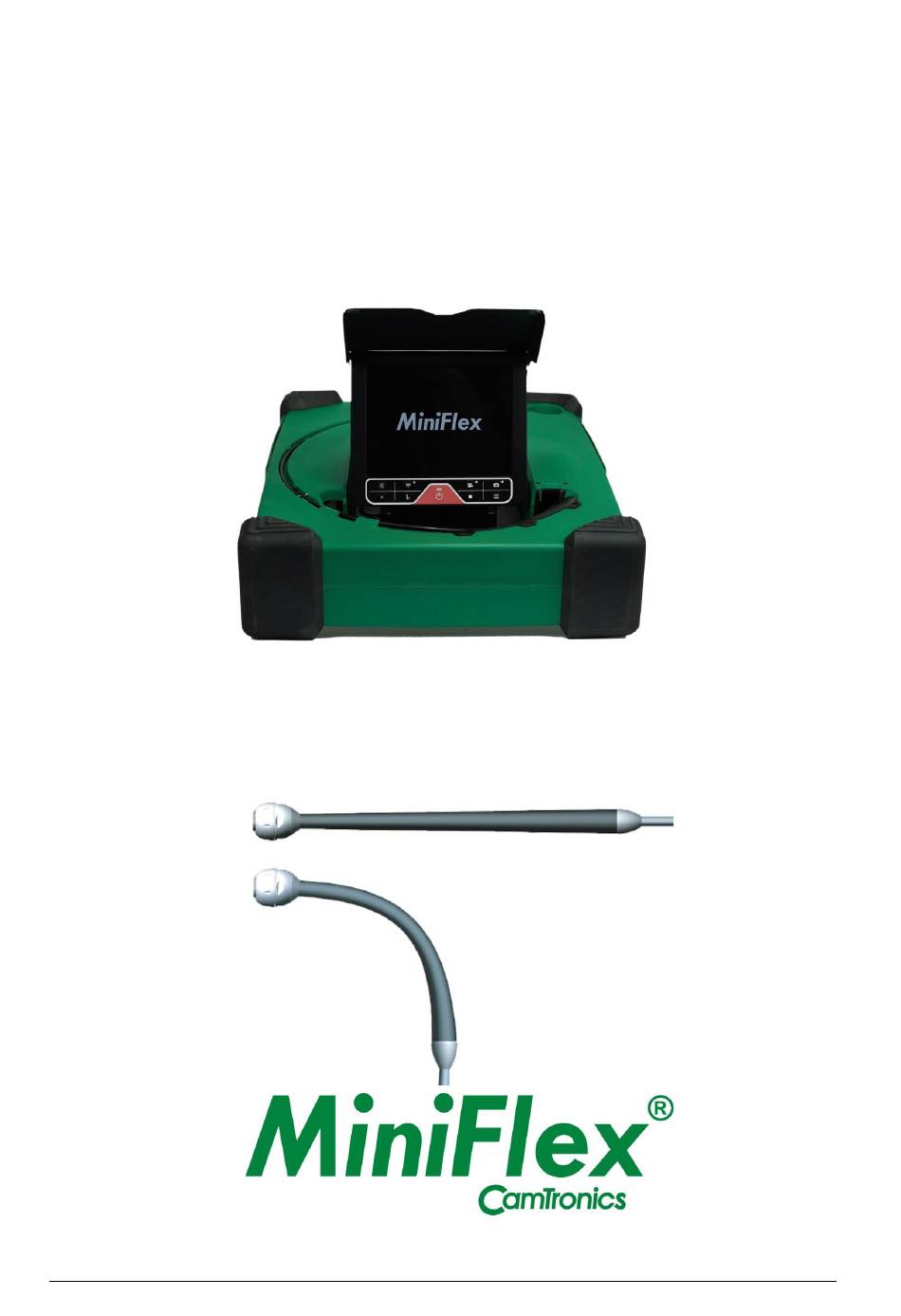

- Page 1 MiniFlex2 manual Manual MiniFlex 298330863 rev 0 page 1 from 34...
-
Page 2: Table Of Contents
Transferring files and viewing Deleting files on SD card Sending via WhatsApp/Dropbox/We-transfer/email Advanced video editing For Android devices Transferring files and viewing Deleting files on SD card Sending via WhatsApp/Dropbox/We-transfer/email Advanced video editing Manual MiniFlex 298330863 rev 0 page 2 from 34... -
Page 3: Security
In order for the system to be used optimally for a long time, some maintenance is required. In this manual you will find instructions and tips regarding: Safety Use Maintenance Service Manual MiniFlex 298330863 rev 0 page 3 from 34... -
Page 4: General Safety Rules
MiniFlex. prevent contamination from toxic or infectious material, do not eat or smoke while handling and using MiniFlex. Always use proper personal protective equipment while handling and using equipment in drain pipes. Drains may contain chemicals, bacteria and other substances that can be toxic or infectious and cause burns or other problems. -
Page 5: Electrical Safety
There is an increased risk of electric shock if your body is grounded. Do not expose the device to rain or humid conditions. Water entering the device increases the risk of electric shock. Manual MiniFlex 298330863 rev 0 page 5 from 34... - Page 6 Using an inverter with too little power or with a non-pure sine wave as output signal can cause major damage to your system. This will void the warranty. Manual MiniFlex 298330863 rev 0 page 6 from 34...
-
Page 7: Use Of The System
3.5). The LED above the on/off key will light up green.(See 3.15) section The LCD display will automatically turn on and then you will see the MiniFlex logo on the screen. Once the system is fully booted up, you will see the camera image ... -
Page 8: Grease Flex Part
Guide the push cable there so that it is behind point (2),(3),(4) and (5). Now push back the redundant push cable until rear side is flexible at point (6) Push the flexible rubber part into point (7) Manual MiniFlex 298330863 rev 0 page 8 from 34... -
Page 9: Control Panel
3.6 Using the transmitter The camera head of the MiniFlex 19 and 36 is equipped with a 512 Hz transmitter. Using a receiver, the camera can be located without digging. During use of the transmitter the image will show stripes. These disappear again immediately after switching off the transmitter. -
Page 10: Use Of The Meter Counter
Through the menu, you have the following options 1- view and delete recordings and photos 2- enter texts 3- turn on/off items that come into view 4- change various settings 5- view information about the MiniFlex Manual MiniFlex 298330863 rev 0 page 10 from 34... -
Page 11: Live Screen
Free text LED level Time and date Meter counter Battery indicator: the MiniFlex is battery operated. the battery is charged. Status DVR: SD Card present, if it is flashing then an error or no SD card. A photograph is taken. -
Page 12: Quick Menu
3.11 Quick menu The MiniFlex features a quick menu that allows you to select a short text that you can move by selecting and dragging on the touch screen. To activate this quick menu, make a swipe on the touchscreen from the top edge to the center of the screen. -
Page 13: Screensaver
2- the touchscreen is touched 3- the meter counter detects a change 3.13 Using the adapter One can work with the Miniflex for many hours on a full battery without recharging. However, one can also work and charge simultaneously with the included adapter. -
Page 14: Use Of Connections
This space contains the following functions Reset button Serial usb port Headset connector SD card space Video out Manual MiniFlex 298330863 rev 0 page 14 from 34... -
Page 15: Indicating The Leds
Off MiniFlex is off Green, MiniFlex is on Orange flashing, MiniFlex is off and charging Orange, MiniFlex is off and the battery is fully charged LED 3: Off, no recording or recording is stopped Red, recording active ... -
Page 16: Use Of The Brake
3.16 Use of the brake The MiniFlex has a 1-way brake. This brake prevents the cable from coming out of the drum by itself. If over time the cable comes out of the drum too fast or too slow you can adjust it by turning the ribbed knob 3.17 Viewing and sending recordings... -
Page 17: Maintenance
We recommend cleaning with a damp cloth or brush. The display should never be cleaned due to scratching. The MiniFlex should never be hosed down with water or a pressure washer. The system should be stored in a ventilated, non-humid room at room temperature. -
Page 18: Replacing Cable
6. Unscrew the cable connector from the drum connector. 7. Screw the new cable to the drum connector. 8. Replace the connector connection and cable in the space provided. 9. Lock the slide (left slide open, right locked) Manual MiniFlex 298330863 rev 0 page 18 from 34... - Page 19 10. Roll the cable back into the drum. 11. Reattach the camera head to the cable. 12. Turn the system back on. Manual MiniFlex 298330863 rev 0 page 19 from 34...
-
Page 20: Replacing Camera Head
This can be up to 0.2 mm. Make sure that no moisture and/or dirt is trapped. The system can be turned back on. Manual MiniFlex 298330863 rev 0 page 20 from 34... -
Page 21: Service & Warranty
Apply a small amount of acid-free petroleum jelly to the flex part behind the camera head. System not responding Press reset button (see section 3.14) After the system has been reset turn it on using the power button (see section 3.5) for verification. Manual MiniFlex 298330863 rev 0 page 21 from 34... -
Page 22: Specifications
Cable: Combination cable Ø 5.5 mm 15 m (optional other lengths available) Screen dimensions: 8.0 inch color Screen resolution: 1024x768 pixels Recording resolution: 720x576 pixels Storage: SD card (max 32GB) * The adapter is suitable for 0°C to 40°C Manual MiniFlex 298330863 rev 0 page 22 from 34... - Page 23 ------------------------------------------------------------------------------------------------------------ The specifications, construction data, mode of operation and illustrations in this manual are not binding. We reserve the right to make changes without prior notice. ------------------------------------------------------------------------------------------------------------- The MiniFlex is a product of Camtronics BV Ekkersrijt 3209 5692 CG SON...
-
Page 24: Transferring Files And Viewing
To transfer files from the SD card to an IPhone or IPad, use ." a "Lightning to SD card reader After plugging the adapter with SD card into your IPhone, the "Import" screen opens itself Manual MiniFlex 298330863 rev 0 page 24 from 34... - Page 25 SD card The imported files can be found at "Last import" under albums Also, the files are in the "Camera Roll."(PLEASE NOTE not all imported files are in the timeline). Manual MiniFlex 298330863 rev 0 page 25 from 34...
-
Page 26: Deleting Files On Sd Card
Selected files will show a blue check mark. (Green check mark means already imported) After selecting, you can delete them Confirm the deletion of the files. 3Sending via WhatsApp/Dropbox/We-transfer/email Open the photo app, go to "albums," "Camera Roll" Manual MiniFlex 298330863 rev 0 page 26 from 34... - Page 27 Tap "Next." If video file selected continue at "Video file". Take notes, crop and or rotate the photo. (NOTE annotations only works if 1 file is selected) Manual MiniFlex 298330863 rev 0 page 27 from 34...
-
Page 28: Advanced Video Editing
For sending with "Dropbox", "We-tranfer" or "email" choose the corresponding icon. And follow the instruction. A.4 Advanced video editing Annotate specific places in a video file for that you can use "Cute Cut Pro". (see sample picture) Manual MiniFlex 298330863 rev 0 page 28 from 34... - Page 29 Install "Cute Cut pro" through the app store. (scan QR code for download link) Manual MiniFlex 298330863 rev 0 page 29 from 34...
-
Page 30: For Android Devices
"OTG card reader". (NOTE your device must support OTG) Plug in the adapter with SD card. Open the "MY FILES" app. Select "usb storage ." Select the folder "DCIM" Select 1 file by tapping and holding Manual MiniFlex 298330863 rev 0 page 30 from 34... -
Page 31: Deleting Files On Sd Card
Copy the files to the "internal storage" or if present an "SD card" B.2Deleting files on SD card Plug in the adapter with SD card. Open the "MY FILES" app. Select "usb storage." Select the folder "DCIM" Manual MiniFlex 298330863 rev 0 page 31 from 34... -
Page 32: Sending Via Whatsapp/Dropbox/We-Transfer/Email
Select multiple files, if necessary. Tap "DELETE ." Confirm with "DELETE." B.3 Sending via WhatsApp/Dropbox/We-tranfer/email Plug in the adapter with SD card. Open the "MY FILES" app. Select "usb storage." Select the folder "DCIM" Manual MiniFlex 298330863 rev 0 page 32 from 34... - Page 33 Select 1 file by tapping and holding. Select multiple files if necessary. Tap "SHARE." Choose which program you want to use to send the file. Follow the instructions Manual MiniFlex 298330863 rev 0 page 33 from 34...
-
Page 34: Advanced Video Editing
Annotate specific places in a video file for that you can use "Cute Cut Pro"(see sample picture). Install "Cute Cut pro" via the play store. Upgrade to the "Pro edition. (scan QR code for download link) Manual MiniFlex 298330863 rev 0 page 34 from 34...
