Fido VinCSS FIDO2 Fingerprint User Manual

Hide thumbs Also See for VinCSS FIDO2 Fingerprint:

Advertisement

Quick Links

Download this manual
®
VinCSS FIDO2
Fingerprint
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the VinCSS FIDO2 Fingerprint and is the answer not in the manual?

Questions and answers

Related Manuals for Fido VinCSS FIDO2 Fingerprint

Summary of Contents for Fido VinCSS FIDO2 Fingerprint

  • Page 1 ® VinCSS FIDO2 Fingerprint User Manual...
  • Page 2 Overview VinCSS FIDO2 Fingerprint security key is a FIDO2 ® certified authenticator. FIDO2 provides a passwordless way to authenticate users and addresses security, convenience, privacy, scalability issues that passwords do not. The number of accounts that can be registered with the VinCSS FIDO2 Fingerprint security ®...

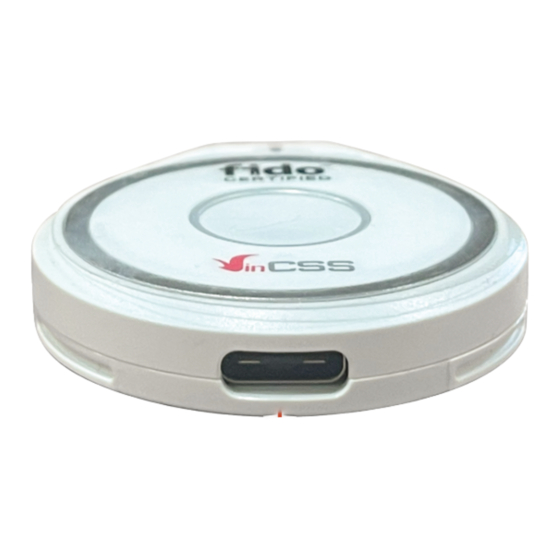

  • Page 3 Diagram The VinCSS FIDO2® Fingerprint Security Key Indicator Fingerprint sensor Bluetooth passcode Type C port...
  • Page 4 Meaning of the LED indicator Meaning Definition indicator built-in battery Blinking red 3 Using Bluetooth running low and needs to times in a row or NFC be charged Solid The security key is being Connecting with USB amber charged The security key is fully Connecting with USB Solid green charged...

  • Page 5: Connect Status

    Connect Status The original Manipulation Action The next state Note state Hold down The security Make sure LED indicator key in sleep the battery Turn on fingerprint shows solid state (no USB capacity of Bluetooth connection, sensor for 5 blue the security LED is off) seconds...

  • Page 6: Connecting Via Usb

    Connecting via USB o_logo Plug the VinCSS FIDO2® Fingerprint security key into your computer using USB type-C cable, and make sure the security key is not in Bluetooth or NFC working mode. Connecting via NFC o_logo Put the VinCSS FIDO2® Fingerprint security key on the NFC reader.
  • Page 7 Note Due to the change in the Bluetooth device visibility policy on -In the Bluetooth devices discovery section, select Advanced. Connect your Security Key o_logo The first step when connecting the security key is to set up the PIN and Fingerprint. There are serval available tools that can be used for set up security key listed below: Windows built-in Chrome built-in Security...
  • Page 8 Connection status table of the VinCSS FIDO2® Fingerprint security key Note: Please keep updating to the latest operating system(s)/software for maximum compatibility.
  • Page 9 CONNECTION FORM CONVERSION TABLE Firefox Google Chrome Microsoft Edge FIDO2 macOS Support from macOS version 10.15 and above Support from iOS version 13.3 and above (From iphone 7 and above support NFC connection) Support from Windows 8.1 version and above Support from Android version 9 and above...
  • Page 10 CONNECTION FORM CONVERSION TABLE Safari FIDO2 macOS Support from macOS version 10.15 and above Support from iOS version 13.3 and above (From iphone 7 and above support NFC connection) Note o_logo The security key will automatically connect to the device if the security key has been connected before. CHROME Support from chrome version 100.0.4896 and above Support...
  • Page 11 PROVISION YOUR SECURITY KEY WITH WEB SERVICES The first step of using FIDO authentication is to register a security key for your account. To register a security key for your account, please follow the steps below: Step 1: Authenticate you account as normal with PC and a WebAuthN supported browser.
  • Page 12 What to do when the VinCSS FIDO2® Fingerprint security key is lost? In case of losing the VinCSS FIDO2® Fingerprint security key, you can use the backup methods registered during the first key registration process to log in to your account, and unlink the lost key. The backup methods can be one-time recovery code, SMS OTP or Authenticator applications on mobile devices.
  • Page 13 Does using the VinCSS FIDO2® Fingerprint security key, which I often plug in from several computers, increase the danger of malware infection between computers? No, because the VinCSS FIDO2® Fingerprint security key is not a USB storage, there is no risk of malware infection.

  • Page 14: Specification

    SPECIFICATION VinCSS FIDO2® Fingerprint security key INFORMATION DETAIL Product name VinCSS FIDO2® Fingerprint USB Type USB Type-C Bluetooth Bluetooth Low Energy 5.0 ISO7816/ISO14443 Windows, macOS, Linux, Android, Supported OS Authentication Passwordless, Strong Two Factor, Methods Strong Multi-Factor Certificate ® FIDO2 Certified, FCC, JQA WebAuthn, FIDO2 CTAP1, FIDO2 Supported protocol...
  • Page 15 SPECIFICATION VinCSS FIDO2® Fingerprint security key INFORMATION DETAIL 32-bit ARM® Cortex™-M4 Fingerprint Sensor <0.0002% Fingerprint <1s authentication time Battery 25mAh. Lithium-ion Battery 5 – 7 days (12 authentication times Battery life per day) Standby 4 months Full charge time 2 hour 30 minutes Operation 5V/1A Voltage/Current...
  • Page 16 For further infomations, please contact sales@vincss.net, Or your service provider. VinCSS - A member of FIDO ALLIANCE The FIDO Alliance is an open industry association with a focused mission: Authentication standards to help reduce the world’s over-reliance on passwords VINCSS INTERNET SECURITY SERVICES JOINT STOCK COMPANY •...
