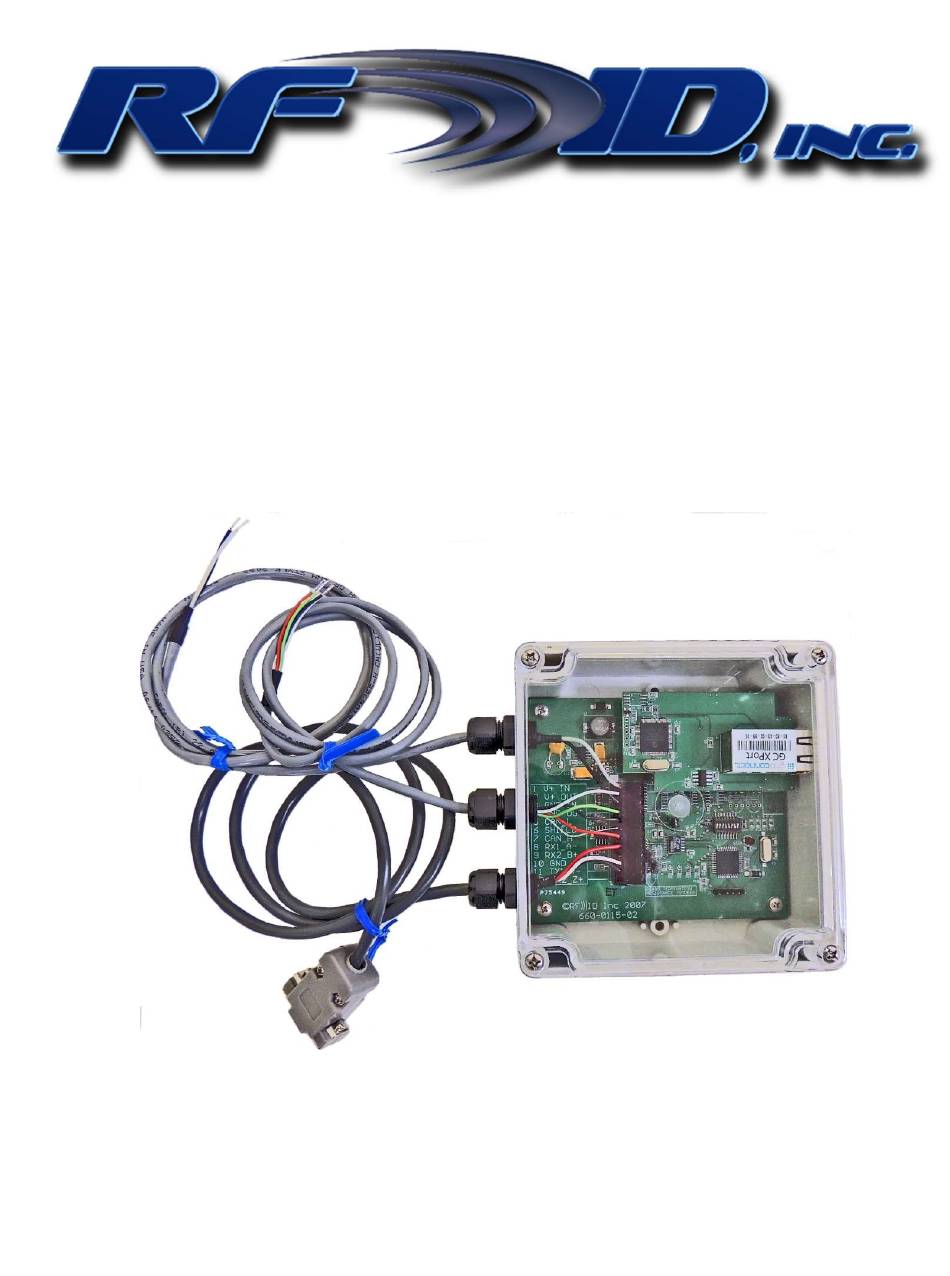

Product Manual

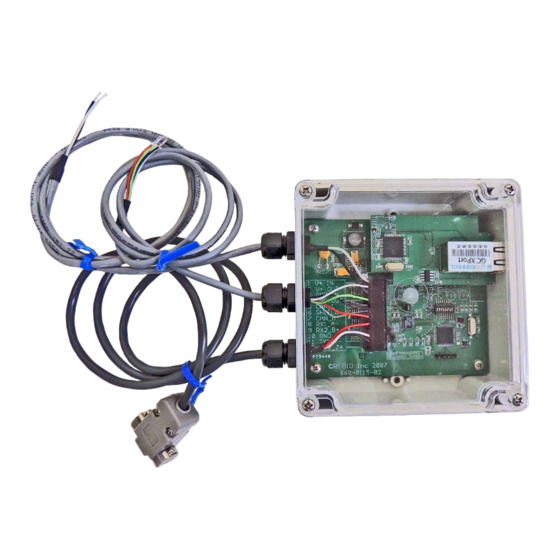

Model 8080E Modbus TCP Series Interface
for LF 125 kHz and 148 kHz Smart Antennas
This document is made available to product owners and users for integration purposes. Proprietary and confidential
information is contained herein, therefore this document is protected by all applicable international intellectual property
laws. The information contained in this document is constantly subject to revision (see Rev. number at top of each page).
Advertisement
Table of Contents
Related Manuals for RFID 8080E
Summary of Contents for RFID 8080E
- Page 1 Product Manual Model 8080E Modbus TCP Series Interface for LF 125 kHz and 148 kHz Smart Antennas This document is made available to product owners and users for integration purposes. Proprietary and confidential information is contained herein, therefore this document is protected by all applicable international intellectual property...
-
Page 2: Table Of Contents
Wiring Color Codes ..........................6 M12 Pinouts ............................. 6 Cabling the Interface to Networkable Smart Antenna Readers ............... 6 CAN Smart Antenna Readers and LF Passive RFID Tags ............... 7 Integer Data .............................. 8 SW1 & SW2 Dipswitches ......................... 8 RW/RO (read write or read only) ...................... -
Page 3: Part Numbers
Part Numbers Model Part Number Description Number 801-8080- Model 8080E-04SA08 Modbus TCP Interface, CAN Smart Antennas, 1 each M12 8080E-04SA08 04SA08 connection for CAN only, 10’ power pigtail wiring, 24vdc, 8 characters 8080E- 801-8080- Model 8080E-04SA08M12M Modbus TCP Interface, CAN Smart Antennas, 1 each... -
Page 4: Specifications
Revision 7.21 This Interface is the master in managing a network of up to 32 networkable CAN based RFID Readers termed Smart Antennas (or as a Modbus TCP bridge from our series of serial Reader Models 4000E, 5000E, and 7000E), and ultimately presents RFID Tag data from the networked Smart Antennas in Ethernet/IP format. - Page 5 Revision 7.21 14190 E. Jewell Avenue, Suite 4, Aurora CO 80012 - TEL: 303-366-1234 – Proudly Made in the USA www.rfidinc.com Model 8080E Operations Manual...
-
Page 6: Pigtail Wire Specifications
It is necessary to apply termination resistance to both ends of the network trunk line with 120 Ohm resistors. RFID, Inc. supplies an accessory M12 connection with termination resistor installed. For 14190 E. Jewell Avenue, Suite 4, Aurora CO 80012 - TEL: 303-366-1234 – Proudly Made in the USA www.rfidinc.com... -
Page 7: Can Smart Antenna Readers And Lf Passive Rfid Tags
CAN Smart Antenna Readers and LF Passive RFID Tags Smart Antenna RFID Readers are addressable and simply provide a means of emitting the RF signal to energize a Tag, receive data back from a Tag and pass Tag data back to the Interface. Smart Antennas can also program RFID Tags. -
Page 8: Integer Data
Revision 7.21 Integer Data Although the Smart Antenna RFID Readers and Tags use 8 or 16 character formats, the Model 8080E Interface can convert DINT data from the Modbus TCP scanner to 8/16 character numerical strings and convert the string from the Tag into a DINT before sending to the Modbus TCP bus. -
Page 9: Summary Default Settings
Do not use Do not use Table 3 - SW2 & Baud Rate Selection *9600, 8, 1, N 14190 E. Jewell Avenue, Suite 4, Aurora CO 80012 - TEL: 303-366-1234 – Proudly Made in the USA www.rfidinc.com Model 8080E Operations Manual... -
Page 10: Serial Port Commands To The Interface
This section pertains only to use of the Interface when linked with serial Readers, NOT the networkable CAN Smart Antenna Readers. The serial port software frames Tag data from the Smart Antenna RFID Readers based on its End and Start character settings. Start may be set to zero in which case any character is accepted as a start character. - Page 11 Tag will be read and reported one time. Format: S = Single Mode Response: OK Example: [S] 14190 E. Jewell Avenue, Suite 4, Aurora CO 80012 - TEL: 303-366-1234 – Proudly Made in the USA www.rfidinc.com Model 8080E Operations Manual...
-
Page 12: Serial Port Commands To The Smart Antenna Rfid Readers
This command changes the write mode of the addressed Smart Antenna Reader. There are different types of RFID Tags with differing types of coils and tuning. The values discussed below place a Smart Antenna Reader into the writing mode appropriate to the RFID Tags in your possession. Default mode is 18, used for all planar coil-based Tags. - Page 13 Example: [W015555555533333333] Write 5555555533333333 to tag on Reader 1 Example response successful: PROGRAMMED Example response if failure: NO RESPONSE 14190 E. Jewell Avenue, Suite 4, Aurora CO 80012 - TEL: 303-366-1234 – Proudly Made in the USA www.rfidinc.com Model 8080E Operations Manual...
-
Page 14: Setting Up Modbus Tcp Interface
On the telnet tab you can find the XPORT settings, leave as sent from the factory. To change the IP to static. Use the button Assign IP as seen on Figure 2 and follow the wizard. 14190 E. Jewell Avenue, Suite 4, Aurora CO 80012 - TEL: 303-366-1234 – Proudly Made in the USA www.rfidinc.com Model 8080E Operations Manual... -
Page 15: Issuing Commands Via Modbus Tcp
Use registers 0x0001 to 0x0024 issue the same commands used on the serial port. Just write the command to those registers and it will be executed. 14190 E. Jewell Avenue, Suite 4, Aurora CO 80012 - TEL: 303-366-1234 – Proudly Made in the USA www.rfidinc.com Model 8080E Operations Manual... -
Page 16: I/O Command Bits 1 Byte
Smart Antenna Reader addresses. Always use permanent labels to mark your addresses. 14190 E. Jewell Avenue, Suite 4, Aurora CO 80012 - TEL: 303-366-1234 – Proudly Made in the USA www.rfidinc.com Model 8080E Operations Manual... -
Page 17: Smart Antenna Reader Register Addresses
2. You should receive the response of OK. If so, skip the rest you are done. 3. If you receive a FAILED_X response, refer to Serial Port Commands to the Smart Antenna RFID Readers on page 12 for details. Reassign Smart Antenna Reader Address 1. - Page 18 0x0001 40001 Registers Last Command 0x0100 0x0101 40257 Table 8 - Command and Last command register area. 14190 E. Jewell Avenue, Suite 4, Aurora CO 80012 - TEL: 303-366-1234 – Proudly Made in the USA www.rfidinc.com Model 8080E Operations Manual...
-
Page 19: Warranty
RFID, Inc. products are warranted against defects in materials and workmanship for one (1) year from date of shipment. RFID, Inc. shall, at its option, either repair or replace products that prove to be defective and are returned with freight prepaid to RFID, Inc.’s plant within the warranty period. The foregoing warranty shall not apply to defects resulting from abuse, misuse, accident, alteration, neglect or unauthorized repair or installation.
