Summary of Contents for Kozyard LUTIAN 305-1200A

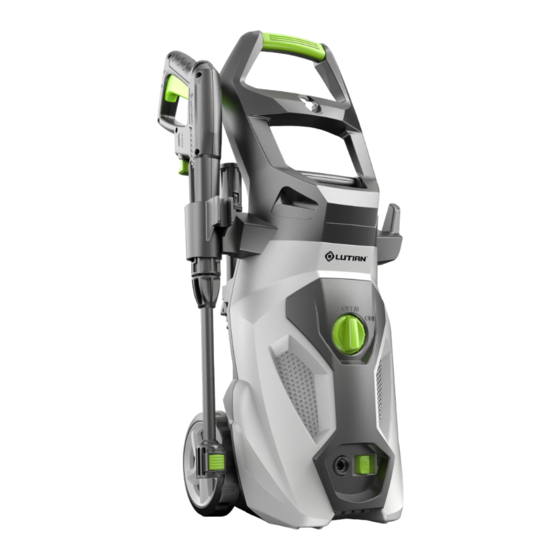

- Page 1 Owner’s Manual HIGH PRESSURE CLEANER 305-1200A/305-1200B/305-1200C 305-1400A/305-1400B/305-1400C 305-1600A/305-1600B/305-1600C 305-1800A/305-1800B/305-1800C WARNING: Do not use the appliance without reading the instruction sheet. Version: 1023202301...
-
Page 2: Table Of Contents
Contents Section Page Important Safety Precautions, Tips Warnings, and Usage Instructions Assembly Instructions 7-11 Operating Instructions Information for usage 13-15 Maintenance and Storage Cleaning Tips Technical data Troubleshooting Tips 18-19 Warranty Page | 1... -
Page 3: Important Safety Precautions, Tips
IMPORTANT SAFETY TIPS Never point the high-pressure nozzle at people or animals. Avoid consuming alcohol or using drugs while operating the pressure cleaner. Do not operate the pressure cleaner while standing in water. Never touch the electrical plug with wet hands. Ensure electrical connections do not rest in water. - Page 4 Never direct the jet at yourself or others to clean clothing or footwear. Disconnect the appliance from the power supply before performing any user maintenance. High-pressure cleaners should not be operated by children or untrained individuals. For continued safety of the machine, use only original spare parts from the ...
-
Page 5: Warnings, And Usage Instructions
Ensure the work area has adequate drainage to prevent accidents on slippery surfaces. Adhere to the maintenance instructions provided in the manual. To minimize the risk of electrocution, keep all connections dry and off the ground. Do not touch the plug with wet hands. - Page 6 SYMBOLS The labels on your tools and manual may show symbols. These represent important information about the product or instruction on its use. Indicates a potential personal injury hazard. In accordance with European directives applicable to this product. Double-insulated construction Do not expose to rain or use in damp locations.
- Page 7 SERVICING OF A DOUBLE-INSULATED APPLIANCE In a double-insulated product, two layers of insulation are provided instead of grounding. No means of grounding is provided with a double-insulated product, nor should grounding be added. Servicing such a product requires extreme care and an understanding of the system, and should be undertaken only by qualified service personnel.
-
Page 8: Assembly Instructions
ASSEMBLY INSTRUCTIONS Unpacking the Carton After opening the carton, please remove all parts and check them against the following list of components that are included: 1. Accessories holder 2. Handle 3. Gun holder (be used on B & C model) 4. - Page 9 Model:305-1200(1400)C Due to transportation and packaging, some accessories may be supplied disassembled. Please follow the assembly instructions carefully. Mark: 305-1200(1400)A is supplied without wheels; 305-1200(1400)A/B features a short handle, while 305-1200(1400)C has a long handle. The machine is always equipped with a handle for transportation. Step 1 A.
- Page 10 B. Insert the spray adjustable nozzle (6) or the turbo lance (13) into the extension wand (7). As it is a quick-connect type, you need to push it onto the extension wand (7) forcefully until it is hand-tight to lock it in place. When the pieces are properly joined, you cannot separate the two components by pulling straight out on the extension wand (7).
- Page 11 Step 3 Install the Gun Holder: For models B/C: Install the wheel and attach the accessories holder to the main body as illustrated in the figure below. The screws are included with the manual; please ensure you locate them during unpacking. Step 4 Attach the high-pressure hose to the pressure cleaner's water outlet.
- Page 12 Step 6 Insert the detergent nozzle (4) into the gun (8). Push and turn the detergent nozzle (4) clockwise onto the gun (8) until it is hand-tight to secure it in place. When the components are correctly assembled, they cannot be separated by pulling straight out from the gun (8). Step 7 Attach the hose connector to the pressure washer.
-
Page 13: Operating Instructions
OPERATING INSTRUCTIONS WARNING: THIS UNIT IS INTENDED TO BE USED WITH COLD WATER ONLY! DO NOT USE HOT WATER IN THIS PRESSURE CLEANER! WARNING: The high-pressure hose must not be looped.. WARNING - DANGER! Ensure that the appliance is positioned on a firm, stable surface during operation Starting Up Warning: ALWAYS turn off the unit's motor BEFORE turning off the unit's water supply. -
Page 14: Information For Usage
Caution: Never disconnect the high-pressure discharge hose from the machine while the system is still pressurized. To depressurize the unit, turn off the motor, turn off the water supply, and squeeze the trigger 2-3 times. INFORMATION FOR USAGE 1. Safety valve and/or pressure limiting valve WARNING-DANGER! Do not tamper with or adjust the safety valve setting. - Page 15 The use of detergents can significantly reduce cleaning time and assist in removing stubborn stains. Some detergents are specially designed for pressure washer use on specific cleaning tasks. These detergents are typically as thin as water. Using thicker detergents, such as dish soap, can clog the chemical injection system and prevent proper detergent application.
- Page 16 Fig.6 Fig.7 Warning: High pressure jets can be dangerous if subject to misuse. The jet must not be directed at persons, live electrical equipment or the appliance itself. Do not direct the jet against yourself or others in order to clean clothes or foot-wear. 4.
-
Page 17: Maintenance And Storage
MAINTENANCE AND STORAGE When finished using the pressure cleaner, follow these steps to shut down the unit： Turn the pressure cleaner to the OFF position, Unplug the power cord from the wall outlet. Turn off the water supply. Before disconnecting high-pressure hose connection, point the gun in a safe direction and ... -
Page 18: Cleaning Tips
CLEANING TIPS WARNING: ALWAYS TEST THE SPRAY IN AN AREA FREE AND CLEAR OF PEOPLE AND OBJECTS BEFORE SPRAYING THE INTENDED CLEANING SURFACE. Wood and Vinyl Decks: 1. Rinse the deck and the surrounding area with fresh water. If using detergent, fill the detergent reservoir and apply it to the area being cleaned at low pressure. -
Page 19: Technical Data
TECHNICAL DATA Model 305-1200 305-1400 305-1600 305-1800 Rated voltage AC220-240V～50/60Hz. Rated power 1200 W 1400W 1600W 1800W Rated pressure 1015 psi 1160 psi 1305 psi 1450 psi Max. pressure 1450 psi 1595 psi 1885 psi 2030 psi ated flow 5.5 L/min 5.5 L/min 6 L/min 6 L/min... - Page 20 Clean the nozzle. Clean the water inlet filter. Straighten the hose to remove any kinks or blockages. Machine Pump/spray gun is Please call Kozyard customer often starts leaking. service center at 1-866-355-0018 and stops Trigger mechanism is...
-
Page 21: Warranty
This warranty acknowledges specific legal rights applicable to you. Additionally, you may be entitled to other rights, which may vary based on local state laws. Eligibility for Limited Warranty Coverage: This warranty is offered by Kozyard LLC exclusively to the original purchaser and owner of the product. Exclusions from Warranty Coverage: This warranty does not apply if the product has been used for commercial purposes or in non- household or rental applications.
