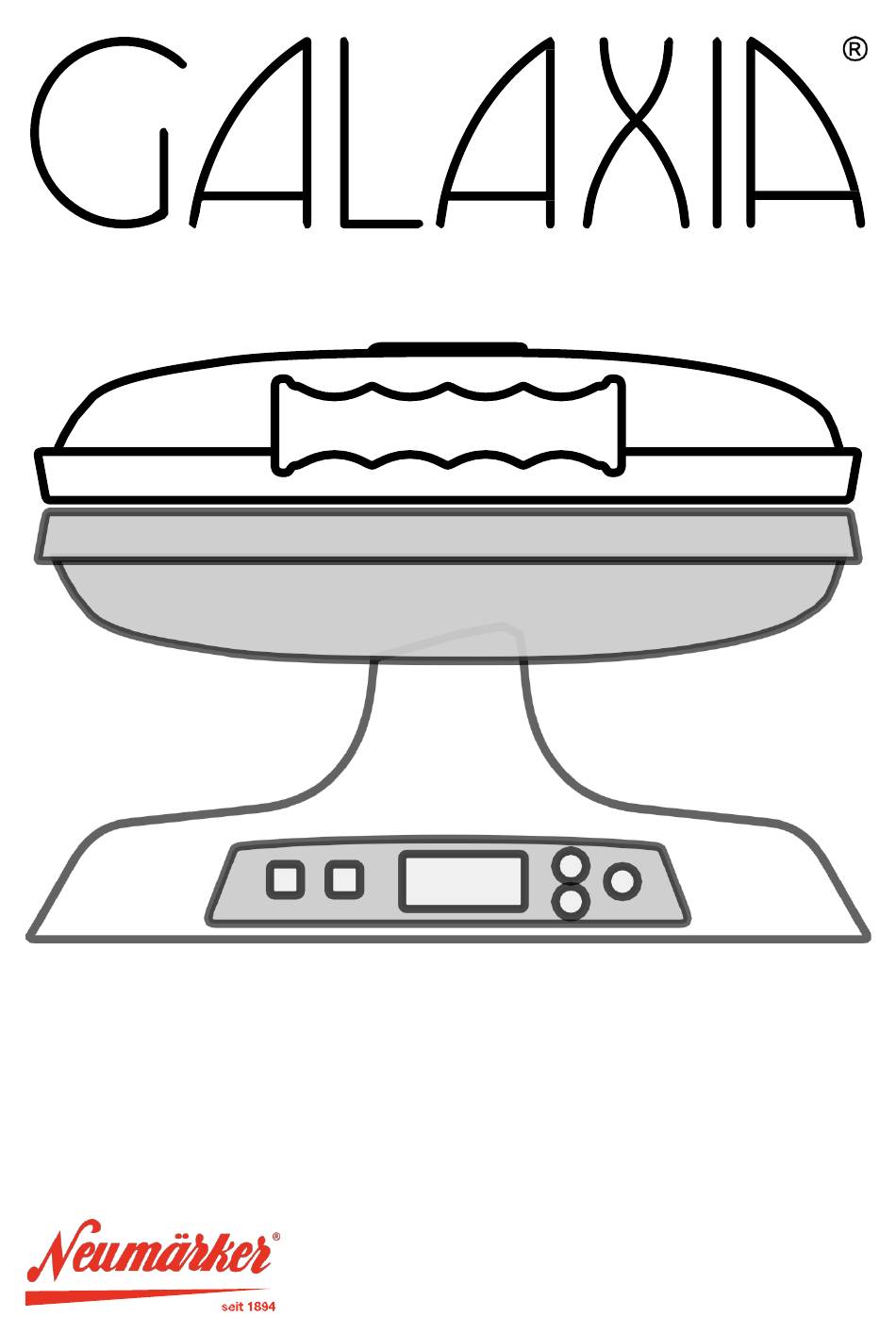

- Page 1 OPERATIONS MANUAL ART.-NR. 12-20203M Ernst Neumärker GmbH & Co. KG • Lohstr. 13 • 58675 Hemer Postfach 4063 • 58663 Hemer • Germany Tel. +49 2372 9274 0 • Fax +49 2372 3304 www.neumaerker.de • info@neumaerker.de...
-
Page 2: Table Of Contents
Table of contents 1. Copyright Protection ......................4 2. Techical Data ......................... 4 2.1 GALAXIA – The Waffle Iron......................4 3. Important Basic Information ....................5 3.1 Scope of Delivery ..........................5 3.2 Responsibilities ..........................5 3.2.1 Responsibilities of the Manufacturer ..................... 5 3.2.2 Responsibilities of the Operator ...................... - Page 3 Installation Conditions ..................... 16 8.1 Safety ............................16 8.2 Installation Plan & Overall Space Requirement ..............17 8.3 Dimensions and Weights ......................18 8.4 Environmental Conditions ......................18 8.5 Supply Connections ........................18 8.6 Customer-Side Safety Precautions ..................18 9. Assembly and Installation, Initial Commissioning ........... 18 9.1 Safety ............................
-
Page 4: Copyright Protection
1. Copyright Protection The user manual and the contained texts, drawings, images, and other representations are protected by copyright. Reproductions in any form or manner - even in part - as well as the use and/or communication of the content are not permitted without the written consent of the manufacturer. -
Page 5: Important Basic Information
3. Important Basic Information 3.1 Scope of Delivery Included in the scope of delivery are the GALAXIA waffle iron, a waffle tong for removing the finished waffles, and this detailed user manual. 3.2 Responsibilities 3.2.1 Responsibilities of the Manufacturer The device has been developed according to the currently applicable state of the art. Nevertheless, this device can pose dangers if used improperly or not as intended. -
Page 6: Environmental Information
Electrical safety is only guaranteed if the device is installed correctly and potential equalization is established, as described in the safety regulations for electrical systems. 5. For all care and maintenance work, the device must first be disconnected from the power supply by turning off the main switch and disconnecting the supply cable from the mains. -
Page 7: Labeling Concept For Integrated Texts And For References
Never pull on the cable as the cable can be torn out of the plug. Risk of Electric Shock! Notice This symbol draws your attention to particularly useful information about the use of your device. 3.7 Service Address Tel.: 02372-9274-0 info@neumaerker.de 1.0 / 12.07.2023... -
Page 8: Security
4. Security 4.1 Convention for safety instructions This professional device is primarily designed for commercial use, secondarily for responsible use in hobby kitchens after extensive training and can only be used by catering specialists or by trained people. Use your waffle machine to only bake foods for which the device is intended. -
Page 9: What To Do In An Emergency
4.2 Behavior in an emergency Keep calm, help others out of the danger zone, unplug the device. Remove the plug from the socket or remove the fuse. Never put out fires on and around electrical devices with water. 4.3 Intended use of the device 4.3.1 Area of Application The operational safety of the device is only guaranteed if it is used as intended and in accordance with the information in the operating instructions. -
Page 10: Safety Environmental Conditions
4.3.3 Safety Environmental Conditions Only operate the device in closed and dry rooms. Do not cover the device. 4.3.4 Safety Information for Certain Phases of Life Installation conditions The device must be positioned so that the electrical connection is accessible and maintenance can be carried out. -
Page 11: Possible Misuse
Dismantling Before opening the device, pull out the power plug. Before carrying out any work, switch off the power supply and secure it against being switched on again; wait until the device has cooled down. Disposal Before disposal, devices must be rendered unusable by removing the power cable. Make sure that the device is disposed of in an environmentally friendly and proper manner. -
Page 12: Structure And Function
5. Structure and Function 5.1 Structure 5.1.1 Main Components 1) Vacuum hood 2) Stand 3) Power switch 1/0 4) LED display 5) Electronics control panel 6) Non-slip device feet 7) Handle 8) Baking plate 1.0 / 12.07.2023... -
Page 13: Operator Workstations
5.1.2 Operator Workstations - keep your workplace clean, - comply with local regulations, - keep ignition sources away from the work area, - place the device in a stable position, - do not smoke in the work area, - Do not use water to extinguish 5.2 Functional Description Power Cord and Plug: Without illustration, pull the power plug out of the socket before... - Page 14 7) Handle The device gets hotter than 60°C during operation, so only hold the handle when opening the device. 8) Plates The baking plate becomes very hot during operation. Never touch it or lean on it. HIGH RISK OF BURNS. The baking plates are made of cast aluminum.
-
Page 15: Delivery, Internal Transport, Unpacking
6. Delivery, Internal Transport, Unpacking 6.1 Security When using this device and all electrical devices, you must always follow rules for your own safety. In particular these are - Do not expose the device to external weather influences such as rain - This device is not intended to be used by people (including children) with reduced physical, sensory or mental capabilities or a lack of experience and/or knowledge, unless they are supervised or have been given supervision by a person responsible for their... -
Page 16: Storage Conditions
The information on the nameplate must match the information on the local supply sub- network. 7. Storage Conditions 7.1 Security Make sure that you only store the packaged goods in dry rooms and that you do not exceed the maximum number of boxes that can be stacked, in both cases the boxes can give way and endanger your life and that of others. -
Page 17: Installation Plan & Overall Space Requirement
8.2 Installation Plan & Total Space Requirement Never cover the device! Distance to the walls at least 20 cm 1.0 / 12.07.2023... -
Page 18: Dimensions And Weights
8.3 Dimensions and Weights see 2. Technical Data 8.4 Environmental Conditions Protect the device from the effects of the weather. Only use the device in closed and dry rooms. 8.5 Supply Connections Distributors or multiple sockets must not be used. 8.6 Customer Safety Precautions - Do not place the device on flammable surfaces. -
Page 19: Initial Commissioning
Material must be covered, and the footprint must also be made of heat-resistant and non-combustible material. Local fire safety regulations must be observed. The power cable must not come into contact with hot parts. Maintain a minimum distance, see installation plan in Chapter 8. Please note the information on the nameplate before connecting! Observe VDE regulations and regulations of the local energy supply company! The device comes ready to plug in as standard with a 1.5 m long connection cable... -
Page 20: Electronics
10.3 Electronics The waffle iron is equipped with electronics and an LED display that can either show the baking temperature or the baking time. After the timer has started, the remaining baking time until the beep sequence sounds is displayed here. Display with minutes, seconds and temperature display in °C Time/Temperature Button + Time/Temperature Button -... -
Page 21: Start-Up Of Devices With Cast Aluminum Plates
Bake the first 5 waffles and discard them to ensure that any residue from production is removed. The baking plate becomes very hot during operation. Never touch it or lean on it. RISK OF BURNS The first time you heat it up, smoke and odours will develop. 10.4.1 Commissioning of devices with baking plates made of cast aluminum The device has baking plates made of cast aluminum. - Page 22 Use precise amounts of dough, otherwise the excess liquid dough will be squeezed out the sides and dirty the device. During the baking process, steam vapors escape which can cause burns if touched closely. Therefore, only open and close the device using the bow handle (6).
-
Page 23: Cleaning And Maintenance
Do not remove the waffle with a fork or other sharp or pointed objects. Remove the waffle with the included waffle tongs. Avoid using pointed or sharp objects to remove baked goods or caked- on food from the plate. Take a soft, damp cloth and remove residue immediately. -
Page 24: Shutdown
Check the power cable every day for damage. Under no circumstances should you use the device if the power cable is damaged. You should always remove any coarse dirt immediately after the baking process with a damp cloth or wooden spatula. Do not use cleaning agents or sharp objects that will damage the surface. -
Page 25: Troubleshooting
According to BGV A3 (formerly VBG4), electrical components may only be replaced by qualified electricians. Pull out the power plug before opening the device! 11.2 Service Address Ernst Neumärker GmbH & Co. KG 58675 Hemer Lohstraße 13 Tel.: +49 2372 / 9274-0 Fax.: +49 2372 / 3304 E-Mail: info(at)neumaerker.de 1.0 / 12.07.2023... -
Page 26: Initial Measures For Fault Elimination
11.3 Initial Troubleshooting Measures Unplug the device. Contact our customer service team and they will tell you how to proceed with the device. Only have the device repaired by an authorized specialist or send the device back to us after consulting our customer service. Any manipulation of the device will void the warranty.
