Discovery HILTON HEAD RTG8017 Assembly Instructions

Discovery
TM
World Furniture
PLEASE CONTACT YOUR RETAIL STORE WITH SERVICE OR PARTS REPLACEMENT REQUEST
TO ASSEMBLE THE STEP BUNK BED, FIRST LOOK FOR THE PURCHASE CONFIGURATION, THEN USE THE RIGHT SET
READ ALL THE INSTRUCTIONS AND IDENTIFY ALL COMPONENTS AND CHOOSE YOUR CONFIGURATION AND BE SURE YOU HAVE ALL PARTS

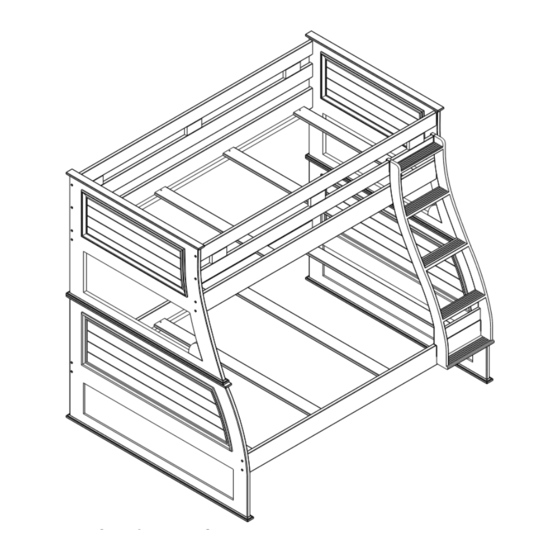

CONFIGURATION TYPE # 1 (TWIN/FULL BUNK BED)
Box List for this configura on
RTG8017/8018/8019-1 (T/F BUNK ENDS) (2 Boxes)
RTG8017/8018/8019-2 (6PC RAILS)
RTG8017/8018/8019-3 (LADDER)
902WBS- (WOODEN SLATS)
(BOX) RTG8017/8018/8019-1
T/F BUNK ENDS (2 BOXES)
(A)
TOP HEADBOARD (1 piece)
(B)
BOTTOM HEADBOARD (1 piece)
REV 01 (12/10/2019)
DISCOVERY WORLD FURNITURE
(RTG8017/8018/8019) HILTON HEAD COLLECTION ASSEMBLY INSTRUCTIONS
OF CONFIGURATIONS ( 1, 2 ) SEE BELOW.
TWO PEOPLE ARE NEEDED TO ASSEMBLE.
DO NOT COMPLETELY TIGHTEN ALL BOLTS UNTIL ALL COMPONENTS ARE CONNECTED.
TO ASSEMBLE THESE BUNK BEDS REQUIRES TWO PERSONS
ASSEMBLY CONFIGURATION TYPE # 1 (TWIN/FULL BUNK BED)
(BOX) RTG8017/8018/8019-2
RAILS/GUARD RAILS
(D)
SIDE RAILS (4 pieces)
(E)
GUARD RAILS (2 pieces)
(RTGHDW00104)
HARDWARE PACK
F
70MM FLAT HEAD BOLTS (1/4*70 (D=16)
C
METAL DOWEL PINS (Ø10*90mm)
H
4MM ALLEN WRENCH
K
5/8" screw Ø4*15mm)
(
M
Ø4*30mm)
1 1/4" screw (
THANK YOU FOR YOUR PURCHASE !
RTG8017 (White) CONFIGURATION TYPE # 2 (T/F STEP STORAGE BUNK BED )
RTG8018 (Gray)
RTG8019 (Graphite)
Box List for this configura on
RTG8017/8018/8019-1 (T/F BUNK ENDS)
RTG8017/8018/8019-2 (6PC RAILS)
RTG8017/8018/8019-4 (STEP TOP)
RTG8017/8018/8019-5 (STEP BOTTOM)
902WBS-
LIST OF CONTENTS
RTG8017/8018/8019-3
LADDER
24
9
( Only 6 needed for this Bed)
1
4
16
PAGE 1 OF 5
ASSEMBLY INSTRUCTION STARTS ON PAGE 3
(WOODEN SLATS)
(BOX) 902WBS WOODEN SLATS
(L)
39" SLATS (4 pieces)
(G)
54" SLATS (4 pieces)
LHM
