ConMed The Hall L3000 Instruction Manual

Lithium battery charger
Hide thumbs
Table of Contents

Advertisement

Quick Links

The Hall
Lithium Battery Charger
®
(L3000) Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the The Hall L3000 and is the answer not in the manual?

Questions and answers

Summary of Contents for ConMed The Hall L3000

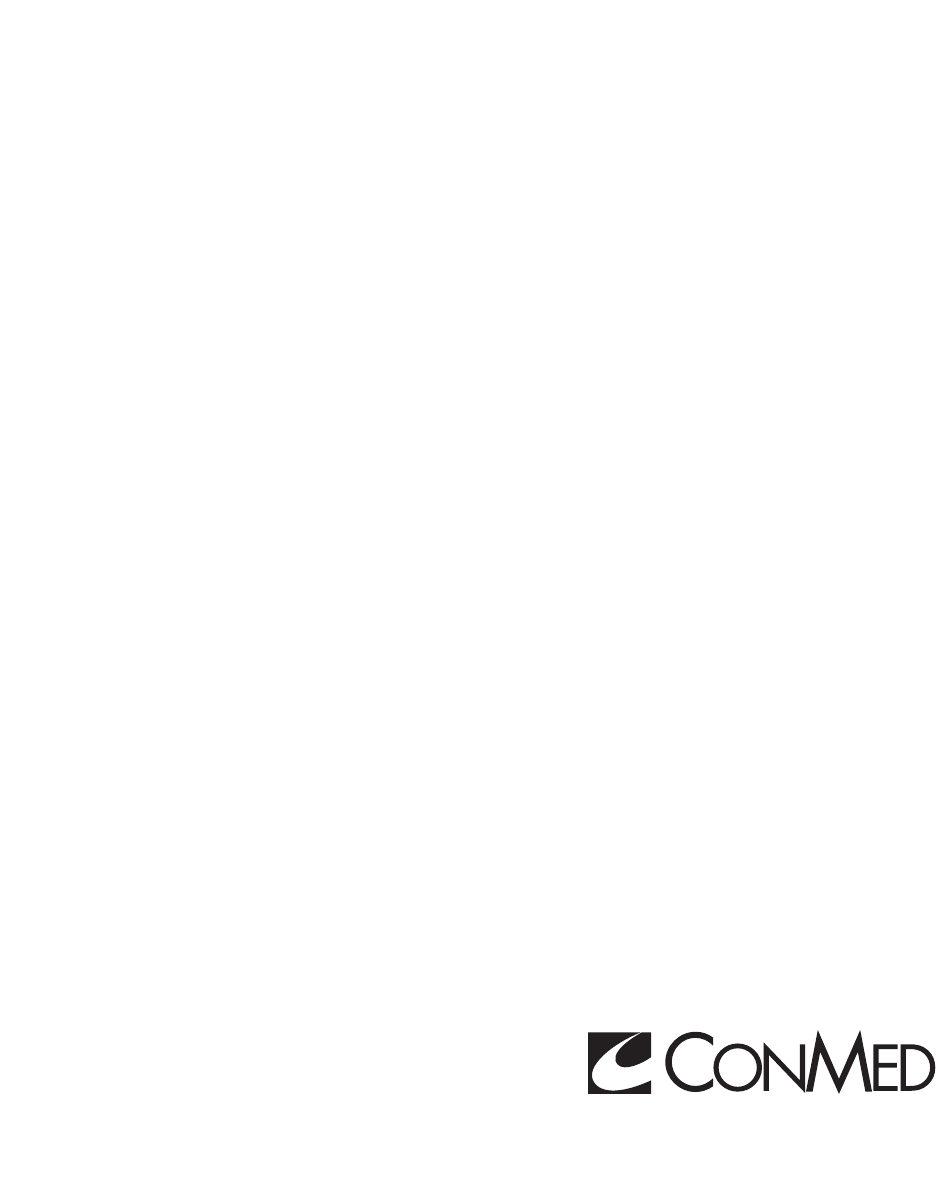

  • Page 1 The Hall Lithium Battery Charger ® (L3000) Instruction Manual...
  • Page 2 CONMED. CONMED reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes, unless otherwise required by law.

  • Page 3: Table Of Contents

    Table of Contents Page INTRODUCTION Intended Use ............1 Contraindications .
  • Page 4 Table of Contents Page Technical Specifications..........16 3.5.1 Hall Lithium Battery Charger (L3000) .

  • Page 5: Intended Use

    INTRODUCTION It is recommended that personnel study this manual before attempting to operate, clean and/ or disinfect the Hall ® Lithium Battery Charger (L3000). The safe and effective use of this equipment requires the understanding of and compliance with all warnings, precautionary notices and instructions marked on the product, and included in this manual.

  • Page 6: General Warnings

    Charge batteries before sterilizing. Do not use the battery charger near the sterile field. Cross-contamination may occur. 6. Use only CONMED approved equipment, attachments and accessories. They have been tested and certified to specific medical standards. Using unapproved accessories may result in improper operation, may negatively affect EMC performance and may result in non-compliance to medical standards.

  • Page 7: Precautions - Charger

    1.3.3 Precautions - Charger 1. United States Federal law restricts sale of this device to or on the order of a physician. 2. Prior to use, inspect all equipment for proper operation. 3. Do not handle the battery charger by the cord. Do not pull on the power cord or accessory cord to remove it from the battery charger or the power outlet.

  • Page 8: Symbol Definitions

    Electrical hazard. Dangerous voltages are present. Never attempt to repair the equipment. Only trained service personnel may remove the cover, or obtain access to the system components. No user service recommended. Refer servicing to qualified CONMED service personnel. Indicates product component should not be sterilized.
  • Page 9 Dispose or recycle in accordance with your local, state and governmental regulations. In the U.S. call 1-800-237-0169, or outside the U.S. contact your local CONMED representative for additional information on battery disposal or recycling.

  • Page 10: Environmental Directives

    For more information about where you can drop off your medical equipment at the end of its useful life for recycling, please contact CONMED. 1.6 Product Photographs The pictures in this manual are for reference only.

  • Page 11: Battery Charger

    1.7 Battery Charger 1.7.1 Front Panel 1. Battery Charging Station (4) - Used for charging all Hall Lithium batteries 2. Display - Provides status indicators and information. 3. Display Selection Buttons - Used to display additional information when pressed. 4. Cooling Vent - Allows for airflow.

  • Page 12: Bottom Panel

    1.7.2 Bottom Panel 1. Cooling Vent - Allows for air flow. PRECAUTION: Do not impede air flow at the cooling vents. Do not cover or drape. 2. Cord Wrap - Used for storing excess cord. 3. Mains Receptacle - Accepts the supplied hospital grade power cord to provide AC power. 4.

  • Page 13: Battery Charger Installation

    BATTERY CHARGER INSTALLATION 2.1 Charger Mounting Options The Hall Lithium Battery Charger (L3000) can be set on a table top or wall mounted. When installing the battery charger on drywall, screw into studs not wallboard. When installing into solid masonry or brick, use suitable wall plugs and screws.

  • Page 14: Charging Battery Packs

    2.2 Charging Battery Packs To charge a Hall Lithium battery pack, perform the following: 1. Slide the Hall Lithium battery pack on one of the battery charging stations. Up to four Hall Lithium battery packs may be placed on each charger. Ensure the Hall Lithium battery pack is seated completely in the station.

  • Page 15: Charger Symbols Defined

    2.4 Charger Symbols Defined The charger symbols designate the following: Charger ready when no battery installed in any station. Indicates battery is being charged when displayed for any station. Indicates battery is fully charged when displayed for any station. “3.2 Troubleshooting” Indicates a battery failure.

  • Page 16: Charger System Maintenance

    Your authorized CONMED service department is the most knowledgeable about the Hall Lithium Battery Charger (L3000) and provides competent and efficient service. Service at CONMED at the recommended service interval is mandatory to keep your product warranties in effect. Any services and/or repairs done by an unauthorized repair facility may result in reduced performance of the instruments or instrument failure which may compromise patient/user safety.

  • Page 17: Troubleshooting

    3.2 Troubleshooting Table 1: Troubleshooting Symptom Possible Cause Corrective Action Battery charger not • Power cord unplugged or faulty. • Plug in power cord. functioning. • Replace power cord. (No start screen) “3.3 Fuse • Blown fuse. • Replace fuse. See Section Replacement”...

  • Page 18: Fuse Replacement

    3.3 Fuse Replacement 1. Disconnect the mains power by disconnecting the detachable power cord from the electrical power source. 2. If wall mounted, remove Hall Lithium Battery Charger (L3000) from wall mount location by lifting the charger upwards off the mounting hardware. 3.

  • Page 19: Leakage Test

    3.4 Leakage Test The purpose of this test is to measure the amount of 50/60 cycle leakage from the transformer primary to the circuitry of the battery charger. The AC leakage from any exposed metal part to earth ground and from all exposed metal parts having a return to chassis must not exceed 100 microamps. Test Equipment Required: ED&D Leakage Current Tester, Model LT-601 or equivalent.

  • Page 20: Technical Specifications

    3.5 Technical Specifications 3.5.1 Hall Lithium Battery Charger (L3000) Medical electrical equipment complies with and was tested with respect to electric shock, fire, electromagnetic compatibility, mechanical and other specified hazards only, in accordance with UL60601-1, CAN/CSA C22.2 No. 601.1-M90, IEC60601-1:1988, +A1:1991 +A2:1995, ES60601-1:2005 + A1: 2009 +A2: 2010, CAN/CSA C22.2 No.60601-1-08 and IEC60601-1:2005 + C1:2006 + C2:2009.

  • Page 21: System Environmental Requirements

    Portable RM communications equipment (including peripherals such as antenna cables and external antennas) should be used no closer than 30 cm (12 inches) to any part of the CONMED Hall Lithium Battery Charger (L3000), including cables specified by the manufacturer. Otherwise, degradation of the performance of this equipment could result.
  • Page 22 Table 2: Guidance and Manufacturer’s Declaration - Electromagnetic Immunity The CONMED Hall Lithium Battery Charger (L3000) is intended for use in the electromagnetic environment specified below. The customer or the user of this Hall Lithium Battery Charger (L3000) should assure that it is used in such an environment.
  • Page 23 Table 2 Continued: Guidance and Manufacturer’s Declaration - Electromagnetic Immunity The CONMED Hall Lithium Battery Charger (L3000) is intended for use in the electromagnetic environment specified below. The customer or the user of the Hall Lithium Battery Charger (L3000) should assure it is used in such an environment.

  • Page 24: Accessories

    Table 3: Proximity Field From Wireless Transmitters Test Maximum Immunity Band Distance frequency Service Modulation power Test Level (MHz) (MHz) (V/m) Pulse 380 – 390 TETRA 400 modulation 18 Hz ± 5 kHz 430 – 470 GMRS 460, FRS 460 deviation 1 kHz sine Pulse...

  • Page 25: Customer Service

    Refer to this number if making inquiries about the repair status. Please call CONMED Customer Service and provide the following information to obtain an S.R. number prior to returning any product for repair: •...
  • Page 28 525 French Road Utica, NY 13502-5994 USA (727) 392-6464 EC REP Customer Service: 1-800-237-0169 MDSS GmbH FAX: (727) 399-5256 Schiffgraben 41 D-30175 Hannover, Germany International FAX: +1 (727) 397-4540 email: customer_service@conmed.com www.conmed.com All rights reserved. W41-262-004 Rev. AB 01/2019...
