Summary of Contents for Ovation RDM DMX SP8

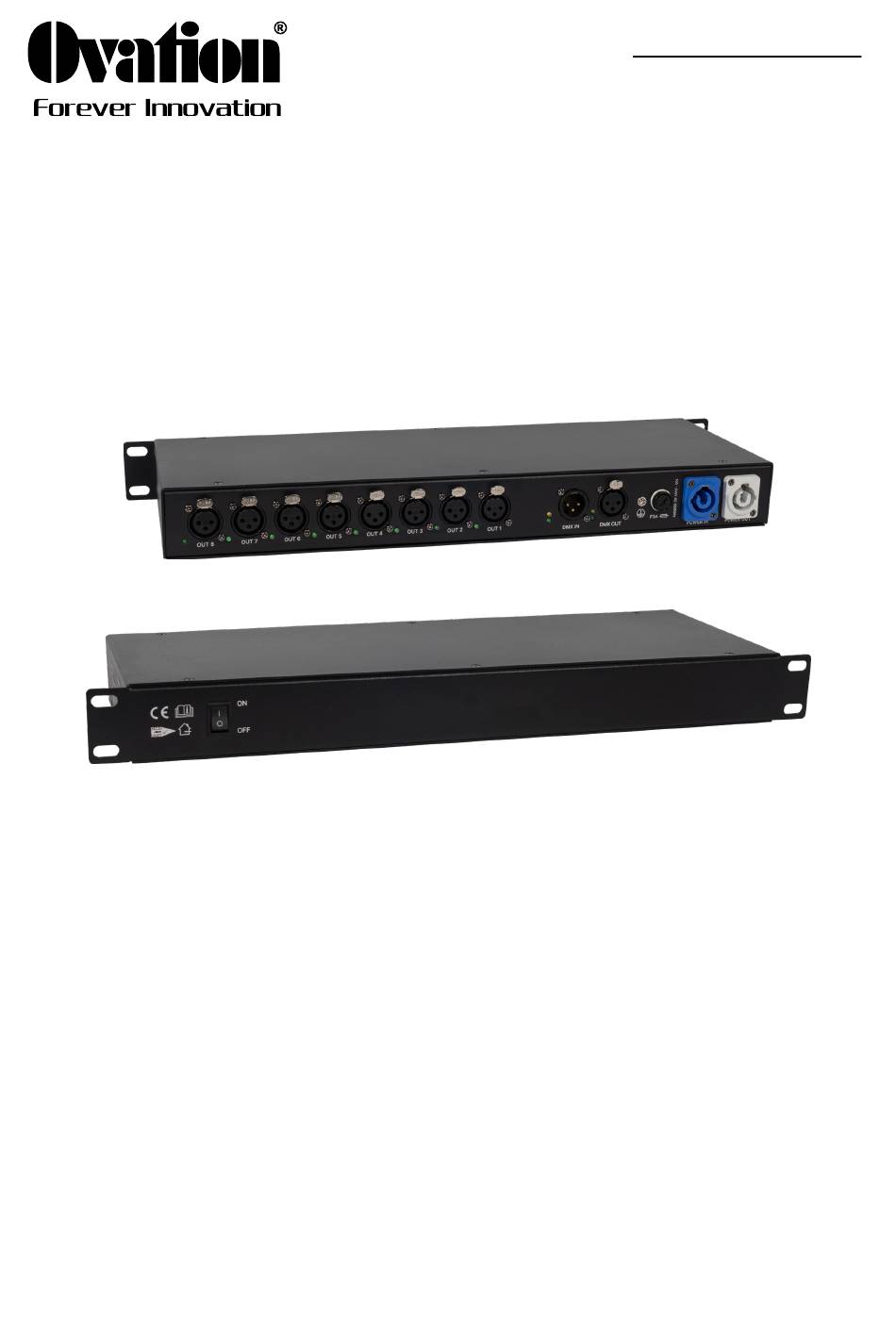

- Page 1 RDM DMX SP8 8 way RDM DMX splitter Quick Reference Guide...
- Page 2 The RDM DMX SP8 will work with a DMX controller using a 3-pin DMX serial connection. Power connection Power Requirements The RDM DMX SP8 operates on 100 to 240 volts AC (+/- 10%, auto-ranging). The fixture contains an au- to-ranging power supply. Connection with the mains: Connect the device to the mains with the enclosed power supply cable.
- Page 3 DMX Output ports 1 to 8. Indicator lights in front panel on each port will Signal output 1 to 8 illuminate when a signal is being output through the port. Technical specifications Model RDM DMX SP8 Power supply: AC100-240V, 50/60Hz Power connection: PowerCon in & out...
- Page 4 V1.0...
