Camera Adapter Board for DEBIX
SOM A I/O Board User Guide
Version: V1.0(2023-09)
Complied by: Polyhex Technology Company Limited(http://www.polyhex.net/)
Camera Adapter Board is an add-on board designed for DEBIX SOM A I/O Board to allow the
connection with DEBIX Camera Modules.

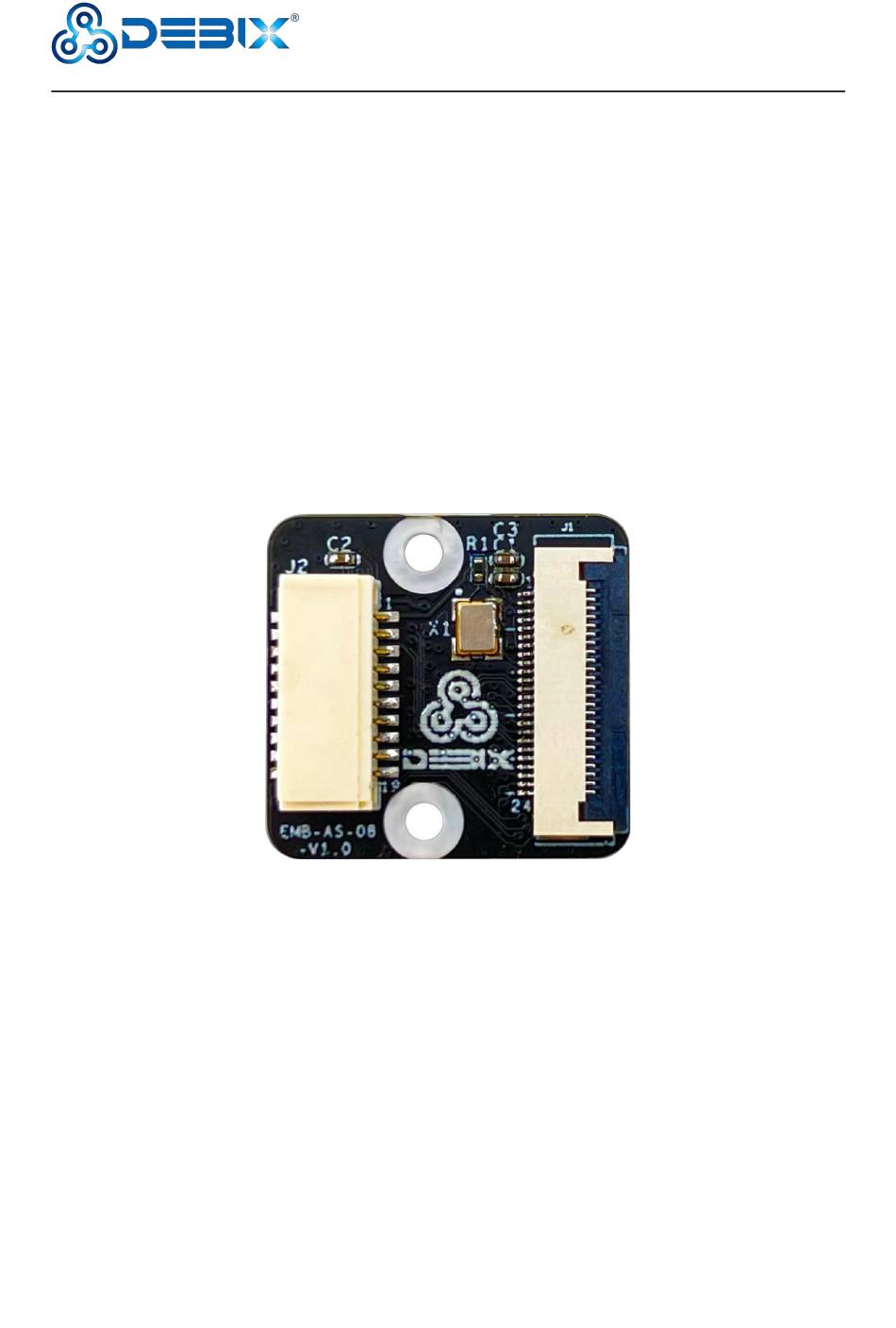

Figure 1 Camera Adapter Board for DEBIX SOM A I/O Board
1 / 11
www.debix.io

Advertisement

loading
Need help?

Need help?

Do you have a question about the EMB-AS-08 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DEBIX EMB-AS-08

  • Page 1 Version: V1.0(2023-09) Complied by: Polyhex Technology Company Limited(http://www.polyhex.net/) Camera Adapter Board is an add-on board designed for DEBIX SOM A I/O Board to allow the connection with DEBIX Camera Modules. Figure 1 Camera Adapter Board for DEBIX SOM A I/O Board 1 / 11 www.debix.io...
  • Page 2 Polyhex Technology Company Limited REVISION HISTORY Rev. Date Description 2023.09.06 First edition 2 / 11 www.debix.io...
  • Page 3: Table Of Contents

    Polyhex Technology Company Limited INDEX Chapter 1 Camera Adapter Board for DEBIX SOM A I/O Board Introduction ......4 1.1. Overview ........................5 1.2. Interface ........................5 1.2.1. J1 ........................5 1.2.2. J2 ........................7 1.3. Packing List ......................... 8 Chapter 2 Get Started ......................10 2.1.
  • Page 4: Chapter 1 Camera Adapter Board For Debix Som A I/O Board Introduction

    Camera Adapter Board is an add-on board designed for DEBIX SOM A I/O Board to allow the connection with DEBIX Camera Modules. It connects to the MIPI CSI interface of the DEBIX SOM A I/O Board via the CSI cable, and connects to the DEBIX Camera Module via the FPC cable.
  • Page 5: Overview

    Polyhex Technology Company Limited 1.1. Overview Camera Adapter Board has two connectors. DEBIX SOM A I/O Board can be connected to the DEBIX Camera Module via the Camera Adapter Board, which is composed as follows: Figure 2 Camera Adapter Board...
  • Page 6 Not used VDD_3V3 3.3V input VDD_1V8 1.8V input CSI_PWD Power Control CSI_NRST Reset control CSI_I2C_SDA I2C data signal (controlled by I2C2) CSI_I2C_SCL I2C clock signal (controlled by I2C2) Not used CSI_MCLK Master clock input To Ground 6 / 11 www.debix.io...
  • Page 7 CSI Differential data channel 2(+) To Ground CSI_DN3 CSI Differential data channel 3(-) CSI_DP3 CSI Differential data channel 3(+) 1.2.2. J2 The pin sequence of J2 is as shown in the figure: Figure 4 Pin sequence of J2 7 / 11 www.debix.io...
  • Page 8: Packing List

    CSI Differential data channel 3(-) CSI_DP3 CSI Differential data channel 3(+) To Ground CSI_NRST Reset control CSI_I2C_SDA I2C data signal (controlled by I2C2) CSI_I2C_SCL I2C clock signal (controlled by I2C2) 1.3. Packing List 1 x Camera Adapter Board  8 / 11 www.debix.io...
  • Page 9 Polyhex Technology Company Limited 1 x 20pin/1.25mm Pitch MIPI_CSI cable  1 x 24pin/0.5mm Pitch FPC cable  9 / 11 www.debix.io...
  • Page 10: Chapter 2 Get Started

    Pull up the black rubber snap of J1 interface on the camera adapter board, insert the FPC cable that has been connected to the DEBIX Camera 200A Module (note the direction of the gold finger, gold finger facing down), press the snap, and then connect the double-row...
  • Page 11 Polyhex Technology Company Limited Figure 5 Remove the white rubber snap of CSI interface on the DEBIX SOM A I/O Board, and insert the other end of the double-row CSI connection cable, after installation as follows: Figure 6 Connect the DEBIX Camera 500A Module as in above steps 1-2.
