Techly LPCM7.1 User Manual

USER'S
MANUAL
HDMI2.1 AUDIO EXTRACTOR LPCM7.1
Dear Customer
Thank you for purchasing this product. For optimum performance and safety, please read
these instructions carefully before connecting, operating or adjusting this product. Please keep
this manual for future reference.
IMPORTANT SAFETY INSTRUCTION
INTENDED USE
We do not permit using the device in other ways like described in this user's
manual. Use the product only in dry interior rooms. Not attending to these
regulations and safety instruction might cause fatal accidents, injuries, and
damages to persons and property. The manufacturer/supplier assumes no liability for
damages caused by failure to comply with the intended use.
C A U T I O N
RISK OF ELECTRIC SHOCK
DO NOT OPEN
mains and other equipment if a problem should occur. Do not expose the product to water
or moisture.
• Your product is not a toy and is not meant for children, because it contains small parts which
can be swallowed and can injure when used inappropriately! • Please install the system and
devices attached to it in a way that persons cannot be injured, or objects not be damaged for
example by dropping or stumbling. • Please remove the packing materials, because children
may cut themselves on them while playing. Furthermore, there is a risk of swallowing and
inhalation of incidentals and insulating material. • Avoid places with high temperatures, or
humidity, or places which might come into contact with water. Do not install the product close
to openings of air conditioners, or at places with an excessive amount of dust or smoke. Keeps
distance from flammable and explosive devices. • Do not install the product at places subject
to vibration, or oscillation. • Do not modify and alter the product and any accessories! Do not
use any damaged parts. • Keep enough space around all devices for a good ventilation and
free motion and to avoid damages. • Do not plug-in/out the cables when it is in using.
INTRODUCTION
This HDMI 1 in 1 out audio separator can help you to connect the signal source device to
a display device. At the same time, it can also synchronously separate the digital audio in
the HDMI signal to SPDIF optical fiber output, or output 2-channel stereo analog audio after
internal audio DAC conversion. It supports Dolby digital AC-3, DTS, LPCM and other digital
audio formats, and can be output with DVD player, Blu-ray player HDMI high-definition
output terminals of many entertainment devices such as network player, set-top box, PS2,
PS3, Xbox 360, PC, etc. This product can be used in places with restrictions on noise,
transmission distance and safety, data center control, information distribution, conference
room demonstration, digital environment and company training places.
PACKAGE CONTENTS
• HDMI2.1 LPCM 7.1 Extractor *1
• USB Power supply line *1
• User Manual *1
FEATURES
• Maximum resolution: 8K60/30 420/4K120.
• Maximum bandwidth: 40Gbps.
• HDMI frequency support: LPCM up to 7.1 192 KHz 24Bit, Dolby Digital, Dolby Digital Plus,
Dolby MAT, Dolby TrueHD, Dolby Atmos (All Formats), Dolby AC-4, DTS Digital, DTS Discrete,
DTS Express, DTS HiRes Audio, DTS Master Audio, DTS:X.
• The format of SPDIF TOSLINK output: LPCM up to 5.1 96KHz 24 Bit, Dolby Digital 5.1, DTS
HiRes Audio.
• Stereo RCA output format: PCM 2 CH.
• HDCP version: HDCP2.3 is backward compatible.
• HDMI version: HDMI 2.1 is backward compatible.
• Support HDMI ARC return function. When HDMI ARC is input, analog output is not supported,
only digital audio output is supported.
• Support HDMI output video. Support audio optical fiber, 3.5mm stereo headset output at the
same time.
• Audio output supports 4 EDID selection modes (2CH/5.1CH/7.1CH/TV)
• The panel is designed with LED indicators to clearly indicate the working status of the
product
With the CE sign, Techly ensures that the product is conformed to the basic
®
European standards and directives.
WWW.TECHLY.COM
To reduce risk of electric shock, this
product should ONLY be opened by an
authorized technician when service is
required. Disconnect the product from

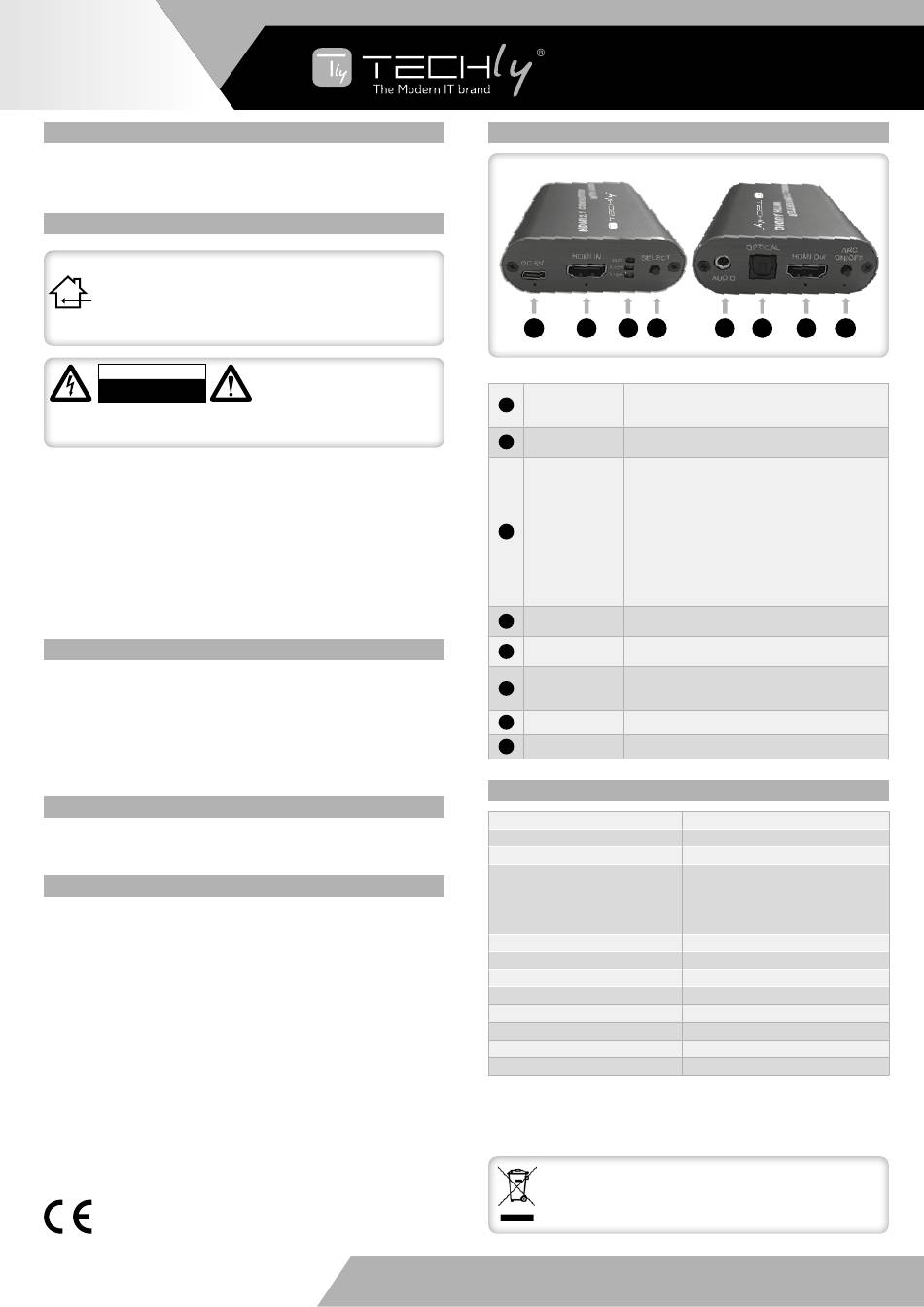

OPERATION CONTROLS AND FUNCTIONS
FRONT PANEL
1 2 3 4
Plug the 5V DC power adapter into the power supply from
1 DC-5V the AC wall socket, and the lower power light LED will light
up after powering on.
Connect signal source with HDMI device, such as computer,
2 HDMI IN
set-top box, DVD, game console.
4 audio modes can be switched freely, TV/2.0/5.1/7.1 audio
mode.
3.1: No light means switching TV mode and copying TV
resolution audio to 3.5mm and SPDIF port.
3.2: The red light means switching 2.0 mode and outputting
Audio format
3 audio to 3.5mm and SPDIF ports, both of which are
display lamp
PCM2.0 audio formats.
3.3: Green light means switching 5.1 mode and outputting
audio to SPDIF port only.
3.4: Yellow light means switching 7.1 mode and outputting
audio to HDMI audio port only.
Audio format
Press the audio mode switch to switch the TV/2.0/5.1/7.1
4
switch audio mode.
3.5mm wide
3.5mm output port is connected to headphones and
5
frequency output speakers.
Digital audio fiber output interface, which can be connected
6 Fiber output
to external audio headset, audio, power amplifier, mixer and
other equipment.
7 HDMI out Connecting devices with HDMI display.
8 ARC switch TV ARC switch.
SPECIFICATIONS
Maximum bandwidth
Input ports
Output Ports
HDMI frequency support
Optical Audio Format
3.5MM wide frequency output
HDCP version:
HDMI version
Power Supply
Dimensions (mm)
Operating temperature
Storage Temperature
Maintenance: Clean only with a dry cloth. Do not use cleaning solvents or abrasives.
Warranty: No guarantee or liability can be accepted for any changes and modifications of the
product or damage caused due to incorrect use of this product.
In compliance with EU Directive WEEE this product is marked with this symbol.
It means that used electrical and electronic products should not be mixed with
general household waste. There is a separate collections system for these
products in compliance with WEEE directive, otherwise contaminative and
hazardous substances can pollute the environment.
HDMI2.1 AUDIO
EXTRACTOR LPCM7.1
BACK PANEL
5 6 7 8
40Gbps
1x HDMI
1x HDMI, 1x Optical, 1x 3.5mm
LPCM up to 7.1 192 KHz 24Bit, Dolby Digital,
Dolby Digital Plus, Dolby MAT, Dolby TrueHD,
Dolby Atmos, (All Formats), Dolby AC-4, DTS
Digital, DTS Discrete, DTS Express, DTS HiRes
Audio, DTS Master Audio, DTS: X.
LPCM 2CH, and DTS 2-5.1 CH
PCM 2.0 CH
HDCP2.3 backward compatibility
HDMI 2.1 is backward compatible
DC-5V
90*70*24mm
0°C – 40°C / 32°F – 104°F
-20°C – 60°C / -4°F – 140°F
