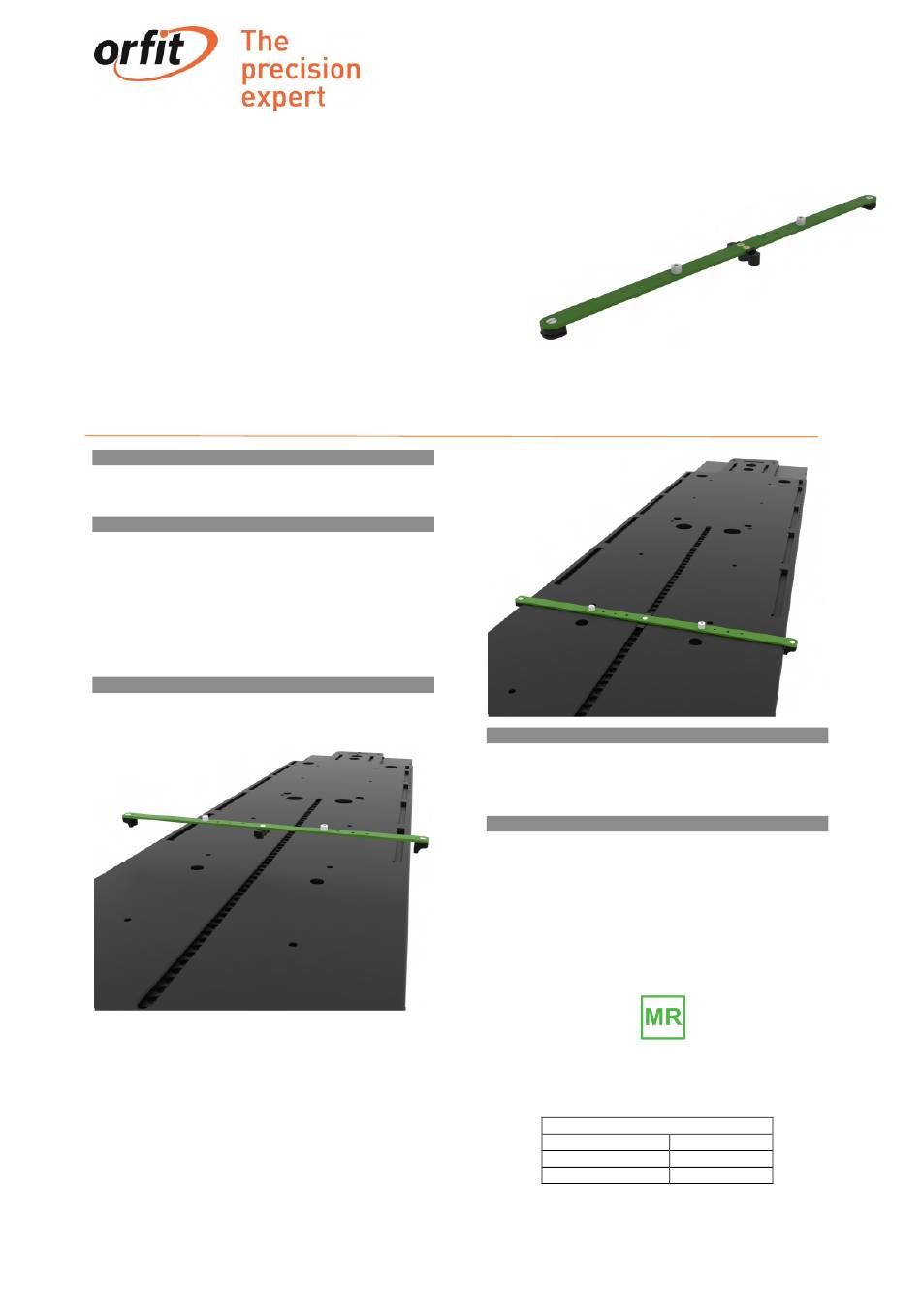

orfit RAYCAST 32317/29 Instructions For Use

RAYCAST ® HIGH PRECISION BASE PLATE FIXATION
DEVICE
HIGH PRECISION BASE PLATE
FIXATION DEVICES 2-PIN
BAR FOR SBRT LONG BASE
PLATE
(MRI COMPATIBLE)
Article No. : 32317/29
A. GENERAL PRODUCT INFORMATION
This product is a fixation device to attach any 2-pin bar
accessible device on top of the SBRT Long Base Plate.
B. PRODUCT DESCRIPTION
This fixation device features three positioning elements in the
middle of the 2-pin bar that can be inserted in the cylindrical
openings in the central groove of the SBRT Long Base Plate. It
also features two pins on top that can be used to index any 2-
pin bar accessible device (knee supports, shoulder positioning
device, etc.) directly or via an adapter plate to the couch.
Information on these other parts can be found in the respective
'instructions for use'.
C. POSITIONING ON THE BASE PLATE
The three round positioning elements of this fixation device fit
directly in the openings of an SBRT Long Base Plate.
To position this 2-pin bar on such a base plate, position the bar
with its three indexing elements into any of the opening in the
middle and push down gently on both ends of the bar. The bar
itself should now be flat on the surface of the couch. Always
make sure that the bar is well positioned on the couch before
indexing the other hardware to the 2-pin bar.
INSTRUCTIONS FOR USE
D. STORAGE
Always store the product in a safe place to prevent it from
getting damaged.
Store the product between +10°C (50°F) and 40°C (122°F).
E. PROPERTIES
E.1 Physical Properties
Dimensions : L 550 mm x W 25 mm x H 25 mm
Weight: 0.1 kg
E.2 Material Properties
Material POM (pins/blocks):
Material PC (screws):
Material Glass Fibre (bar):
This product is made entirely of durable plastics and is MR-safe.
Warning: keep metal wrenches which might be supplied in the
package out of the MRI room.
E.3 Dosimetric Properties
Attenuation factor (± 0.15 %)
6 MV
15 MV
H O equivalence
2
Note: Use these numbers as a guidance only. Perform the
measurements again in your department to verify these results.
Page 1 of 2
1,4 gr/cm³
1,2 gr/cm³
1,8 gr/cm³
2.67 %
2.00 %
7.72 mm
