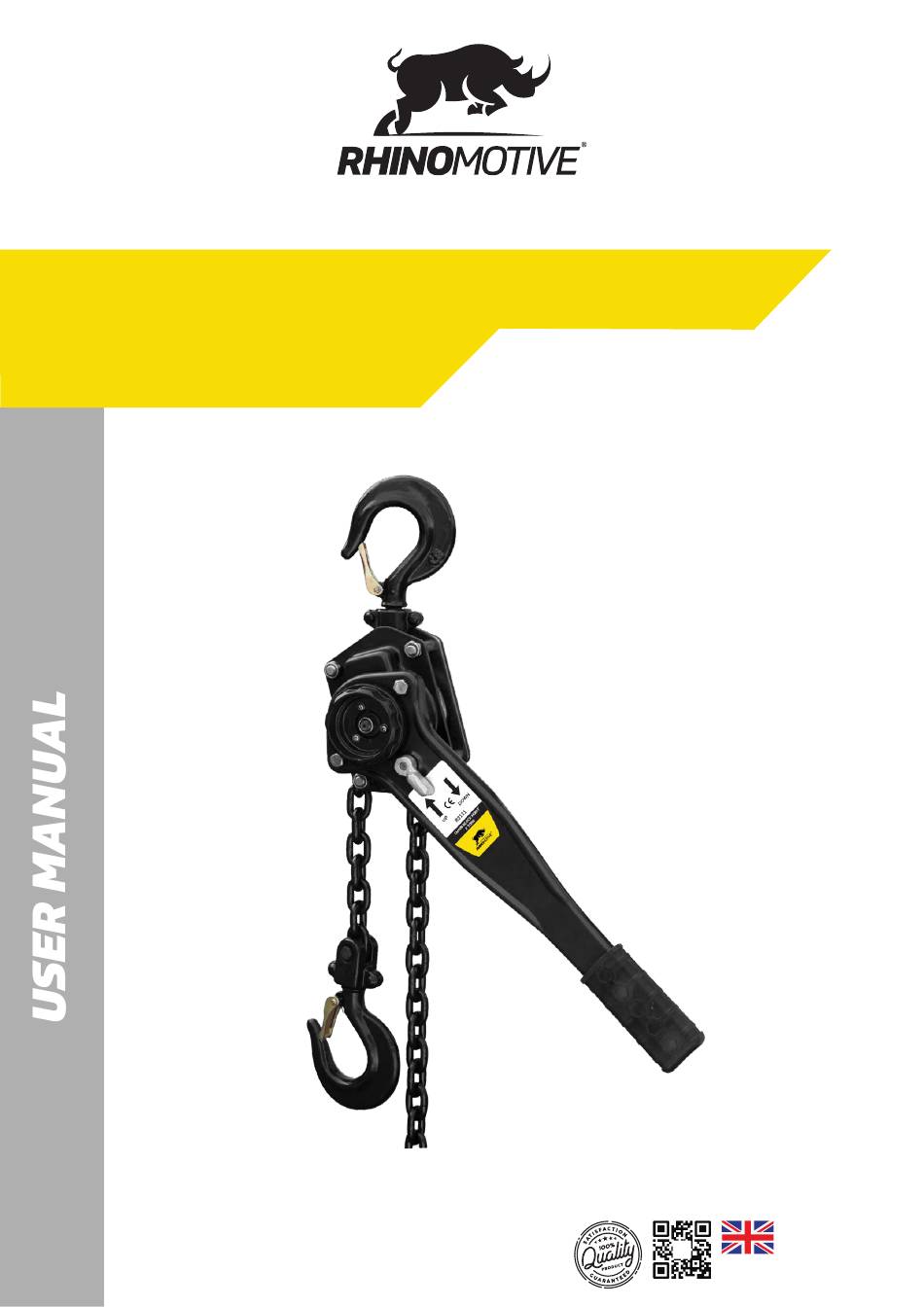

- Page 1 CHAIN BLOCK HOIST 2 TONS PN: R3111 RHINOMOTIVE LTD - UK 71-75 Shelton Street, London, United Kingdom Scan QR Code www.rhinomotive.com...
- Page 2 CAPACITY NET WEIGHT LIFTING HEIGHT R3111 2 TONS 11 KG 150 CM 1. SPECIFICATIONS MODEL R3111 RATED CAPACITY LIFT TEST LOAD 2.25 MIN, DISTANCE BETWEEN HOOKS :H PULL ON LEVER TO LIFT FULL LOAD NO. OF LOAD CHAIN FALLS DIAMETER OF LOAD CHAIN...
- Page 3 Spin 14. Bottom 19. Friction 24. For The 4.Pinion Shaft 9. Lifting Chain 29. For The Axis Hook Plate Mandril 5. Ring 10. Side Plate B 15. Side Plate A 20. Pawl Spring 25.Overspring 30. Spent Nuts 1.1 SPECIFICATIONS www.rhinomotive.com...
- Page 4 The chain block can only be put into operation when it is found to be in good condition. • Inspect the hooks to see whether they are securely attached. Misalignment of the hooks as well as suspending the load from the hook tip is dangerous and must be avoided. www.rhinomotive.com...
- Page 5 • A chain hoist can be put into operation after it has been tested and found in good condition. • No-Load Test: Raise and lower the hook through the full lift height for at least one complete cycle. • Verify that all the mechanism works well without malfunction and no abnormal sound. www.rhinomotive.com...
- Page 6 • DO NOT attempt to lengthen the load chain or repair damaged load chain. • DO NOT use a Chain Block inverted. • All such operations like Fleeting, Drifting and Cross-hauling must be carried out in accordance with manufacturer’s instructions and FULLY RISK ASSESSED by a competent person. www.rhinomotive.com...
- Page 7 8. PARTS LIST Description Lever handle assembly Screw Caste nut Change over spring Split nut Spring pin Hand wheel Change over pawl Hexagonal hand screw Washer Spring washer Change over gear Selector assembly Handle cover assembly Handle sleeve Locking nut www.rhinomotive.com...
- Page 8 Ladle Shaft Splined Gear Ladle Sheave Snap Ring Spring Washer Pinion Shaft Hex Nut Disc Gear Spring Washer Gear Case Assembly Hex Nut Bottom Hook Assembly RHINOMOTIVE LTD - UK 71-75 Shelton Street, London, United Kingdom Scan QR Code www.rhinomotive.com www.rhinomotive.com...
