- Page 1 200A+ VEHICLE FIRE CONTROL PANEL USER MANUAL ver. 1.0 2021...
-
Page 2: Key Features

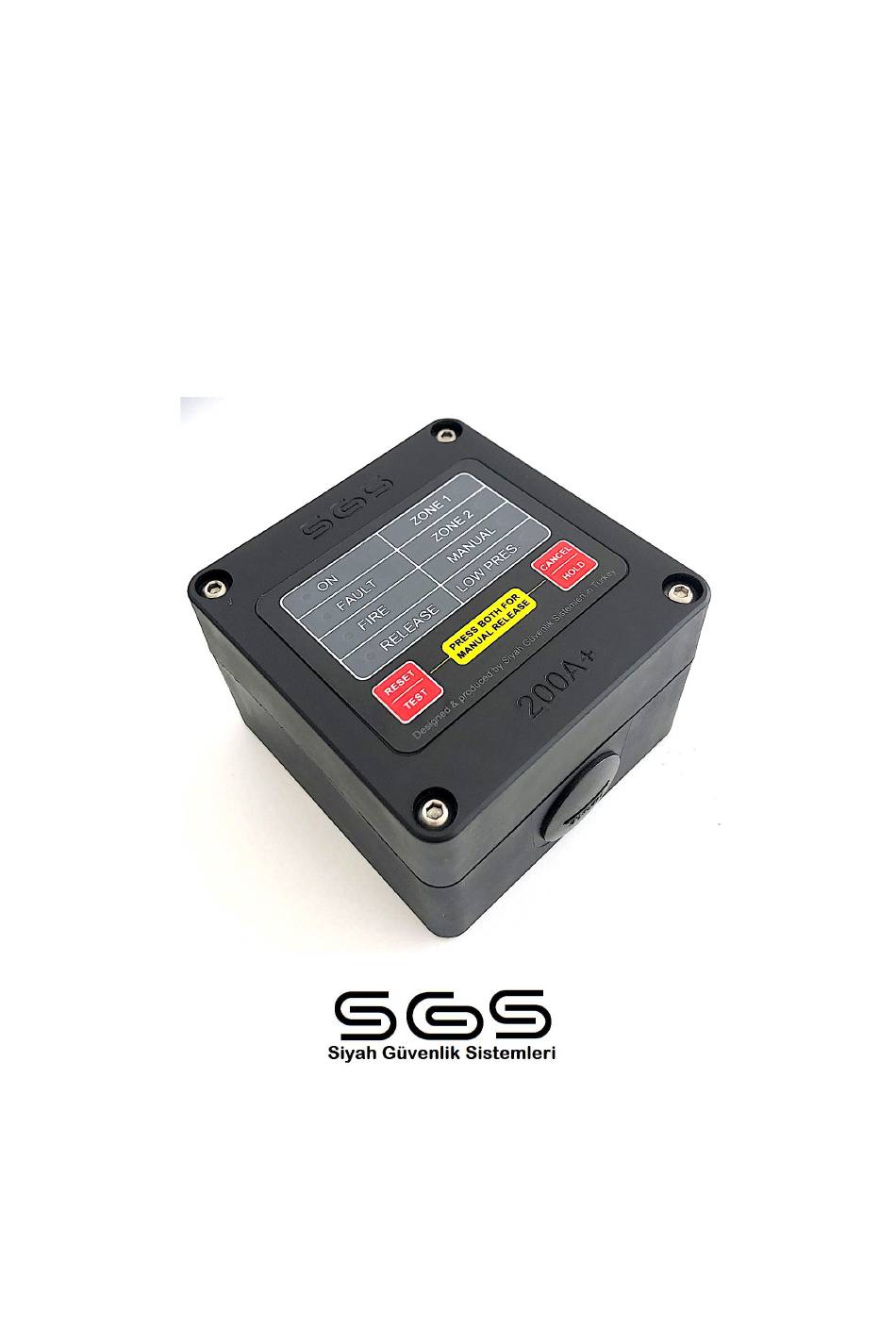

200A+ VEHICLE FIRE CONTROL PANEL The 200A+ fire control panel is a small size and useful fire detection and extinguishing panel designed to detect and extinguish possible fires in motor land vehicles and motor vessels. KEY FEATURES • It can work in all vehicles with 12V and 24V supply infrastructure. •... -
Page 3: Operation Of The Panel
Low Pressure Detection Input Alarm Condition 470 Ohm<R<2K2 Ohm Open Circuit Condition >4K7 Ohm Short Circuit Condition <220 Ohm Monitoring Voltage 5V DC Monitoring Current 2 mA Maximum End Of Line Element (EOL) 2K2 1/4W %1 resistor Auxilary Relay Outputs Sounder Output Current Capacity 200 mA continuous, 400 mA maximum @ 25°C Fault Output Current Capacity... - Page 4 GND (Ground Input): It is the terminal that connects the panel to the negative terminal of the batteries that feed the vehicle and to the metal chassis of the vehicle. RELAY (Auxilary Relay Output): Voltage free auxiliary relay output terminals of the panel.
-
Page 5: Led Indicators
functional buttons on the user interface of the panel at the same time. Detection input current is electronically limited to 25mA against short circuit. Since it is an input that is monitored by the panel, it must be terminated with a 10uf/50V ceramic capacitor end of line element even if it is not used. -
Page 6: Operating Modes
MULTI-FUNCTIONAL BUTTONS There are two multi-functional buttons on the user interface on the front of the panel. By pressing these buttons for a short (less than 1 second) or long (more than 2 seconds) or pressing both buttons together, the panel is enabled to perform various functions. Button Press Duration Function... -
Page 7: Function Programming
Test: When the RESET/TEST button on the user interface of the panel is pressed for more than 2 seconds, the panel will start the Test Mode. ON led will start flashing green once per second. In test mode, the fire extinguishing output of the panel is completely disabled. -
Page 8: Dimensions And Mounting
DIP-Switch No State Function Zone 1 detector type is conventional 2-wire detector Zone 1 detector type is LHD cable Zone 2 detector type is conventional 2-wire detector Zone 2 detector type is LHD cable Single-zone detection selected (Zone 1 AND Zone 2) Cross-zone detection selected (Zone 1 OR Zone 2) DIP-Switch No Function... - Page 9 200A+ Vehicle Fire Control Panel User Manual...
