Page 1: Parts Manual

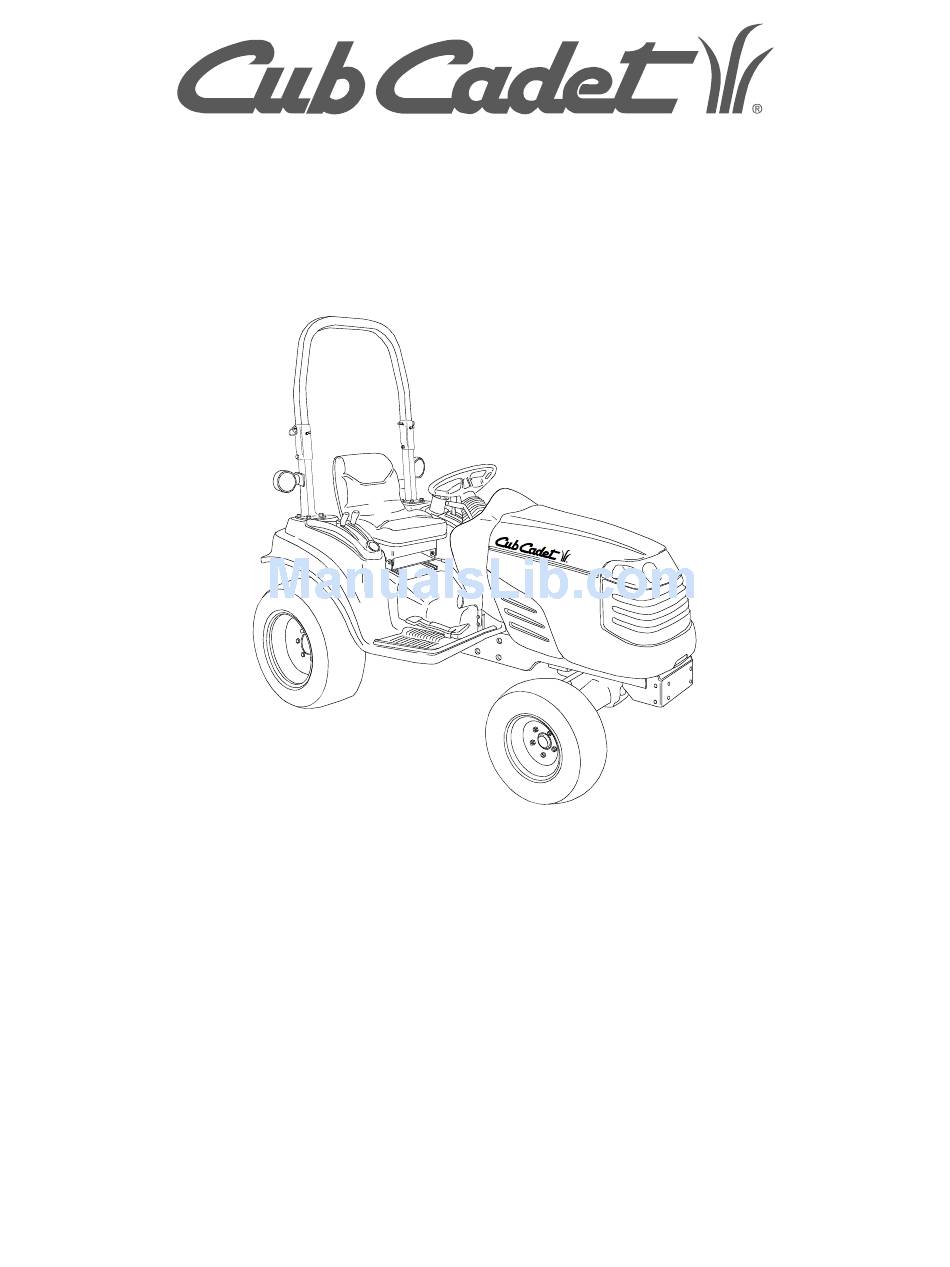

Parts Manual 7000 ERIES COMPACT TRACTOR MODEL 7264 CUB CADET LLC P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 [www.cubcadet.com] PRINTED IN U.S.A. FORM NO. 769-00092B (2/03) ECO 12842... -
Page 2: Table Of Contents
TABLE OF CONTENTS DESCRIPTION Frame ... Pedestal ... Front Axle 4WD ... 4WD Axle Assembly ... Hydraulics ... Lift Valve and Position Control ... Dash Panel and Steering Wheel ... Controls ... Battery and Electrical ... Transmission Connections ... Transmission 4WD Transmission ... -
Page 3: Frame
REF. PART NUMBER CODE DESCRIPTION 603-0666 703-3503A 703-3497A 703-3379A 703-05137 710-3083 710-0451 710-1260A 712-3004A 726-0455 FRAME Frame ... Lever, Hood Latch ... Bracket, Running Board Mtg. LH ... Bracket, Running Board Mtg. RH ... Bracket, Hood Latch Mtg..Screw, Hex Cap, ... 5/16-18 x 1.375 GR5 Screw, Carriage, ... -
Page 4: Pedestal
REF. PART NUMBER CODE DESCRIPTION 703-3383A Pedestal ... 703-3717 Bracket, Dash Mtg. RH ... 703-3721 Bracket, Dash Mtg. LH ... 703-3725 Bracket, Steering Column ... 703-3895 Bracket, Brake Lever ... 703-4064 Bracket, Pump Mtg..710-0623 Screw, Hex Wash, Hd Tapp ... 3/8-16 x .75 710-0642 Screw, Hex Wash, Hd Tapp ... -
Page 5: Front Axle 4Wd
FRONT AXLE 4WD REF. PART NUMBER CODE DESCRIPTION 603-0735 0637 618-3207 710-1843 710-3006 710-3067 711-1410 712-3016 712-3083 712-3107 717-3502 717-3513A 719-3158 Plate, Steering Cylinder Mtg..Axle Assembly, Front 4WD ... Screw, Hex Cap, M12-1.75 x 25.GR8 Screw, Set, 5/16-18 x 3/8 ... Screw, Hex Cap, 1/2-13 x 1.75 GR5 Stud, Cylinder Mtg. -
Page 6: 4Wd Axle Assembly
4WD AXLE ASSEMBLY... - Page 7 REF. PART NUMBER DESCRIPTION IM-326021860 Housing Assembly, Axle ... Includes Ref. No. 2 IM-030500820 Pin, Dowel ... IM-326345040 Housing, Axle LH ... IM-398400440 Gauge, Oil Level ... IM-322013110 Housing Assembly, Pinion Gear .. Includes Ref. No. 2 IM-052300400 O-Ring ... IM-040136204 Bearing, Ball ...
- Page 8 4WD AXLE ASSEMBLY...
- Page 9 4WD AXLE ASSEMBLY REF. PART NUMBER DESCRIPTION IM-322017890 Mtg. Bracket, Axle Front ... Includes Ref. No. 2 IM-398510090 Bushing ... IM-322017900 Mtg. Bracket, Axle Rear ... Includes Ref. No. 4 IM-398510450 Bushing ... IM-050301140 Seal, Oil ... IM-399261550 Washer, Thrust ... IM-050309056 Seal, Oil ...
-
Page 10: Hydraulics
REF. PART NUMBER CODE DESCRIPTION 710-0607 Screw, Hex Wash Hd. Tapp ... 5/16-18 x .5 712-3004A Nut, Hex Flange Lock, ... 5/161-18 GR5 726-0132 Clamp, Adjustable Hose 726-04004 Clamp, Hose ... 726-0475 Clamp, Hose ... 727-3012 Fitting, 90 Degree ... 727-3168 Hose, Steering ... -
Page 11: Lift Valve And Position Control
LIFT VALVE AND POSITION CONTROL REF. PART NUMBER CODE DESCRIPTION 603-0663 Link Assembly, Feedback ... 603-04091 Link Assembly, Input ... 603-04085 Link, HI-LO Shifter ... 703-3360 Link, Feedback ... 703-3610 Bracket, Lift Brace ... 703-04084 Bracket, Valve Mtg..703-3698A Handle, HI-LO Shifter ... -
Page 12: Dash Panel And Steering Wheel
-12- DASH PANEL AND STEERING WHEEL THROTTLE ASSEMBLY HARDWARE POSITIONS... - Page 13 -13- DASH PANEL AND STEERING WHEEL REF. PART NUMBER CODE DESCRIPTION 603-0711 Tab Assembly, Throttle ... 629-3061 Wire Harness, Dash ... 631-0076 Boot, Steering Shaft ... 631-04007A Dash ... 703-05132 Plate, Throttle Mtg..710-0604A Screw, Hex Wash. Hd. Tapp ... 5/16-18 x .625 710-0924 Screw, Pan Hd., 1/4-20 x .75 ...
-
Page 14: Controls
-14- CONTROLS... - Page 15 REF. PART NUMBER CODE DESCRIPTION 603-0671 Shaft Assembly, Brake ... 603-0672 Shaft Assembly, Forward ... 603-0673A Link Assembly, Pedal ... 603-0674A Plate, Bearing ... 603-0678 Link Assembly, Brake LH ... 603-0679A Link Assembly, Parking Brake .. 603-0680 Link Assembly, Brake RH ... 603-0749 Shaft Assembly, Differential ...
-
Page 16: Battery And Electrical
BATTERY AND ELECTRICAL REF. PART NUMBER † 629-3060 703-4104 703-4131 710-0206 710-0599 712-0324 712-0421 725-3174 725-3273 747-3433 † Not Shown -16- CODE DESCRIPTION Harness, Main Wire ... 0637 Strap, Battery Holddown ... Bracket, Fuse Center ... Screw, Hex Cap, 1/4-10 x .875 GR5 Screw, Hex Wash Hd. -
Page 17: Transmission Connections
REF. PART NUMBER CODE DESCRIPTION 603-0748 0637 Bracket, Lower Hitch RH ... 603-0751 0637 Bracket, Lower Hitch LH ... 603-0753 0637 Bracket, Top Link ... 603-0754A 0637 Bracket, Cylinder ... 603-0758 0637 Bracket, Drawbar ... 703-3542A Shield, PTO ... 777S30634 Graphic, Warning ... -
Page 18: 4Wd Transmission
-18- 4WD TRANSMISSION... - Page 19 REF. PART NUMBER CODE DESCRIPTION † 618-04059 Service Transmission Ass’y. — See Note below. 737-3025 Transmission Oil, 1 Qt. 737-3062 Transmission Oil, 1 Gal. 737-3035 Transmission Oil, 5 Gal. 759-3958 Sealant, Loctite 603-0688A Arm, Hydro Control ... 603-0712A Bracket, Transmission Mtg. RH 603-0713A Bracket, Transmission Mtg.
-
Page 20: Differential And Final Drive
DIFFERENTIAL AND FINAL DRIVE -20-... - Page 21 -21- DIFFERENTIAL AND FINAL DRIVE REF. PART NUMBER CODE DESCRIPTION 619-3060 Housing, Axle ... 661-3014 Brake Assembly, Drum ... 710-0538 Screw, Hex Cap Lock, ... 5/16-18 x .625 GR5 710-1695 Screw, Socket Hd. Cap, 3/8-16 x 1.0 ... 710-3119 Screw, Hex Cap Lock, 3/8-16 x .75 GR5 710-3238 Screw, Hex Cap Lock, ...
-
Page 22: 4Wd Traction Drive
-22- 4WD TRACTION DRIVE... - Page 23 -23- 4WD TRACTION DRIVE REF. PART NUMBER CODE DESCRIPTION 603-0906 Pin Assembly, 2 Speed ... 710-0573 Screw, Hex Cap Lock, ... 5/16-18 x 1.25 GR5 710-3006 Screw, Cup Set, 5/16-18 x 3/8 ... 711-1339 Shaft, Motor ... 711-1344 Shaft, Pinion, 16T ... 711-1372 Shaft, 4WD ...
-
Page 24: Pto Drive
-24- PTO DRIVE... - Page 25 REF. PART NUMBER CODE DESCRIPTION 618-3189 Clutch Assembly, PTO ... 619-3076A Housing, Rear ... 710-0538 Screw, Hex Cap Lock, ... 5/16-18 x .625 GR5 710-1238 Screw, Hex Wash Hd, ... 5/16-18 x .875 GR5 710-3006 Screw, Cup Set, 5/16-18 x 3/8 .. 710-3013 Screw, Hex Cap, 1/4-20 x .5 GR5 1 710-3118...
-
Page 26: Engine And Drive Shaft
ENGINE AND DRIVE SHAFT ENGINE -26-... - Page 27 REF. PART NUMBER CODE DESCRIPTION † 629-3062 Harness, Engine Wire ... 603-0744 0637 Bracket, Engine LH ... 603-0745 0637 Bracket, Engine RH ... 651-0007 Filter Assembly, Fuel ... 759-04009 Filter Element ... 703-3483 Plate, Radiator Baffle ... 777S30631 Graphic, Fan Warning ... 777S30633 Graphic, Warning ...
-
Page 28: Cylinder Assembly
REF. PART NUMBER BS-825341 BS-820129 BS-820056 BS-820031 BS-820176 BS-820042 BS-820016 BS-820004 BS-820151 BS-820375 BS-820147 BS-820063 BS-820062 BS-820061 BS-820314 BS-820851 BS-820102 BS-820145 BS-820146 -28- CYLINDER ASSEMBLY DESCRIPTION Cylinder Assembly (Includes 2,6 & 8) Bushing ... Seal, Oil ... Screw, Hex, 6mm ... Screw, Hex, 10mm ... -
Page 29: Crankshaft, Pistons And Flywheel
CRANKSHAFT, PISTONS & FLYWHEEL REF. PART NUMBER BS-825552 BS-825303 BS-825354 BS-825355 BS-825187 BS-825188 BS-820402 BS-825171 BS-820128 BS-820080 BS-820081 BS-820079 BS-820073 BS-820140 BS-820139 BS-820059 BS-820611 BS-820116 BS-820117 BS-820236 BS-820142 BS-825019 BS-825060 BS-825040 BS-825039 -29- DESCRIPTION Crankshaft ... Flywheel ... Piston Assembly, Standard ... Piston Assembly, .010 Oversize ... -
Page 30: Cylinder Head And Manifolds
CYLINDER HEAD AND MANIFOLDS REF. PART NUMBER DESCRIPTION BS-825347 Head, Cylinder ... BS-820660 Gasket, Cylinder Head ... BS-821003 Tube, Breather ... BS-820623 Screw, Metric ... 14 BS-825024 Cap, Oil Fill ... BS-820015 Stud, Metric ... BS-820078 Stud, Metric ... BS-820014 Stud, Metric ... -
Page 31: Fuel Injection System
REF. PART NUMBER DESCRIPTION BS-820031 Screw, Hex, 6mm ... BS-820414 Seal, O-Ring ... BS-820417 Nut, Hex Metric ... BS-820419 Nut, Hex Metric ... BS-820634 Bracket, Casing Clamp ... BS-820225 Clamp, Casing ... BS-820012 Screw, Casing Clamp ... BS-820592 Screw, Support Bracket ... BS-820272 Screw, Support Bracket ... -
Page 32: Camshaft And Valves
REF. PART NUMBER DESCRIPTION BS-820177 Washer, Flat ... BS-820404 Valve, Exhaust ... BS-820403 Valve, Intake ... BS-820406 Spring, Valve ... BS-820032 Screw, Hex, 6mm ... ‘ 3 BS-820111 Retainer, Valve ... BS-825042 Keeper, Valve, Set of 2 ... BS-820075 Screw, Metric ... BS-820110 Tappet, Valve ... -
Page 33: Lubrication
REF. PART NUMBER BS-825278 BS-825000 BS-820582 BS-820034 BS-820144 BS-820069 BS-820017 BS-820068 BS-825089 BS-820034 BS-820104 BS-820137 BS-820572 BS-825154 BS-825285 BS-820238 BS-820662 -33- LUBRICATION DESCRIPTION Plug, Oil Drain 16mm ... Switch, Oil Pressure ... Washer, Sealing ... Screw, Oil Pump Screen ... Tube, Dipstick ... -
Page 34: Crankcase Cover
REF. PART NUMBER BS-820055 BS-820425 BS-820029 BS-820027 BS-825185 BS-820377 BS-820069 BS-820061 -34- CRANKCASE COVER DESCRIPTION Seal, Oil ... Screw, Hex, 6mm ... Screw, Hex, 6mm ... Screw, Hex, 6mm ... Cover Assembly, Gear ... Gasket, Gear Cover ... Nut, Hex Metric ... Pin, Locating ... -
Page 35: Gear Housing
REF. PART NUMBER BS-820033 BS-820030 BS-820180 BS-820377 BS-820155 BS-820016 BS-820156 BS-820426 BS-825186 BS-825032 BS-820615 -35- GEAR HOUSING DESCRIPTION Screw, Hex, 6mm ... Screw, Hex, 6mm ... Screw, Hex, 8mm ... Gasket, Gear Cover ... Gasket, Gear Cover ... Stud, Metric ... Stud, Metric ... -
Page 36: Cooling
REF. PART NUMBER DESCRIPTION BS-820031 Screw, Hex, 6mm ... BS-820034 Screw, Hex, ... BS-820022 Screw, Hex, 8mm ... BS-820185 Screw, Metric ... BS-820181 Nut, Hex Metric ... BS-825064 Thermostat ... BS-820271 Belt, V ... BS-820208 Switch, Coolant Temperature ... BS-820052 Plug ... -
Page 37: Starter
REF. PART NUMBER DESCRIPTION BS-820767 Gear, Starter Drive ... BS-825222 Motor, Starter ... BS-820773 Screw, Starter Motor ... BS-825437 Terminal Kit, Solenoid ... BS-820067 Nut, Starter Motor Terminal ... BS-820719 Gasket, Solenoid Cover ... BS-820725 Boot, Terminal ... BS-820763 Screw, Solenoid Cover ... BS-825406 Drive, Starter ... -
Page 38: Alternator
REF. PART NUMBER DESCRIPTION BS-820692 Housing, Brush End ... BS-820711 Pulley, Alternator ... BS-820703 Cover, Brush ... BS-825084 Alternator ... BS-825385 Rectifier ... BS-825388 Regulator ... BS-820702 Screw, Rectifier ... BS-825383 Housing, Drive End ... BS-820819 Strap, Adjusting ... BS-820275 Screw, Support Bracket ... -
Page 39: Gasket Sets
REF. PART NUMBER DESCRIPTION BS-820056 Seal, Oil ... BS-820660 Gasket, Cylinder Head ... BS-820055 Seal, Oil ... BS-820407 Gasket, Intake ... BS-820377 Gasket, Gear Cover ... BS-820155 Gasket, Gear Cover ... BS-820582 Washer, Sealing ... BS-820064 Washer, Sealing ... BS-825380 Gasket Set ... -
Page 40: Hood, Grill And Side Panels
-40- HOOD, GRILL AND SIDE PANELS... - Page 41 -41- HOOD, GRILL AND SIDE PANELS REF. PART NUMBER CODE DESCRIPTION 603-0719 0637 Hinge Assembly, Hood ... 603-0784 0637 Bracket, Side Panel Mtg. RH ... 603-0785 0637 Bracket, Side Panel Mtg. LH ... 603-0924 0637 Bracket, Side Panel Mtg. RH Rear 603-0925 0637 Bracket, Side Panel Mtg.
-
Page 42: Fender And Running Board
-42- FENDER AND RUNNING BOARD... - Page 43 -43- FENDER AND RUNNING BOARD REF. PART NUMBER CODE DESCRIPTION 625-0023B Light Assembly, Rear RH ... 725-3262 Bulb Only, Tail Light ... 725-3263 Bulb Only, Reverse Indicator Light 629-3059 Harness, Tail Light ... 625-0024B Light Assembly, Rear RH ... 725-3262 Bulb Only, Tail Light ...
-
Page 44: Seat Assembly
Nut, Hex Flange Lock, 5/16-18 ... Switch, Snap Mount (N.O.) ... Spring, Compression, 1.28 x 3.5 ... Screw, Shoulder, .435 x .178-5/16-18 Spacer, .315 x .750 x .375 ... Seat, High Back ... Graphic, Cub Cadet ... Graphic, USA ... Belt Assembly, Seat ... QTY. -
Page 45: Fuel Tank
FUEL TANK REF. PART NUMBER CODE DESCRIPTION 703-3563 Bracket, Front Tank Mtg..710-0817 Screw, Hex Wash Hd Tapp ... 710-1260A Screw, Hex Wash Hd Tapp ... 735-0149 Bushing, Rubber ... 736-0231 Washer, Flat, .344 x 1.125 x .12 ... 751-3169A Tank, Fuel ... -
Page 46: Foldable Rops
FOLDABLE ROPS REF. PART NUMBER CODE DESCRIPTION 603-0716 603-0717 603-0858 603-0861 710-0376 710-0515 710-3032 710-3131 711-1610 712-3046 712-3058 712-3066 714-3003 725-3280 725-3286 736-0921 731-0757-16 -46- ROPS Assembly, Lower ... ROPS Assembly, Upper ... Mounting Assembly, ROPS RH ... Mounting Assembly, ROPS LH ... Screw, Hex Cap, 5/16-18 x 1.0 GR5 Screw, Hex Cap, 1/2-20 x 3.5 GR5 Screw, Hex Cap, 1/2-13 x 1.25 GR5... -
Page 47: Three Point Hitch
REF. PART NUMBER CODE DESCRIPTION 603-0750 Link, Lower Hitch ... 603-0756 Link, Lift - Fixed ... 603-0757 Link, Lift - Adjustable ... 603-0765 Link, Upper Center ... 603-0933 Chain Assembly, Check ... 711-0174 Pin, Clevis, .624 Dia..711-1105 Pin, Klik, 1.75 Lg..711-1432 Pin, Upper Lift Arm ... -
Page 48: Auxiliary Hydraulic Loader Valve (If Equipped)
AUXILIARY HYDRAULIC LOADER VALVE Primary Pump on Transmission (For Reference Only) -48- (IF EQUIPPED) - Page 49 -49- AUXILIARY HYDRAULIC LOADER VALVE (IF EQUIPPED) REF. PART NUMBER DESCRIPTION 603-0813 Pivot Bracket Assembly ... 603-0862 Valve Handle Assembly ... 703-3598-0637 Loader Valve Mount Bracket ... 703-3972-0637 Fitting Mount Plate ... 703-3973-0637 Rear Fitting Mount Plate ... 710-0501 Hex Screw, 1/4-20, 2.00, Gr5 ... 710-0599 Hex Wash.
-
Page 50: Wheels
WHEELS REF. PART NUMBER CODE DESCRIPTION 634-3045 Rim, TURF Tire - Front ... 634-04018 Rim, INDUSTRIAL Tire - Front ... 734-0255 734-3122 Tire, Turf ... 734-04020 Tire, Industrial ... 634-3046 Rim, TURF Tire - Rear ... 634-04017 Rim, INDUSTRIAL Tire - Rear ... 734-0255 734-3124 Tire, Turf ... - Page 51 -51- NOTES...
