Summary of Contents for Realtech REAL UV254 P200

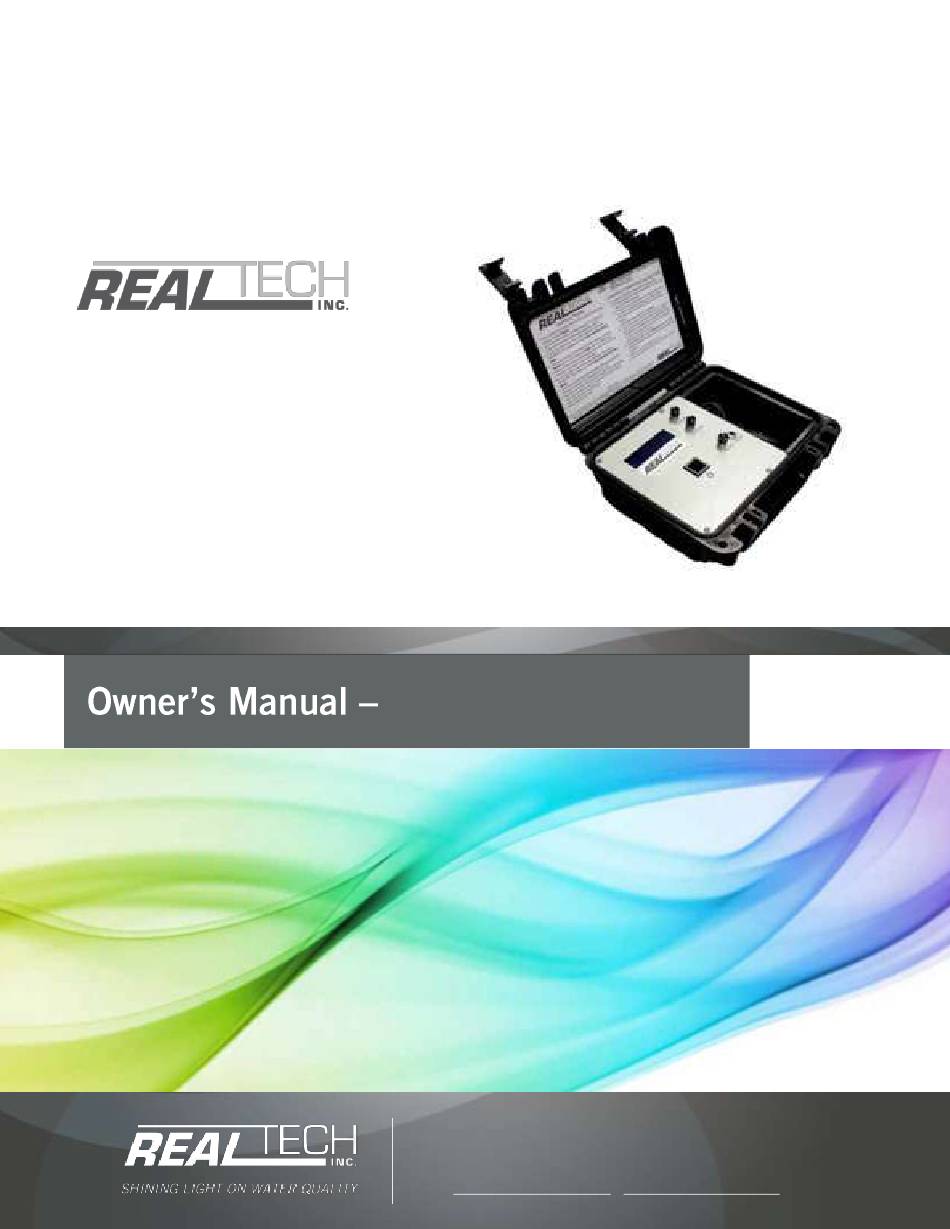

- Page 1 REAL UV254 P200 Version 1.5 1150 Champlain Court Whitby Ontario L1N 6K9 Canada T: 905.665.6888 TF: 1.877.779.2888 F: 905.665.7025 info@realtechwater.com www.realtechwater.com...
-
Page 2: Table Of Contents
UV Lamp Replacement _______________________________________________________________ 11 Replacing the Fuse __________________________________________________________________ 12 10 Battery Pack Option _________________________________________________________________ 12 11 Parts and Accessories ________________________________________________________________ 13 12 Dimensions ________________________________________________________________________ 14 13 Appendix A Grab Sample Data Collection ______________________________________________ 15 14 Warranty ___________________________________________________________________________ 16 Real UV254 P200 Version 1.5... -
Page 3: Overview
OVERVIEW Thank you for purchasing the Real UV254 P200. The Real UV254 P200 is a portable UV 254nm organic testing meter which -Sense technology. HOW THE REAL UV254 P200 WORKS -Sense technology is designed to take sensor readings before and after insertion of the quartz cuvette containing the water sample. -
Page 4: Safety And Warranty Registration
Online registration is very quick and simple as all you need to do is go to the below website link and fill out all of the required information: www.realtechwater.com/product-registration Thank you for choosing Real Tech! Real UV254 P200 Version 1.5... -
Page 5: Technical Specifications
12VDC 1A wall adapter (accepts 90-250 VAC 50/60 Hz), 12 VDC car adapter STORAGE TEMP -20 to 60°C (-4 to 140°F) OPERATING TEMP 0 to 45°C (32 to 113°F) WARRANTY 2 year limited warranty TECHNOLOGY Split-Sense OPTIONS Battery power-pack Real UV254 P200 Version 1.5... -
Page 6: Unpacking/Guide
UNPACKING/GUIDE UNPACKING To begin, remove the Real UV254 P200 from the packaging and carefully inspect the instrument to ensure that no visible damage has occurred during shipping. The product will include the following items: Table 2: Items and quantity list for unpacking... -
Page 7: Operator Interface
1. Plug in the power cord and press POWER to turn the meter on. After a short warm- Note: Real UV254 P200 meter with battery option requires the switch on the battery pack to be in the ON position before pressing the POWER button. -
Page 8: Calibration
6.4.1 CALIBRATION MEMORY The Real UV254 P200 meter has the ability to retain calibration settings in memory. This feature eliminates the need to re-zero the meter prior to each individual water sample being tested (even after powering the meter off and on). -
Page 9: Correlated Values
TOC and UVA yields a slope of 32. Grab Lab Value UVA vs. TOC Sample (TOC in mg/L) 7.00 0.05 2.50 y = 32x 6.00 0.08 3.00 5.00 0.10 3.30 4.00 0.15 4.50 0.20 6.00 3.00 2.00 1.00 0.00 0.05 0.15 0.25 Real UV254 P200 Version 1.5... - Page 10 This may help keep your ratio relevant to present-day conditions. Grab Ratio or TOC (mg/L) Sample Slope (UVA x Ratio) 2.04 0.06 2.38 0.07 3.06 0.09 Real UV254 P200 Version 1.5...
-
Page 11: Cleaning And Storage
CLEANING Ensuring the quartz cuvette is clean will contribute to optimal performance of the Real UV254 P200. Not only should the outside of the cuvette be clean and dry as note cuvette should also be cleaned on a regular basis to avoid accumulation of mineral deposits and other fouling agents present in the test water. -
Page 12: Uv Lamp And White Lamp
UV LAMP AND WHITE LAMP There are two lamps inside the Real UV254 P200 meter as shown in Fig. 1: A low-pressure mercury UV lamp and a white light. In the event that the meter s display reads Lamp Stabilizing for an extended period of time without entering Ready mode, the UV lamp and white light should be checked. -
Page 13: Replacing The Fuse
Power the meter on to ensure the meter functions correctly. 10 BATTERY PACK OPTION The Real UV254 P200 meter features a battery-pack option. The battery pack option is a permanent fixture inside of the meter that must be purchased with the P200. -
Page 14: Parts And Accessories
12 VDC 1A wall adapter power supply UVT-066091 Car Adapter 12 VDC car adapter power supply UVT-046020 Battery Pack P Series Battery power pack for P Series UVT-068010 Battery Charger 13.8 VDC battery pack P series power supply UVT-066011 Real UV254 P200 Version 1.5... -
Page 15: Dimensions
12 DIMENSIONS Real UV254 P200 Version 1.5... -
Page 16: Appendix Agrab Sample Data Collection
13 APPENDIX A GRAB SAMPLE DATA COLLECTION Grab Sample # Lab Value Grab Sample # Lab Value Real UV254 P200 Version 1.5... -
Page 17: Warranty
Real Tech. authorized by Real Tech. FOR FURTHER ASSISTANCE OR SERVICE PLEASE CONTACT: Real Tech Inc. 1150 Champlain Court Whitby ON L1N 6K9 Canada Toll Free: 1.877.779-2888 Tel: 905.665.6888 Fax: 905.665.7025 Email: service@realtechwater.com Website: www.realtechwater.com Real UV254 P200 Version 1.5...
