Hygienic 90666 How To Assemble

Item No. 90666
Hygienic Bath Chair
HOW TO
ASSEMBLE YOUR Hygienic
Bath Chair with Back and Arms
Capacity not to exceed 135Kg

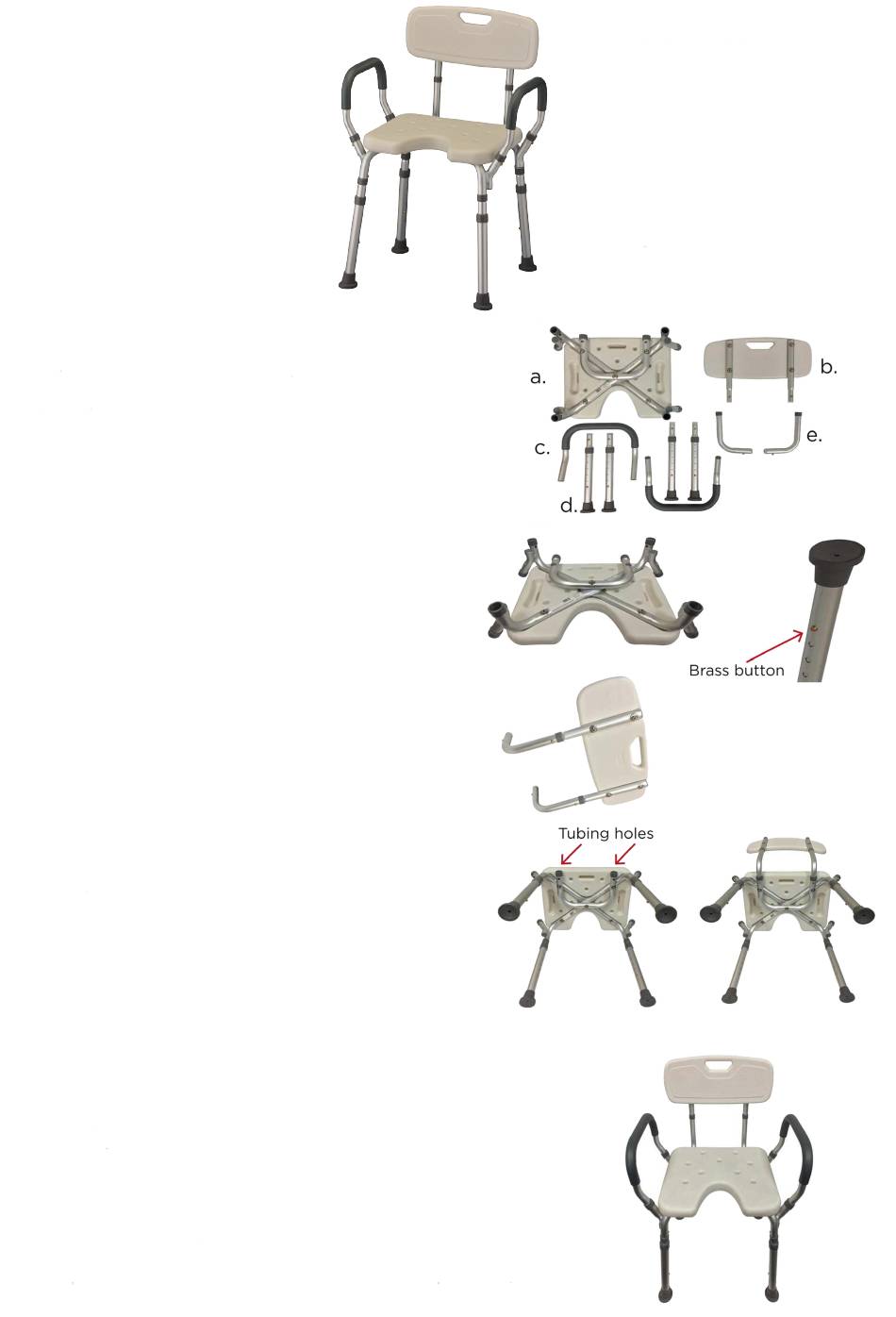

Remove all parts from box:
(Be sure all parts are included before assembling)
a. (1) Seat
b. (1) Backrest
c. (2) Arms
d. (4) Legs
e. (2) L-shaped back tubes
Place the seat face down on a level surface. Insert
the four legs into the frame. Depress the brass but­
ton and push the tube in until the button "clicks" and
locks into position.
Insert the L-shaped back tubes into the backrest
tubes until the brass button "clicks" into locked
position.
Turn the chair on its side so that the tubing holes
are facing upward. Insert backrest into tubing holes
until the brass buttons "click" and lock into position.
Place the chair upright so that it is resting evenly on all
four legs and insert the arms into the frame. Depress
both brass buttons and push down until the brass buttons
"click" and lock into position. Repeat this step for the
opposite arm. (Note: Arms should curve inwards towards
each other)
Use the push buttons and numbered holes to adjust the
stool to the desired seat height. Be sure the Bath Seat
is level, stable and all push buttons fully engaged before
using.
