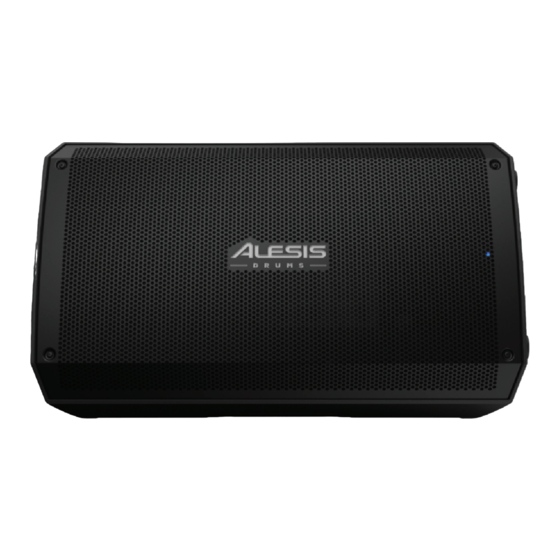

Summary of Contents for Alesis Drums STRIKE AMP 12
- Page 1 User Guide (English)
-
Page 2: Table Of Contents
(2.3) Sound Level ................5 (3.0) Setup ..............6 (3.1) Example A: One STRIKE AMP 12 MK2 (Mono) ....6 (3.2) Example B: Two STRIKE AMP 12 MK2s (Stereo) .... 7 (3.3) Example C: Two STRIKE AMP 12 MK2s (Mono) ....8 (4.0) Features .............. -
Page 3: (1.0) Introduction
(1.0) Introduction (1.1) Box Contents STRIKE AMP 12 MK2 Power Cable Quickstart Guide Safety & Warranty Manual (1.2) Support For the latest information about this product (documentation, technical specifications, system requirements, compatibility information, etc.) and product registration, visit alesis.com. For additional product support, visit alesis.com/support. -
Page 4: (2.0) Important Safety Precautions
Please refer to the included safety and warranty manual for more information. Caution: To reduce the risk of electric shock, do not connect a STRIKE AMP 12 MK2 loudspeaker to a power outlet while the grille is removed. -
Page 5: (2.3) Sound Level
(2.3) Sound Level Permanent hearing loss may be caused by Hours per day SPL (dB) Example exposure to extremely high noise levels. The Small gig U.S. Occupational Safety Health Train Administration (OSHA) specified Subway train permissible exposures to certain noise levels. -
Page 6: (3.0) Setup
(1.1) Introduction > Box Contents Items not listed under are sold separately. (3.1) Example A: One STRIKE AMP 12 MK2 (Mono) Connect the Left (Mono) output of your drum module to the input on a STRIKE AMP 12 MK2. Smartphone Drum Module Power... -
Page 7: (3.2) Example B: Two Strike Amp 12 Mk2S (Stereo)
(3.2) Example B: Two STRIKE AMP 12 MK2s (Stereo) Connect the Right and Left (Mono) outputs of your drum module to the inputs of your STRIKE AMP 12 MK2. Drum Module Surge Power Protector... -
Page 8: (3.3) Example C: Two Strike Amp 12 Mk2S (Mono)
(3.3) Example C: Two STRIKE AMP 12 MK2s (Mono) Connect the Left (Mono) output of your drum module to the input of one STRIKE AMP 12 MK2, and then connect the Mix Out of that STRIKE AMP 12 MK2 to the input of another. -
Page 9: (4.0) Features
F. Mix Out Use a standard XLR cable (not included) to connect this output to a mixer or the input of another loudspeaker (i.e., another STRIKE AMP 12 MK2). G. HPF If the speaker sounds too muddy or boomy due to a large stage or rehearsal room, press this button to reduce... - Page 10 H. Ground Press this button to reduce hum or noise. Bluetooth ® Pair Press and release this button to put the speaker into Bluetooth Pairing mode, and then select "STRIKE AMP 12 MK2" from your device's Bluetooth settings. To disconnect a paired Bluetooth device, press and release (5.1) Pairing a Bluetooth Device this button again.
-
Page 11: (5.0) Operation
(5.0) Operation (5.1) Pairing a Bluetooth Device 1. Power on the STRIKE AMP 12 MK2. The Bluetooth LED will not be lit when the speaker is first powered on unless it was previously paired with a device before being powered off. -
Page 12: (6.0) Troubleshooting
If this does not work, and you have connected to STRIKE AMP 12 MK2 before, press and hold the Bluetooth Pair button on STRIKE AMP 12 MK2 for 10 seconds. Turn STRIKE AMP 12 MK2 off and back on and try pairing again once it reappears in your available devices list. -
Page 13: (7.0) Appendix
(7.0) Appendix (7.1) Technical Specifications Output Power 2500 W Drivers Low-Frequency: 12.0” (305 mm) driver, 2.5” (63 mm) high-temperature voice coil. High-Frequency: 1.0” (25 mm) exit ceramic driver with 1.4” (35 mm) coil. 2 kHz Crossover Frequency 132 dB (peak) dB-SPL @ 1 m Maximum SPL 53 Hz –... -
Page 14: (7.2) Trademarks & Licenses
(7.2) Trademarks & Licenses Alesis is a trademark of inMusic Brands, Inc., registered in the U.S. and other countries. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc., and any use of such marks by Alesis is under license. All other product names, company names, trademarks, or trade names are those of their respective owners. - Page 15 alesis.com Manual Version 1.1...
